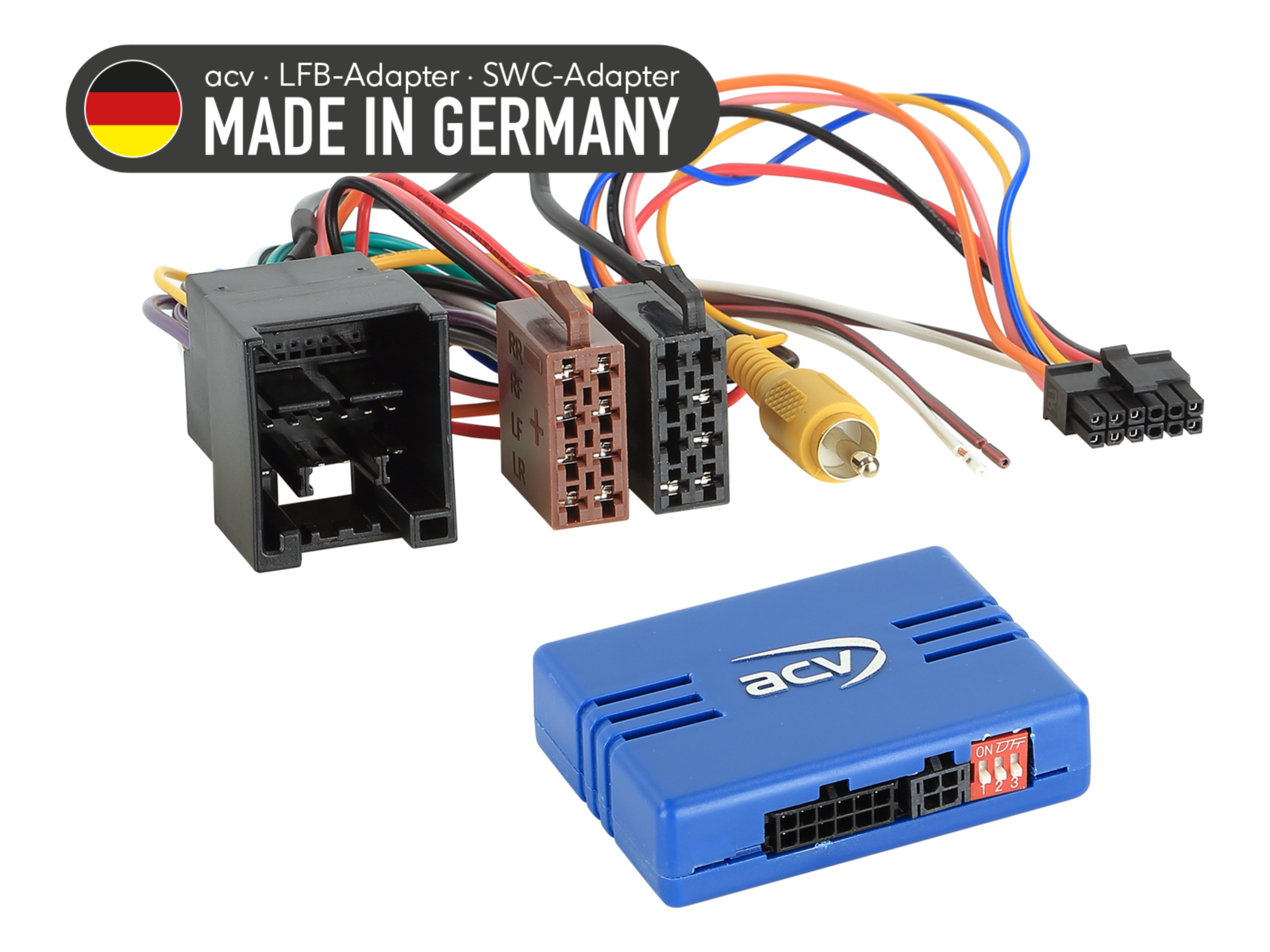

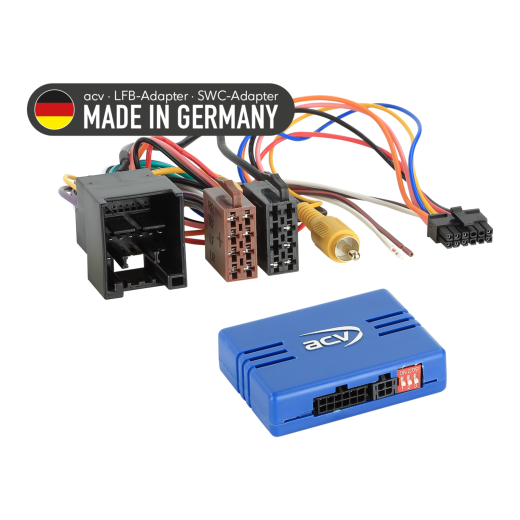

Steering wheel button control adapter for Ford ACV SWC 42A-1124-000-0

steering wheel adapter for Ford Transit V363 [FAC/FAD] (19->20), Transit V363 [FAC/FAD] (20->24), Transit Custom [FAC/FAD] (18->23), Transit Custom [FAC/FAD] (23->24), Transit Connect [PJ2] (18->24)
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

Steering wheel button control adapter for Ford ACV SWC 42A-1124-000-0

Description and parameters
Comments0
Evaluation0
Category

Steering Wheel Control Adapter for Ford ACV SWC 42A-1124-000-0

Maintain the original steering wheel radio control functions when replacing the factory radio with an aftermarket unit. Depending on the vehicle's equipment, the range of functions, and the software of the newly installed radio, some functions may be limited or replaced by others. Compare the displayed wiring connectors with those in your vehicle to ensure they match both technically and visually. Verify if one of the listed OEM radios was originally installed. Before final installation, check the vehicle's functionality, system settings, and proper steering wheel control (SWC) operation.

Designed for Vehicles

Ford Transit V363 [FAC/FAD] (06/2019 -> 08/2020) - original OEM radio. Function not guaranteed for vehicles from 2020; +12 V ignition (terminal 15) may not be supported in all vehicles.
Ford Transit V363 [FAC/FAD] (08/2020 -> 2024) - original OEM radio. Function not guaranteed for vehicles from 2020; +12 V ignition (terminal 15) may not be supported in all vehicles.
Ford Transit Custom [FAC/FAD] (01/2018 -> 06/2023) - original OEM radio.
Ford Transit Custom [FAC/FAD] (07/2023 -> 2024) - original OEM radio.
Ford Transit Connect [PJ2] (06/2018 -> 2024) - original OEM radio.

CAN Bus Information

Connectors and Power Supply:

Connector: 32-pin Ford.
Connector: OEM rear camera → RCA (male) yellow.

CAN Setup and Interface:

Check DIP switches according to the instructions.
Vehicles with CAN Bus (used for reading SWC and signals).

OEM Rear Camera – Connection and Troubleshooting

Verify pin assignments by measuring on the OEM HU before connecting.
If the camera image flickers: connect video(-) Pin 25 to Pin 24.
Verify PDC acoustic tones: not supported in all vehicles.

Provided Signals

Pink: +12 V ignition terminal 15, max. 1.5 A.
Orange: +12 V lighting terminal 58, max. 0.1 A.
White: +12 V reverse, max. 1.5 A.
Yellow/green, yellow/red: speed pulse.

Important Additional Information

For full adapter activation, a connecting cable for the specific radio brand is required.

General Installation Guidelines

Pre-installation Verification:

Check all control functions and settings of the vehicle with the original OEM head unit.
Disconnect the original radio (OEM HU) without power.
Check all interface connections to ensure they are correctly connected – without power.

Connection and Installation Order:

Check the interface settings and HW configuration – without power.
Check the connection cable configuration to the HU – without power.
Connect the cable to the HU according to the instructions for the aftermarket device.
Connect other wires according to the device instructions.
Connect the entire installation with the vehicle – connect the main power connection last.
Perform software configuration of the interface according to the product description or instructions.
Configure the aftermarket HU (e.g., steering wheel control, camera, hands-free, antenna power).
Perform a functional test of the steering wheel control and vehicle communication.

Interface and HU Cable Configuration Change:

Make any changes without power.
Repeat steps 5 to 8 mentioned above.

In Case of Interface or Vehicle System Failure:

Reinstall the original OEM HU.
Start the original unit.
Trigger the CAN Bus system shutdown.
Check the interface HW configuration.
After CAN Bus shutdown, repeat steps 5 and 6 mentioned above.

When Modifying Connections or Cable Routing:

Only professionally trained personnel should perform connections and modifications.
All changes must be verified for manufacturer approval or vehicle warranty impact before connecting.
All modifications must be verified by measurement and comparison with the vehicle's wiring diagram before connecting.
Modifications are at your own risk, without warranty for functionality.
Modifications are at your own risk, with no guarantee against vehicle, device, or interface damage.
Modifying pre-installed cabling may lead to product warranty loss.
