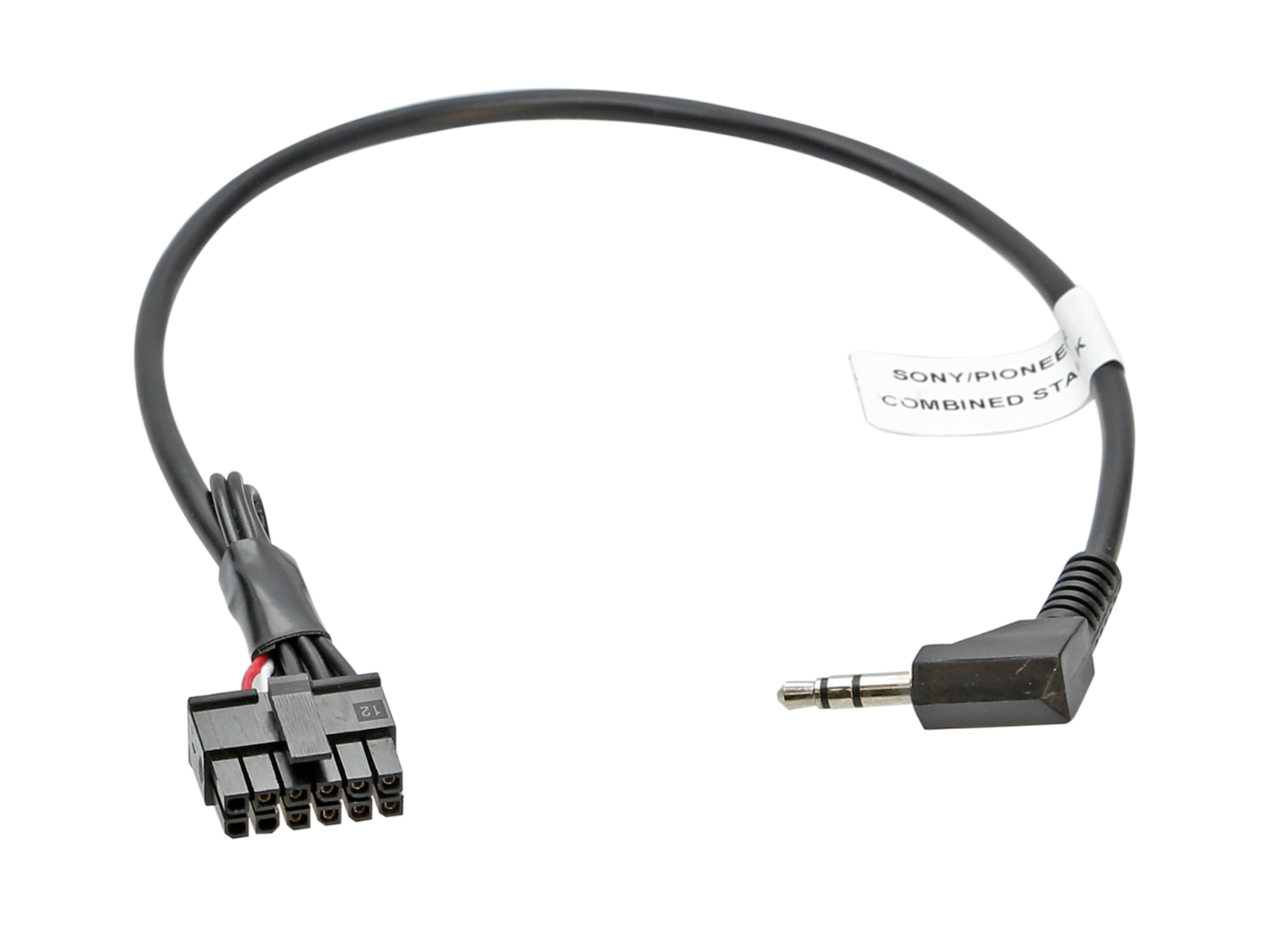

Connecting cable 42CTSONYLEAD-0

Interconnect cable for steering wheel adapter 42CTSONYLEAD-0

• Interconnect (patch) cable for connecting Blaupunkt (2010 ->), Kenwood (2017 ->) and Sony car radios to the ACV steering wheel control adapter (LFB/SWC).
• Car radio manufacturers use different types of control inputs: single-wire, two- and multi-wire (Key1/Key2/GND) or 3.5 mm jack – the exact variant is always specified in the BDA (manual) of the specific radio.
• All required connection wires must be connected before connecting the interface to the vehicle.
• For some radios it is necessary to additionally "teach" (remap) the steering wheel button functions in the unit menu according to the radio manufacturer's BDA.
• Always test correct operation before final installation.

Notice

• Connection: 12-pin Microfit → 3.5 mm jack.
• LFB interconnect cable for ACV 42s-xxxxx interfaces and Infodapter 43u-xxxx.
• Configuration according to the BDA/manual of the specific car radio.
• Must be ordered together with the corresponding steering wheel adapter.
• Information on how steering wheel adapters and their interconnect cables work can be found in the article.

Intended for head units:

• Blaupunkt 2010 -> – connection 3.5 mm jack.
• Kenwood 2017 -> – connection 3.5 mm jack.
• Sony – connection 3.5 mm jack.
