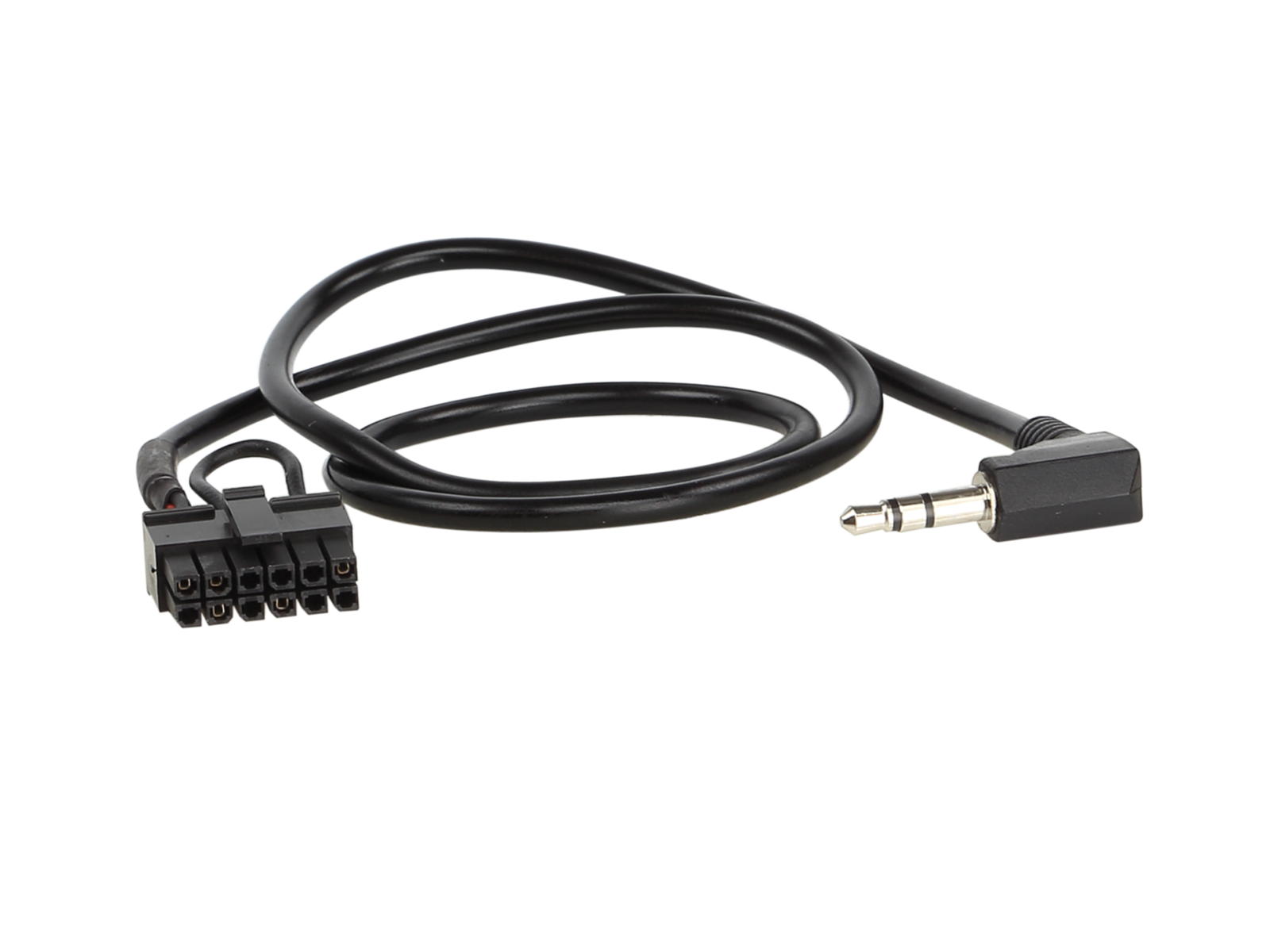

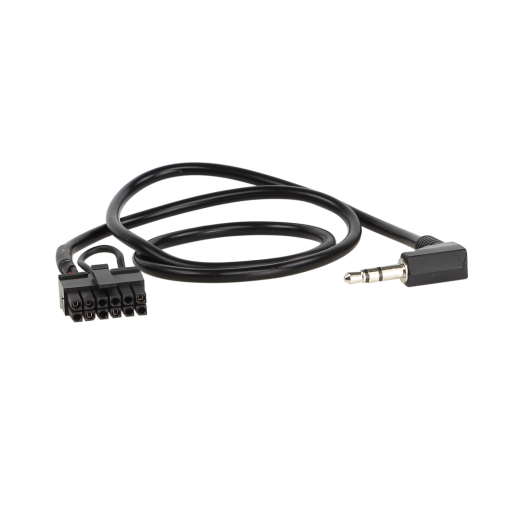

Connecting cable 42C-3414105

Connecting cable for steering wheel adapter 42C-3414105

• Connecting (patch) cable for attaching aftermarket Alpine head units to the Speedsignal steering wheel control adapter (LFB/SWC).
• Car radio manufacturers use various types of control inputs: single-wire, two- and multi-wire (Key1/Key2/GND) or input via 3,5 mm jack – the exact variant is always specified in the BDA (manual) of the specific radio.
• All connections must be made before connecting the interface to the vehicle.
• For some radios it is necessary to additionally "teach" (remap) the steering wheel button functions in the unit’s menu according to the radio manufacturer’s manual.
• Always test correct operation before final installation.

Notice

• Connection: 12pin Microfit → 3,5 mm jack.
• LFB interconnect cable for Speedsignal interface 42b-xxxxxxx.
• Bridging – without resistor.
• Must be ordered together with the appropriate steering wheel adapter.
• Information on how steering wheel adapters and their interconnect cables work can be found in the product documentation and related articles.

Intended for head units:

• Alpine – 3,5 mm jack connection.
