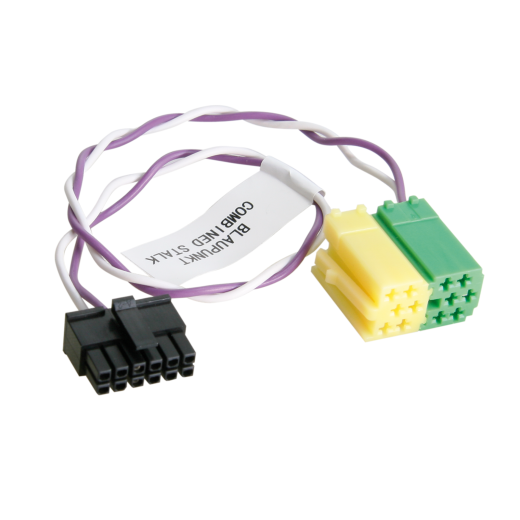

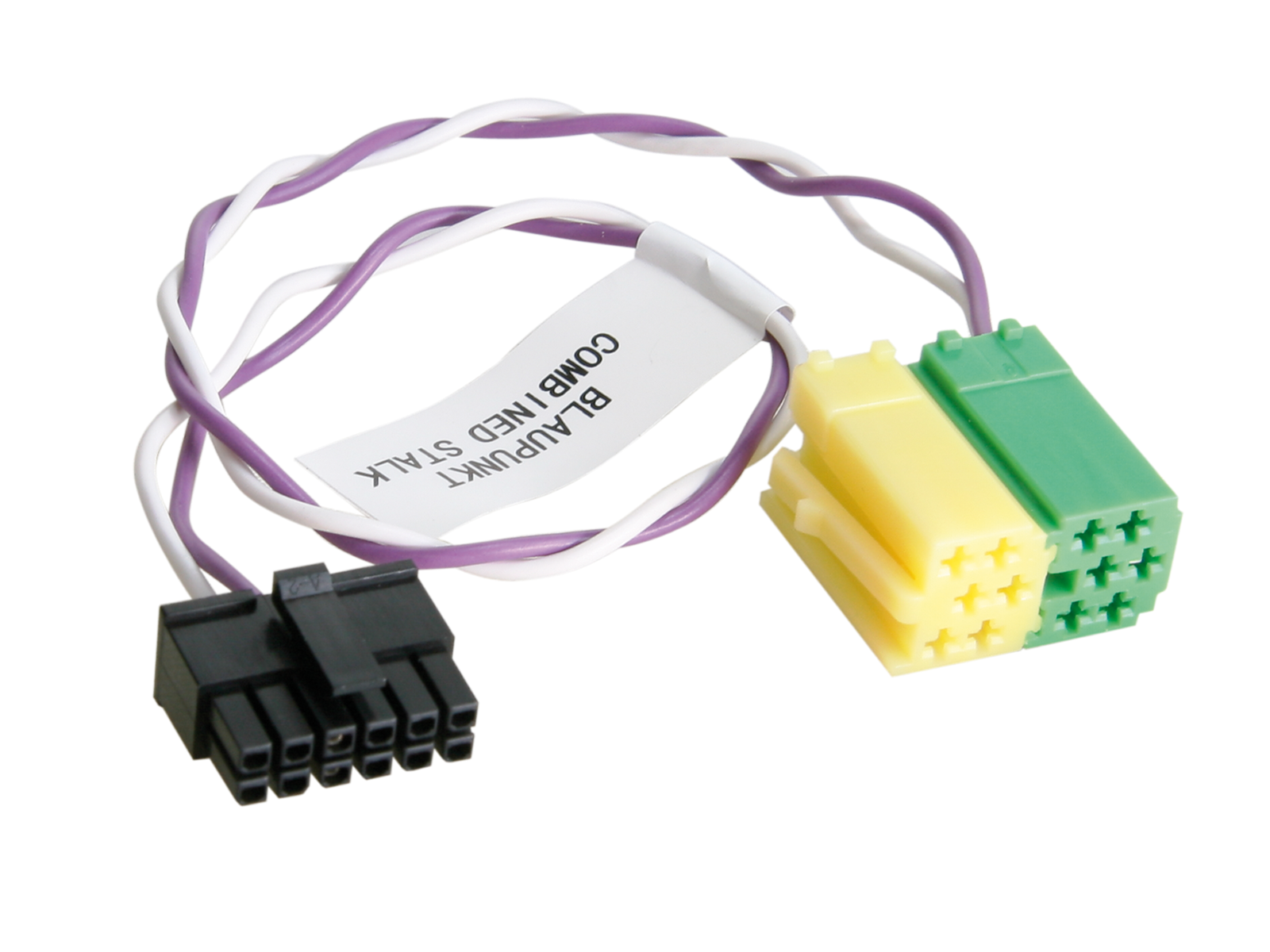

Connecting cable 42CTBLAUPUNKTLEAD

Connecting cable for steering wheel adapter 42CTBLAUPUNKTLEAD

• Connecting (patch) cable for connecting aftermarket Bosch-Blaupunkt 2010 head units to the ACV steering wheel control adapter (LFB/SWC).
• Different head unit manufacturers use different types of control inputs: single‑wire, two‑ and multi‑wire (Key1/Key2/GND) or 3.5 mm jack – the exact variant is always listed in the BDA (manual) of the specific head unit.
• All required connection wires must be connected before plugging the interface into the vehicle.
• For some head units it is necessary to additionally "teach" (remap) the steering wheel button functions in the unit menu according to the instructions in the head unit's BDA.
• Always test proper function before final installation.

Notice

• Connection: 12‑pin Microfit → Mini ISO (green) connector.
• Patch cable LFB for ACV interfaces 42s-xxxxx and Infodapter 43u-xxxx.
• Atoto aftermarket units are not supported.
• Must be ordered together with the appropriate steering wheel adapter.
• Information on how steering wheel adapters and their patch cables work can be found in the article.

Intended for head units:

• Bosch-Blaupunkt 2010 -> – connection to Mini ISO green connector.
