Interconnect cable 42CTCLARIONLEAD-0

Patch cable for steering wheel adapter 42CTCLARIONLEAD-0

• Patch cable for connecting aftermarket Clarion car radios to the ACV steering wheel control adapter (LFB/SWC).
• Different radio manufacturers use different types of control inputs: single‑wire, two‑ and multi‑wire, or 3.5 mm jack — the exact variant is always specified in the radio's manual (BDA).
• All required connection wires must be connected before connecting the interface to the vehicle.
• For some radios it is necessary to "teach" (remap) the steering wheel button functions in the unit's menu according to the radio manufacturer's manual (BDA).
• Always test correct operation before final installation.

Notice

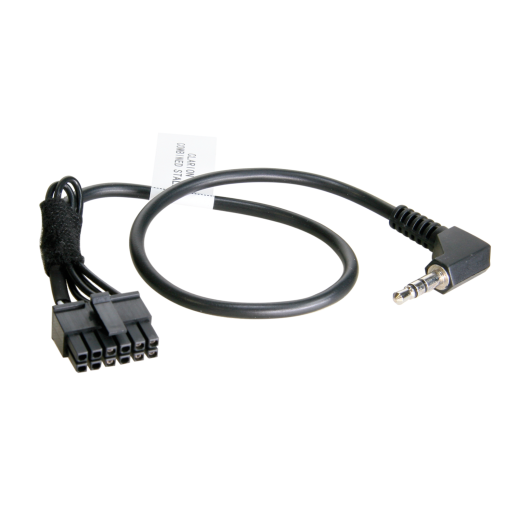

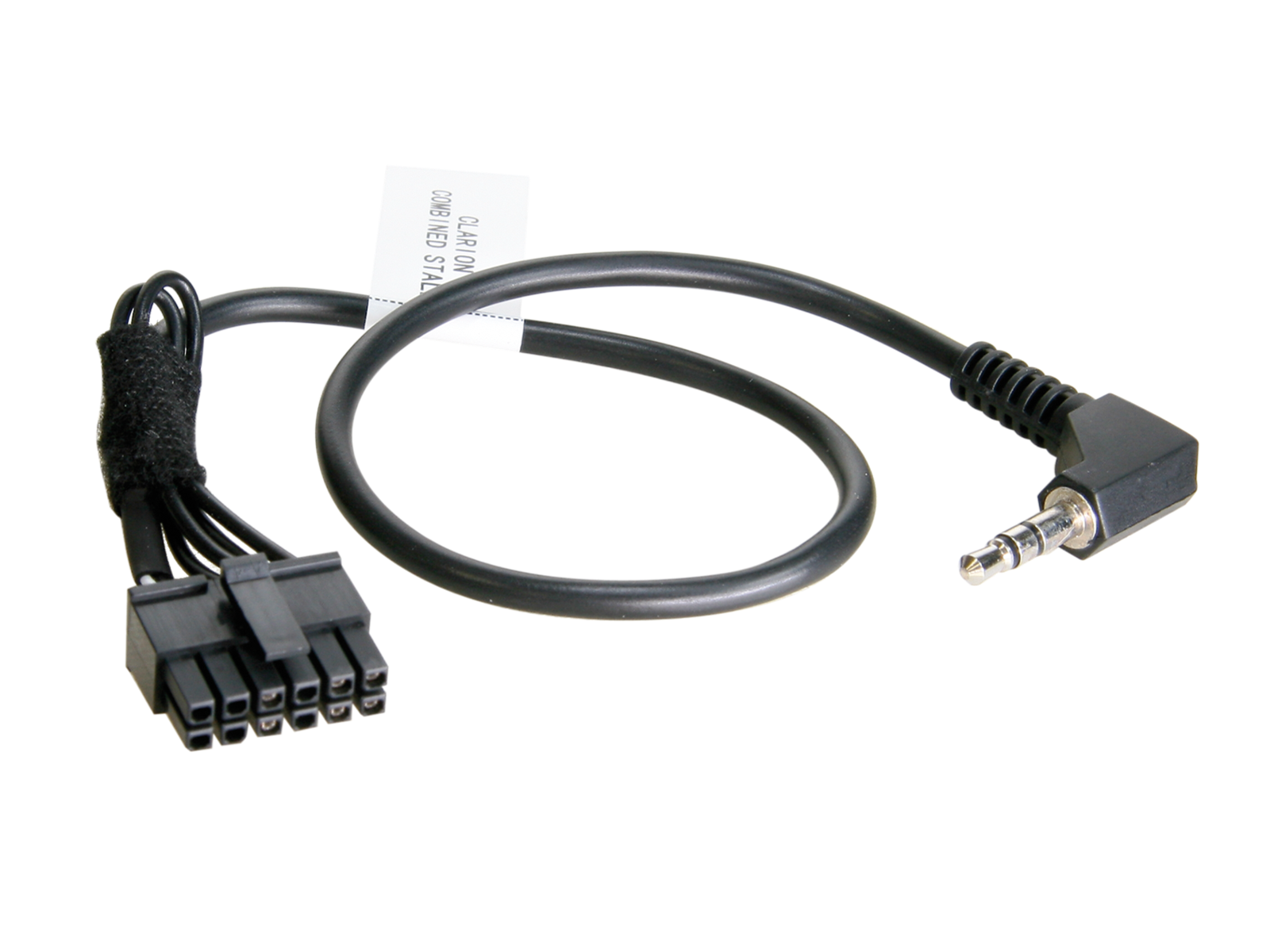

• Connection: 12-pin Microfit → 3.5 mm jack.
• Patch cable LFB for ACV interface 42s-xxxxx and Infodapter 43u-xxxx.
• Must be ordered together with the appropriate steering wheel adapter.
• Information on how steering wheel adapters and their patch cables work can be found in the article.

Intended for head units:

• Clarion – 3.5 mm jack connection.
