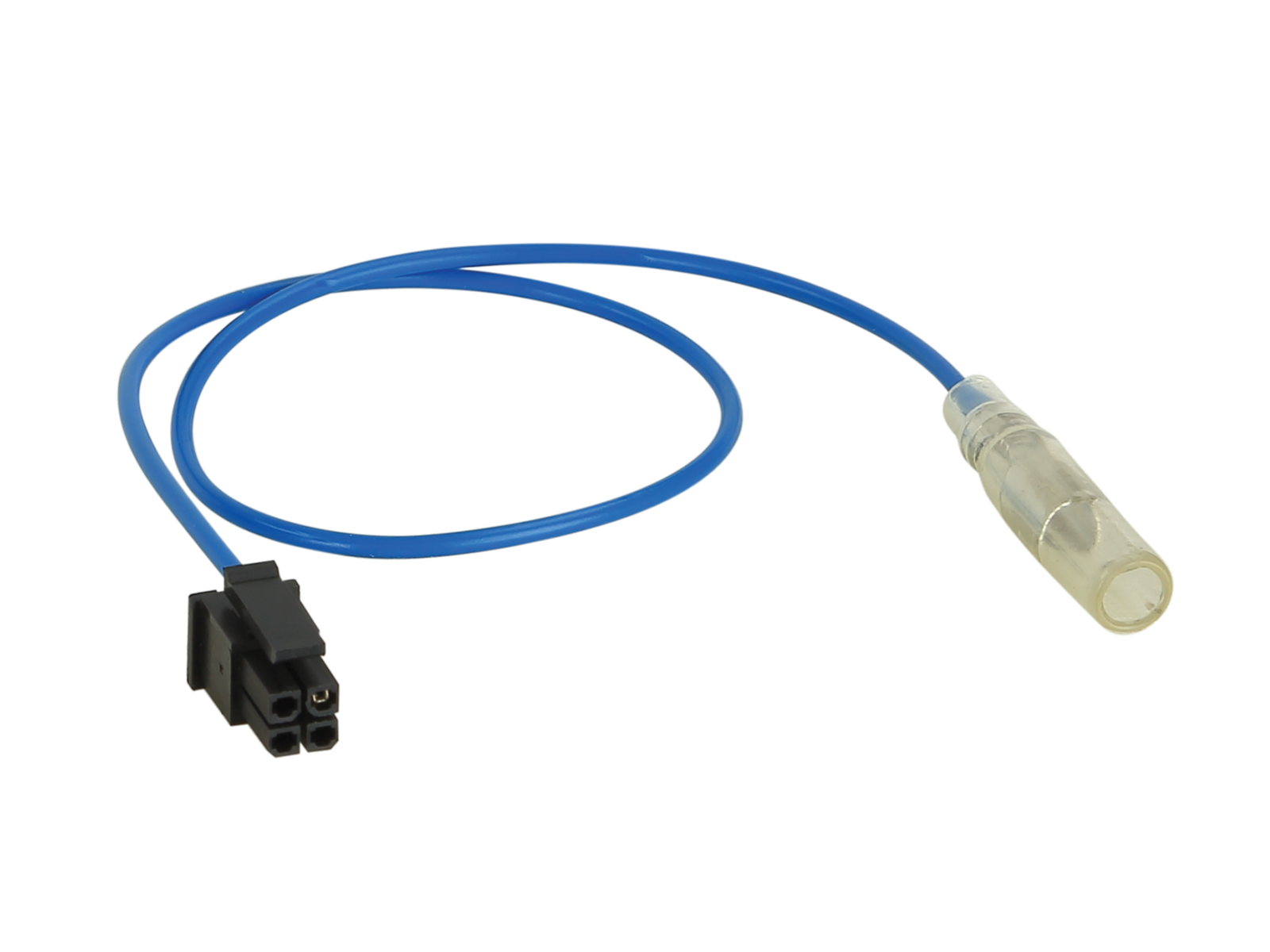

Connecting cable 42ARC108

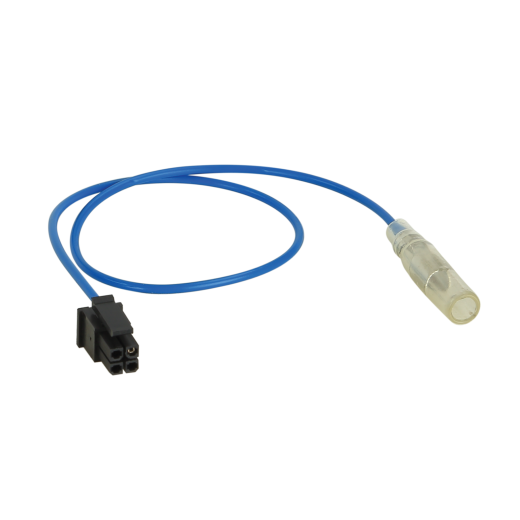

Connection cable for steering wheel adapter 42ARC108

• Connection (patch) cable for connecting aftermarket car radios Digital Dynamics, XZent and Zenec to the steering wheel control adapter (LFB/SWC).
• Different radio manufacturers use different types of control inputs: single-wire, two- and multi-wire (Key1/Key2/GND) or input via a 3.5 mm jack – the exact variant is always specified in the BDA (manual) of the specific radio.
• All required connection wires must be connected before connecting the interface to the vehicle.
• For some radios it is necessary to additionally "teach" (remap) the steering wheel button functions in the unit's menu according to the instructions in the radio manufacturer's BDA.
• Always test proper function before final installation.

Warning

• Connection: 4-pin Molex → single-wire input.
• LFB patch cable for interface 42cx401 (compatible with kits 42a-xxxx-xxx).
• DIP switch settings: according to the table below (ON/OFF mode).
• Atoto aftermarket units are not supported.
• Must be ordered together with the appropriate steering wheel adapter.
• Information on how steering wheel adapters and their patch cables work can be found in the product documentation.

Designed for head units:

• Digital Dynamics – single-wire connection.
• XZent – single-wire connection.
• Zenec – single-wire connection.

DIP switch settings for 42cx401:

• Digital Dynamics – OFF / OFF / ON.
• XZent – OFF / OFF / ON.
• Zenec – OFF / OFF / ON.
