Interconnect cable 42CTCHINAHULEAD-0

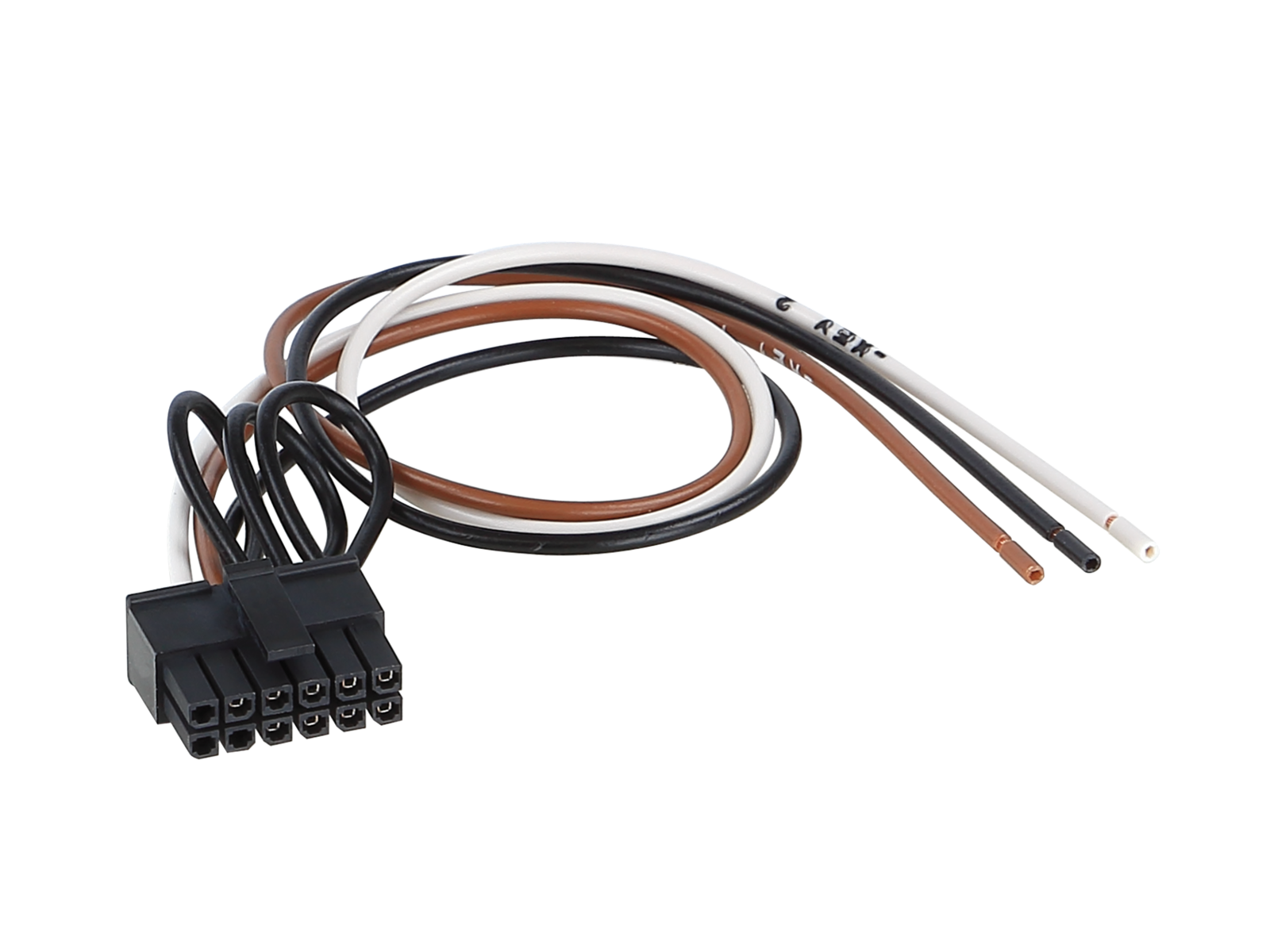

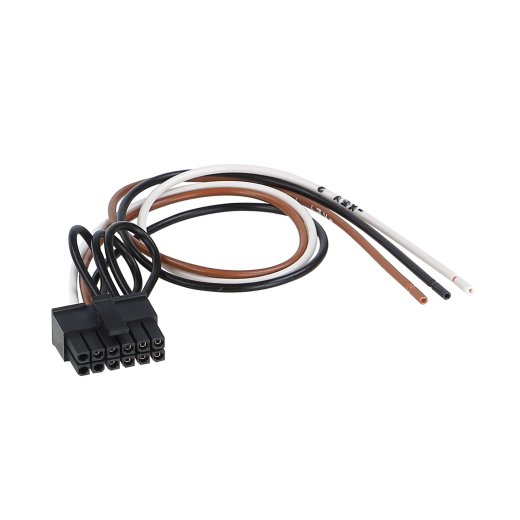

Interconnect cable for steering wheel adapter 42CTCHINAHULEAD-0

• Interconnect (patch) cable for connecting aftermarket car radios Blaupunkt, China HU, ESX, Kenwood 2020 onwards, Snooper and XZent to the ACV steering wheel control adapter (LFB/SWC).
• Different radio manufacturers use different types of control inputs: single-wire, two- and multi-wire (Key1/Key2/GND) or 3.5 mm jack – the exact variant is always stated in the specific radio's BDA (manual).
• All required connection wires must be connected before connecting the interface to the vehicle.
• For some radios it is necessary in the unit menu to additionally "learn" (remap) the steering wheel button functions according to the radio manufacturer's BDA instructions.
• Always test correct operation before final installation.

Notice

• Connection: 12-pin Microfit → Key1 / Key2 / GND.
• Wire colours: white = Key2, brown = Key1, black = GND.
• Interconnect LFB cable for ACV interface 42s-xxxxx and Infodapter 43u-xxxx.
• Atoto aftermarket units are not supported.
• Must be ordered together with the appropriate steering wheel adapter.
• For information on how steering wheel adapters and their interconnect cables work, consult the product documentation.

Designed for head units:

• Blaupunkt 2010 onwards – connection Key1 / Key2 / (GND).
• China HU – connection Key1 / Key2 / (GND).
• ESX – connection Key1 / Key2.
• Kenwood 2020 onwards – connection Key1 / Key2 / GND.
• Snooper – connection Key1 / Key2.
• XZent – connection Key1 / Key2 / GND.
