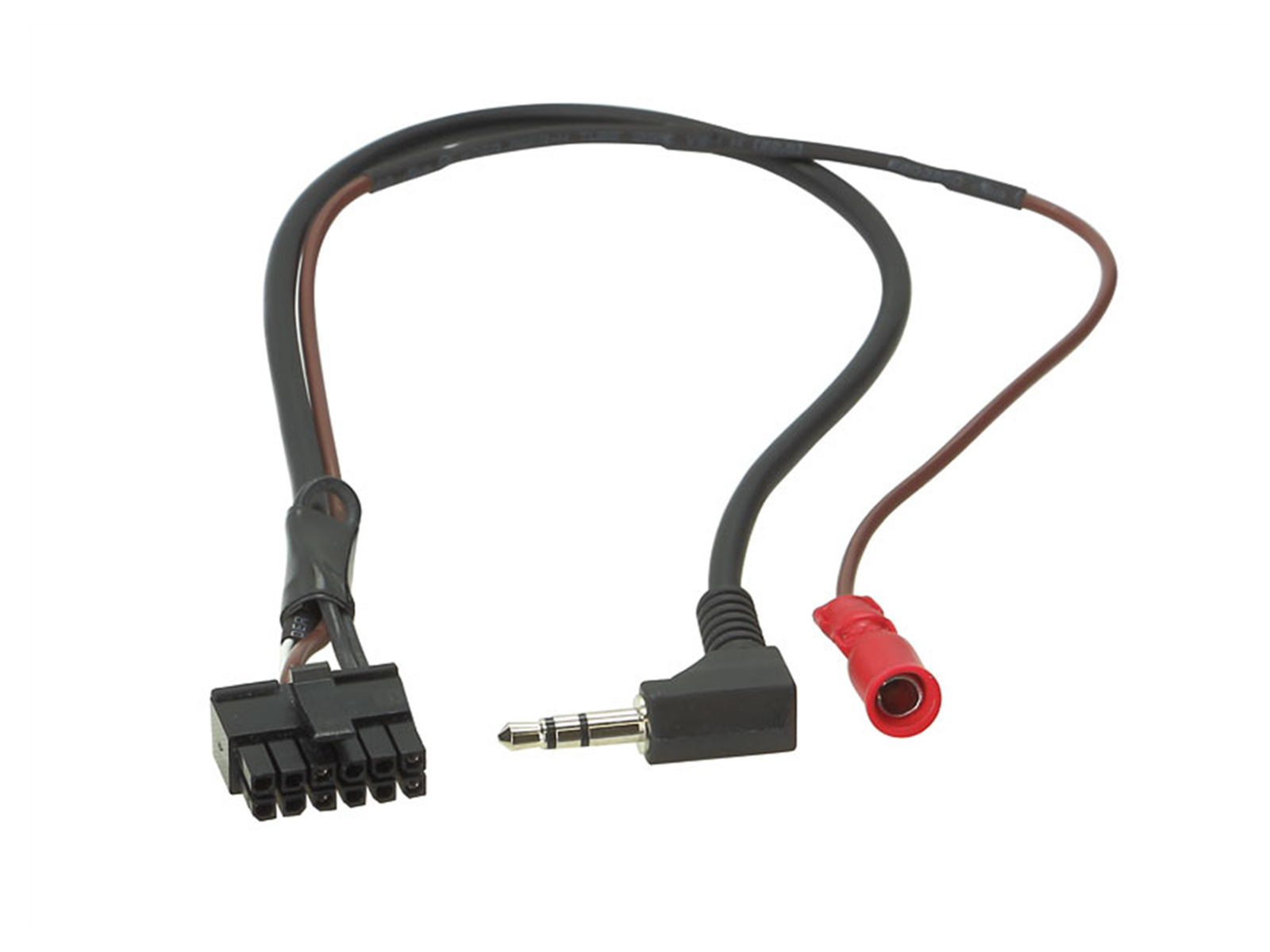

Interconnect cable 42CTJVCLEAD-0

Connecting cable for steering wheel adapter 42CTJVCLEAD-0

• Interconnection (patch) cable for connecting aftermarket JVC head units to the ACV steering wheel control adapter (LFB/SWC).
• Different head unit manufacturers use different types of control inputs: single-cable, two- and multi-cable or 3.5 mm jack – the exact variant is always specified in the BDA (manual) of the specific head unit.
• All required wiring must be connected before connecting the interface to the vehicle.
• For some head units it is necessary to additionally "teach" (remap) the steering wheel button functions in the unit menu according to the instructions in the head unit manual.
• Always test proper operation before final installation.

Notice

• Connection: 12-pin Microfit → 3.5 mm jack / single-cable input.
• LFB interconnection cable for ACV interfaces 42s-xxxxx and Infodapter 43u-xxxx.
• Must be ordered together with the corresponding steering wheel adapter.
• More information about how steering wheel adapters and their connecting cables work is available in the product documentation or on the vendor's website.

Intended for head units:

• JVC – 3.5 mm jack connection.
• JVC – single-cable input.
