Connecting cable 42ARC101

Connection (patch) cable for steering wheel adapter 42ARC101

• Connection (patch) cable for connecting Alpine aftermarket car radios to a steering wheel control adapter (LFB/SWC).
• Different radio manufacturers use different types of control inputs: single-wire, two- and multi-wire (Key1/Key2/GND), or input via a 3.5 mm jack – the exact variant is always specified in the radio's BDA (manual).
• All required connection wires must be connected before connecting the interface to the vehicle.
• For some radios it is necessary to additionally "teach" (remap) the steering wheel button functions in the unit menu according to the instructions in the radio manufacturer's BDA.
• Always test correct operation before final installation.

Notice

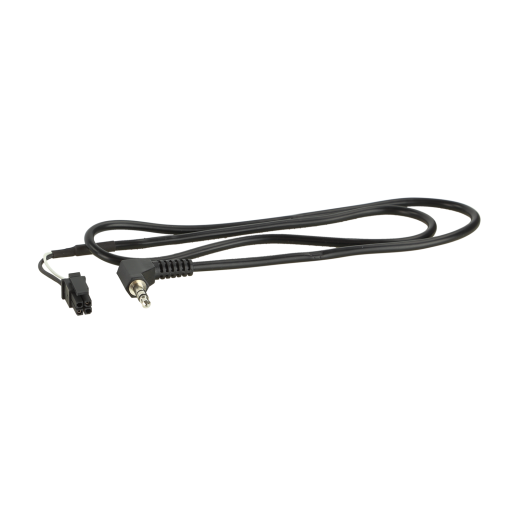

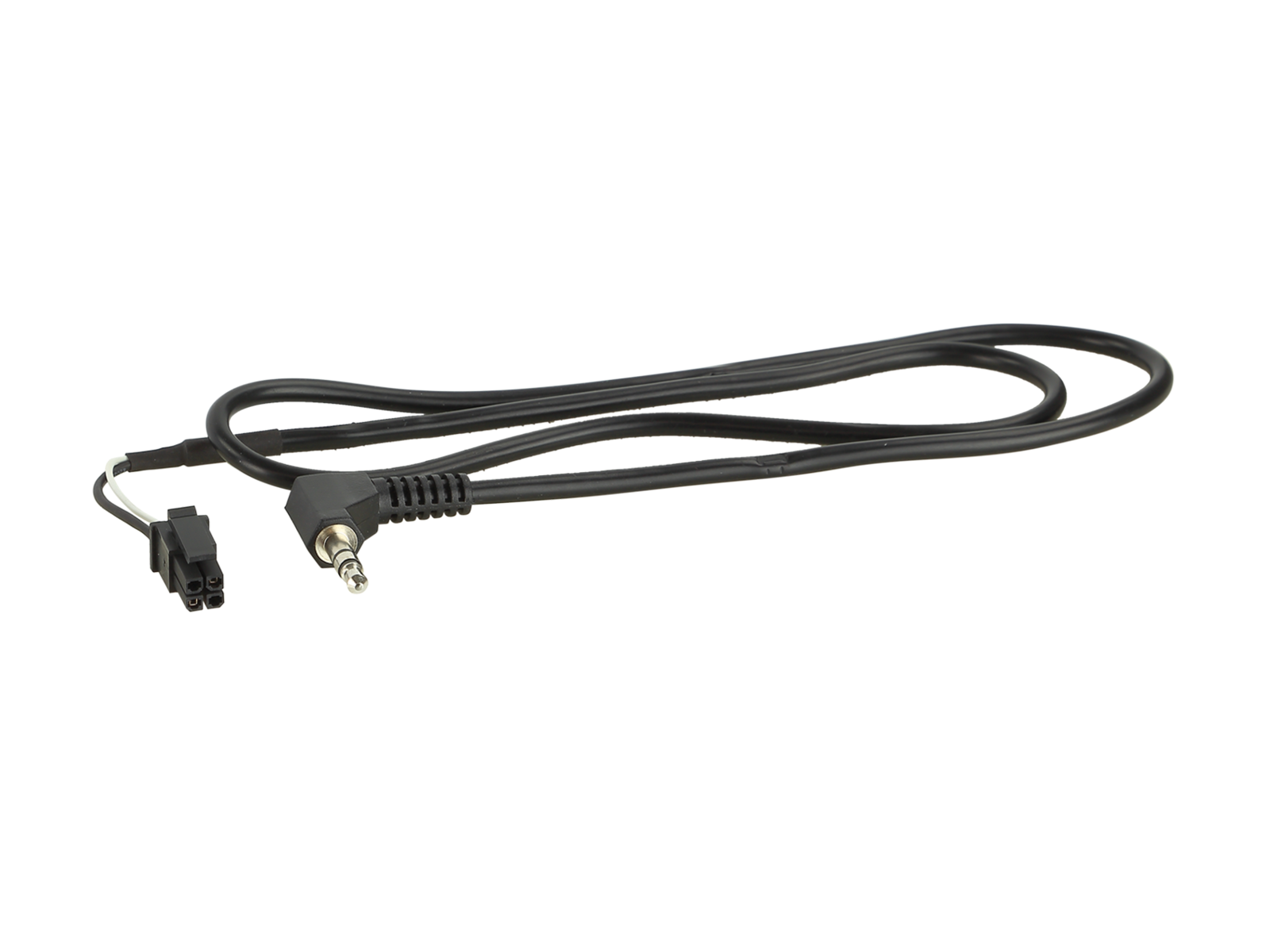

• Connection: 4-pin Molex → 3.5 mm jack.
• LFB patch cable for interface 42cx401 (compatible with sets 42a-xxxx-xxx).
• DIP switch settings: according to the table below (ON/OFF mode).
• Atoto aftermarket units are not supported.
• Must be ordered together with the corresponding steering wheel adapter.
• How steering wheel adapters and their patch cables work can be found in the article.

Designed for head units:

• Alpine - 3.5 mm jack connection.

DIP switch settings for 42cx401:

• Alpine - OFF / OFF / OFF.
