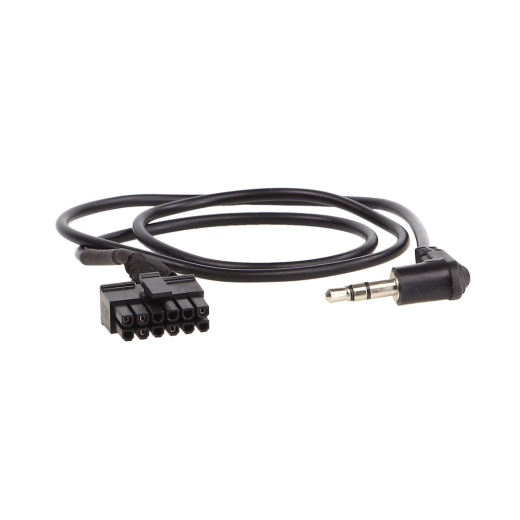

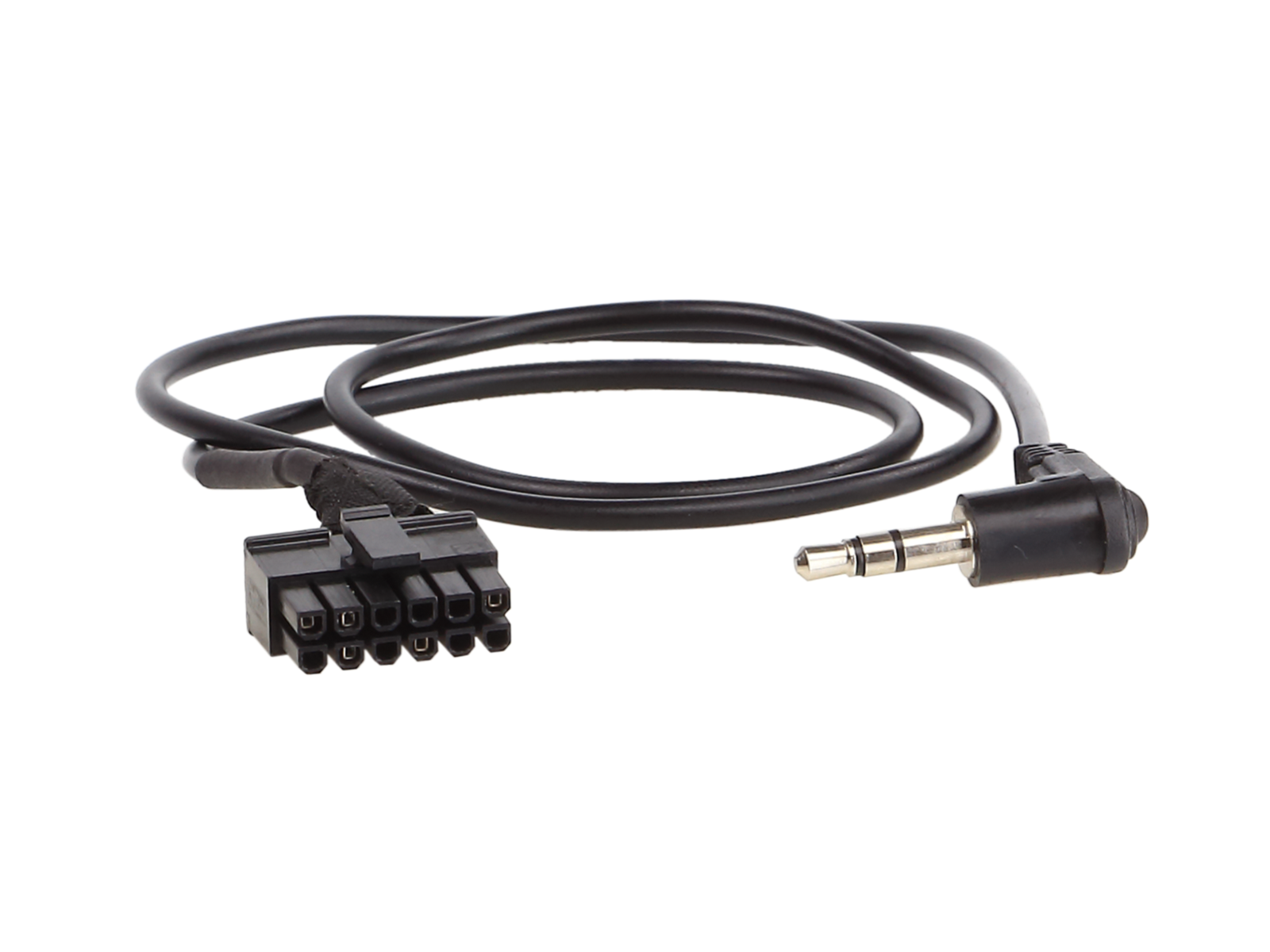

Connecting cable 42C-3414128

Interconnect cable for steering wheel adapter 42C-3414128

• Interconnect (patch) cable for connecting aftermarket JVC car radios to the Speedsignal steering wheel control adapter (LFB/SWC).
• Car radio manufacturers use different types of control inputs: single-wire, two- and multi-wire (Key1/Key2), or a 3.5 mm jack input — the exact variant is always specified in the radio's user manual.
• All connections must be made before connecting the interface to the vehicle.
• For some radios it is necessary to additionally "teach" (remap) the steering wheel button functions in the unit menu, following the instructions in the radio manufacturer's manual.
• Always test correct operation before final installation.

Important

• Connection: 12‑pin MicroFit → 3.5 mm jack.
• LFB interconnect cable for Speedsignal interface 42b-xxxxxxx.
• Bridge with a 2.9 kΩ resistor.
• Must be ordered together with the corresponding steering wheel adapter.
• Information on how steering wheel adapters and their interconnect cables work is available from the vendor or in product documentation.

Intended for head units:

• JVC – 3.5 mm jack connection.
