Connecting cable 42CTMULTILEAD5
connection cable for steering wheel adapters for Alpine, Beat, Blaupunkt 2010 ->, China HU, Clarion, ESX, JVC, Kenwood, Nakamichi, Panasonic, Philips, Pioneer, Snooper, Sony, XZent, Zenec car radios.
More about the product
More about the product
We will help you with your purchase
- You can return the goods to us within 14 days
New

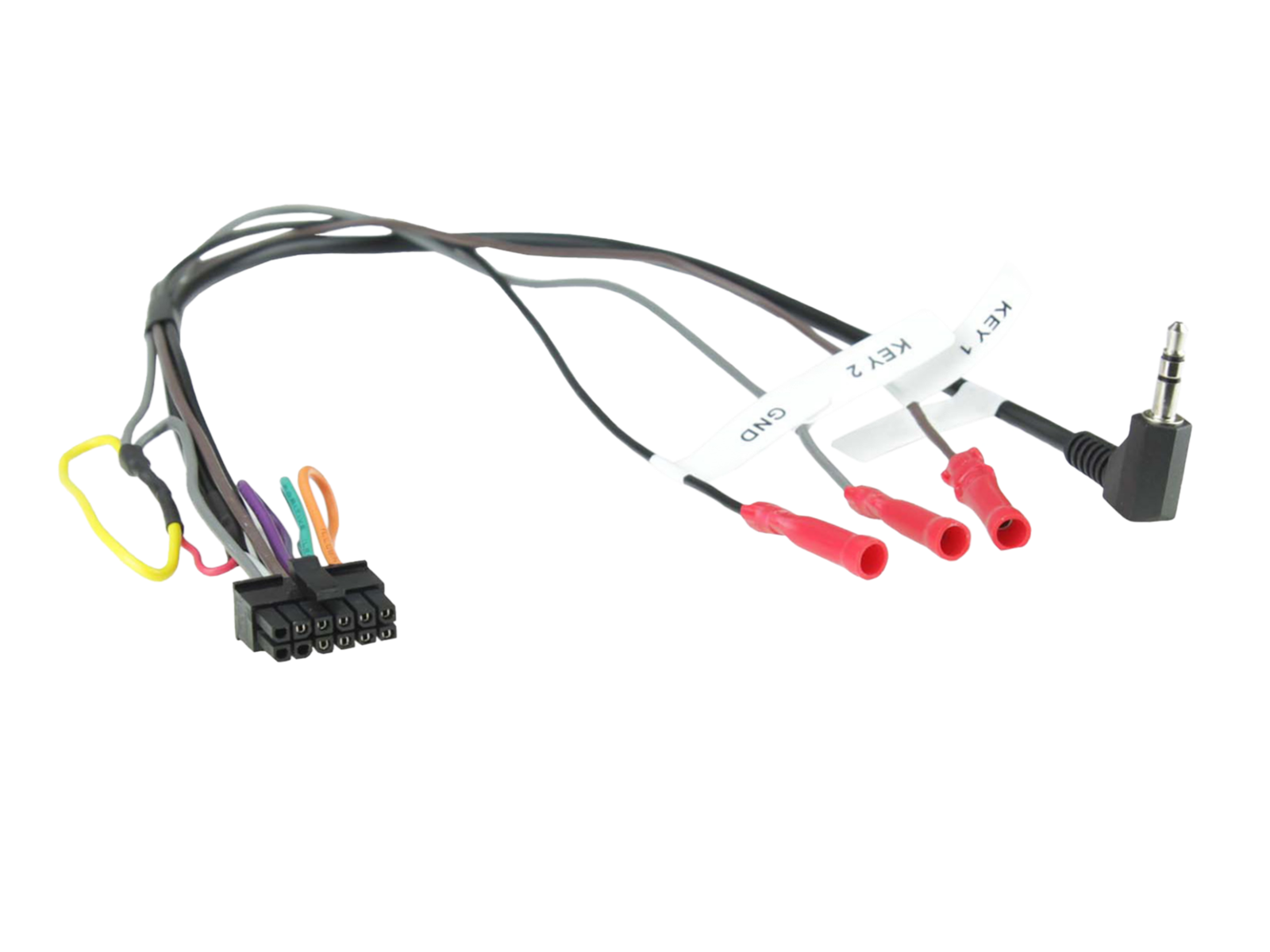

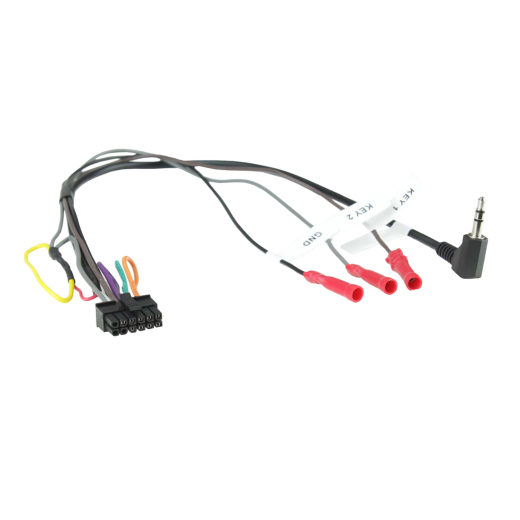

Interconnection cable for steering wheel adapter 42CTMULTILEAD5
- Universal interconnection (patch) cable for connecting aftermarket head units to the ACV steering wheel control adapter (LFB/SWC).
- Different head unit manufacturers use different types of control inputs: single-wire, two- and multi-wire (Key1/Key2/GND) or 3.5 mm jack – the exact variant is always specified in the BDA (manual) of the specific head unit.
- All required connection wires must be wired before connecting the interface to the vehicle.
- On some head units it is necessary to additionally "teach" (remap) the steering wheel button functions in the unit's menu according to the instructions in the head unit's manual.
- Always test proper function before final installation.
Notice
- Connection: 12‑pin Micro Fit → 3.5 mm jack / multi‑wire connector.
- Yellow line connector open → 3.5 mm jack for Pioneer AVH/DMH/SPH.
- Interconnection cable LFB for ACV 42s-xxxxx interfaces and Infodapter 43u-xxxx.
- Configuration according to the BDA of the specific head unit.
- Atoto, Axion and Kienzle aftermarket units are not supported.
- Must be ordered together with the corresponding steering wheel adapter.
- Information on how steering wheel adapters and their interconnection cables work is available on the supplier's website.
Intended for head units:
- Alpine – 3.5 mm jack connection.
- Beat – single‑wire input.
- Blaupunkt 2010 -> – Key1 / Key2 / GND or 3.5 mm jack connection.
- China HU – Key1 / Key2 / GND connection.
- Clarion – 3.5 mm jack connection.
- ESX – Key1 / Key2 connection.
- JVC – 3.5 mm jack or single‑wire input.
- Kenwood – single‑wire input or 3.5 mm jack connection (2017 ->).
- Kenwood 2020 -> – Key1 / Key2 / GND connection.
- Nakamichi – single‑wire input.
- Philips – single‑wire input.
- Panasonic – single‑wire input.
- Pioneer – 3.5 mm jack connection, including AVH/DMH/SPH with Molex intermediate connector.
- Snooper – Key1 / Key2 connection.
- Sony – 3.5 mm jack connection.
- XZent – single‑wire input or Key1 / Key2 / GND connection.
- Zenec – single‑wire input.
Pioneer devices 2021/2022 -> with flat metal rear panel:
- Pioneer AVH – AVH‑A240BT, AVH‑A240DAB.
- Pioneer DMH – DMH‑A240BT, DMH‑A241BT, DMH‑A340DAB, DMH‑A245BT.
- Pioneer SPH – SPH‑DA160DAB, SPH‑DA360DAB.
| Catalog number | 42CTMULTILEAD5 |
| Brand | ACV |
| Links | Official web presentation |
