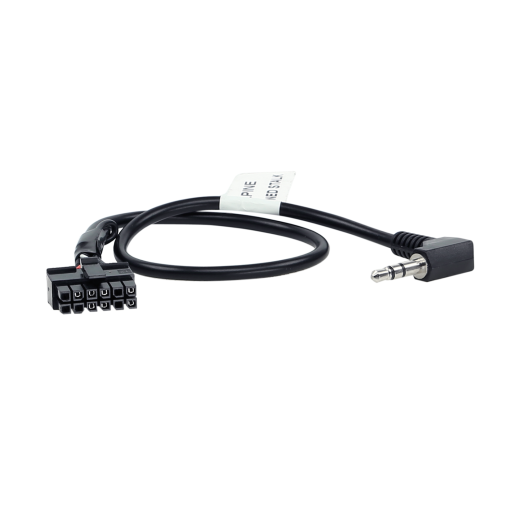

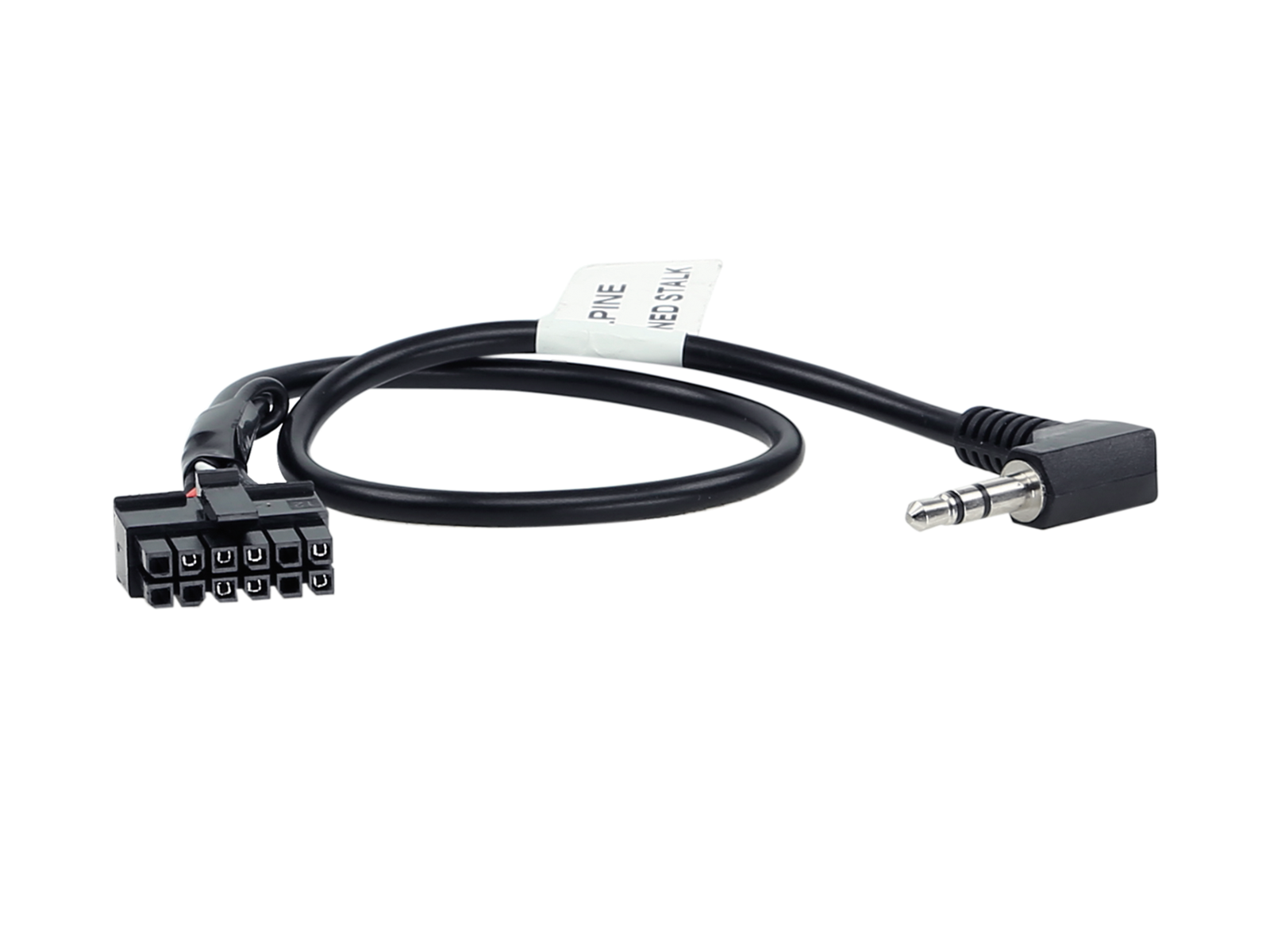

Interconnect cable 42CTALPINELEAD-0

Patch cable for steering wheel adapter 42CTALPINELEAD-0

• Patch cable for connecting aftermarket Alpine car radios to the ACV steering wheel control adapter (LFB/SWC).
• Different radio manufacturers use different types of control inputs: single-wire, two- and multi-wire (Key1/Key2/GND) or 3.5 mm jack – the exact variant is always listed in the radio's manual (BDA).
• All necessary connection wires must be connected before connecting the interface to the vehicle.
• On some radios it is necessary to additionally "teach" (remap) the steering wheel button functions in the unit menu according to the radio manufacturer's manual.
• Always test correct operation before final installation.

Notice

• Connection: 12-pin Microfit → 3.5 mm jack.
• LFB patch cable for ACV 42s-xxxxx interface and Infodapter 43u-xxxx.
• Atoto aftermarket units are not supported.
• Must be ordered together with the corresponding steering wheel adapter.
• How steering wheel adapters and their patch cables work can be found in the article.

Designed for head units:

• Alpine – 3.5 mm jack connection.
