Interconnect cable 42XMULTILEAD1-0
connection cable for steering wheel adapters for Alpine, Blaupunkt 2010 ->, China HU, Clarion, ESX, Grundig, JVC, Kenwood, Philips, Pioneer, Snooper, Sony, XZent, Zenec car radios
More about the product
More about the product
We will help you with your purchase
- You can return the goods to us within 14 days
New

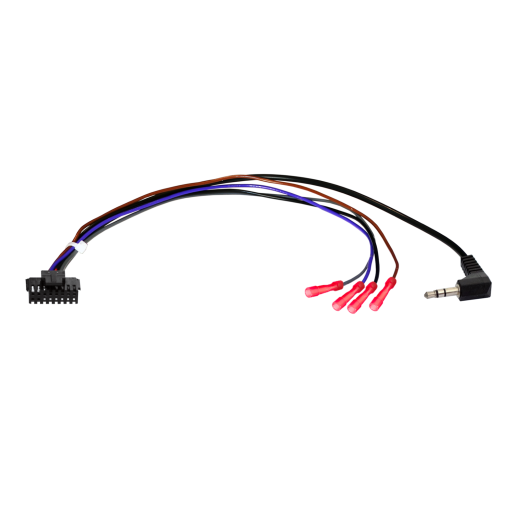

Patch cable for steering wheel adapter 42XMULTILEAD1-0
- Patch cable for connecting various aftermarket car radios to the steering wheel control adapter (LFB/SWC) of the 42x series.
- Car radio manufacturers use different types of control inputs: single-wire, two- and multi-wire (Key1/Key2/GND), or input via 3.5 mm jack — the exact variant is always specified in the radio's BDA (manual).
- All necessary connection wires and DIP switch settings must be made before connecting the interface to the vehicle.
- For some radios it is necessary to additionally "teach" (remap) the steering wheel button functions in the unit menu according to the radio manufacturer's BDA instructions.
- Always test proper function before final installation.
Notice
- Connection: 16-pin connector → 3.5 mm jack / multi-cable output.
- Compatible with analog and CAN-Bus interfaces 42x(xx)-xxx.
- Analog pins: black GND, blue Key1/SWC1, gray Key2/SWC2.
- IR pins: brown IR In/SWC.
- Analog/IR: 3.5 mm jack.
- Set DIP switches according to the specific radio's BDA (for analog connection they may differ — see below).
- Atoto units are not supported.
- Must be ordered together with the corresponding steering wheel adapter.
- Information on how steering wheel adapters and their connecting cables work is available separately.
Intended for head units:
- Alpine – 3.5 mm jack.
- Blaupunkt (from 2010) – 3.5 mm jack or Key1 / Key2 / GND.
- China HU – Key1 / Key2 / GND.
- Clarion – 3.5 mm jack.
- ESX – Key1 / Key2.
- Grundig – single-wire connection.
- JVC – 3.5 mm jack or single-wire connection.
- Kenwood – single-wire connection; from 2017 -> 3.5 mm jack; from 2020 -> Key1 / Key2 / GND.
- Philips – single-wire connection.
- Pioneer – 3.5 mm jack.
- Snooper – Key1 / Key2.
- Sony – 3.5 mm jack.
- XZent – single-wire or Key1 / Key2 / GND.
- Zenec – single-wire connection.
Notes on analog DIP switches:
- Blaupunkt (from 2010) – 3.5 mm jack: Key1 / Key2 (extended).
- JVC – 3.5 mm jack: Key1 / Key2 (extended).
- Kenwood (from 2017) – 3.5 mm jack: Key1 / Key2 (extended).
- XZent – single-wire connection: same as Zenec.
