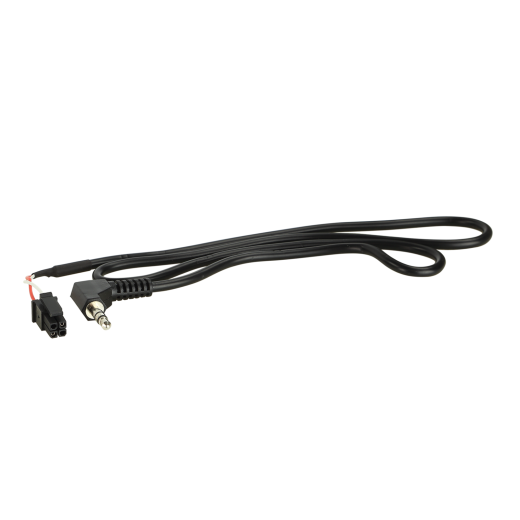

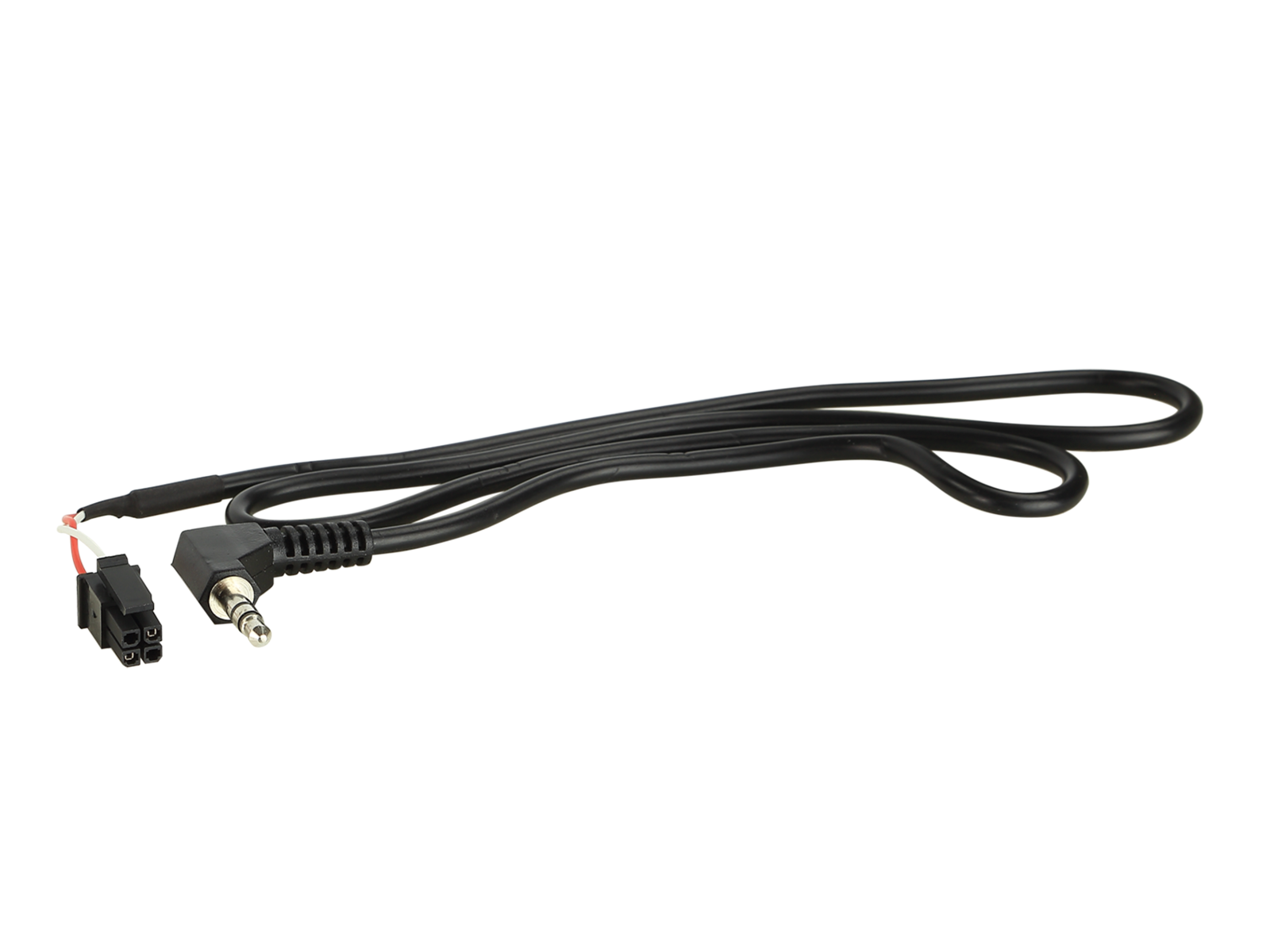

Connecting cable 42ARC104

Connection cable for steering wheel adapter 42ARC104

• Patch cable for connecting aftermarket Clarion and JVC head units to a steering wheel control adapter (LFB/SWC).
• Different head‑unit manufacturers use different types of control inputs: single‑wire, two‑ or multi‑wire (Key1/Key2/GND) or input via 3.5 mm jack – the exact variant is always stated in the BDA (manual) of the specific head unit.
• All necessary connection wires must be connected before connecting the interface to the vehicle.
• For some radios it is necessary to additionally "teach" (remap) the steering wheel button functions in the unit's menu according to the radio manufacturer's BDA.
• Always test proper operation before final installation.

Notice

• Connection: 4‑pin Molex → 3.5 mm jack.
• LFB patch cable for interface 42cx401 (compatible with 42a‑xxxx‑xxx kits).
• DIP switch settings: according to the table below (ON/OFF mode).
• Atoto aftermarket units are not supported.
• Must be ordered together with the appropriate steering wheel adapter.
• Information on how steering wheel adapters and their patch cables work can be found in the related article.

Intended for head units:

• Clarion - 3.5 mm jack connection.
• JVC - 3.5 mm jack connection.

DIP switch settings for 42cx401:

• Clarion - ON / ON / OFF.
• JVC - ON / OFF / ON (alternative: ON / ON / ON).
