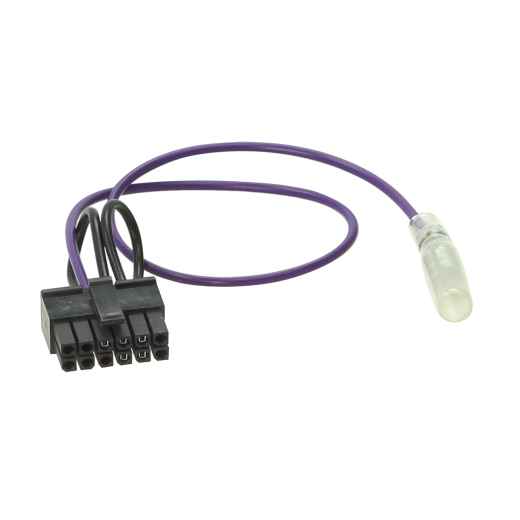

Connecting cable 42CTPANASONICLEAD-0

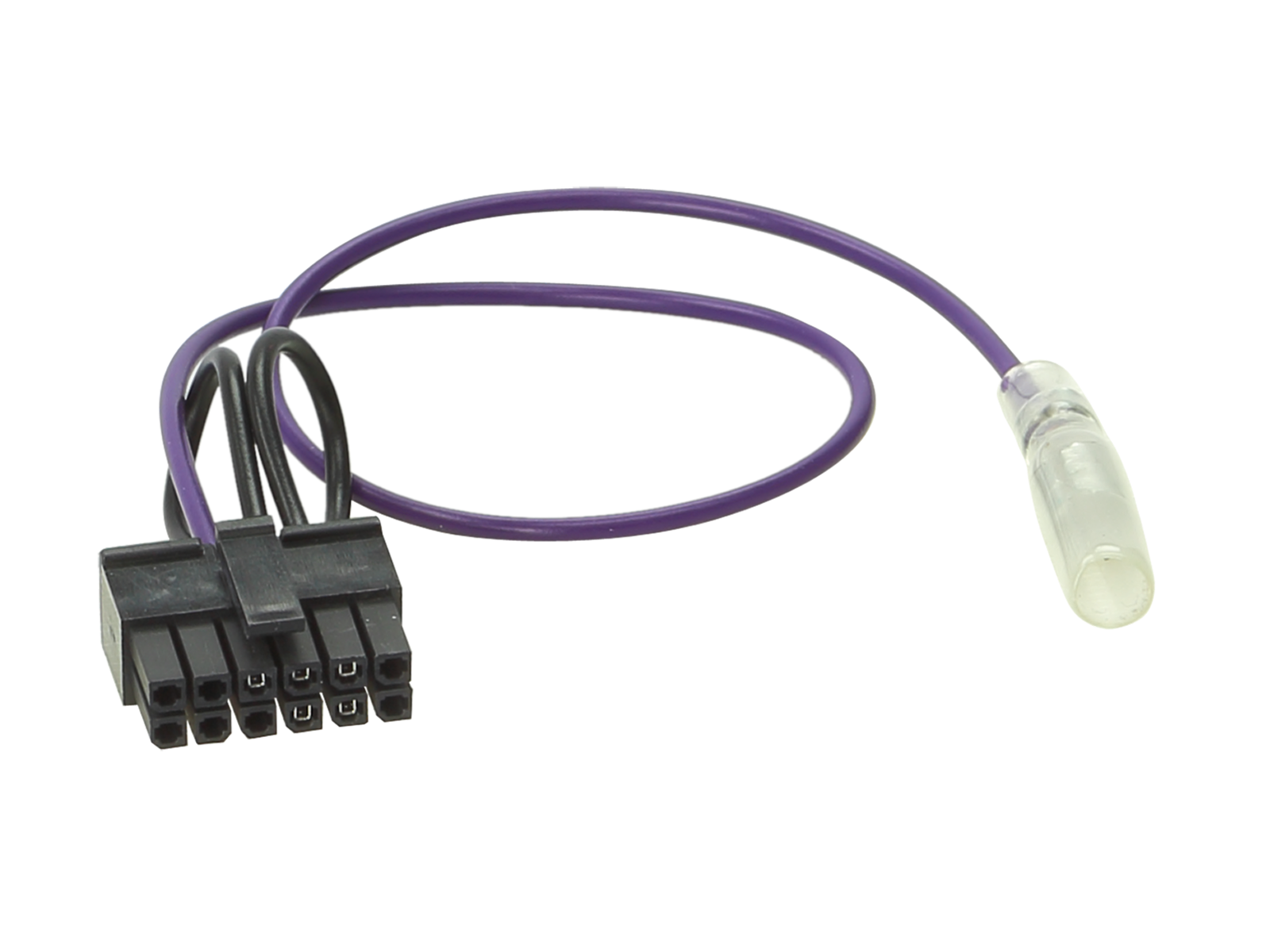

Connecting cable for steering wheel adapter 42CTPANASONICLEAD-0

• Connection (patch) cable for connecting Panasonic car radios to the ACV steering wheel control adapter (LFB/SWC).
• Different car radio manufacturers use different types of control inputs: single-wire, two- and multi-wire (Key1/Key2/GND) or 3.5 mm jack — the exact variant is always specified in the radio's BDA (manual).
• All required connection wires must be connected before connecting the interface to the vehicle.
• For some radios it is necessary to additionally "teach" (remap) the steering wheel button functions in the unit's menu according to the radio manufacturer's BDA instructions.
• Always test proper functionality before final installation.

Notice

• Connection: 12-pin Microfit → single-wire input.
• LFB patch cable for ACV 42s-xxxxx and Infodapter 43u-xxxx interfaces.
• Configuration according to the specific radio's BDA.
• Must be ordered together with the appropriate steering wheel adapter.
• How steering wheel adapters and their patch cables work can be found in the following article.

Designed for head units:

• Panasonic – single-wire input.
