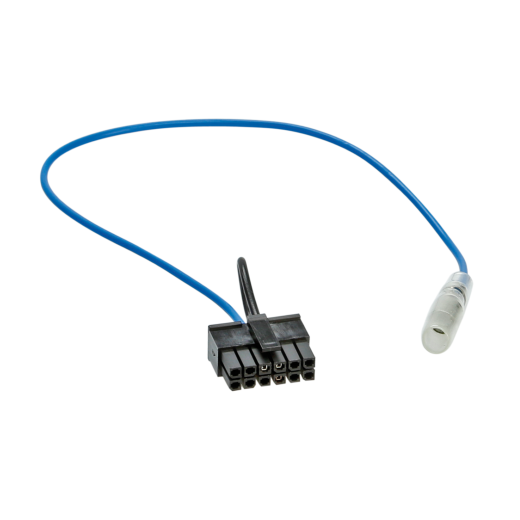

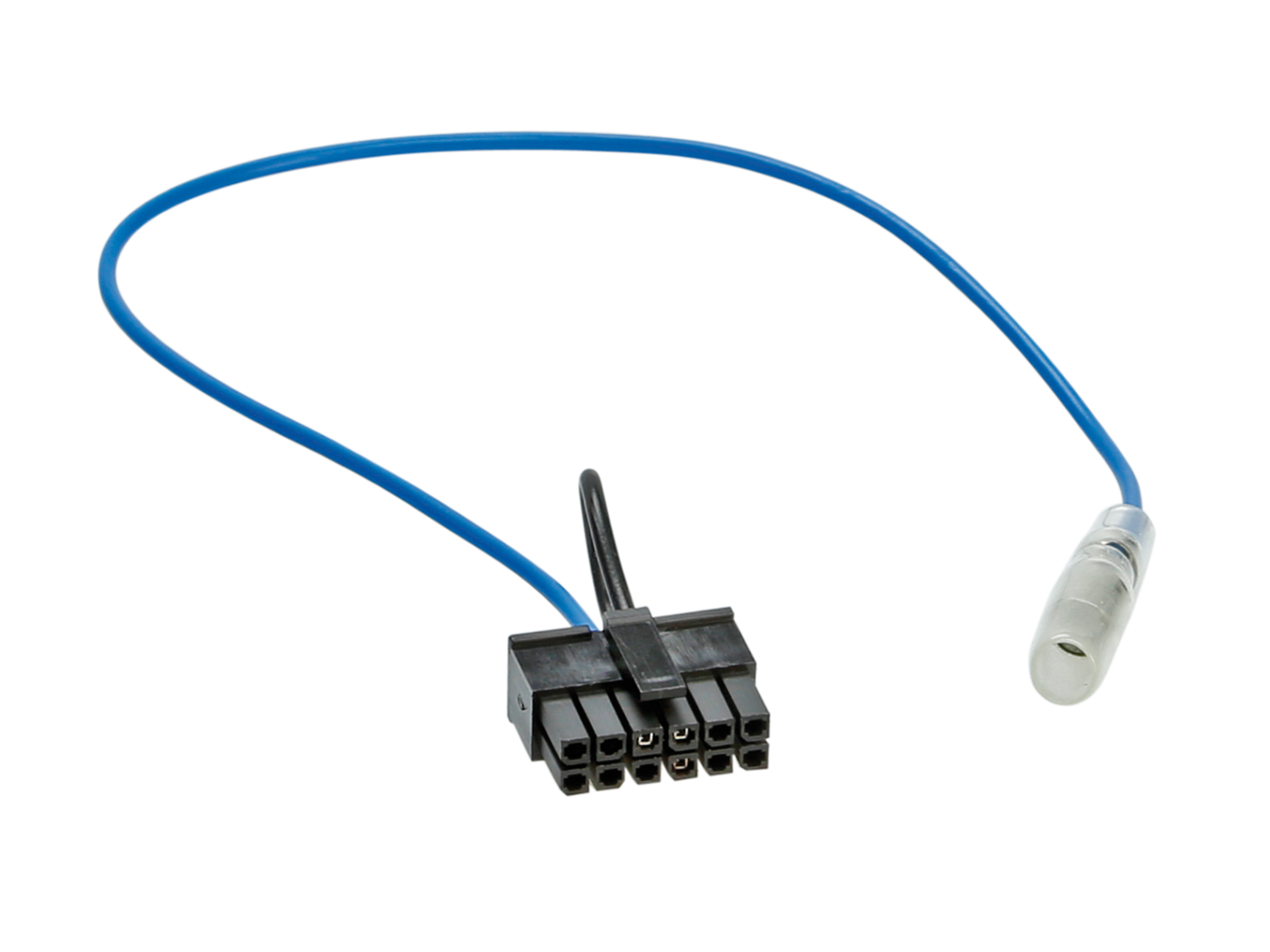

Connecting cable 42CTKENWOODLEAD-0

Connecting cable for steering wheel adapter 42CTKENWOODLEAD-0

• Connecting (patch) cable for attaching aftermarket Kenwood car radios to the ACV steering wheel control adapter (LFB/SWC).
• Different radio manufacturers use different types of control inputs: single-wire, two- and multi-wire, or a 3.5 mm jack – the exact variant is always specified in the radio's BDA (manual).
• All required connection wires must be connected before attaching the interface to the vehicle.
• For some radios it is necessary to re-learn (remap) the steering wheel button functions in the unit's menu according to the radio manufacturer's BDA instructions.
• Always test proper operation before final installation.

Note

• Connection: 12-pin Microfit → single-wire input.
• LFB patch cable for ACV 42s-xxxxx interfaces and Infodapter 43u-xxxx.
• Must be ordered together with the corresponding steering wheel adapter.
• How steering wheel adapters and their patch cables work can be found in the relevant article.

Intended for head units:

• Kenwood – single-wire input.
