Interconnect cable 42CTMULTILEAD3-0
connection cable for steering wheel adapters for car radios Alpine, Beat, Blaupunkt 2010 ->, China HU, Clarion, ESX, JVC, Kenwood, Kenwood 2020 ->, Nakamichi, Panasonic, Philips, Pioneer, Snooper, Sony, XZent, Zenec
More about the product
More about the product
We will help you with your purchase
- You can return the goods to us within 14 days
New
Connection cable for steering wheel adapter 42CTMULTILEAD3-0
- Universal patch cable for connecting aftermarket car radios to the steering wheel control adapter (LFB/SWC) ACV.
- Different radio manufacturers use different types of control inputs: single-wire, two- and multi-wire (Key1/Key2/GND) or 3.5 mm jack – the exact variant is always stated in the radio's BDA (manual).
- All necessary connection wires must be connected before connecting the interface to the vehicle.
- For some radios it is necessary to additionally "teach" (remap) the steering wheel button functions in the unit menu according to the radio manufacturer's instructions.
- Always test correct operation before final installation.
Warning

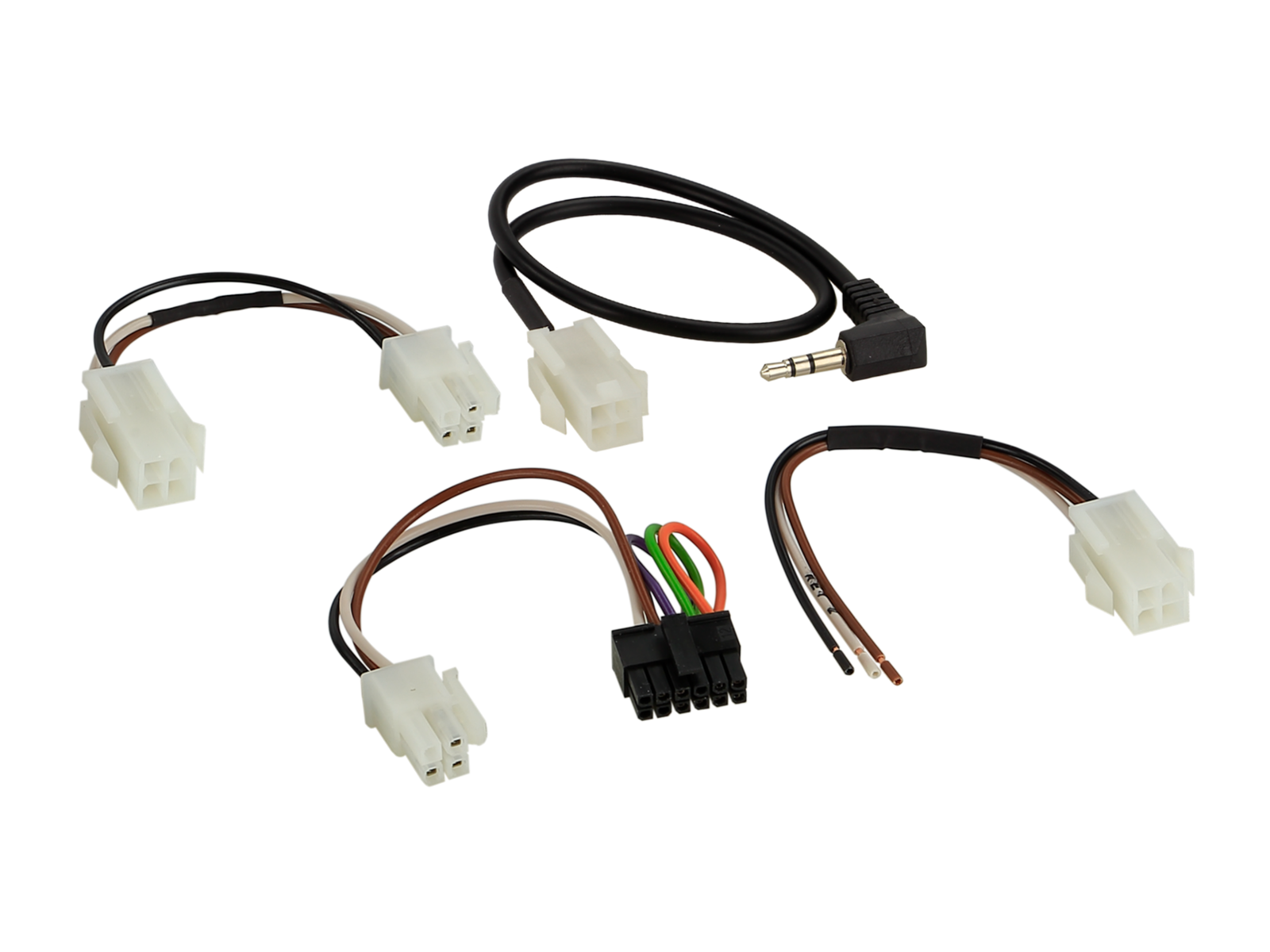

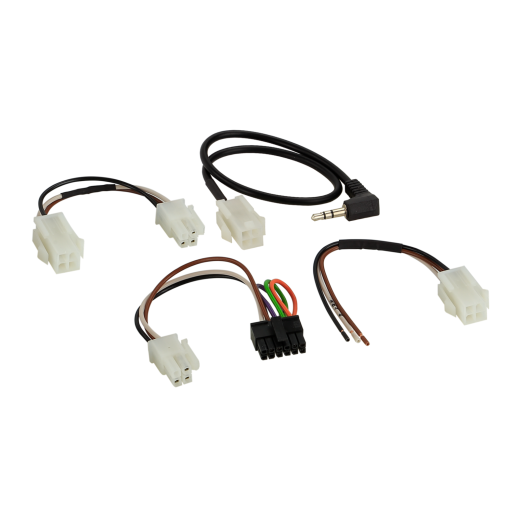

- Connection: 12pin Micro Fit → Molex Mini Fit.
- Molex Mini Fit → Key1 / Key2 / GND.
- Molex Mini Fit → 3.5mm jack.
- Molex Mini Fit → 3.5mm jack Pioneer AVH/DMH/SPH (with Molex intermediate connector).
- Patch cable LFB for ACV interface 42s-xxxxx and Infodapter 43u-xxxx.
- Configuration according to the BDA of the specific head unit.
- Atoto, Axion and Kienzle aftermarket units are not supported.
- Must be ordered together with the corresponding steering wheel adapter.
- Information about how steering wheel adapters and their interconnecting cables work is available in the product documentation.
Intended for head units:
- Alpine – 3.5mm jack connection.
- Beat – single-wire input.
- Blaupunkt 2010 -> – Key1 / Key2 / GND or 3.5mm jack connection.
- China HU – Key1 / Key2 / GND connection.
- Clarion – 3.5mm jack connection.
- ESX – Key1 / Key2 connection.
- JVC – 3.5mm jack or single-wire input.
- Kenwood – single-wire input or 3.5mm jack (2017 ->).
- Kenwood 2020 -> – Key1 / Key2 / GND connection.
- Nakamichi – single-wire input.
- Panasonic – single-wire input.
- Philips – single-wire input.
- Pioneer – 3.5mm jack connection, including AVH/DMH/SPH with Molex intermediate connector.
- Snooper – Key1 / Key2 connection.
- Sony – 3.5mm jack connection.
- XZent – single-wire input or Key1 / Key2 / GND connection.
- Zenec – single-wire input.
Pioneer devices 2021/2022 -> with flat metal rear side:
- Pioneer AVH – AVH-A240BT, AVH-A240DAB
- Pioneer DMH – DMH-A240BT, DMH-A241BT, DMH-A340DAB, DMH-A245BT
- Pioneer SPH – SPH-DA160DAB, SPH-DA360DAB
| Catalog number | 42CTMULTILEAD3-0 |
| Brand | ACV |
| Links | Official web presentation |
