Connecting cable 42ARC107

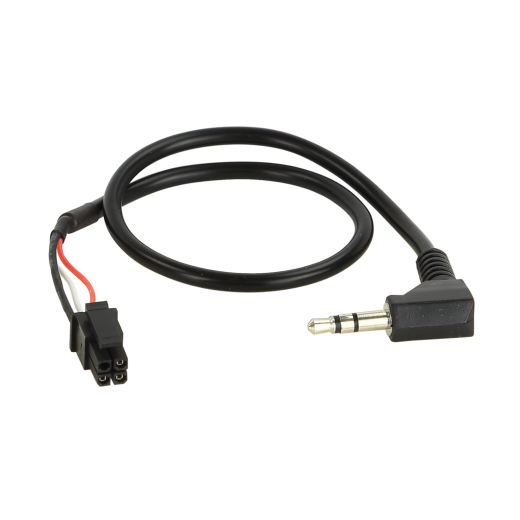

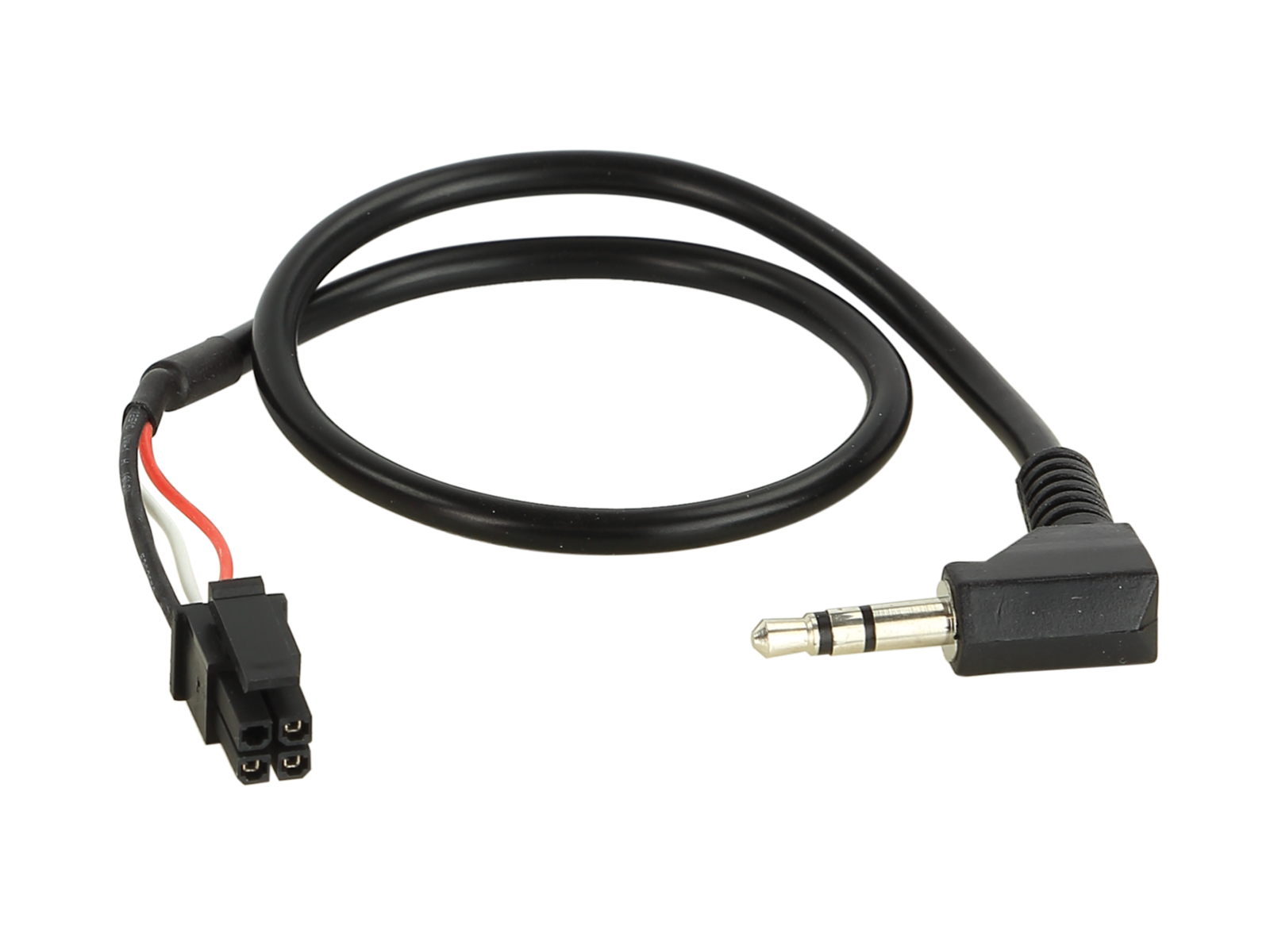

Connection (patch) cable for steering wheel adapter 42ARC107

• Connection (patch) cable for connecting aftermarket car radios Blaupunkt 2010 onwards, Kenwood 2017 onwards, Pioneer and Sony to a steering wheel control adapter (LFB/SWC).
• Different radio manufacturers use different types of control inputs: single-wire, two- and multi-wire (Key1/Key2/GND) or input via 3.5 mm jack – the exact variant is always specified in the BDA (manual) of the specific car radio.
• All necessary connection wires must be connected before connecting the interface to the vehicle.
• For some radios it is necessary to additionally “teach” (remap) the steering wheel button functions in the unit's menu according to the instructions in the radio manufacturer's manual.
• Always test correct operation before final installation.

Notice

• Connection: 4-pin Molex → 3.5 mm jack.
• LFB patch cable for interface 42cx401 (compatible with kits 42a-xxxx-xxx).
• DIP switch settings: according to the table below (ON/OFF mode).
• Atoto aftermarket units are not supported.
• Must be ordered together with the appropriate steering wheel adapter.
• More information about how steering wheel adapters and their patch cables work is available.

Compatible head units:

• Blaupunkt 2010 onwards - connection via 3.5 mm jack.
• Kenwood 2017 onwards - connection via 3.5 mm jack.
• Pioneer - connection via 3.5 mm jack.
• Sony - connection via 3.5 mm jack.

DIP switch settings for 42cx401:

• Blaupunkt 2010 onwards - OFF / ON / OFF (alternative: OFF / ON / ON).
• Kenwood 2017 onwards - OFF / ON / OFF (alternative: OFF / ON / ON).
• Pioneer - OFF / ON / ON.
• Sony - OFF / ON / ON.
