Interconnect cable 42CTPIONEERLEAD-0

Connection cable to steering wheel adapter 42CTPIONEERLEAD-0

• Patch cable for connecting Blaupunkt, Kenwood and Pioneer car radios to the ACV steering wheel control adapter (LFB/SWC).
• Different car radio manufacturers use different types of control inputs: single-wire, two- and multi-wire (Key1/Key2/GND) or 3.5 mm jack — the exact variant is always specified in the radio's manual (BDA).
• All necessary connection wires must be connected before connecting the interface to the vehicle.
• On some radios it is necessary to additionally "teach" (remap) the steering wheel button functions in the unit menu according to the instructions in the radio manufacturer's manual.
• Always test proper function before final installation.

Notice

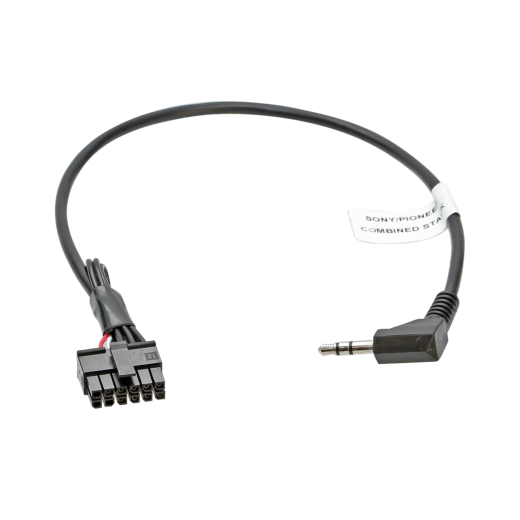

• Connection: 12‑pin Microfit → 3.5 mm jack.
• Patch cable LFB for ACV interfaces 42s-xxxxx and Infodapter 43u-xxxx.
• Configuration per the specific head unit's manual (BDA).
• Must be ordered together with the corresponding steering wheel adapter.
• Information on how steering wheel adapters and their patch cables work is available in the product articles and documentation.

Intended for head units:

• Blaupunkt 2010 onwards – connection: 3.5 mm jack.
• Kenwood 2017 onwards – connection: 3.5 mm jack.
• Pioneer – connection: 3.5 mm jack.
