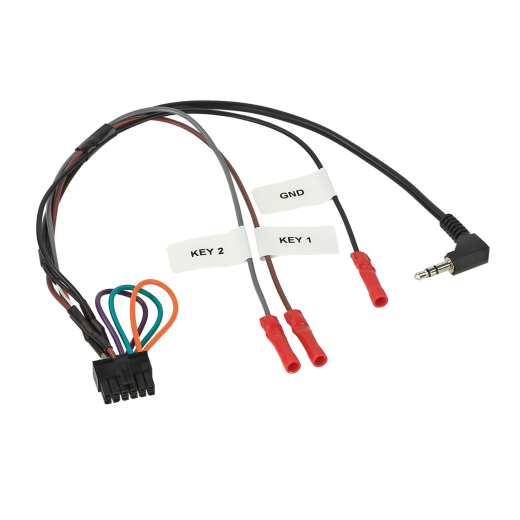

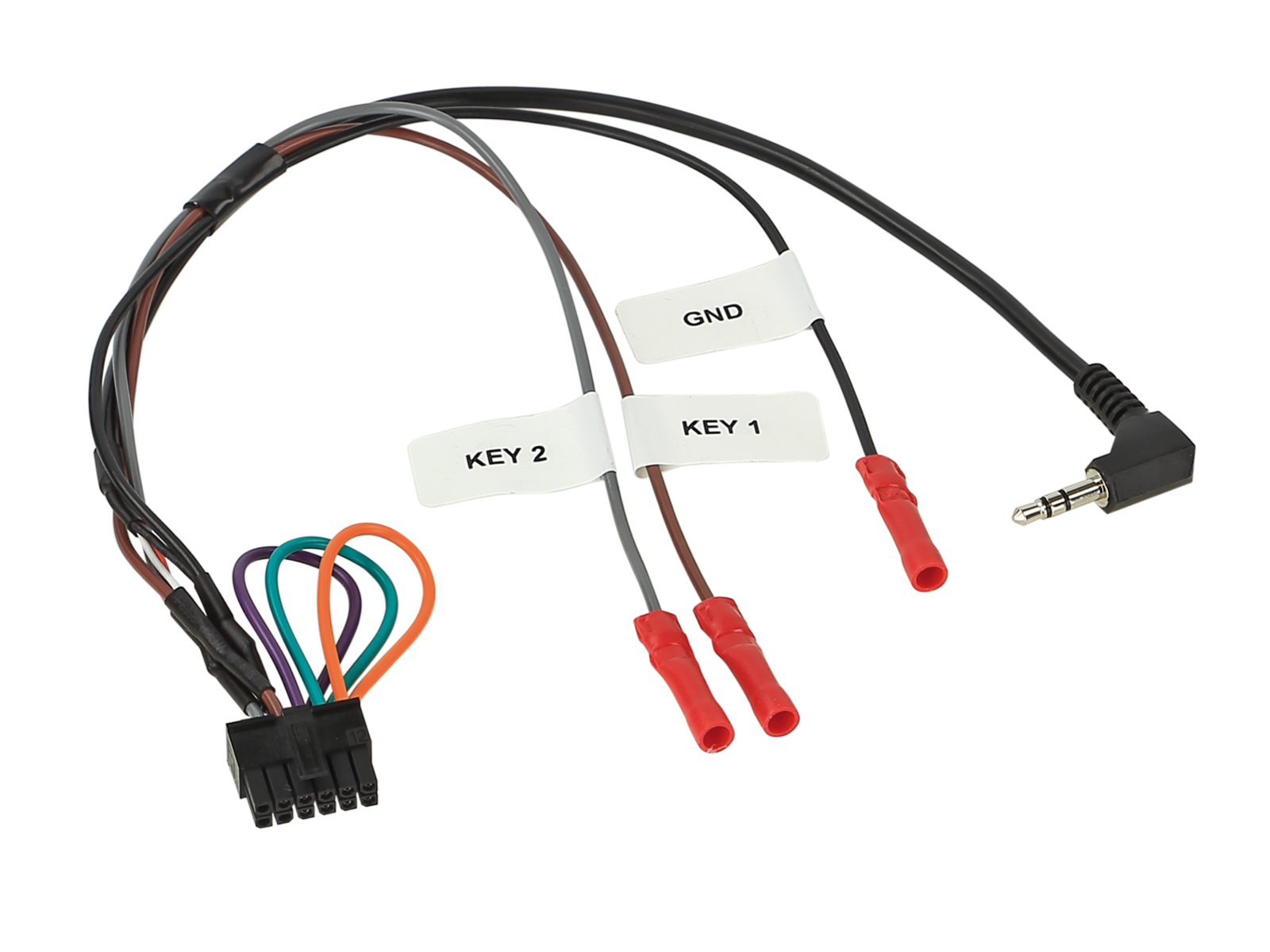

Connecting cable for steering wheel adapter 42CTMULTILEAD-0
- Universal connecting (patch) cable for connecting aftermarket car radios to the steering wheel control adapter (LFB/SWC) ACV.
- Different radio manufacturers use different types of control inputs: single-wire, two- and multi-wire (Key1/Key2/GND) or 3.5 mm jack – the exact variant is always specified in the radio's BDA (manual).
- All required connection wires must be connected before connecting the interface to the vehicle.
- For some radios it is necessary to additionally "teach" (remap) the steering wheel button functions in the unit menu according to the radio manufacturer's BDA instructions.
- Always test proper operation before final installation.
Notice
- Connection: 12-pin Microfit → 3.5 mm jack / multi-cable input.
- LFB connecting cable for ACV interfaces 42s-xxxxx and Infodapter 43u-xxxx.
- Configuration according to the specific radio's BDA.
- Atoto, Axion and Kienzle aftermarket units are not supported.
- Must be ordered together with the corresponding steering wheel adapter.
- Information on how steering wheel adapters and their connecting cables work is available separately.
Intended for head units:
- Alpine – connection: 3.5 mm jack.
- Blaupunkt 2010 -> – connection: Key1 / Key2 / GND (China HU) or 3.5 mm jack (Pioneer).
- China HU – connection: Key1 / Key2 / GND.
- Clarion – connection: 3.5 mm jack.
- ESX – connection: Key1 / Key2 (China HU).
- JVC – connection: 3.5 mm jack or single-wire input.
- Kenwood – single-wire input or 3.5 mm jack (2017 onwards, Pioneer).
- Kenwood 2020 -> – connection: Key1 / Key2 / GND (China HU).
- Panasonic – single-wire input.
- Philips – single-wire input (middle connection only).
- Pioneer – connection: 3.5 mm jack.
- Snooper – connection: Key1 / Key2 (China HU).
- Sony – connection: 3.5 mm jack.
- XZent – single-wire input or connection Key1 / Key2 / GND (China HU).
- Zenec – single-wire input.
| Catalog number | 42CTMULTILEAD-0 |
| Brand | ACV |
| Links | Official web presentation |
