Connecting cable 42C-3414107

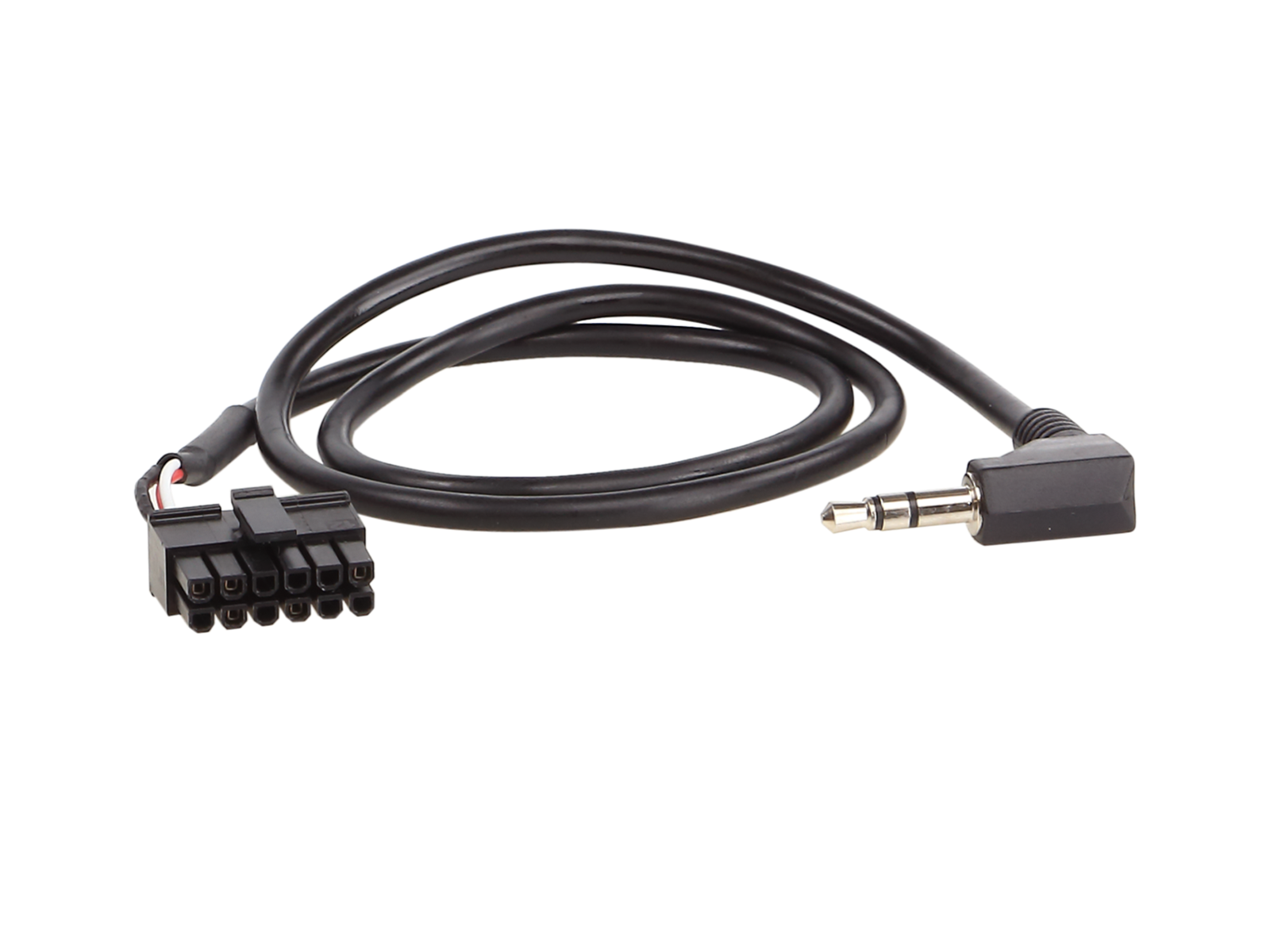

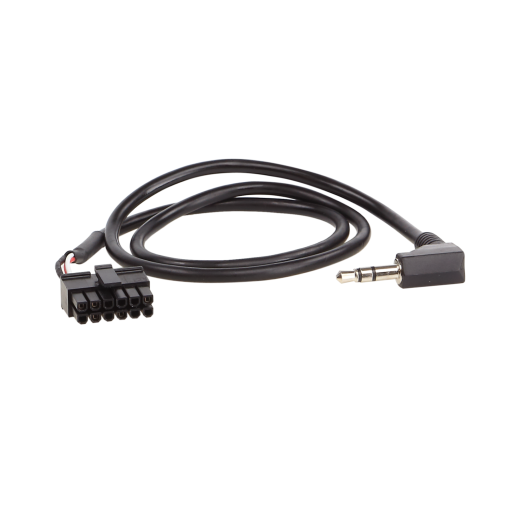

Interconnection cable for Speedsignal steering wheel adapter – Sony / Phonocar

• Interconnection (patch) cable for connecting aftermarket Sony and Phonocar head units to the Speedsignal steering wheel control adapter (LFB/SWC).
• Head unit manufacturers use different types of control inputs: single-wire, two- and multi-wire (Key1/Key2/GND) or input via 3.5 mm jack – the exact variant is always specified in the BDA (manual) of the specific radio.
• All connections must be made before connecting the interface to the vehicle.
• For some radios it is necessary to additionally "teach" (remap) the steering wheel button functions in the unit menu according to the instructions in the radio manufacturer's BDA.
• Always test correct operation before final installation.

Note

• Connection: 12-pin Microfit → 3.5 mm jack.
• LFB interconnection cable for Speedsignal interface 42b-xxxxxxx.
• Bridging – with a 24 kΩ resistor bridge.
• Must be ordered together with the appropriate steering wheel adapter.
• How steering wheel adapters and their interconnection cables work is explained in the article.

Intended for head units:

• Phonocar – 3.5 mm jack connection.
• Sony – 3.5 mm jack connection.
