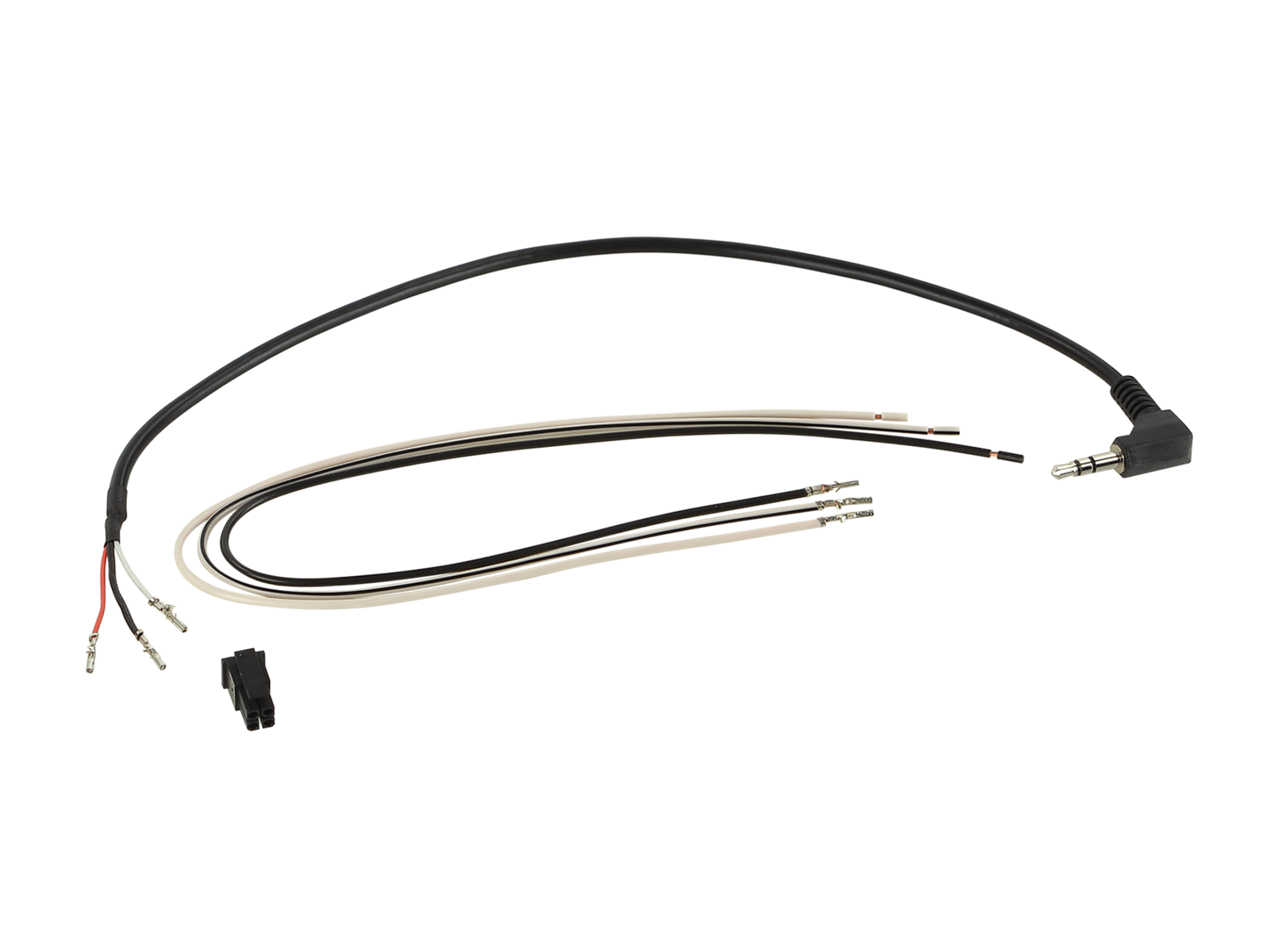

Patch cable for steering wheel adapter 42ARC100
- Patch cable for connecting aftermarket car radios to the steering wheel control adapter (LFB/SWC).
- Different radio manufacturers use different types of control inputs: single-wire, two- and multi-wire (Key1/Key2/GND) or input via 3.5 mm jack – the exact variant is always listed in the BDA (manual) of the specific car radio.
- All necessary connection wires must be connected before connecting the interface to the vehicle.
- For some radios it is necessary to additionally "learn" (remap) the steering wheel button functions in the unit menu according to the instructions in the radio manufacturer's manual.
- Always test correct operation before final installation.
Notice
- Connection: 4-pin Molex → 3.5 mm jack / multi-cable.
- LFB patch cable for interface 42cx401 (compatible with kits 42a-xxxx-xxx).
- DIP switch settings: see table below (ON/OFF mode).
- Atoto aftermarket units are not supported.
- Must be ordered together with the corresponding steering wheel adapter.
- How steering wheel adapters and their patch cables work is described in our article.
Intended for head units:
- Alpine - connection via 3.5 mm jack.
- Blaupunkt 2010 -> - connection via 3.5 mm jack (Sony/Pioneer) or Key1 / Key2 / (GND) for China HU.
- China HU - connection Key1 / Key2 / (GND).
- Clarion - connection via 3.5 mm jack.
- Digital Dynamics - single-wire connection.
- ESX - connection Key1 / Key2 (China HU).
- JVC - connection via 3.5 mm jack or single-wire connection (Kenwood).
- Kenwood - single-wire connection or 3.5 mm jack (2017 ->) or Key1 / Key2 / GND (2020 ->).
- Pioneer - connection via 3.5 mm jack.
- Snooper - connection Key1 / Key2 (China HU).
- Sony - connection via 3.5 mm jack.
- XZent - single-wire connection.
- Zenec - single-wire connection.
DIP switch settings for 42cx401:
- Alpine - OFF / OFF / OFF.
- Blaupunkt 2010 -> - OFF / ON / OFF (alternative: OFF / ON / ON).
- China HU - OFF / ON / OFF.
- Clarion - ON / ON / OFF.
- Digital Dynamics - OFF / OFF / ON.
- ESX - OFF / ON / OFF.
- JVC - ON / OFF / ON (alternative: ON / ON / ON) - single-wire and 3.5 mm jack connection.
- Kenwood - ON / ON / ON (single-wire connection).
- Kenwood 2017 -> - OFF / ON / OFF (alternative: OFF / ON / ON) - 3.5 mm jack.
- Kenwood 2020 -> - OFF / ON / OFF (alternative: OFF / ON / ON) - Key1 / Key2 / GND.
- Pioneer - OFF / ON / ON.
- Snooper - OFF / ON / OFF.
- Sony - OFF / ON / ON.
- XZent - OFF / OFF / ON.
- Zenec - OFF / OFF / ON.
| Catalog number | 42ARC100 |
| Brand | ACV |
| Links | Official web presentation |
