Interconnect cable 42CTPIONEERLEAD2

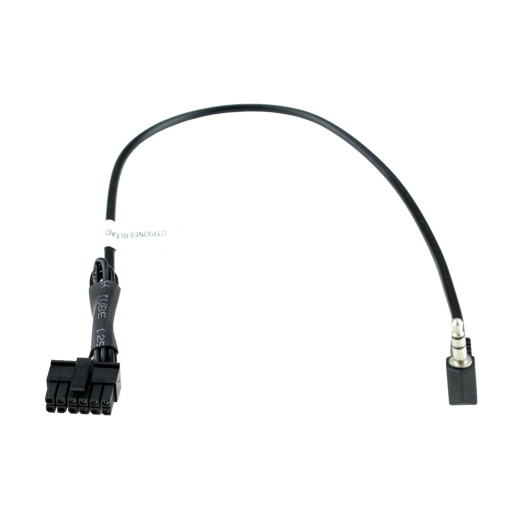

Interconnect cable for steering wheel adapter 42CTPIONEERLEAD2

• Interconnect (patch) cable for connecting Pioneer car radios of the AVH, DMH and SPH series (model years 2021/2022 onward) to the ACV steering wheel control adapter (LFB/SWC).
• Head unit manufacturers use different types of control inputs: single-wire, two- and multi-wire (Key1/Key2/GND) or 3.5 mm jack – the exact variant is always specified in the head unit's BDA (manual).
• All required connection wires must be connected before connecting the interface to the vehicle.
• For some head units it is necessary to additionally 'teach' (remap) the steering wheel button functions in the unit's menu according to the instructions in the manufacturer's BDA.
• Always test correct operation before final installation.

Notice

• Connection: 12-pin Microfit → 3.5 mm jack.
• Patch cable LFB for ACV interface 42s-xxxxx and Infodapter 43u-xxxx.
• Cathode/locking ring to Microfit connector.
• Configuration according to the specific head unit's BDA.
• Must be ordered together with the corresponding steering wheel adapter.
• Information on how steering wheel adapters and their interconnect cables work can be found in the product documentation.

Intended for head units:

• Pioneer – 3.5 mm jack connection, 2021/2022 models onward with a flat glossy metal rear surface.

Compatible Pioneer models:

• Pioneer AVH: AVH-A240BT, AVH-A240DAB
• Pioneer DMH: DMH-A240BT, DMH-A241BT, DMH-A340DAB, DMH-A245BT
• Pioneer SPH: SPH-DA160DAB, SPH-DA360DAB
