Connecting cable 42C-3414101

Connection cable for steering wheel adapter 42C-3414101

• Patch cable for connecting aftermarket car radios to the Speedsignal steering wheel control adapter (LFB/SWC).
• Car radio manufacturers use different types of control inputs: single-wire, two- and multi-wire (Key1/Key2/GND), or an input via a 3.5 mm jack – the exact variant is always specified in the BDA (manual) of the specific radio.
• All connections must be made before connecting the interface to the vehicle.
• For some radios it is necessary to additionally "teach" (remap) the steering wheel button functions in the unit's menu according to the instructions in the radio manufacturer's BDA.
• Always test correct operation before final installation.

Notice

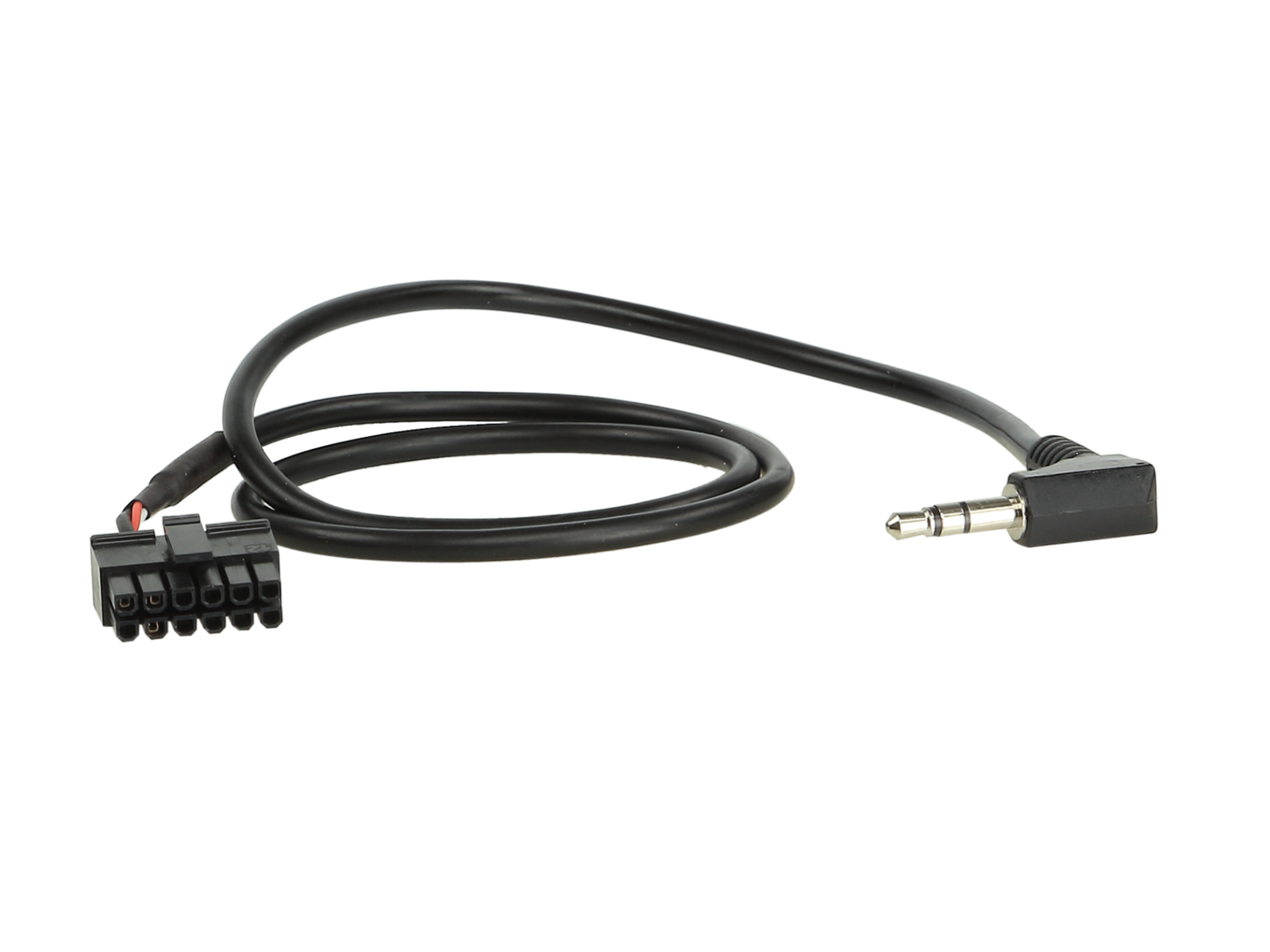

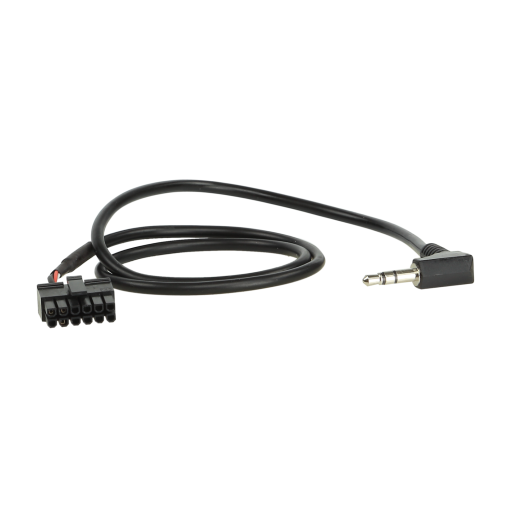

• Connection: 12pin Microfit → 3.5 mm jack.
• LFB patch cable for Speedsignal interface 42b-xxxxxxx.
• No jumper/resistor.
• Must be ordered together with the corresponding steering wheel adapter.
• How steering wheel adapters and their patch cables work can be found in the article.

Intended for head units:

• Blaupunkt 2010 -> – 3.5 mm jack.
• Kenwood 2017 -> – 3.5 mm jack.
• Pioneer – 3.5 mm jack.
