Connecting cable 42C-3414104

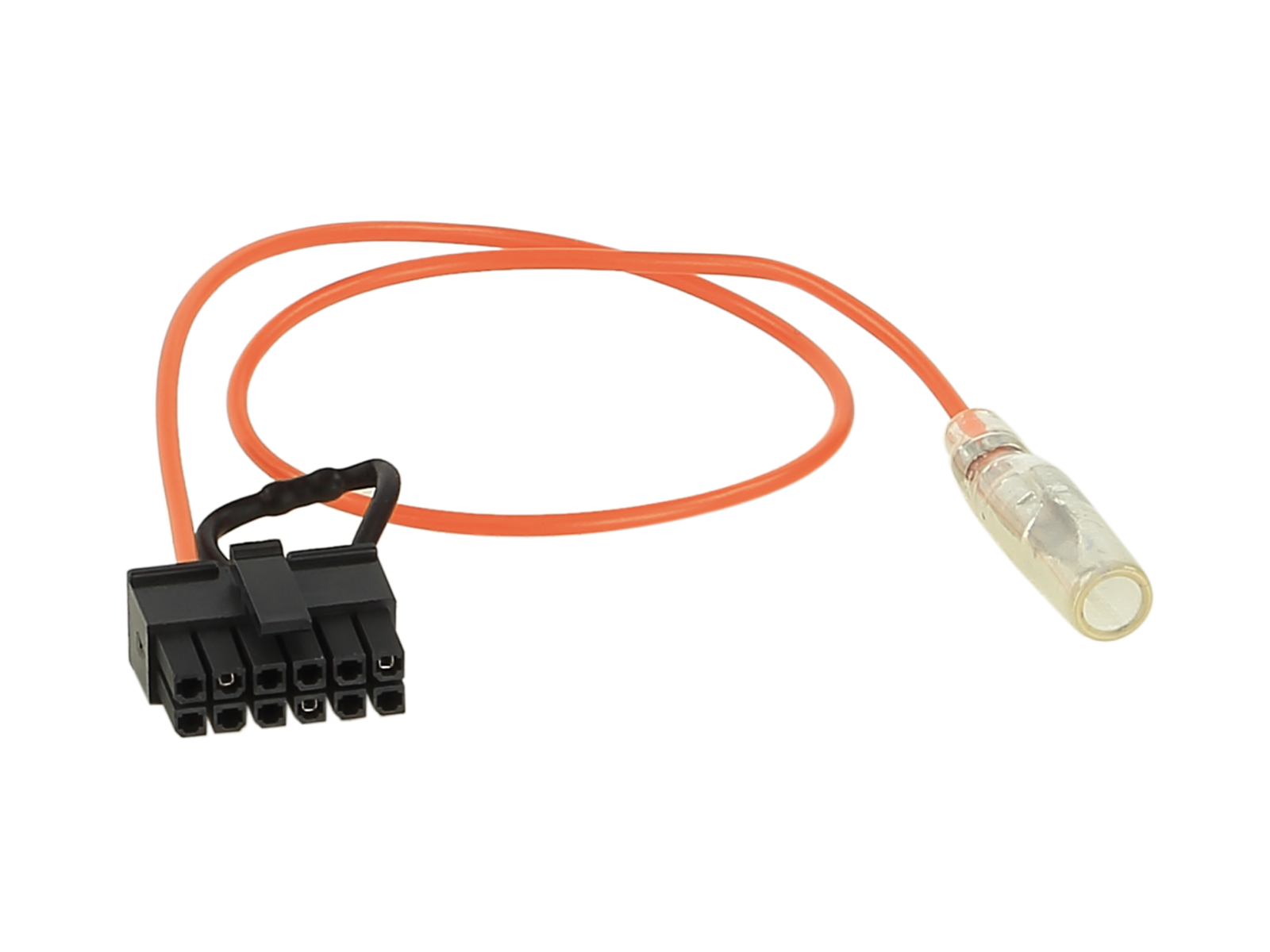

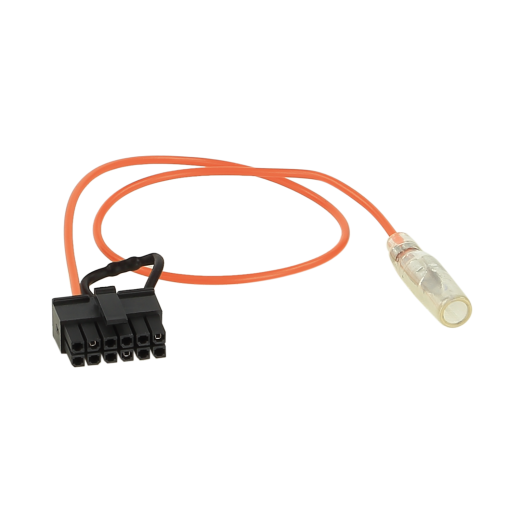

Patch cable for steering wheel adapter 42C-3414104

• Patch cable for connecting aftermarket Kenwood car radios to the Speedsignal steering wheel control adapter (LFB/SWC).
• Car radio manufacturers use various types of control inputs: single-wire, two- and multi-wire (Key1/Key2/GND) or input via a 3.5 mm jack – the exact variant is always specified in the radio's BDA (manual).
• All connections must be made before connecting the interface to the vehicle.
• For some radios it is necessary to additionally "teach" (remap) steering wheel button functions in the unit's menu according to the radio manufacturer's BDA instructions.
• Always test proper operation before final installation.

Notice

• Connection: 12-pin Microfit → single-wire connection (Einkabelanschluss).
• LFB patch cable for Speedsignal interface 42b-xxxxxxx.
• Bridging – resistor 2.2 kOhm.
• Must be ordered together with the corresponding steering wheel adapter.
• How steering wheel adapters and their patch cables work can be found in the product documentation.

Intended for head units:

• Kenwood – single-wire connection.
