Connecting cable 42C-3414140

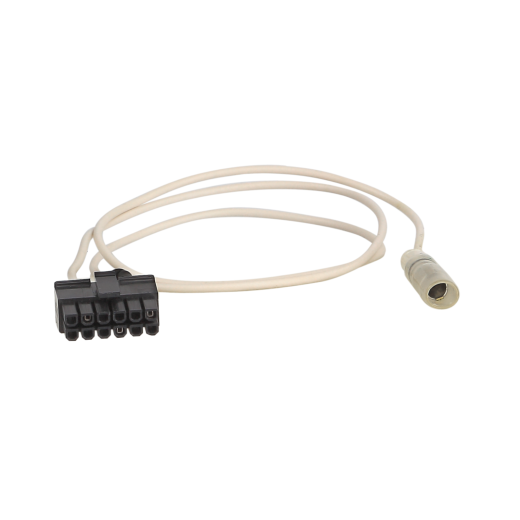

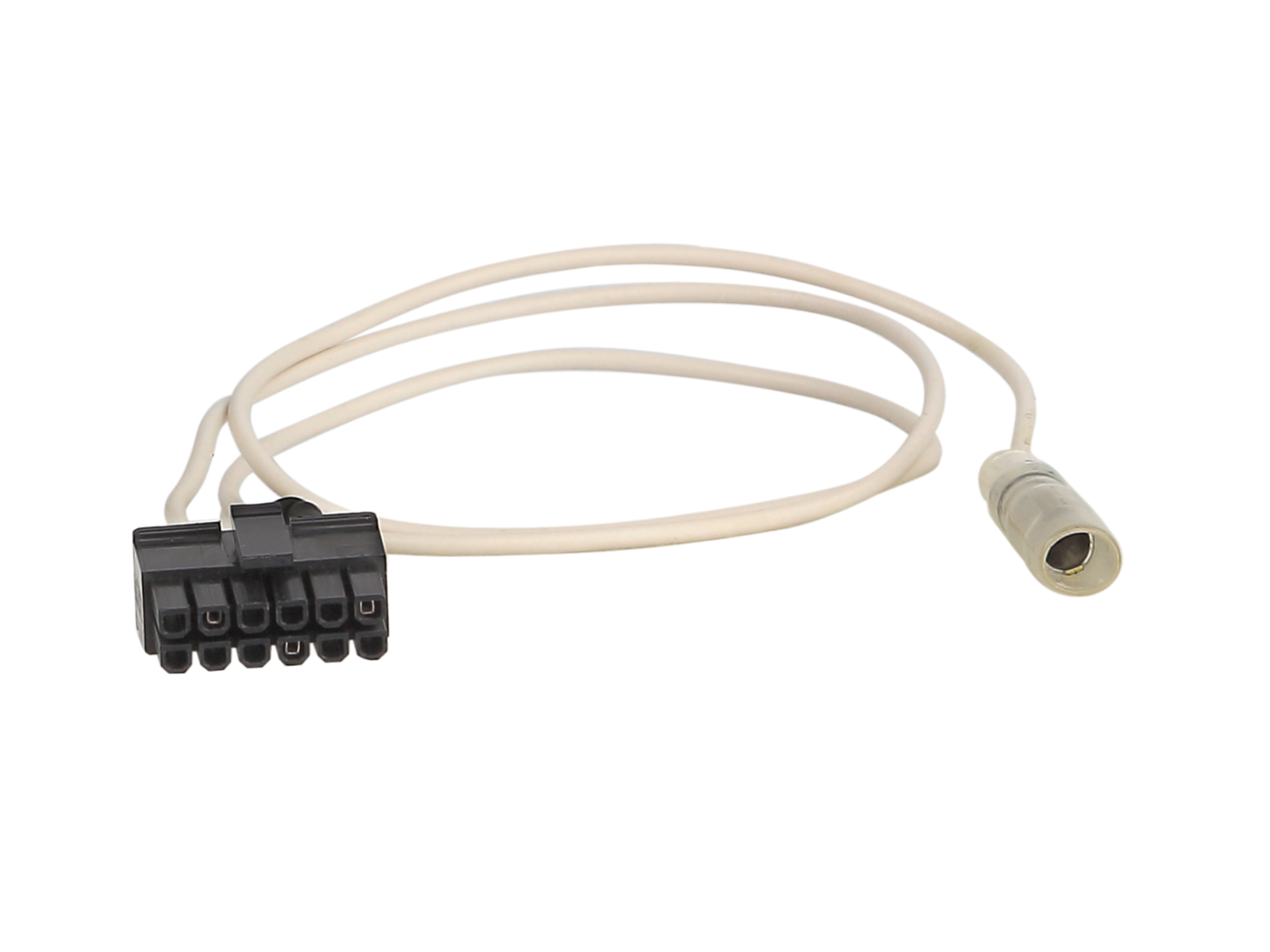

Connection (patch) cable for Speedsignal 42C-3414140 steering wheel adapter

• Patch cable for connecting aftermarket JVC car radios to the Speedsignal steering wheel control adapter (LFB/SWC).
• Car radio manufacturers use different types of control inputs: single-wire, two- and multi-wire (Key1/Key2), or an input via 3.5 mm jack — the exact variant is always specified in the radio's user manual (BDA).
• All connections must be made before connecting the interface to the vehicle.
• For some radios it is necessary to additionally "teach" (remap) the steering wheel button functions in the unit's menu according to the radio manufacturer's user manual.
• Always test proper operation before final installation.

Important

• Connection: 12-pin MicroFit → single-wire connection.
• LFB patch cable for the Speedsignal 42b-xxxxxxx interface.
• Jumper with a 2.9 kΩ resistor.
• Must be ordered together with the corresponding steering wheel adapter.
• Information on how steering wheel adapters and their patch cables work is available separately.

Intended for head units:

• JVC – single-wire connection.
