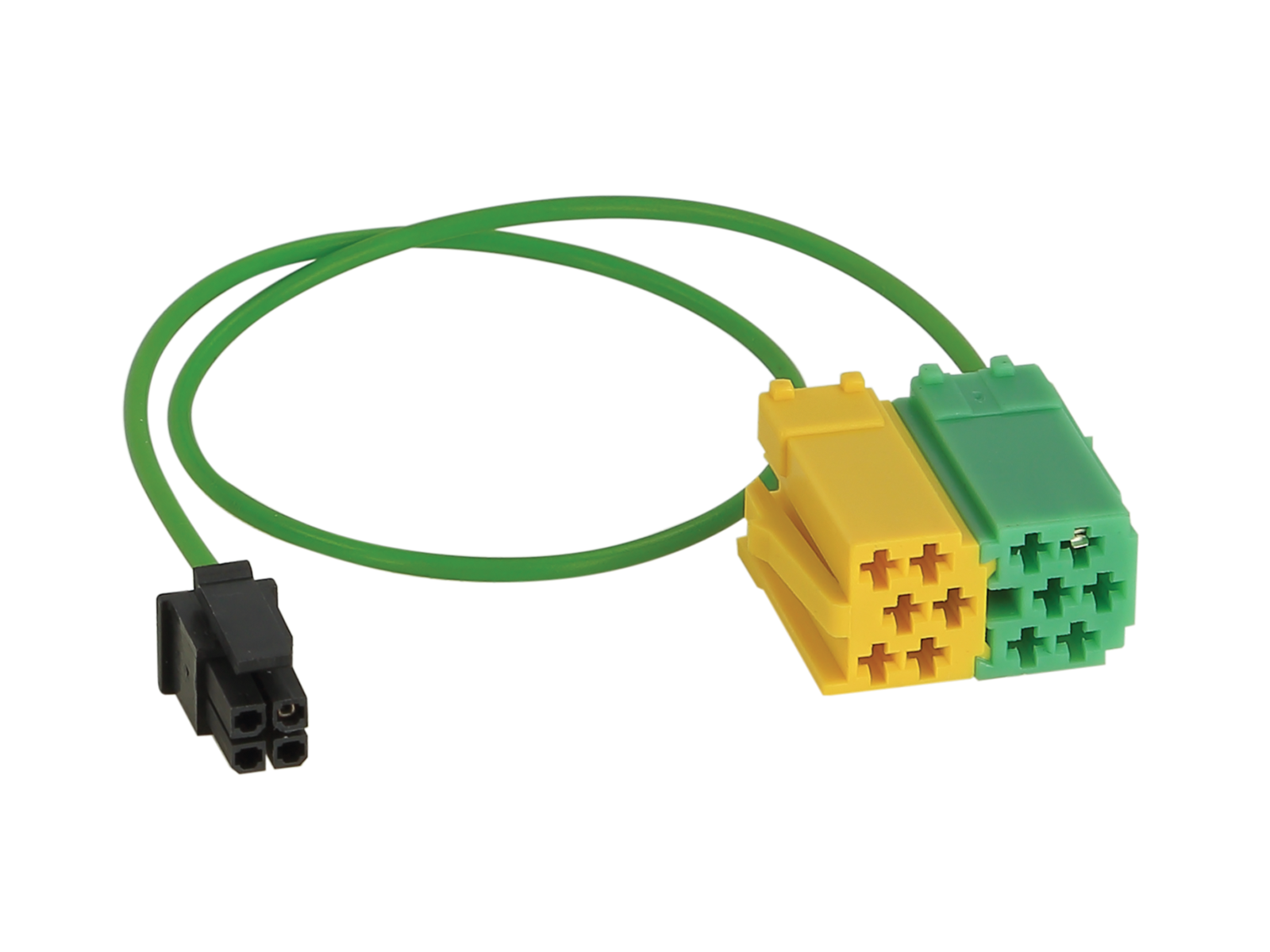

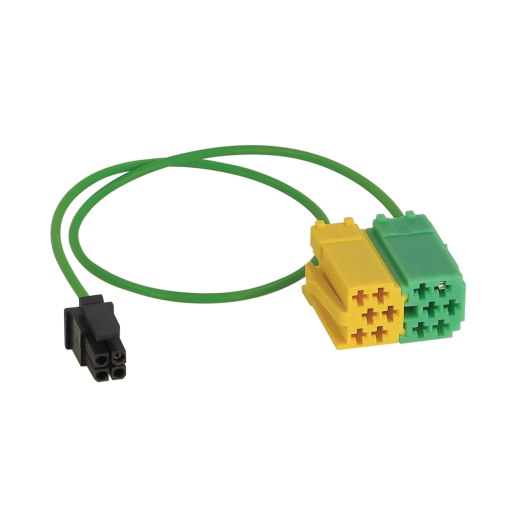

Connecting cable 42ARC103

Interconnect cable for steering wheel adapter 42ARC103

• Interconnect (patch) cable for connecting aftermarket Bosch‑Blaupunkt car radios (after 2010) to a steering wheel control adapter (LFB/SWC).
• Different radio manufacturers use different types of control inputs: single‑wire, two‑ and multi‑wire (Key1/Key2/GND) or input via 3.5 mm jack – the exact variant is always specified in the BDA (manual) of the specific radio.
• All required connection wires must be connected before connecting the interface to the vehicle.
• For some radios it is necessary to additionally “teach” (remap) the steering wheel button functions in the unit menu according to the instructions in the radio manufacturer’s BDA.
• Always test correct function before final installation.

Notice

• Connection: 4‑pin Molex → Mini ISO.
• Patch cable LFB for interface 42cx401 (compatible with 42a-xxxx-xxx kits).
• DIP switch settings: according to the table below (ON/OFF mode).
• Atoto aftermarket units are not supported.
• Must be ordered together with the appropriate steering wheel adapter.
• How steering wheel adapters and their patch cables work can be found in the related article.

Intended for head units:

• Bosch‑Blaupunkt (after 2010) - Mini ISO connection.

DIP switch settings for 42cx401:

• Bosch‑Blaupunkt (after 2010) - ON / OFF / OFF.
