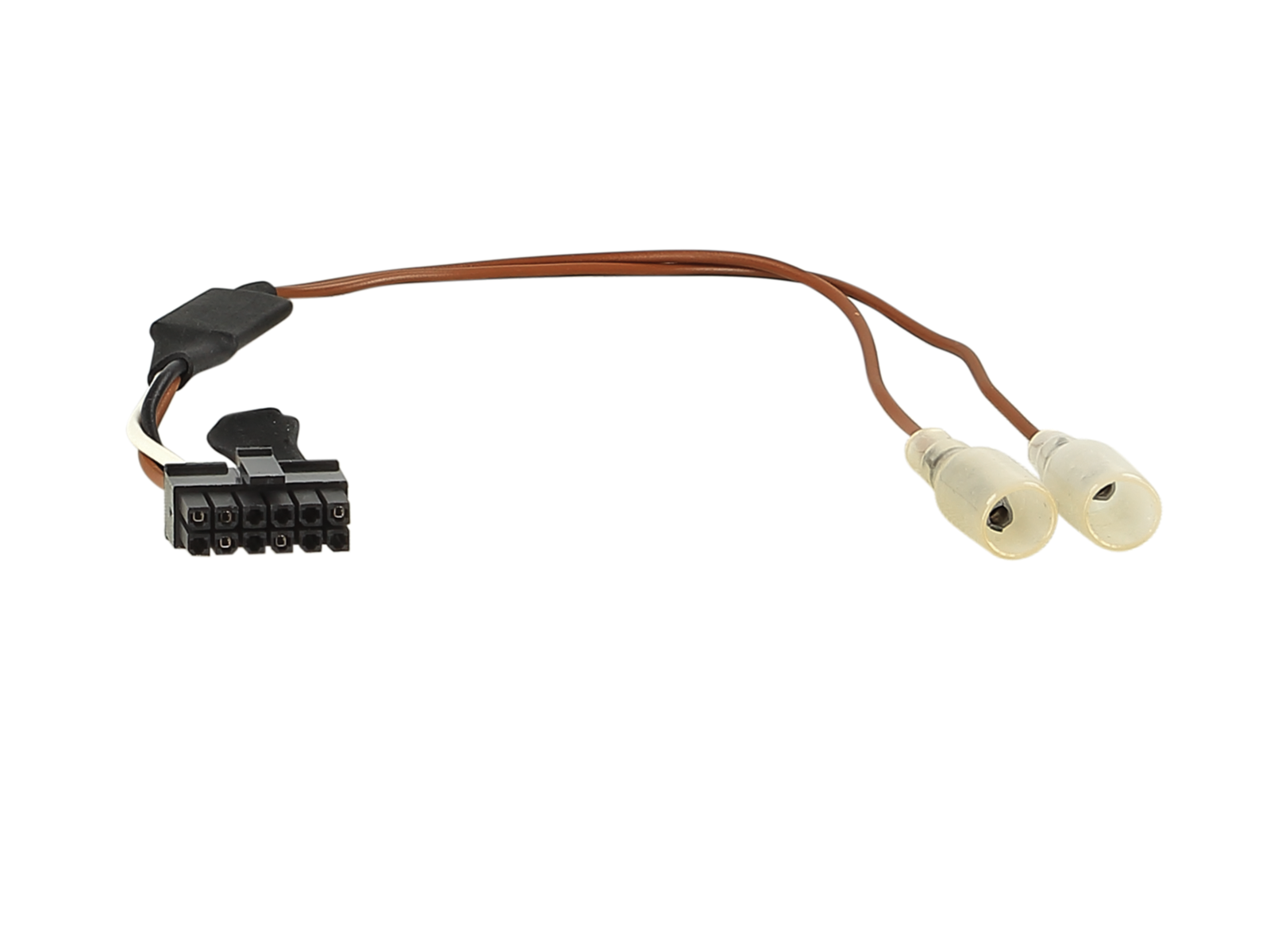

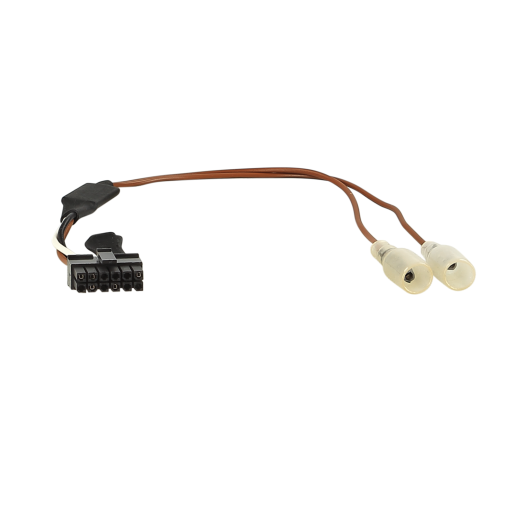

Connecting cable 42C-3414124

Connection cable for steering wheel adapter 42C-3414124

• Connection (patch) cable for connecting aftermarket car radios Blaupunkt, China HU, ESX, Kenwood (2020 and later), Snooper and XZent to the Speedsignal steering wheel control adapter (LFB/SWC).
• Car radio manufacturers use different types of control inputs: single-wire, two- and multi-wire (Key1/Key2) or input via 3.5 mm jack – the exact variant is always stated in the radio's BDA (manual).
• All connections must be made before connecting the interface to the vehicle.
• For some radios it is necessary to additionally "teach" (remap) the steering wheel button functions in the unit menu according to the instructions in the radio manufacturer's BDA.
• Always test correct operation before final installation.

Notice

• Connection: 12-pin Microfit → outputs Key1 / Key2.
• LFB patch cable for Speedsignal interface 42b-xxxxxxx.
• No bridge / no resistor.
• Atoto aftermarket units are not supported.
• Must be ordered together with the corresponding steering wheel adapter.
• Information on how steering wheel adapters and their patch cables work is available in the product documentation.

Designed for head units:

• Blaupunkt 2010 and later – connection 2/3-wire input (Key1 / Key2).
• China HU – connection 2/3-wire input (Key1 / Key2).
• ESX – connection 2/3-wire input (Key1 / Key2).
• Kenwood 2020 and later – connection 2/3-wire input (Key1 / Key2).
• Snooper – connection 2/3-wire input (Key1 / Key2).
• X Zent – connection 2/3-wire input (Key1 / Key2).
