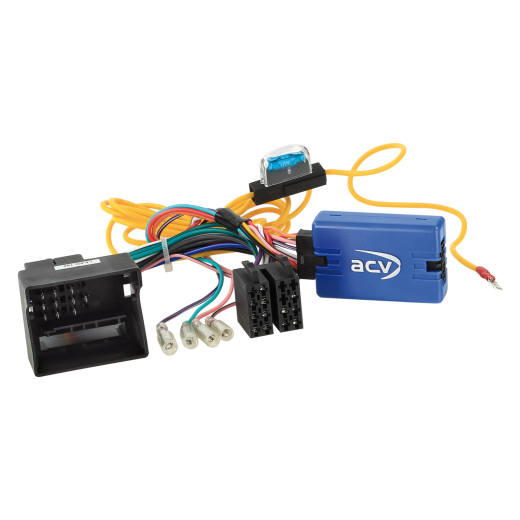

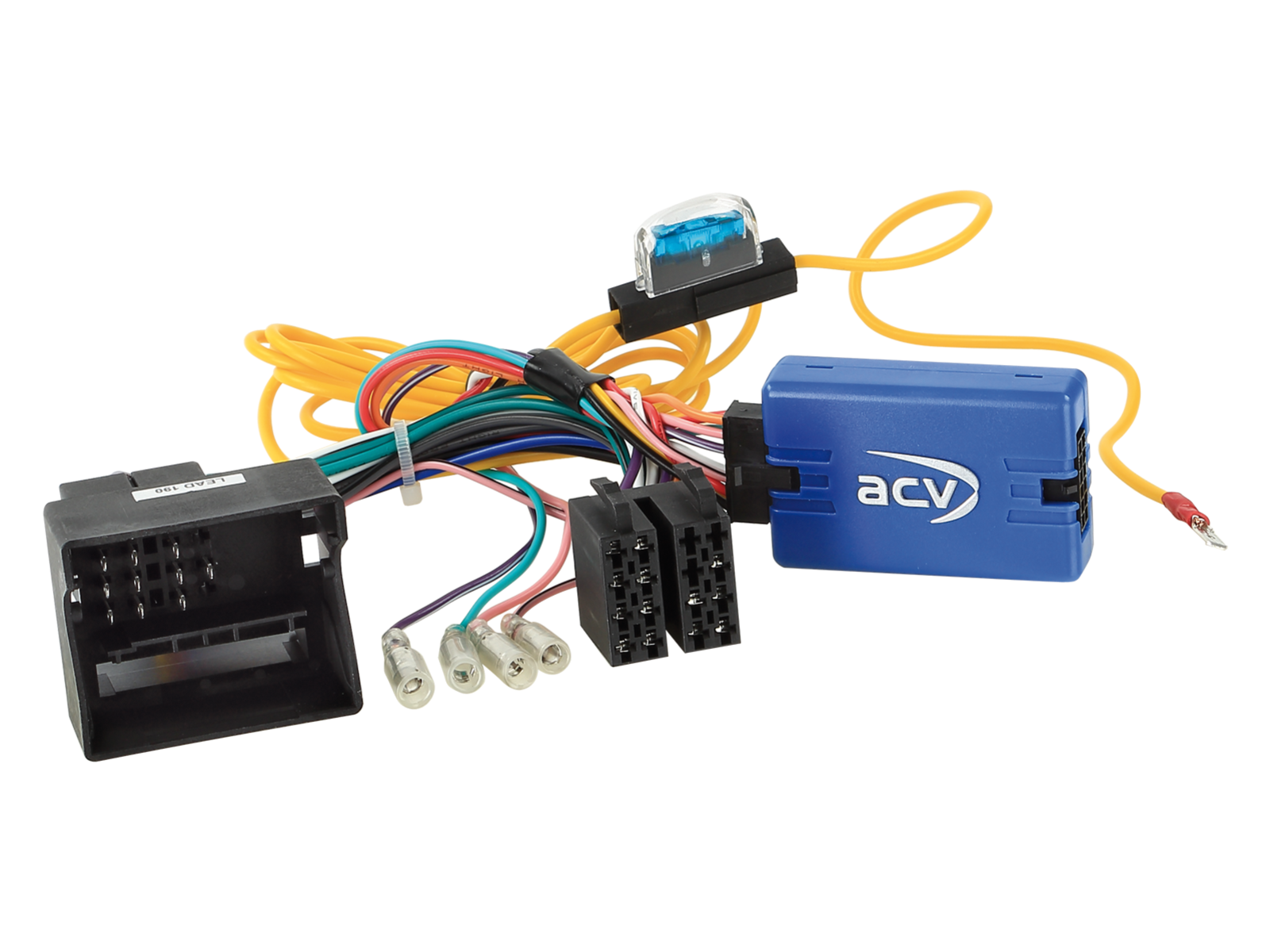

Steering Wheel Control Adapter for Mini ACV SWC 42SBM010-0

Retain the original steering wheel radio control functions when replacing the original radio with an aftermarket unit. Compare the displayed wiring connectors with the connectors in your vehicle to ensure they match both technically and visually. Verify the vehicle's functionality, system settings, and proper operation of the steering wheel control (SWC) before final installation.

Designed for Vehicles

• Mini (F55/F56/F57) (03/2014 -> 02/2018) – vehicle with 40 Pin Quadlock BMW connector, +12V constant power (Klemme 30) through a fused battery supply, without support for PDC, warning tones, and vehicle settings.

CAN Bus Information

Connectors and Wiring:

• 40 Pin Quadlock BMW connector
• +12V constant power (Klemme 30) – fused battery supply
• PDC – not supported
• Warning Tones – not supported
• Vehicle Settings – not supported

Important Additional Information

• To fully activate the adapter, a connection cable for the specific radio brand must be ordered.

General Installation Guidelines

Pre-Installation Verification:

1. Check all control functions and vehicle settings with the original OEM head unit.
2. Remove the original radio (OEM HU) without power.
3. Verify all interface connections for proper wiring – without power.

Connection and Wiring Order:

1. Configure the interface and hardware without power.
2. Check the connection cable configuration to the HU.
3. Connect the cable to the HU according to the aftermarket device instructions.
4. Connect other wires according to the device instructions.
5. Connect the entire installation to the vehicle – connect the main power supply last.
6. Perform software configuration of the interface according to the product description and BDA instructions.
7. Configure the aftermarket HU (steering wheel control, camera, hands-free, antenna power, and more).
8. Perform a functional test of the steering wheel control and vehicle communication.

Changing Interface and HU Cable Configuration:

• Make all changes without power.
• After changes, repeat steps 5 to 8 listed above.

In Case of Interface or Vehicle System Malfunction:

• Reinstall the original OEM HU in the vehicle.
• Start the original unit.
• Initiate the CAN Bus system standby mode.
• Check the HW configuration of the interface.
• After the CAN Bus has calmed, repeat steps 5 to 8 listed above.

When Modifying Connections or Wiring:

• Only professionally trained personnel may perform connections and modifications.
• All changes must be verified for manufacturer approval or impact on vehicle warranty before connection.
• All modifications must be verified through measurement and comparison with the vehicle's wiring diagram before connection.
• Modifications are done at your own risk, with no warranty on functionality.
• Modifications are performed at your own risk, with no guarantee against damage to the vehicle, device, or interface.
• Modifications to pre-installed wiring may result in the loss of product warranty.
