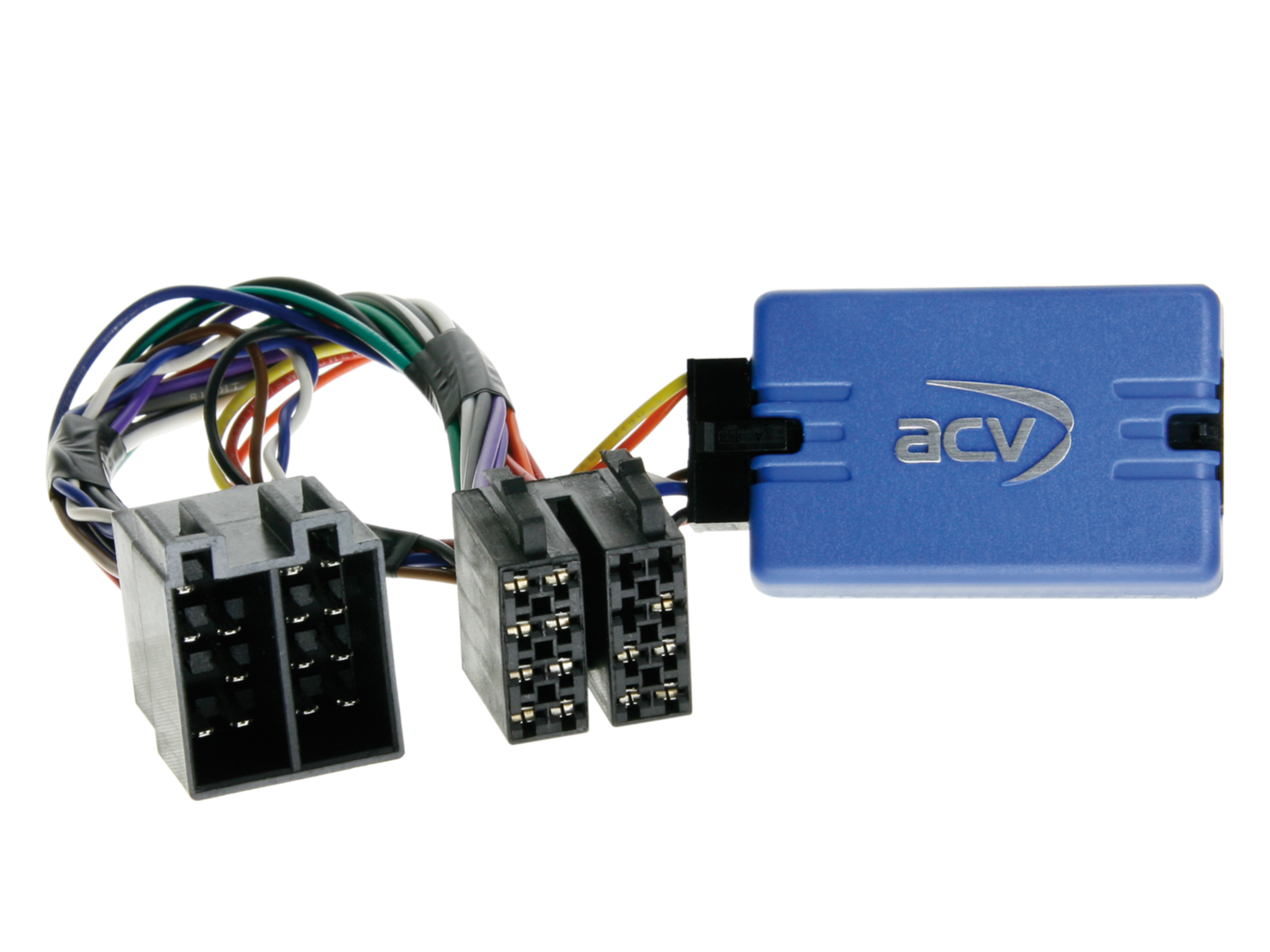

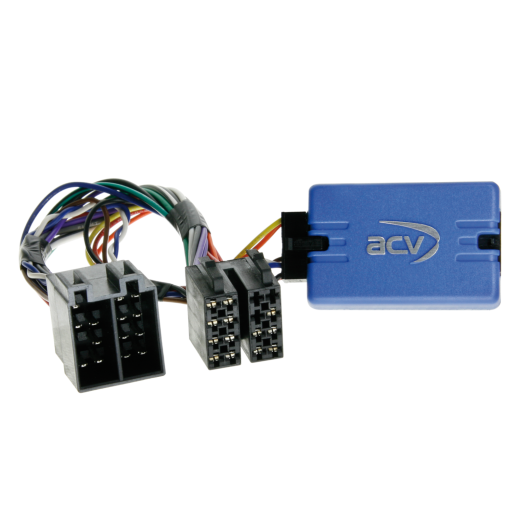

Steering Wheel Control Adapter for Citroën / Fiat / Peugeot ACV SWC 42SCT002-0

Keep the original radio control functions from the steering wheel when replacing the original radio with an aftermarket unit. Compare the displayed wiring connectors with the connectors in your vehicle and ensure they match both technically and visually. Before final installation, verify vehicle functionality, system settings, and proper steering wheel control (SWC) operation.

Suitable for Vehicles

Citroën Berlingo (M/G) (10/2002 -> 10/2005) – vehicles with VAN Bus, ISO connector, Clarion RD3 PU2471/PU1633 or VDO RD3 OEM radio with rocker volume controls, without OEM Blaupunkt / Continental / Siemens VDO RD4 with rotary volume control, without Continental RD45 and Magneti Marelli RT3 with rotary volume control, without OEM JBL audio system.
Citroën Berlingo (M/G) (10/2005 -> 06/2008) – same conditions as above.
Citroën C2 (J) (11/2003 -> 11/2004) – same conditions as above.
Citroën C3 (F) (04/2002 -> 09/2005) – same conditions as above.
Citroën C5 (D) (03/2001 -> 10/2004) – same conditions as above.
Citroën C8 (E) (07/2002 -> 01/2008) – same conditions as above.
Citroën Xsara (N6) (10/2000 -> 12/2005) – same conditions as above.
Citroën Xsara Picasso (C) (06/2000 -> 03/2004) – same conditions as above.

Fiat Ulysse (ZAF 179) (09/2002 -> 01/2008) – same conditions as above.

Peugeot 206 (2/2CC/2SW) (03/2003 -> 02/2009) – same conditions as above.
Peugeot 307 (3/3Break/3SW/3CC) (02/2001 -> 06/2005) – same conditions as above.
Peugeot 406 (8/8Break/8/Coupé) (03/1999 -> 09/2005) – same conditions as above.
Peugeot 607 (9*) (09/2000 -> 10/2004) – same conditions as above.
Peugeot 807 (E*) (07/2002 -> 02/2008) – same conditions as above.
Peugeot Partner (G*) (12/2002 -> 04/2008) – same conditions as above.

CAN Bus Information

Connectors and Wiring:

ISO connector
Support only for OEM Clarion RD3 PU2471/PU1633 and VDO RD3 radios with rocker volume control
Does not support Blaupunkt / Continental / Siemens VDO RD4, Continental RD45, Magneti Marelli RT3, and OEM JBL

Important Additional Information

To fully activate the adapter, it is necessary to order a connection cable for the specific brand of radio.

General Installation Guidelines

Verification Before Installation:

Check all control functions and vehicle settings with the original OEM head unit.
Remove the original radio (OEM HU) without power.
Check all interface connections for correct wiring—without power.

Connection and Wiring Order:

Perform interface setup and hardware configuration without power.
Check the configuration of the connection cable to the HU.
Connect the cable to the HU according to the aftermarket device manual.
Connect other wires according to the device manual.
Connect the entire installation to the vehicle—connect the main power connection last.
Perform a software configuration of the interface according to the product description and BDA.
Configure the aftermarket HU (steering wheel control, camera, hands-free, antenna power, and more).
Perform a functional test of the steering wheel control and communication with the vehicle.

Changing Interface and HU Cable Configuration:

Make all changes without power.
After changes, repeat steps 5 to 8 above.

In Case of Interface or Vehicle System Failure:

Return the original OEM HU to the vehicle.
Start the original unit.
Induce a calm (sleep) state in the CAN Bus system.
Check the hardware configuration of the interface.
After calming the CAN Bus, repeat steps 5 to 8 above.

When Modifying Wiring or Cable Routing:

Only professionally trained personnel may perform wiring and modifications.
All changes must be verified for manufacturer approval or impact on vehicle warranty before connection.
All modifications must be verified by measurement and compared with the vehicle's wiring diagram before connection.
Modifications are made at your own risk, without a guarantee of functionality.
Modifications are performed at your own risk, without guarantee of exclusion of damage to the vehicle, device, or interface.
Modifications to pre-installed cabling may lead to loss of product warranty.
