Sound insulation material Comfortmat Raptor

Sound insulation material Comfortmat Raptor

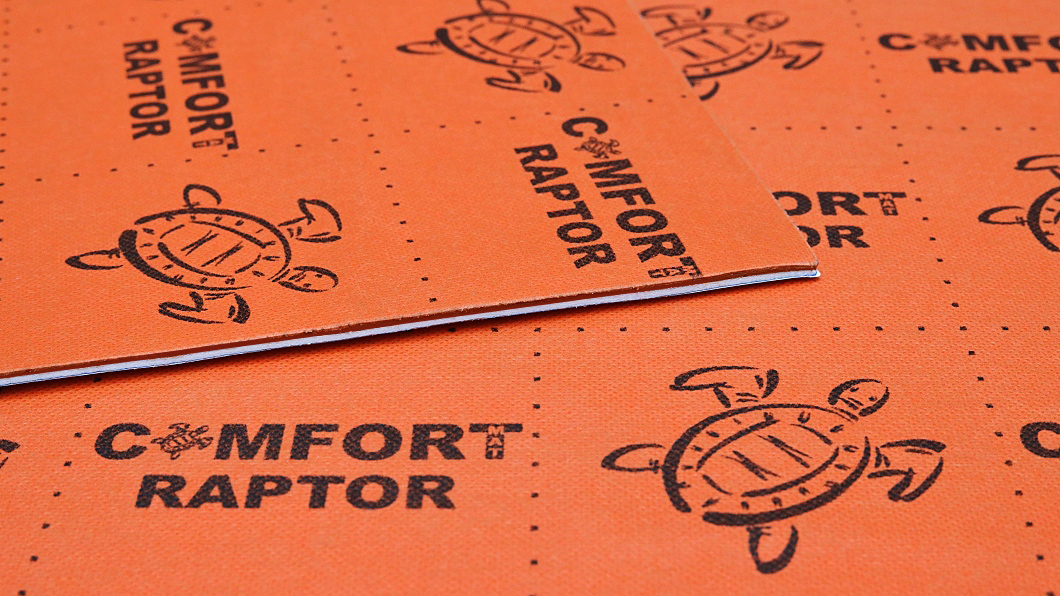

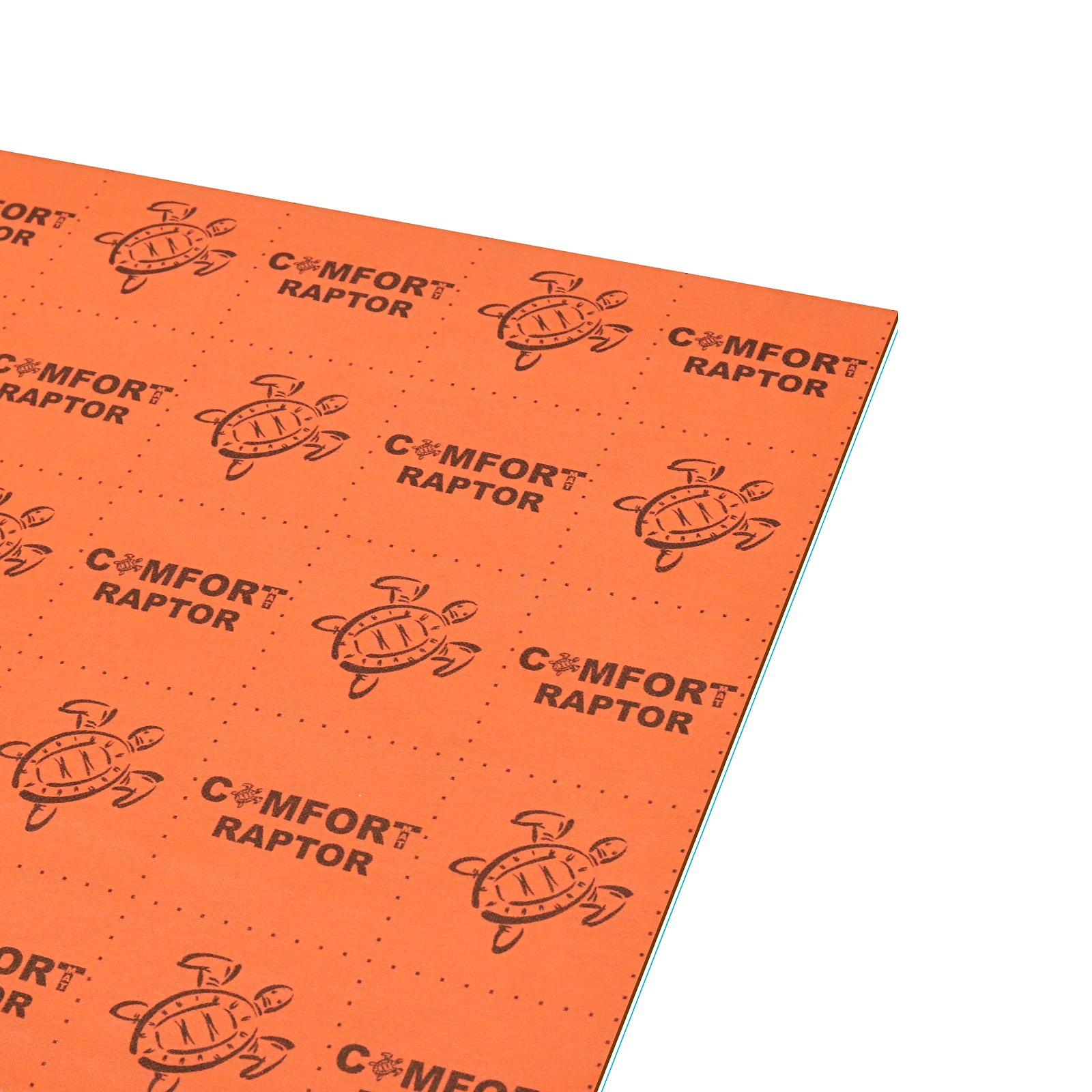

Comfortmat Raptor is among the latest materials of the Comfortmat company introduced in 2021 and impresses not only with its high efficiency of up to 30 dB, but especially with its thickness of only 4 mm. It is even the most effective soundproofing material of this thickness today. The Raptor is made up of a sound-insulating layer and a noise-reducing membrane of the latest generation with a thickness of 2 mm, which enables such high efficiency. An important part of the material is the improved assembly adhesive sealant, which enables an even higher adhesive effect at temperatures from -50 to +150 degrees. You can therefore apply Raptor even on highly embossed surfaces with the confidence that it will not peel off on its own throughout the life of the car. Raptor is a membrane material and therefore replaces the second and third layers of soundproofing, making application easier. The material is of course absolutely waterproof and also fulfills a thermal insulation function. Thanks to its thickness of 4 mm, the material is particularly suitable for areas with less space for the application of noise reduction, typically for example under the rear seats or the bottom of the trunk.

The main features of the Comfortmat Raptor material

• Sound insulating membrane material with a thickness of 4 mm.
• Sound insulation capability of up to 30 dB thanks to a unique composition with an anti-noise membrane.
• It fully replaces the second and third layers of soundproofing, making application easier.
• 100% resistance to water and moisture, the material does not rot, does not absorb moisture and does not decompose.
• Extremely adhesive self-adhesive layer, thanks to which the material does not come off on its own even under water.
• Resistance to extreme temperatures - the same adhesive effect at temperatures from -50 to +150 degrees.
• The ability of thermal insulation and protection against heat loss.
• High flexibility allowing easy use on all areas of the car.

Technical parameters of the Comfortmat Raptor material

• Thickness: 4 mm
• Size: 700 x 500 mm
• Sound insulation: up to 30 dB
• Weight: 1.25 Kg (3.57 Kg / m²)
• Adhesion: 6 to 8 N/cm
• Color: orange with black print
• Price for 1 piece

Where to apply the Comfortmat Raptor material

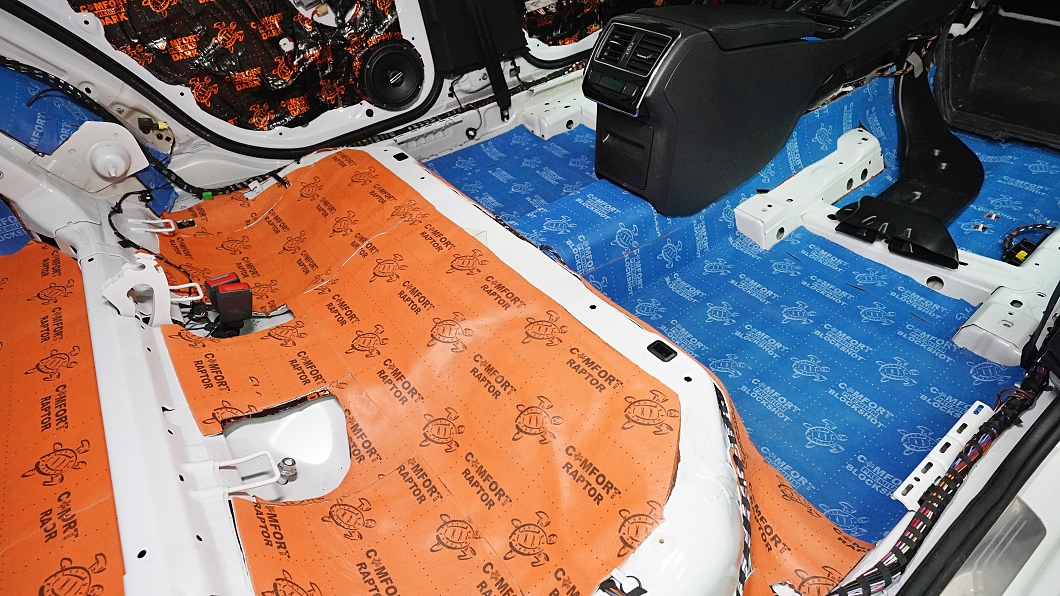

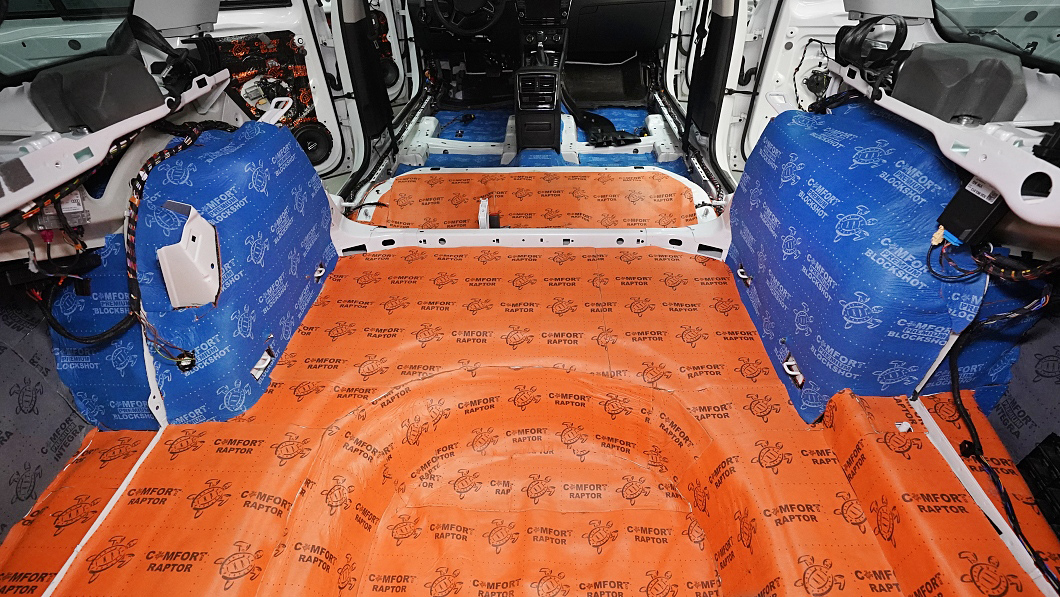

Thanks to its thickness of 4 mm, the Comfortmat Raptor is especially intended for areas where there may be a problem with the overall thickness of sound insulation. Most often, this is the space under the rear seats, the bottom of the trunk, and in some commercial vehicles, also the floor. However, thanks to its high efficiency, you can use the material almost anywhere in the car. Raptor is applied as a second layer to an anti-vibration material (e.g. Comfortmat D2 ), which prevents vibrations. Thanks to its multi-layer composition with a noise-reducing membrane, it fully replaces the second and third layers of noise reduction. If you are not sure about choosing a suitable material, we recommend using our soundproofing configurator , which offers suitable materials and the number of pieces according to the type of car. The most common uses of Comfortmat Raptor cushioning material:

• Space under the rear seats
• The bottom of the luggage compartment
• Floor
• Central tunnel
• Fenders
• Front wheel arches
• Rear wheel arches
• Torpedo

About Comfortmat cushioning materials
