Steering wheel button control adapter for Nissan / Opel / Renault ACV SWC 42A-1230-004-0

steering wheel adapter for Opel Antara (LA) (11/06->11/10, 01/11->03/15), Agila A (H00) (06/03->10/07), Astra H (AH) (03/04->02/07, 02/07->11/10), Combo (C) (10/04->09/11), Corsa C (X01) (07/03->07/06), Corsa D (S07) (10/06->11/10, 01/11->08/14), Meriva A (X01) (11/05->03/10), Signum I (Z03) (09/05->08/08), Tigra Twin Top (XC) (07/04->11/09), Vectra C (Z02) (09/05->09/08), Vivaro A (X83) (09/06->01/11), Zafira B (AH) (07/05->06/10, 02/08->12/14), Nissan Primastar (X83) (09/06->01/11) and Renault Trafic II (L/jL) (10/06->01/11)
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

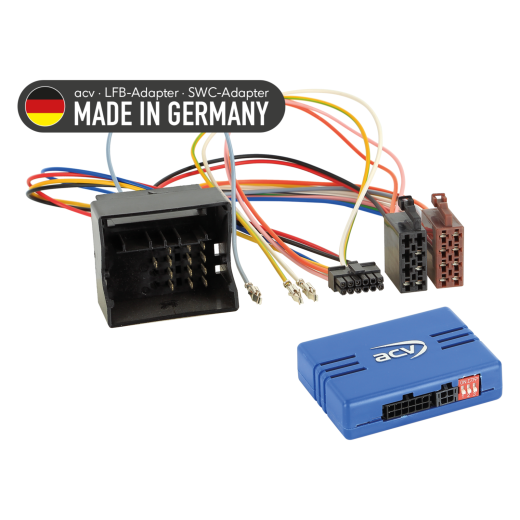

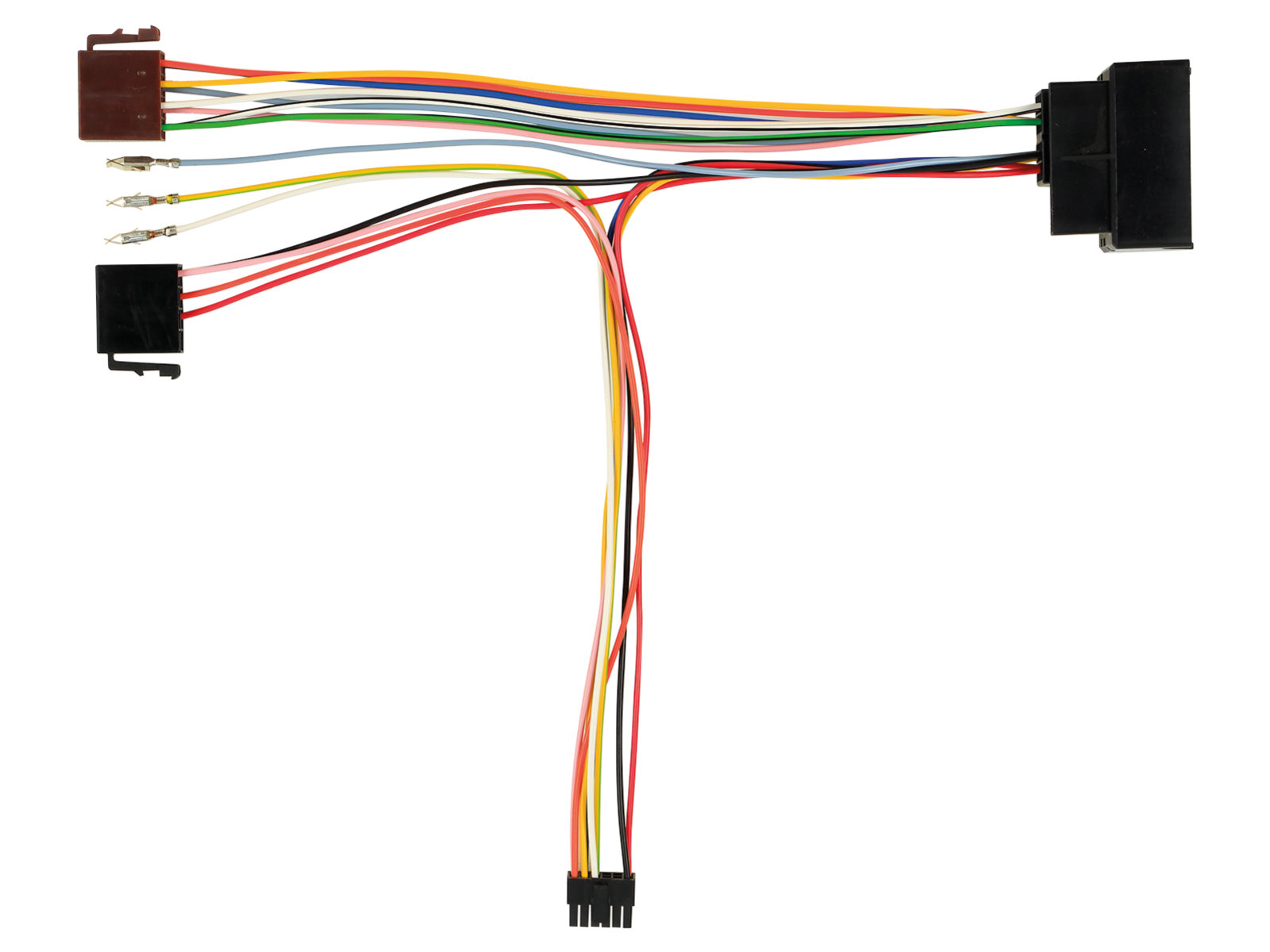

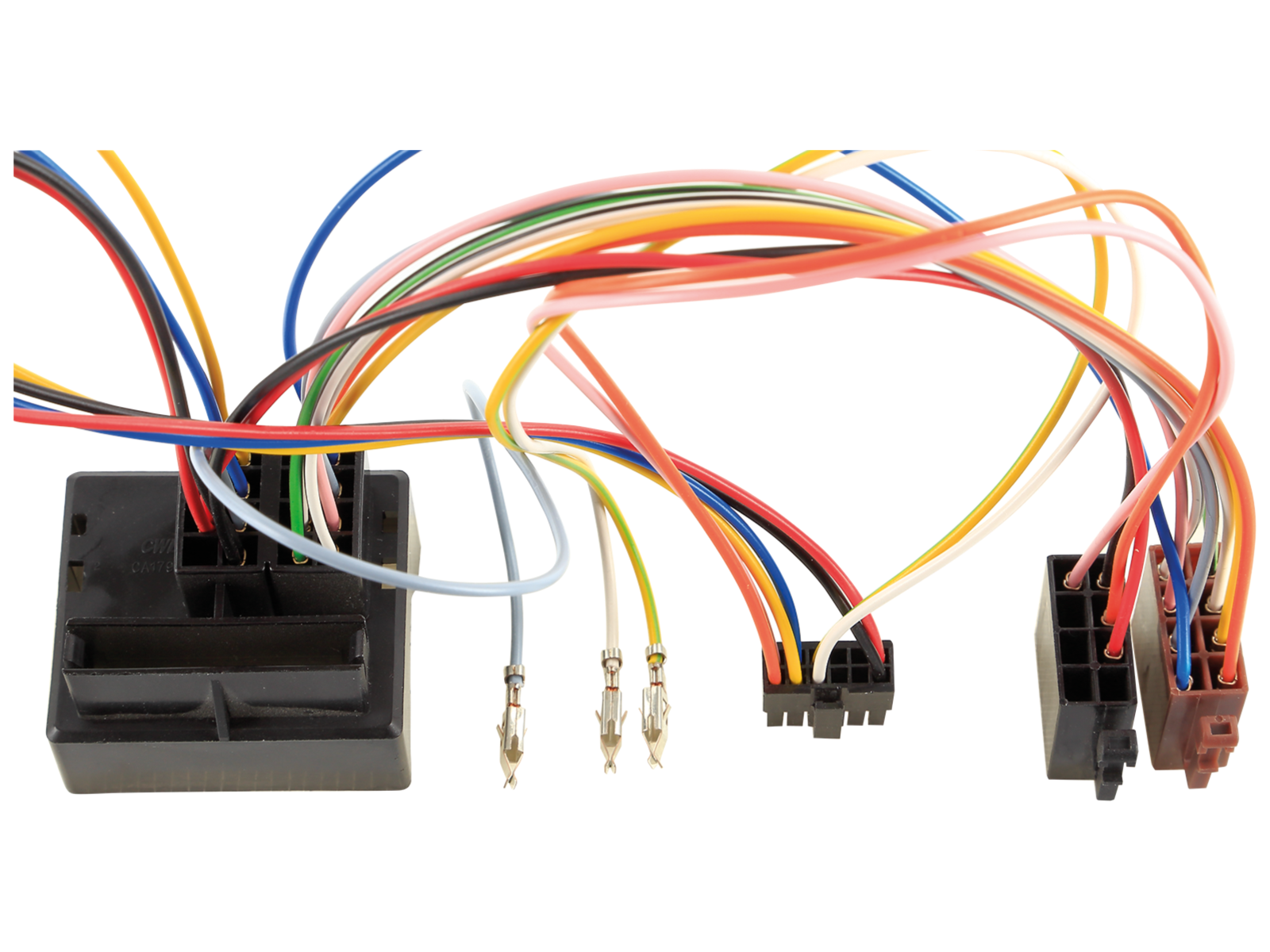

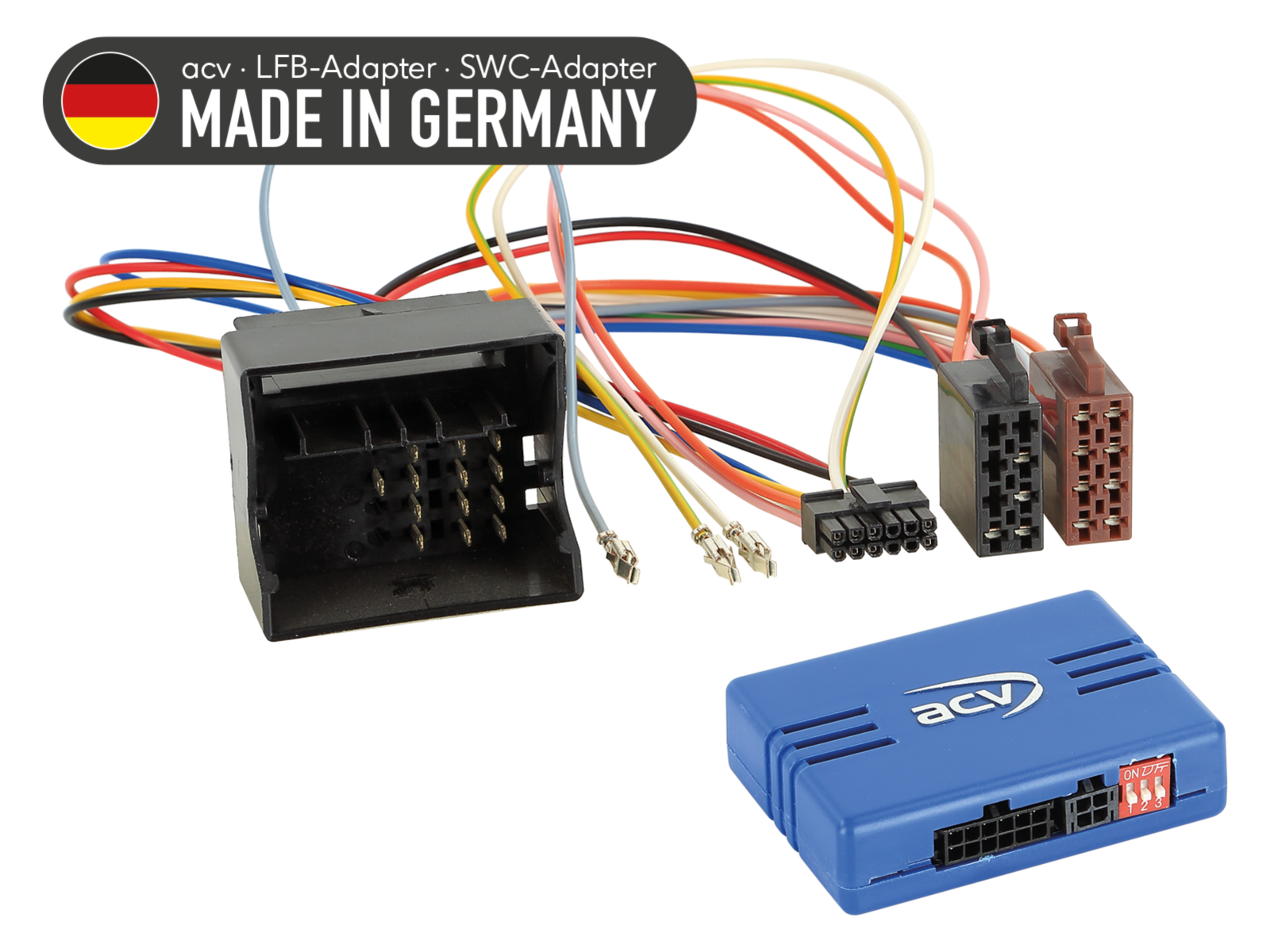

Steering wheel button control adapter for Nissan / Opel / Renault ACV SWC 42A-1230-004-0

Description and parameters
Comments0
Evaluation0
Category

Steering Wheel Control Adapter for Opel / Nissan / Renault ACV SWC 42A-1230-004-0

Maintain the original radio control functions from the steering wheel when replacing the factory radio with an aftermarket unit. Depending on the vehicle's equipment, the range of functions, and the software of the newly installed radio, some functions may be limited or replaced by others. Compare the displayed wiring connectors with the connectors in your vehicle to ensure they match both technically and visually. Verify if any of the listed OEM radios were originally installed. Before final assembly, check the functionality of the vehicle, system settings, and proper operation of steering wheel controls (SWC).

Compatible Vehicles

Opel Antara L-A 2006 -> 2010 - original radio CD30 / CD30MP / CDC40 / CD50 / CD70 / DVD90.
Opel Antara L-A 2011 -> 2015 - original radio CD30 / CD30MP / CDC40 / CD50 / CD70 / DVD90.
Opel Agila A H00 2003 -> 2007 - original radio CD30 / CD30MP / CDC40 / CD50 / CD70 / DVD90.
Opel Astra H A-H 2004 -> 2007 - original radio CD30 / CD30MP / CDC40 / CD50 / CD70 / DVD90.
Opel Astra H A-H 2007 -> 2010 - original radio CD30 / CD30MP / CDC40 / CD50 / CD70 / DVD90.
Opel Combo C 2004 -> 2011 - original radio CD30 / CD30MP / CDC40 / CD50 / CD70 / DVD90.
Opel Corsa C X01 2003 -> 2006 - original radio CD30 / CD30MP / CDC40 / CD50 / CD70 / DVD90.
Opel Corsa D S07 2006 -> 2010 - original radio CD30 / CD30MP / CDC40 / CD50 / CD70 / DVD90. Supports vehicle settings via wiper stalk control.
Opel Corsa D S07 2011 -> 2014 - original radio CD30 / CD30MP / CDC40 / CD50 / CD70 / DVD90. Supports vehicle settings via wiper stalk control.
Opel Meriva A X01 2005 -> 2010 - original radio CD30 / CD30MP / CDC40 / CD50 / CD70 / DVD90.
Opel Signum I Z03 2005 -> 2008 - original radio CD30 / CD30MP / CDC40 / CD50 / CD70 / DVD90.
Opel Tigra Twin Top X-C 2004 -> 2009 - original radio CD30 / CD30MP / CDC40 / CD50 / CD70 / DVD90.
Opel Vectra C Z02 2005 -> 2008 - original radio CD30 / CD30MP / CDC40 / CD50 / CD70 / DVD90.
Opel Vivaro A X83 2006 -> 2011 - original radio CD30 / CD30MP / CDC40 / CD50 / CD70 / DVD90.
Opel Zafira B A-H 2005 -> 2010 - original radio CD30 / CD30MP / CDC40 / CD50 / CD70 / DVD90.
Opel Zafira B A-H 2008 -> 2014 - original radio CD30 / CD30MP / CDC40 / CD50 / CD70 / DVD90.

Nissan Primastar X83 2006 -> 2011 - original radio with trapezoidal front panel shape.

Renault Trafic II L jL 2006 -> 2011 - original radio with trapezoidal front panel shape.

CAN Bus Information

Connectors and Power:

Connector: 40-pin Quadlock Opel.

Settings:

Check DIP switches on the aftermarket radio (HU).

Vehicle Compatibility:

Vehicles with original radio CD30 / CD30MP / CDC40 / CD50 / CD70 / DVD90.
For Opel Corsa D models, vehicle settings via wiper stalk are supported.
For some Corsa D vehicles, there may be interface failure after extended use – solution in manual (alternative CAN signal pickup).

Diagnostic LED Indication:

Blue flashing: searching for CAN Bus signal.
Blue steady: CAN Bus active.
Red steady: active +12 V ignition current.

Important Additional Information

Designed for aftermarket radios by Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, Becker.
To fully activate the adapter, an interconnect cable for the specific radio brand is required.

General Installation Guidelines

Verification Before Assembly:

Check all control functions and vehicle settings with the original OEM head unit.
Disconnect the original radio (OEM HU) without power.
Check all interface connections to ensure they are correctly connected – without power.

Connection and Wiring Order:

Check interface settings and HW configuration – without power.
Check connection cable configuration to HU – without power.
Connect the cable to the HU according to the aftermarket device manual.
Connect other wires according to the device manual.
Link the entire installation with the vehicle – connect the main power connection last.
Perform software configuration of the interface according to product description or manual.
Configure the aftermarket HU (e.g., steering wheel control, camera, handsfree, antenna power).
Conduct a functional test of steering wheel control and vehicle communication.

Changing Interface and HU Cable Configuration:

Make all changes without power.
Repeat steps 5 to 8 above.

In Case of Interface or Vehicle System Malfunction:

Reinstall the original OEM HU.
Run the original unit.
Initiate CAN Bus system shutdown.
Check HW configuration of the interface.
After CAN Bus shutdown, repeat steps 5 and 6 above.

When Modifying Connections or Wiring:

Connections and modifications should only be performed by professionally trained personnel.
All changes must be verified for manufacturer approval or impact on vehicle warranty before connection.
All modifications must be verified by measurement and comparison with the vehicle's wiring diagram before connection.
Modifications are done at your own risk, with no guarantee of functionality.
Modifications are performed at your own risk, with no guarantee of excluding damage to the vehicle, device, or interface.
Modifications to pre-installed wiring may lead to loss of product warranty.
