Steering wheel button control adapter for Hyundai / Kia ACV SWC 42A-1180-004NAV-0

steering wheel adapter for Hyundai Azera (11->17), Elantra (11->15), H350 (06/15->12/19), i10 (IA) (11/13->12/16, 01/17->12/19), i20 (GB) (12/14->06/18, 07/18->09/20), i30 (GD/GDH) (03/12->05/15, 05/15->05/17), i40 (VF) (09/11->05/15, 05/15->08/18, 10/18->07/19), i45 (09->14), i800 (07->21), ix35 (EL) (03/10->09/13, 09/13->07/15), ix45 (13->18), Santa-Fe (DM) (10/12->11/15, 12/15->08/18), Sonata (YF) (09->14), Tucson (TL) (04/10->06/15) and Kia Cee'd (JD) (06/12->09/15), Forte (12->16), Optima (TF) (06/12->10/13, 10/13->10/15), Picanto (TA) (09/11->04/15, 04/15->03/17), Pro-Cee'd (JD) (07/13->09/15), Rio (UB) (09/11->01/15), Soul (AM) (09/11->03/14), Soul (PS) (03/14->11/16), Sorento (XM) (10/12->03/15), Sportage (SL) (08/10->03/14, 03/14->01/16)
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

Steering wheel button control adapter for Hyundai / Kia ACV SWC 42A-1180-004NAV-0

-27 %

Description and parameters
Evaluation0
Category

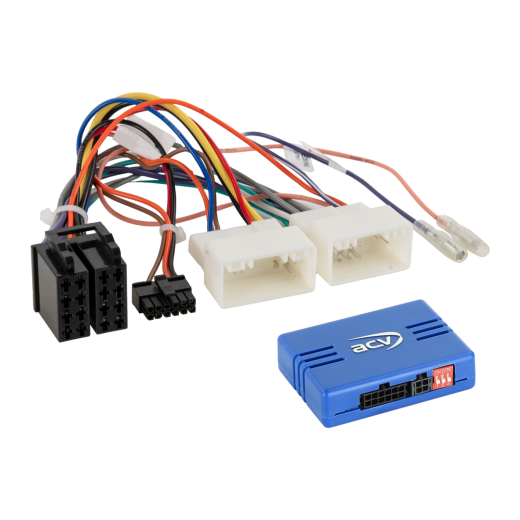

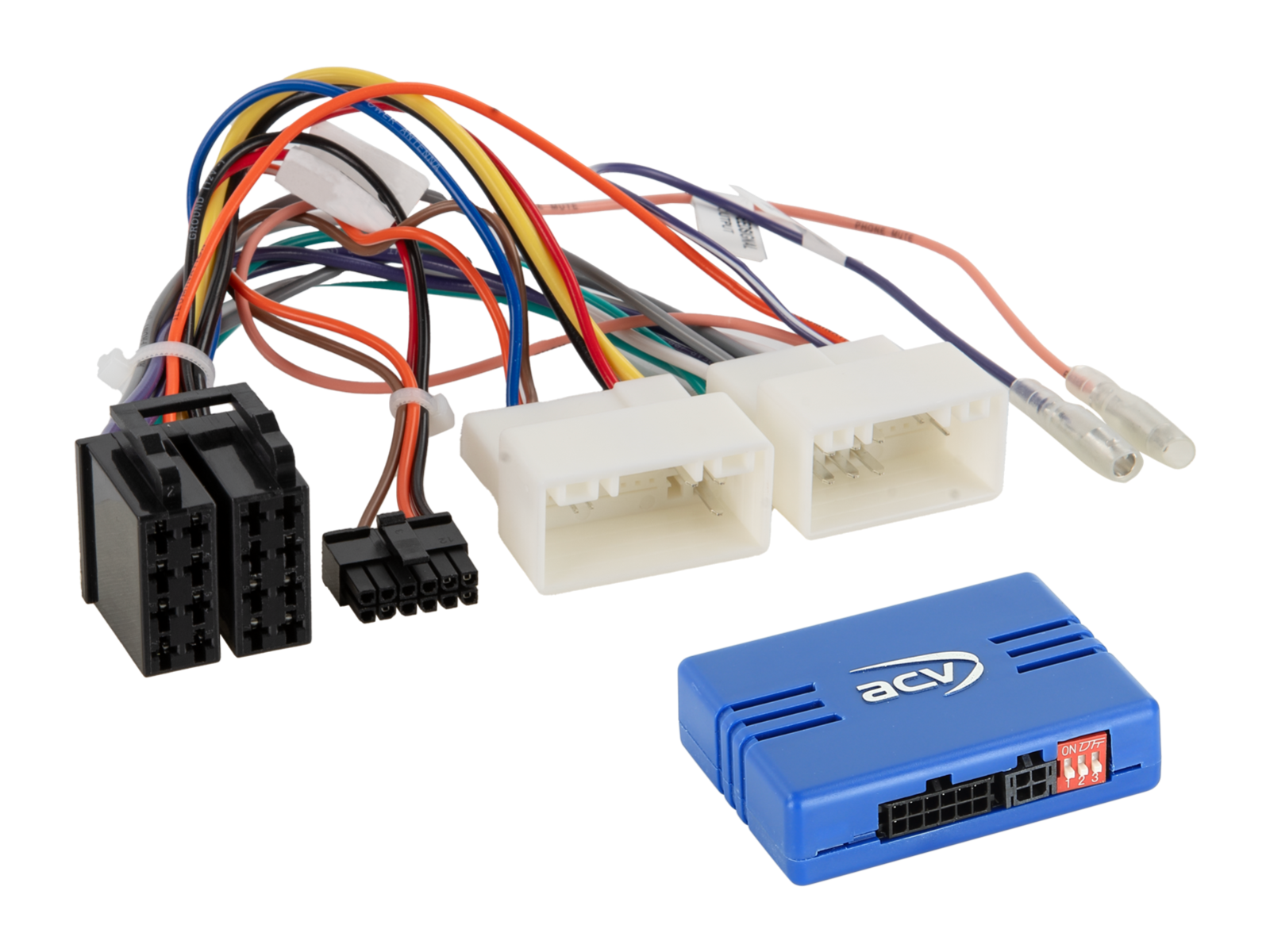

Steering Wheel Control Adapter for Hyundai / Kia ACV SWC 42A-1180-004NAV-0

Retain the original radio control functions from the steering wheel when replacing the original radio with an aftermarket unit. Depending on the vehicle's equipment, the range of functions, and the software of the newly installed radio, some functions may be limited or replaced by others. Compare the displayed wiring connectors with the connectors in your vehicle to ensure they match both technically and visually. Verify that one of the listed OEM radios was originally installed. Before final installation, check the vehicle's functionality, system settings, and proper operation of the steering wheel control (SWC).

Suitable for vehicles

Hyundai Azera (2011 -> 2017) - original OEM radio.
Hyundai Elantra (2011 -> 2015) - original OEM radio.
Hyundai H350 (06/2015 -> 12/2019) - original OEM radio.
Hyundai i10 (IA) (11/2013 -> 12/2016) - original OEM radio.
Hyundai i10 (IA) (01/2017 -> 12/2019) - original OEM radio.
Hyundai i20 (GB) (12/2014 -> 06/2018) - original OEM radio.
Hyundai i20 (GB) (07/2018 -> 09/2020) - original OEM radio.
Hyundai i30 (GD/GDH) (03/2012 -> 05/2015) - original OEM radio.
Hyundai i30 (GD/GDH) (05/2015 -> 05/2017) - original OEM radio.
Hyundai i40 (VF) (09/2011 -> 05/2015) - original OEM radio.
Hyundai i40 (VF) (05/2015 -> 08/2018) - original OEM radio.
Hyundai i40 (VF) (10/2018 -> 07/2019) - original OEM radio.
Hyundai i45 (2009 -> 2014) - original OEM radio.
Hyundai i800 (2007 -> 2021) - original OEM radio.
Hyundai ix35 (EL) (03/2010 -> 09/2013) - original OEM radio.
Hyundai ix35 (EL) (09/2013 -> 07/2015) - original OEM radio.
Hyundai ix45 (2013 -> 2018) - original OEM radio. Vehicles with original Continental OEM Sat Nav radio.
Hyundai Santa-Fe (DM) (10/2012 -> 11/2015) - original OEM radio.
Hyundai Santa-Fe (DM) (12/2015 -> 08/2018) - original OEM radio.
Hyundai Sonata (YF) (2009 -> 2014) - original OEM radio.
Hyundai Tucson (TL) (04/2010 -> 06/2015) - original OEM radio.

Kia Cee'd (JD) (06/2012 -> 09/2015) - original OEM radio.
Kia Forte (2012 -> 2016) - original OEM radio.
Kia Optima (TF) (06/2012 -> 10/2013) - original OEM radio.
Kia Optima (TF) (10/2013 -> 10/2015) - original OEM radio.
Kia Picanto (TA) (09/2011 -> 04/2015) - original OEM radio.
Kia Picanto (TA) (04/2015 -> 03/2017) - original OEM radio.
Kia Pro-Cee'd (JD) (07/2013 -> 09/2015) - original OEM radio.
Kia Rio (UB) (09/2011 -> 01/2015) - original OEM radio.
Kia Soul (AM) (09/2011 -> 03/2014) - original OEM radio.
Kia Soul (PS) (03/2014 -> 11/2016) - original OEM radio.
Kia Sorento (XM) (10/2012 -> 03/2015) - original OEM radio.
Kia Sportage (SL) (08/2010 -> 03/2014) - original OEM radio.
Kia Sportage (SL) (03/2014 -> 01/2016) - original OEM radio.

Technical Information

Analog connection.
Connector: 24 Pin / 18 Pin Hyundai Sat Nav.
Support for vehicles without OEM amplifier and OEM navigation.
For vehicles with different pin configurations, check before connecting to avoid damage to the vehicle or device.
Diagnostic LED indication:
- Blue steady light – interface active, +12 V power from ignition present.
- Red light – steering wheel control button function recognized.

General Installation Instructions

Verification before installation:

Check all control functions and vehicle settings with the original OEM head unit.
Disconnect the original radio (OEM HU) without power.
Check all interface connections to ensure they are properly connected – without power.

Connection and wiring order:

Check the interface settings and HW configuration – without power.
Check the connection cable configuration to HU – without power.
Connect the cable to the HU according to the aftermarket device instructions.
Connect other wires according to the device instructions.
Complete the entire installation with the vehicle – connect the main power connection last.
Perform software configuration of the interface as per product description or manual instructions.
Configure the aftermarket HU (e.g., steering wheel control, camera, handsfree, antenna power).
Perform a functional test of the steering wheel control and vehicle communication.

Changing the interface and HU cable configuration:

Make all changes without power.
Repeat steps 5 to 8 listed above.

In case of interface or vehicle system malfunction:

Reinstall the original OEM HU.
Start the original unit.
Trigger the CAN Bus system shutdown.
Check the HW configuration of the interface.
After CAN Bus shutdown, repeat steps 5 and 6 listed above.

When modifying connections or wiring:

Only professionally trained personnel may perform connections and modifications.
All changes must be verified for manufacturer approval or impact on the vehicle's warranty before connection.
All modifications must be verified by measurement and comparison with the vehicle's wiring diagram before connection.
Modifications are made at your own risk, without warranty for functionality.
Modifications are performed at your own risk, without guarantee against vehicle, device, or interface damage.
Modifications to pre-installed wiring may result in product warranty loss.
