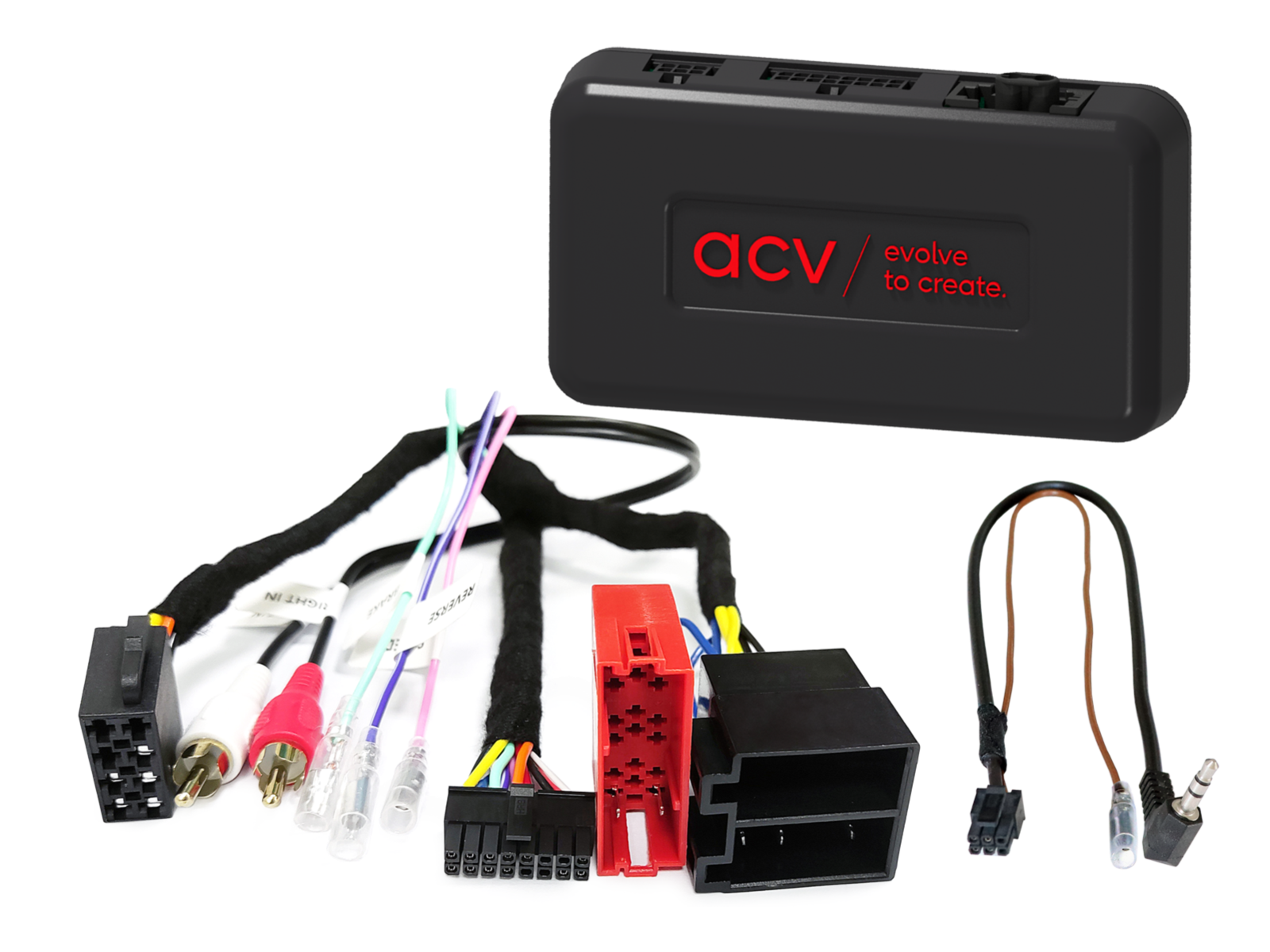

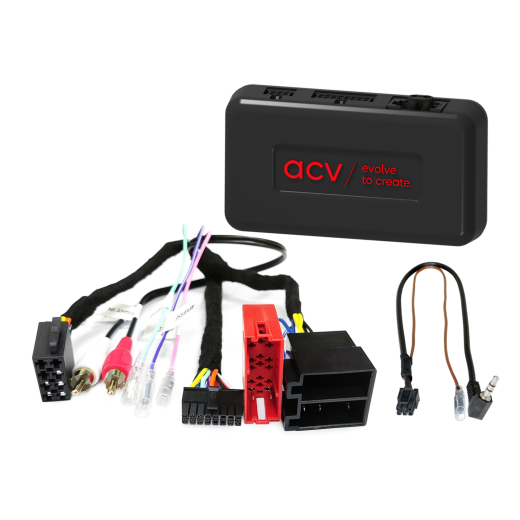

Steering Wheel Button Control Adapter for Porsche ACV SWC 42XPO003-0

Preserve the original steering wheel radio control functions when replacing the factory radio with an aftermarket unit. Depending on the vehicle equipment, scope of functions and the software of the newly installed head unit, some functions may be limited or replaced by others. Compare the shown wiring connectors with the connectors in your vehicle and ensure they match both technically and visually. Check whether one of the listed OEM head units was originally installed. Before final installation, verify vehicle functionality, system settings and proper operation of the steering wheel control (SWC).

Designed for vehicles

• Porsche Cayenne (9PA/955) (09/2002 -> 12/2006) - original radio OEM CDR24 or PCM2.1 without a touchscreen, OEM MOST amplifier system without fader support.

CAN Bus information

Connectors and power:

• Connectors: ISO / Mini ISO Porsche.
• OEM steering wheel control connection: 3.5 mm jack or free wire to the SWC input of the head unit.
• Connection to OEM MOST amplifier system: RCA (red/white) – preamplified output from the aftermarket radio.

Settings:

• DIP switch settings according to the aftermarket unit manufacturer (see user manual).

Vehicle compatibility:

• OEM MOST amplifier system – fader function is not supported.

Special cases and warnings:

• Reimported vehicles or vehicles with different software may have limited functionality.

Important additional information

• Compatible with aftermarket head units that support the OEM MOST system and an analog input for steering wheel control.
• To fully activate the adapter, it is necessary to order the connecting cable for the specific head unit brand.

General installation instructions

Verification before installation:

1. Check all control functions and vehicle settings with the original OEM main unit.
2. Disconnect the original radio (OEM HU) with the power off.
3. Check all interface connections to ensure they are correctly connected – with power off.

Connection and wiring sequence:

1. Set and verify the hardware configuration of the interface – with power off.
2. Check the configuration of the connection cable to the HU – with power off.
3. Connect the cable to the HU according to the aftermarket device manual.
4. Connect the other wires according to the device manual.
5. Connect the entire installation to the vehicle – connect the main power last.
6. Perform the software configuration of the interface according to the instructions in the product description or manual.
7. Configure the aftermarket HU (steering wheel control, camera, handsfree, antenna power, etc.).
8. Perform a functional test of the steering wheel control and communication with the vehicle.

Changing the interface configuration and HU cable:

• Make all changes with power off.
• After changes, repeat steps 5 to 8 listed above.

In case of interface or vehicle system malfunction:

• Reinstall the original OEM HU.
• Start the original unit.
• Initiate CAN Bus shutdown.
• Check the hardware configuration of the interface.
• After CAN Bus shutdown, repeat steps 5 and 6 listed above.

When modifying wiring or cabling:

• Wiring and modifications should only be performed by professionally trained personnel.
• All changes must be verified for approval by the manufacturer or for their impact on the vehicle warranty before connection.
• All modifications must be verified by measurement and compared with the vehicle wiring diagram before connection.
• Modifications are carried out at your own risk, without a guarantee of functionality.
• Modifications are performed at your own risk, without assurance against damage to the vehicle, device or interface.
• Pre-modified cabling may lead to loss of product warranty.
