Steering wheel button control adapter for Hyundai / Kia ACV SWC 42A-1180-004-0

Be the first to rate the product
steering wheel adapter for Hyundai Azera (11->17), Elantra (11->15), H350 (15->19), i10 (13->19), i20 (14->20), i30 (12->17), i40 (11->19), i45 (09->14), i800 (07->21), ix20 (10->19), ix35 (10->15), ix45 (13->18), Santa Fe (12->18), Sonata (09->14), Tucson (10->20) / Kia Cee'd (12->15), Forte (12->16), Optima (12->15), Picanto (11->17), Pro-Cee'd (13->15), Rio (11->15), Soul (11->16), Sorento (12->15), Sportage (10->16)
More about the product
55,76 EUR
Catalog number: 42A-1180-004-0
1 to 4 weeksWatchdog
We will help you with your purchase
  • You can return the goods to us within 14 days

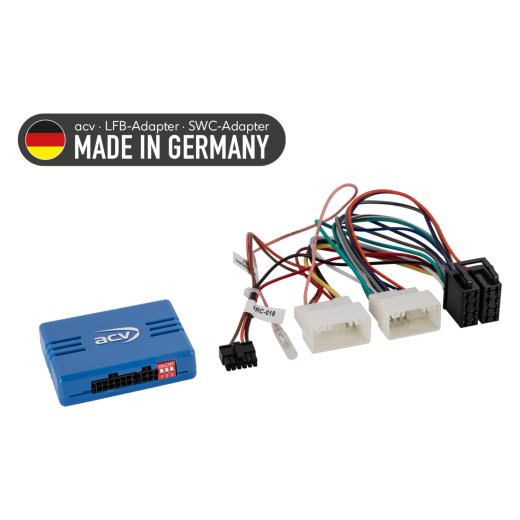

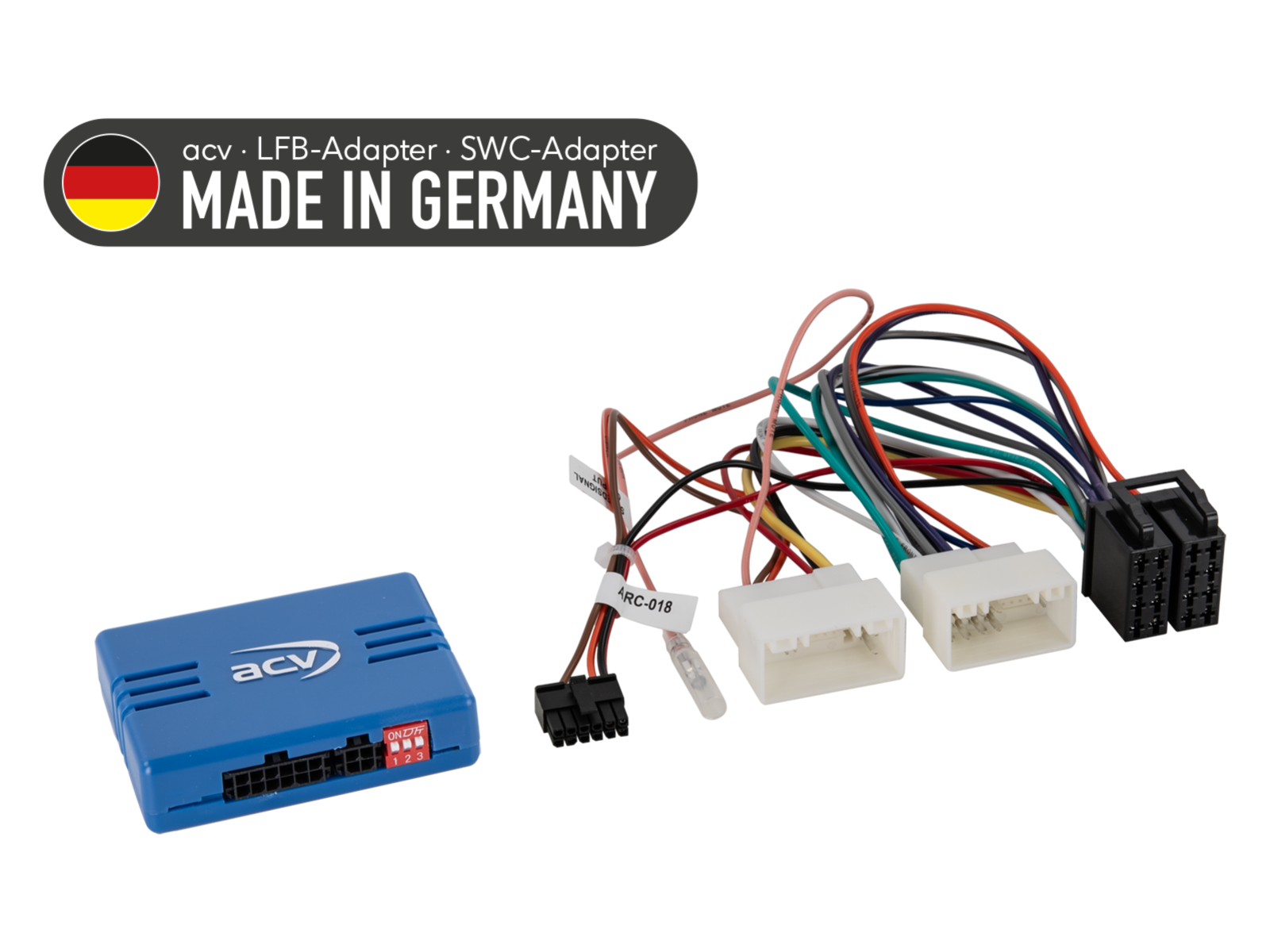

Steering wheel button control adapter for Hyundai / Kia ACV SWC 42A-1180-004-0

Steering Wheel Control Adapter for Hyundai / Kia ACV SWC 42A-1180-004-0

Maintain the original steering wheel radio control functions when replacing the factory radio with an aftermarket unit. Depending on the vehicle's equipment, the scope of functions, and the software of the newly installed radio, some functions may be limited or replaced by others. Compare the displayed wiring connectors with those in your vehicle to ensure they match both technically and visually. Verify if one of the listed OEM radios was originally installed. Before final installation, check the vehicle's functionality, system settings, and the correct operation of the steering wheel control (SWC).

Suitable for the following vehicles

  • Hyundai Azera (2011 -> 2017) - original OEM radio.
  • Hyundai Elantra (2011 -> 2015) - original OEM radio.
  • Hyundai H350 (06/2015 -> 12/2019) - original OEM radio.
  • Hyundai i10 [IA] (11/2013 -> 12/2016) - original OEM radio.
  • Hyundai i10 [IA] (01/2017 -> 12/2019) - original OEM radio. 2016 and newer models without OEM navigation.
  • Hyundai i20 [GB] (12/2014 -> 06/2018) - original OEM radio. 2016 and newer models without OEM navigation.
  • Hyundai i20 [GB] (07/2018 -> 09/2020) - original OEM radio. 2016 and newer models without OEM navigation.
  • Hyundai i30 [GD/GDH] (03/2012 -> 05/2015) - original OEM radio.
  • Hyundai i30 [GD/GDH] (05/2015 -> 05/2017) - original OEM radio.
  • Hyundai i40 [VF] (09/2011 -> 05/2015) - original OEM radio.
  • Hyundai i40 [VF] (05/2015 -> 08/2018) - original OEM radio. 2016 and newer models without OEM navigation.
  • Hyundai i40 [VF] (10/2018 -> 07/2019) - original OEM radio. 2016 and newer models without OEM navigation.
  • Hyundai i45 (2009 -> 2014) - original OEM radio.
  • Hyundai i800 (2007 -> 2021) - original OEM radio. 2016 and newer models without OEM navigation.
  • Hyundai ix20 [JC] (11/2010 -> 07/2015) - original OEM radio. Vehicles without OEM navigation. Use adapter 42a-1180-002 for vehicles with OEM navigation.
  • Hyundai ix20 [JC] (08/2015 -> 07/2019) - original OEM radio. Vehicles without OEM navigation. Use adapter 42a-1180-002 for vehicles with OEM navigation.
  • Hyundai ix35 [EL] (03/2010 -> 09/2013) - original OEM radio.
  • Hyundai ix35 [EL] (09/2013 -> 07/2015) - original OEM radio.
  • Hyundai ix45 (2013 -> 2018) - original OEM radio. 2016 and newer models without OEM navigation.
  • Hyundai Santa-Fe [DM] (10/2012 -> 11/2015) - original OEM radio.
  • Hyundai Santa-Fe [DM] (12/2015 -> 08/2018) - original OEM radio. 2016 and newer models without OEM navigation.
  • Hyundai Sonata [YF] (2009 -> 2014) - original OEM radio.
  • Hyundai Tucson [TL] (04/2010 -> 06/2015) - original OEM radio.
  • Hyundai Tucson [TL] (07/2015 -> 07/2018) - original OEM radio. Vehicles with OEM Continental navigation.
  • Hyundai Tucson [TL] (07/2018 -> 12/2020) - original OEM radio. Vehicles with OEM Continental navigation.
  • Kia Cee'd [JD] (06/2012 -> 09/2015) - original OEM radio.
  • Kia Forte (2012 -> 2016) - original OEM radio.
  • Kia Optima [TF] (06/2012 -> 10/2013) - original OEM radio.
  • Kia Optima [TF] (10/2013 -> 10/2015) - original OEM radio.
  • Kia Picanto [TA] (09/2011 -> 04/2015) - original OEM radio.
  • Kia Picanto [TA] (04/2015 -> 03/2017) - original OEM radio.
  • Kia Pro-Cee'd [JD] (07/2013 -> 09/2015) - original OEM radio.
  • Kia Rio [UB] (09/2011 -> 01/2015) - original OEM radio.
  • Kia Soul [AM] (09/2011 -> 03/2014) - original OEM radio.
  • Kia Soul [PS] (03/2014 -> 11/2016) - original OEM radio.
  • Kia Sorento [XM] (10/2012 -> 03/2015) - original OEM radio.
  • Kia Sportage [SL] (08/2010 -> 03/2014) - original OEM radio.
  • Kia Sportage [SL] (03/2014 -> 01/2016) - original OEM radio.

Technical Information

  • Analog connection.
  • Connector: 24pin / 18pin Hyundai.
  • For borderline years, use wiring 42a-1180-00c (ISO/Mini ISO + 24pin/18pin harness).
  • Check DIP switch settings on the aftermarket radio (HU).
  • Vehicles without OEM amplifier system and OEM navigation.
  • Vehicles with OEM navigation: use harness 42a-1180-004-nav.
  • For vehicles with different pin layouts and those with OEM navigation, always verify pin assignment before connecting to prevent vehicle or aftermarket device failure.

Diagnostic LED Indication

  • Blue steady light: interface active, +12V power from ignition present.
  • Red light: steering wheel control button function recognized.

Important Additional Information

  • Intended for aftermarket radios Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, Becker.
  • To fully activate the adapter, an interconnecting cable for the specific radio brand is required.

General Installation Guidelines

Pre-installation Check:

  1. Check all control functions and vehicle settings with the original OEM head unit.
  2. Disconnect the original radio (OEM HU) without power.
  3. Verify all interface connections are correctly attached – without power.

Connection and Installation Order:

  1. Verify interface settings and HW configuration – without power.
  2. Check connection cable configuration to HU – without power.
  3. Connect the cable to HU following the aftermarket device instructions.
  4. Connect other wires according to device instructions.
  5. Connect the entire installation to the vehicle – attach the main power connection last.
  6. Perform software configuration of the interface according to product description or manual.
  7. Configure the aftermarket HU (e.g., steering wheel control, camera, handsfree, antenna power).
  8. Perform a functional test of steering wheel control and vehicle communication.

Changing Interface and HU Cable Configuration:

  • Make all changes without power.
  • Repeat steps 5 to 8 listed above.

In Case of Interface or Vehicle System Failure:

  • Reinstall the original OEM HU.
  • Start the original unit.
  • Initiate CAN Bus system shutdown.
  • Check HW configuration of the interface.
  • After CAN Bus shutdown, repeat steps 5 and 6 listed above.

When Modifying Connections or Wiring:

  • Connections and modifications should only be performed by professionally trained personnel.
  • All changes must be verified for manufacturer approval or impact on vehicle warranty before connecting.
  • All modifications must be verified by measurement and comparison with the vehicle wiring diagram before connecting.
  • Modifications are at your own risk, without warranty for functionality.
  • Modifications are done at your own risk, without guarantee of preventing vehicle, device, or interface damage.
  • Modifying pre-installed wiring may lead to product warranty loss.
Catalog number42A-1180-004-0
BrandACV
LinksOfficial web presentation
