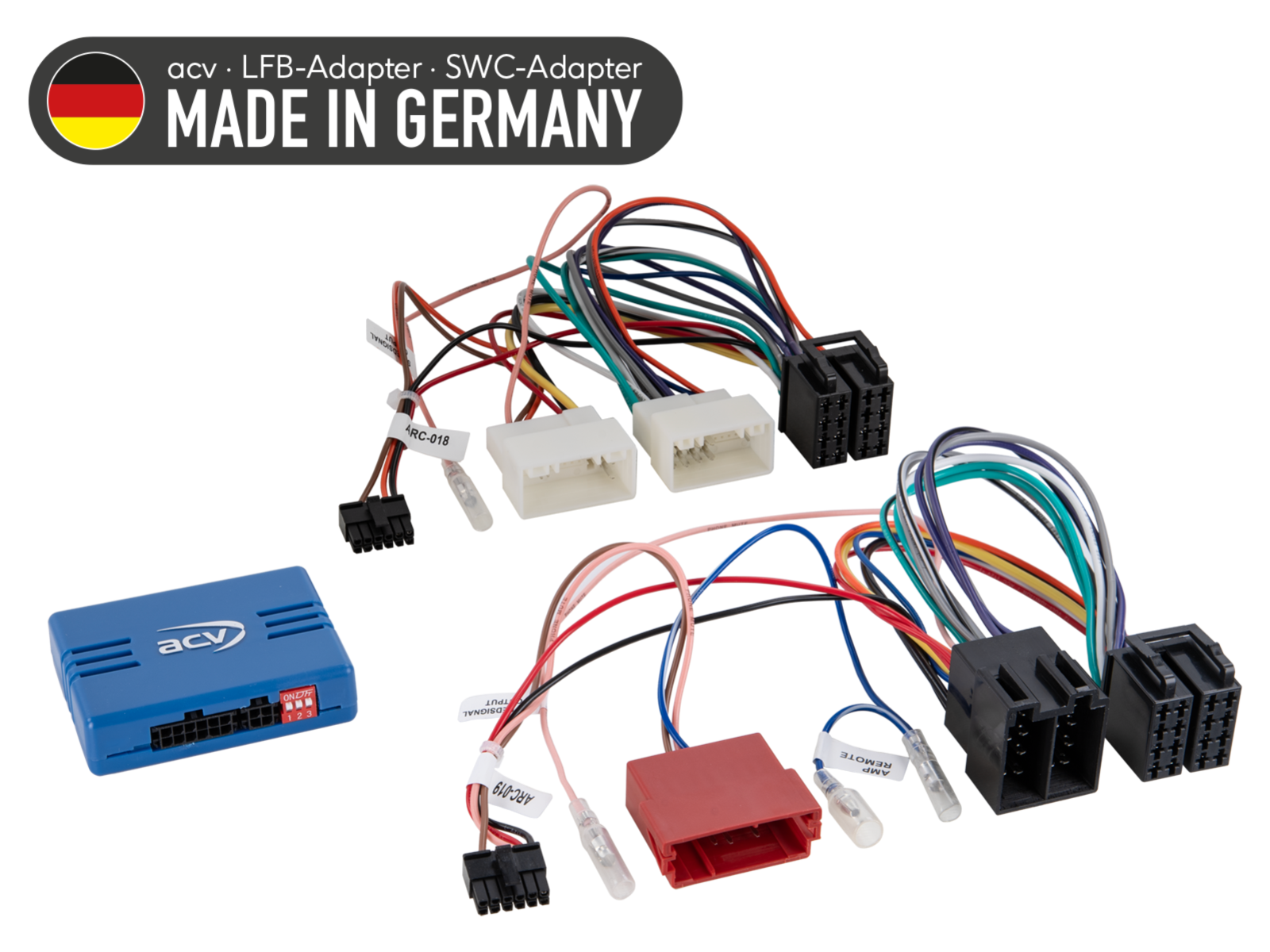

Steering wheel button control adapter for Hyundai / Kia ACV SWC 42A-1180-00C-0

Steering Wheel Button Control Adapter for Hyundai / Kia ACV SWC 42A-1180-00C-0

Retain the original radio control functions from the steering wheel when replacing the original radio with an aftermarket unit. Depending on the vehicle's equipment, range of functions, and software of the newly installed radio, some functions may be limited or replaced with others. Compare the displayed wiring connectors with the connectors in your vehicle to ensure they match both technically and visually. Check if any of the listed OEM radios were originally installed. Verify the vehicle's functionality, system settings, and proper operation of steering wheel control (SWC) before final installation.

Designed for Cars

  • Hyundai Azera (2011 -> 2017) - original OEM radio.
  • Hyundai Elantra (2011 -> 2015) - original OEM radio.
  • Hyundai Genesis (BK) (11/2010 -> 03/2013) - original OEM radio.
  • Hyundai Genesis (BK) (03/2013 -> 10/2013) - original OEM radio.
  • Hyundai H1 (TQ) (07/2008 -> 08/2018) - original OEM radio.
  • Hyundai H1 (TQ) (09/2019 -> 07/2020) - original OEM radio.
  • Hyundai i10 (PA) (10/2008 -> 12/2010) - original OEM radio.
  • Hyundai i10 (PA) (01/2011 -> 10/2013) - original OEM radio.
  • Hyundai i10 (IA) (11/2013 -> 12/2016) - original OEM radio.
  • Hyundai i10 (IA) (01/2017 -> 12/2019) - original OEM radio. Vehicles 2016 > without OEM navigation.
  • Hyundai i20 (PB) (04/2009 -> 06/2012) - original OEM radio.
  • Hyundai i20 (PB) (07/2012 -> 11/2014) - original OEM radio.
  • Hyundai i20 (GB) (12/2014 -> 06/2018) - original OEM radio.
  • Hyundai i20 (GB) (07/2018 -> 09/2020) - original OEM radio. Vehicles 2016 > without OEM navigation.
  • Hyundai i30 (FD/FDH) (09/2007 -> 10/2010) - original OEM radio.
  • Hyundai i30 (FD/FDH) (08/2010 -> 08/2012) - original OEM radio.
  • Hyundai i30 (GD/GDH) (03/2012 -> 05/2015) - original OEM radio.
  • Hyundai i40 (VF) (09/2011 -> 05/2015) - original OEM radio. Vehicles 2016 > without OEM navigation.
  • Hyundai i40 (VF) (05/2015 -> 08/2018) - original OEM radio. Vehicles 2016 > without OEM navigation.
  • Hyundai i40 (VF) (10/2018 -> 07/2019) - original OEM radio. Vehicles 2016 > without OEM navigation.
  • Hyundai i45 (2009 -> 2014) - original OEM radio.
  • Hyundai i800 (2007 -> 2021) - original OEM radio. Vehicles 2016 > without OEM navigation.
  • Hyundai ix20 (JC) (11/2010 -> 07/2015) - original OEM radio.
  • Hyundai ix20 (JC) (08/2015 -> 07/2019) - original OEM radio.
  • Hyundai ix35 (EL) (03/2010 -> 07/2015) - original OEM radio.
  • Hyundai ix45 (2013 -> 2018) - original OEM radio.
  • Hyundai Santa Fé (CM) (01/2010 -> 09/2012) - original OEM radio.
  • Hyundai Santa-Fe (DM) (10/2012 -> 11/2015) - original OEM radio. Vehicles 2016 > without OEM navigation.
  • Hyundai Santa-Fe (DM) (12/2015 -> 08/2018) - original OEM radio. Vehicles 2016 > without OEM navigation.
  • Hyundai Sonata (NF) (08/2008 -> 03/2010) - original OEM radio.
  • Hyundai Sonata (YF) (2011 -> 2014) - original OEM radio.
  • Hyundai Tucson (2010 -> 2015) - original OEM radio. Vehicles 2016 > without OEM navigation.
  • Hyundai Tucson (TL) (07/2015 -> 07/2018) - original OEM radio. Vehicles 2016 > without OEM navigation.
  • Hyundai Tucson (TL) (07/2018 -> 12/2020) - original OEM radio. Vehicles 2016 > without OEM navigation.
  • Kia Carens (BK) (10/2006 -> 03/2013) - original OEM radio.
  • Kia Carnival (VQ) (06/2006 -> 12/2009) - original OEM radio.
  • Kia Cee'd (ED) (10/2009 -> 03/2013) - original OEM radio.
  • Kia Cee'd (JD) (06/2012 -> 09/2015) - original OEM radio.
  • Kia Forte (2012 -> 2016) - original OEM radio.
  • Kia Optima (TF) (06/2012 -> 10/2013) - original OEM radio.
  • Kia Optima (TF) (10/2013 -> 10/2015) - original OEM radio.
  • Kia Picanto (TA) (09/2011 -> 04/2015) - original OEM radio.
  • Kia Picanto (TA) (04/2015 -> 03/2017) - original OEM radio.
  • Kia Pro-Ceed (ED) (10/2009 -> 06/2012) - original OEM radio.
  • Kia Pro-Cee'd (JD) (07/2013 -> 09/2015) - original OEM radio.
  • Kia Rio (UB) (09/2011 -> 01/2015) - original OEM radio.
  • Kia Soul (AM) (02/2009 -> 09/2011) - original OEM radio.
  • Kia Soul (AM) (09/2011 -> 03/2014) - original OEM radio.
  • Kia Soul (PS) (03/2014 -> 11/2016) - original OEM radio.
  • Kia Sorento (XM) (10/2009 -> 10/2012) - original OEM radio.
  • Kia Sorento (XM) (10/2012 -> 03/2015) - original OEM radio.
  • Kia Sportage (SL) (08/2010 -> 03/2014) - original OEM radio.
  • Kia Sportage (SL) (03/2014 -> 01/2016) - original OEM radio.
  • Kia Venga (YN/YNS) (02/2010 -> 01/2015) - original OEM radio.
  • Kia Venga (YN/YNS) (01/2015 -> 08/2019) - original OEM radio.

CAN Bus Information

Connectors and Power Supply:

  • Connector: ISO / Mini ISO, 24pin / 18pin Hyundai.
  • Power Supply: +12 V permanent (terminal 30, fuses) – free red wire (in vehicles 2016 > may be connected via terminal 15 in the fuse box).

Setup:

  • Check the DIP switches on the aftermarket radio (HU).

Vehicle Compatibility:

  • Vehicles without OEM amplifier (CAN Bus controlled).
  • Vehicles with OEM amplifier – analog, optionally with ISO>ISO adapter (item: 13-1190-50).
  • Vehicles with different pin configuration and OEM navigation: check 24pin/18pin connections before connecting to avoid malfunctions.

Diagnostic LED Indication:

  • Blue light: interface active, +12 V ignition power present.
  • Red light: steering wheel button function recognized.

Important Additional Information

  • Designed for aftermarket radios Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, Becker.
  • To fully activate the adapter, an interface cable for the specific radio brand must be ordered.

General Installation Guidelines

Verification Before Installation:

  1. Check all control functions and vehicle settings with the original OEM head unit (HU).
  2. Disconnect the original radio (OEM HU) with no power.
  3. Check all interface connections to ensure they are properly connected – with no power.

Connection and Connection Order:

  1. Check the interface settings and hardware configuration – with no power.
  2. Check the connection cable configuration to the HU – with no power.
  3. Connect the cable to the HU according to the instructions for the aftermarket device.
  4. Connect other wires according to the instructions provided with the device.
  5. Connect the entire installation to the vehicle – connect the main power connection last.
  6. Perform software configuration of the interface according to product description or manual instructions.
  7. Configure the aftermarket HU according to the device manual (e.g., steering wheel control, camera, hands-free set, antenna power, etc.).
  8. Perform a functional test of the steering wheel control and vehicle communication.

Changing the Interface and HU Cable Configuration:

  • Make all changes without power.
  • Repeat steps 5 to 8 listed above.

In Case of Interface or Vehicle System Failure:

  • Reinstall the original OEM HU.
  • Start the original unit.
  • Trigger the CAN Bus system shutdown.
  • Check the hardware configuration of the interface.
  • After CAN Bus shutdown, repeat steps 5 and 6 listed above.

When Modifying Connections or Wiring:

  • Connections and modifications should only be performed by professionally trained personnel.
  • All changes must be verified for manufacturer approval or impact on vehicle warranty before connection.
  • All modifications must be verified by measurement and comparison with the specific vehicle's wiring diagram before connection.
  • Modifications are carried out at your own responsibility, without guarantee of functionality.
  • Modifications are performed at your own risk, without guarantee of excluding damage to the vehicle, device, or interface.
  • Modifications of pre-fitted cabling may lead to product warranty loss.
Catalog number42A-1180-00C-0
BrandACV
LinksOfficial web presentation
