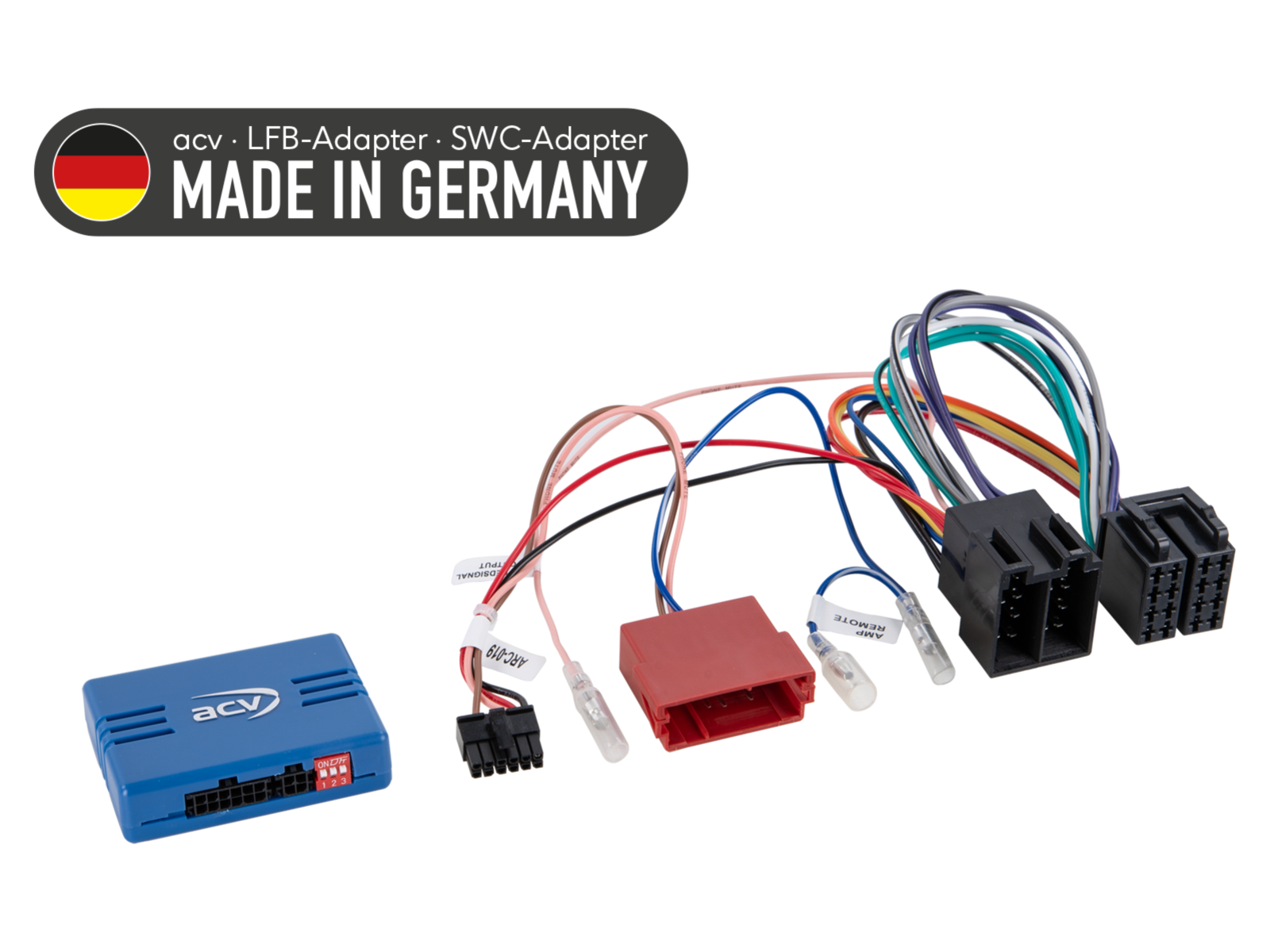

Steering wheel button control adapter for Hyundai / Kia ACV SWC 42A-1180-002-0

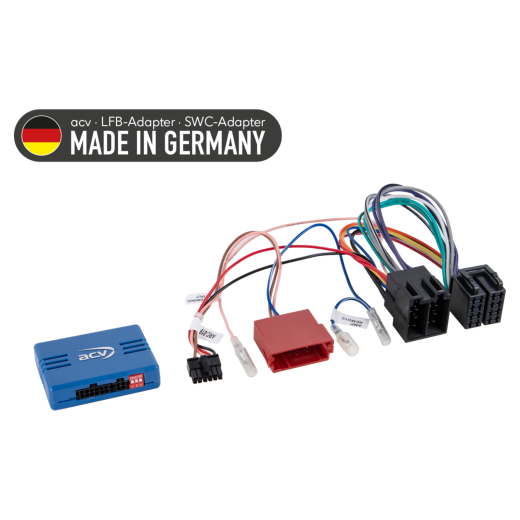

Steering Wheel Control Adapter for Hyundai / Kia ACV SWC 42A-1180-002-0

Maintain the original radio control functions from the steering wheel when replacing the original radio with an aftermarket unit. Depending on the vehicle's equipment, the range of functions, and the software of the newly installed radio, some functions may be limited or replaced by others. Compare the displayed wiring connectors with those in your vehicle to ensure they match both technically and visually. Check whether any of the listed OEM radios were originally installed. Before final installation, verify the vehicle's functionality, system settings, and proper operation of the steering wheel control (SWC).

Designed for Vehicles

• Hyundai i10 (PA) (10/2008 -> 10/2013) - original OEM radio.
• Hyundai i20 (PB) (04/2009 -> 11/2014) - original OEM radio.
• Hyundai i30 (FD/FDH) (09/2007 -> 10/2010) - original OEM radio.
• Hyundai ix20 (JC) (11/2010 -> 07/2019) - original OEM radio.
• Hyundai Santa Fé (CM) (01/2010 -> 09/2012) - original OEM radio.
• Hyundai Sonata (NF) (08/2008 -> 03/2010) - original OEM radio.

• Kia Carens (BK) (10/2006 -> 03/2013) - original OEM radio.
• Kia Cerato (2009 -> 2013) - original OEM radio.
• Kia Carnival (VQ) (06/2006 -> 12/2009) - original OEM radio.
• Kia Cee'd (ED) (10/2009 -> 03/2013) - original OEM radio.
• Kia Pro-Ceed (ED) (10/2009 -> 06/2012) - original OEM radio.
• Kia Sorento (JC) (07/2006 -> 09/2009) - original OEM radio.
• Kia Sorento (XM) (10/2009 -> 10/2012) - original OEM radio.
• Kia Soul (AM) (02/2009 -> 03/2014) - original OEM radio.
• Kia Venga (YN/YNS) (02/2010 -> 08/2019) - original OEM radio.

Technical Information

• Analog connection.
• Connector: ISO / Mini ISO.
• For vehicles at the production year boundary > item: 42a-1180-00c with ISO/Mini ISO and 24Pin/18Pin wiring.
• Support for OEM amplifier system analog (optional): active system adapter ISO>ISO > item: 13-1190-50.
• Blue-white wire: +12V remote amplifier turn-on (Amp Remote).

Signals on Free Wires

• SWC – steering wheel control.

Diagnostic LED Indication

• Blue continuous light: interface active, +12V ignition power present.
• Red light: steering wheel control button function recognized.

Important Additional Information

• Intended for aftermarket radios by Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, Becker.
• To fully activate the adapter, an interconnecting cable for the specific radio brand must be ordered.

General Installation Guidelines

Verification Before Installation:

1. Check all control functions and vehicle settings with the original OEM head unit.
2. Disconnect the original radio (OEM HU) without power.
3. Check all interface connections to ensure they are correctly connected - without power.

Connection and Wiring Sequence:

1. Check interface settings and HW configuration - without power.
2. Check the connection cable configuration to the HU - without power.
3. Connect the cable to the HU according to the aftermarket device manual.
4. Connect other wires according to the device manual.
5. Connect the entire installation to the vehicle - connect the main power connection last.
6. Perform software configuration of the interface according to product description or manual instructions.
7. Configure the aftermarket HU (e.g., steering wheel control, camera, hands-free, antenna power).
8. Perform a functional test of the steering wheel control and communication with the vehicle.

Change of Interface and HU Cable Configuration:

• Make all changes without power.
• Repeat steps 5 to 8 mentioned above.

In Case of Interface or Vehicle System Malfunction:

• Reinstall the original OEM HU.
• Start the original unit.
• Trigger the CAN Bus system shutdown.
• Check the HW interface configuration.
• After CAN Bus shutdown, repeat steps 5 and 6 mentioned above.

When Modifying Connections or Wiring:

• Connections and modifications should only be made by professionally trained personnel.
• All changes must be verified regarding manufacturer approval or impact on the vehicle warranty before connection.
• All modifications must be verified by measurement and comparison with the vehicle's wiring diagram before connection.
• Modifications are made at your own risk, without warranty of functionality.
• Modifications are made at your own risk, without guarantee of preventing vehicle, device, or interface damage.
• Modifications to pre-installed wiring may lead to product warranty loss.
