Steering wheel button control adapter for Audi / Seat / Skoda / VW ACV SWC 42A-1324-001-1

Be the first to rate the product
steering wheel adapter for Audi A1 (8X) (07/10->04/18), A3 (8P) (05/03->04/05, 10/04->04/13), A4 B6 (8E) (11/00->10/05), A4 B7 (8E) (11/04->02/09), A5 (8T/8F) (06/07->10/11), A6 (C5/B4) (05/01->03/06), Q3 (8U) (10/11->11/14, 02/15->06/18), Q5 (8R) (09/08->05/12, 09/12->01/17), R8 (42) (04/07->05/15), TT (8J) (04/06->04/10, 08/10->03/14), Seat Alhambra (7N) (10/10->04/15), Altea (5P) (06/04->03/09, 04/09->07/15), Exeo (3R) (03/09->05/13), Ibiza (6J) (06/08->02/12, 03/12->06/15), Leon (1P) (09/05->03/09, 04/09->11/12), Mii (AA) (12/11->06/19), Toledo (5P) (01/05->10/09), Toledo (NH) (03/13->05/15), Škoda Citigo (AA) (06/12->05/17), Fabia (5J) (03/07->04/10, 06/10->06/14), Octavia (1Z) (06/04->05/09, 01/09->03/13), Rapid (NH) (10/12->04/15), Roomster (5J) (09/06->04/10, 06/10->02/15), Superb (3T) (07/08->05/13, 06/13->05/15), Yeti (5L) (08/09->10/13), VW Amarok (2H) (07/10->08/16), Beetle (16) (11/11->06/16), Caddy III (2K) (10/03->08/10, 09/10->04/15), Caddy IV (DU) (06/15->09/20), Caravelle (7H) (10/04->09/09, 09/09->05/15), CC (3C/35) (06/08->11/11, 02/12->08/16), Eos (1F) (05/06->10/10, 10/10->04/15), Fox (5Z) (04/05->06/11), Golf V (1K) (11/03->09/08), Golf V (1KM) (06/07->10/09), Golf V Plus (1KP) (01/05->02/09), Golf VI (1K) (11/08->09/12, 06/11->07/16), Golf VI (1KM) (11/09->04/13), Golf VI Plus (1KP) (03/09->01/14), Jetta III (1K5/1KM) (09/05->10/10), Jetta IV (162) (01/11->08/14), Multivan (7H) (10/04->09/09, 09/09->05/15), Passat B6 (3C2) (11/05->07/10), Passat B6 (3C5) (08/05->07/10), Passat B7 (3C/362) (11/10->10/14), Phaeton (3D) (05/07->05/10), Polo IV (9N) (03/05->03/09), Polo V (6R) (06/09->01/14), Scirocco III (13) (08/08->04/14), Sharan II (7N) (08/10->04/15), T5 Transporter (7H) (08/03->09/09, 09/09->05/15), T6 (7HC) (07/15->08/19), Tiguan I (5N) (10/07->02/11, 06/11->04/16), Touareg I (7L) (06/03->11/06, 11/06->02/10), Touran (1T) (01/03->09/06, 11/06->04/10, 08/10->04/15), UP! (AA) (12/11->06/16)
More about the product
99,60 EUR
Catalog number: 42A-1324-001-1
In stock (1 pcs)
We will help you with your purchase
  • You can return the goods to us within 14 days

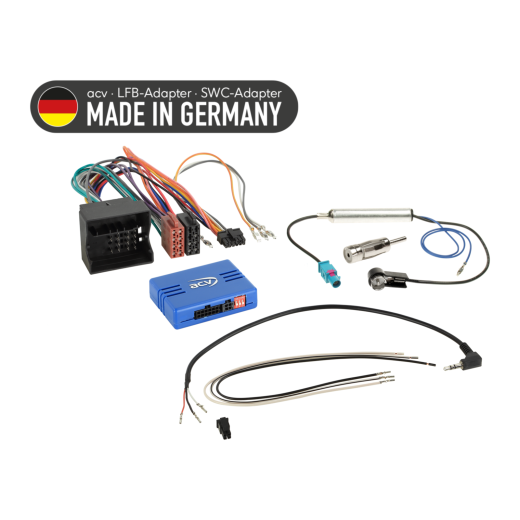

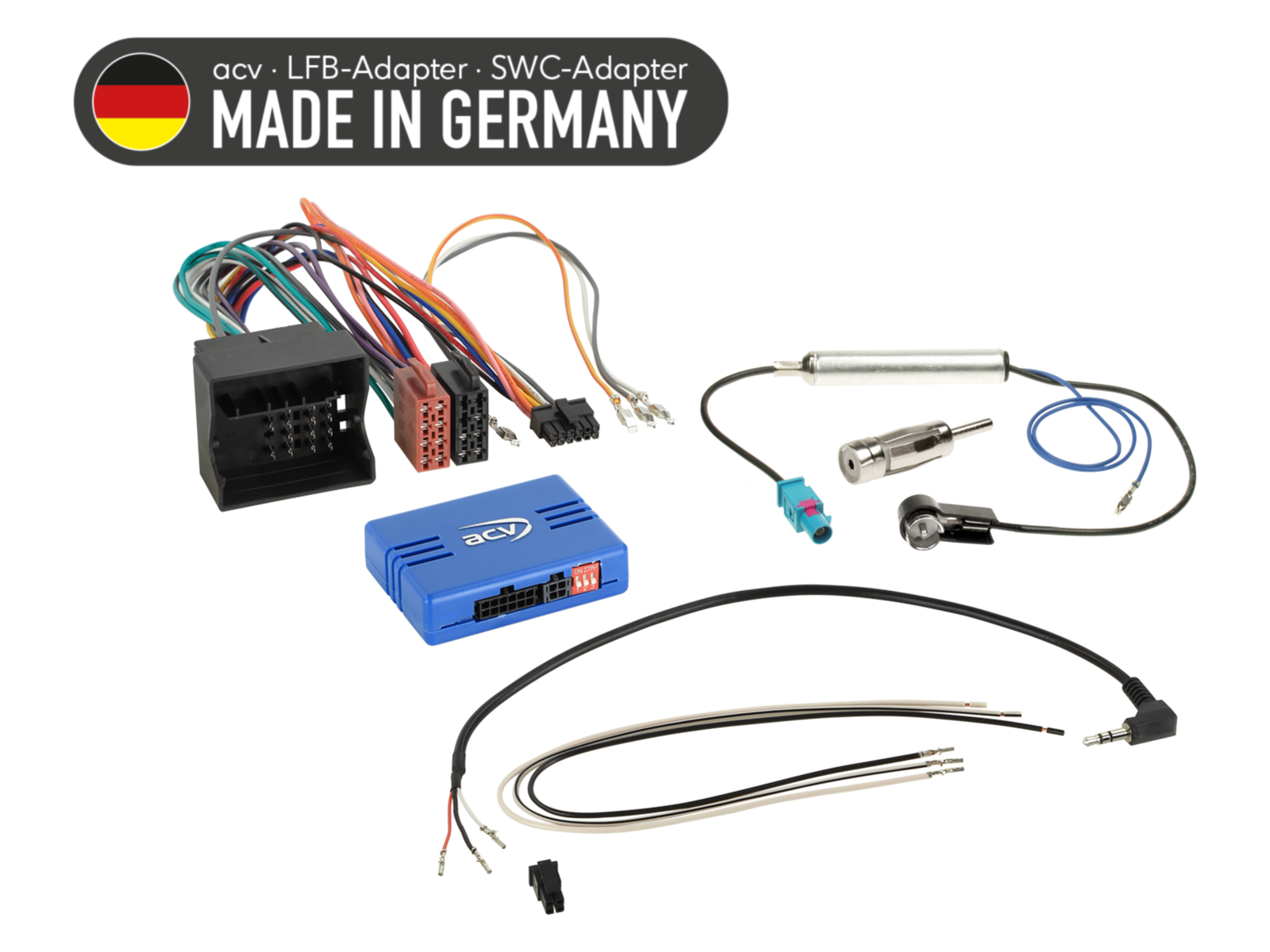

Steering wheel button control adapter for Audi / Seat / Skoda / VW ACV SWC 42A-1324-001-1
  • Steering wheel button control adapter for Audi / Seat / Skoda / VW ACV SWC 42A-1324-001-1
  • Steering wheel button control adapter for Audi / Seat / Skoda / VW ACV SWC 42A-1324-001-1

Steering wheel button control adapter for Audi / Seat / Skoda / VW ACV SWC 42A-1324-001-1

Retain the original steering wheel radio control functions when replacing the factory radio with an aftermarket unit. Depending on the vehicle's equipment, the range of functions and the software of the newly installed head unit, some functions may be limited or replaced by others. Compare the displayed wiring connectors with the connectors in your vehicle and make sure they match both technically and visually. Check whether one of the listed OEM head units was originally installed. Before final installation, verify the vehicle functionality, system settings and proper operation of the steering wheel control (SWC).

Intended for vehicles

  • Audi A1 (8X) 07/2010 -> 04/2018 – original factory radio; vehicles with Chorus OEM unit with monochrome display require specific configuration.
  • Audi A3 (8P) 05/2003 -> 04/2005 – vehicles with 2-DIN OEM radio; vehicles with OEM amplifier require an active adapter.
  • Audi A3 (8P) 10/2004 -> 04/2013 – vehicles with 2-DIN OEM radio; vehicles with OEM amplifier require an active adapter.
  • Audi A4 B6 (8E) 11/2000 -> 10/2005 – vehicles with 2-DIN OEM radio; vehicles with OEM amplifier require an active adapter.
  • Audi A4 B7 (8E) 11/2004 -> 02/2009 – vehicles with 2-DIN OEM radio; vehicles with OEM amplifier require an active adapter.
  • Audi A5 (8T/8F) 06/2007 -> 10/2011 – vehicles with 2-DIN OEM radio; vehicles with OEM amplifier require an active adapter.
  • Audi A6 (C5/B4) 05/2001 -> 03/2006 – vehicles with 2-DIN OEM radio; vehicles with OEM amplifier require an active adapter.
  • Audi Q3 (8U) 10/2011 -> 11/2014 – original factory radio; vehicles with Chorus OEM unit with monochrome display require specific configuration.
  • Audi Q3 (8U) 02/2015 -> 06/2018 – vehicles with 2-DIN OEM radio; vehicles with OEM amplifier require an active adapter.
  • Audi Q5 (8R) 09/2008 -> 05/2012 – vehicles with 2-DIN OEM radio; vehicles with OEM amplifier require an active adapter.
  • Audi Q5 (8R) 09/2012 -> 01/2017 – vehicles with 2-DIN OEM radio; vehicles with OEM amplifier require an active adapter.
  • Audi R8 (42) 04/2007 -> 05/2015 – vehicles with 2-DIN OEM radio; vehicles with OEM amplifier require an active adapter.
  • Audi TT (8J) 04/2006 -> 04/2010 – vehicles with 2-DIN OEM radio; systems that activate the amplifier via CAN require CAN audio activation configuration.
  • Audi TT (8J) 08/2010 -> 03/2014 – vehicles with 2-DIN OEM radio; systems that activate the amplifier via CAN require CAN audio activation configuration.
  • Seat Alhambra (7N) 10/2010 -> 04/2015 – original factory radio.
  • Seat Altea (5P) 06/2004 -> 03/2009 – original factory radio.
  • Seat Altea (5P) 04/2009 -> 07/2015 – original factory radio.
  • Seat Exeo (3R) 03/2009 -> 05/2013 – vehicles with 2-DIN OEM radio; vehicles with OEM amplifier require an active adapter.
  • Seat Ibiza (6J) 06/2008 -> 02/2012 – vehicles without OEM sound system.
  • Seat Ibiza (6J) 03/2012 -> 06/2015 – vehicles without OEM sound system.
  • Seat Leon (1P) 09/2005 -> 03/2009 – original factory radio.
  • Seat Leon (1P) 04/2009 -> 11/2012 – original factory radio.
  • Seat Mii (AA) 12/2011 -> 06/2019 – vehicles without OEM sound system.
  • Seat Toledo (5P) 01/2005 -> 10/2009 – original factory radio.
  • Seat Toledo (NH) 03/2013 -> 05/2015 – original factory radio.
  • Škoda Citigo (AA) 06/2012 -> 05/2017 – vehicles without OEM sound system.
  • Škoda Fabia (5J) 03/2007 -> 04/2010 – original factory radio.
  • Škoda Fabia (5J) 06/2010 -> 06/2014 – original factory radio.
  • Škoda Octavia (1Z) 06/2004 -> 05/2009 – original factory radio.
  • Škoda Octavia (1Z) 01/2009 -> 03/2013 – original factory radio.
  • Škoda Rapid (NH) 10/2012 -> 04/2015 – original factory radio.
  • Škoda Roomster (5J) 09/2006 -> 04/2010 – original factory radio.
  • Škoda Roomster (5J) 06/2010 -> 02/2015 – original factory radio.
  • Škoda Superb (3T) 07/2008 -> 05/2013 – original factory radio.
  • Škoda Superb (3T) 06/2013 -> 05/2015 – original factory radio.
  • Škoda Yeti (5L) 08/2009 -> 10/2013 – original factory radio.
  • VW Amarok (2H) 07/2010 -> 08/2016 – original factory radio.
  • VW Beetle (16) 11/2011 -> 06/2016 – original factory radio.
  • VW Caddy III (2K) 10/2003 -> 08/2010 – original factory radio.
  • VW Caddy III (2K) 09/2010 -> 04/2015 – original factory radio.
  • VW Caddy IV (DU) 06/2015 -> 09/2020 – vehicles with Composition Audio MIB Entry with front AUX/SD/USB.
  • VW Caravelle (7H) 10/2004 -> 09/2009 – vehicles with OEM amplifier require an active adapter.
  • VW Caravelle (7H) 09/2009 -> 05/2015 – vehicles with OEM amplifier require an active adapter.
  • VW CC (3C/35) 06/2008 -> 11/2011 – original factory radio.
  • VW CC (3C/35) 02/2012 -> 08/2016 – original factory radio.
  • VW Eos (1F) 05/2006 -> 10/2010 – original factory radio.
  • VW Eos (1F) 10/2010 -> 04/2015 – original factory radio.
  • VW Fox (5Z) 04/2005 -> 06/2011 – original factory radio.
  • VW Golf V (1K) 11/2003 -> 09/2008 – original factory radio.
  • VW Golf V (1KM) 06/2007 -> 10/2009 – original factory radio.
  • VW Golf V Plus (1KP) 01/2005 -> 02/2009 – original factory radio.
  • VW Golf VI (1K) 11/2008 -> 09/2012 – original factory radio.
  • VW Golf VI (1KM) 11/2009 -> 04/2013 – original factory radio.
  • VW Golf VI (1K) 06/2011 -> 07/2016 – original factory radio.
  • VW Golf VI Plus (1KP) 03/2009 -> 01/2014 – original factory radio.
  • VW Jetta III (1K5/1KM) 09/2005 -> 10/2010 – original factory radio.
  • VW Jetta IV (162) 01/2011 -> 08/2014 – original factory radio.
  • VW Multivan (7H) 10/2004 -> 09/2009 – vehicles with OEM amplifier require an active adapter.
  • VW Multivan (7H) 09/2009 -> 05/2015 – vehicles with OEM amplifier require an active adapter.
  • VW Passat B6 (3C2) 11/2005 -> 07/2010 – original factory radio.
  • VW Passat B6 (3C5) 08/2005 -> 07/2010 – original factory radio.
  • VW Passat B7 (3C/362) 11/2010 -> 10/2014 – original factory radio.
  • VW Phaeton (3D) 05/2007 -> 05/2010 – original factory radio.
  • VW Polo IV (9N) 03/2005 -> 03/2009 – original factory radio.
  • VW Polo V (6R) 06/2009 -> 01/2014 – original factory radio.
  • VW Scirocco III (13) 08/2008 -> 04/2014 – original factory radio.
  • VW Sharan II (7N) 08/2010 -> 04/2015 – original factory radio.
  • VW T5 Transporter (7H) 08/2003 -> 09/2009 – vehicles with OEM amplifier require an active adapter.
  • VW T5 Transporter (7H) 09/2009 -> 05/2015 – vehicles with OEM amplifier require an active adapter.
  • VW T6 (7HC) 07/2015 -> 08/2019 – vehicles with Composition Audio MIB Entry with front AUX/SD/USB.
  • VW Tiguan I (5N) 10/2007 -> 02/2011 – original factory radio.
  • VW Tiguan I (5N) 06/2011 -> 04/2016 – original factory radio.
  • VW Touareg I (7L) 06/2003 -> 11/2006 – vehicles with OEM amplifier require an active adapter.
  • VW Touareg I (7L) 11/2006 -> 02/2010 – vehicles with OEM amplifier require an active adapter.
  • VW Touran (1T) 01/2003 -> 09/2006 – original factory radio.
  • VW Touran (1T) 11/2006 -> 04/2010 – original factory radio.
  • VW Touran (1T) 08/2010 -> 04/2015 – original factory radio.
  • VW up! (AA) 12/2011 -> 06/2016 – vehicles without OEM sound system.

CAN Bus Information

Connectors and Power:

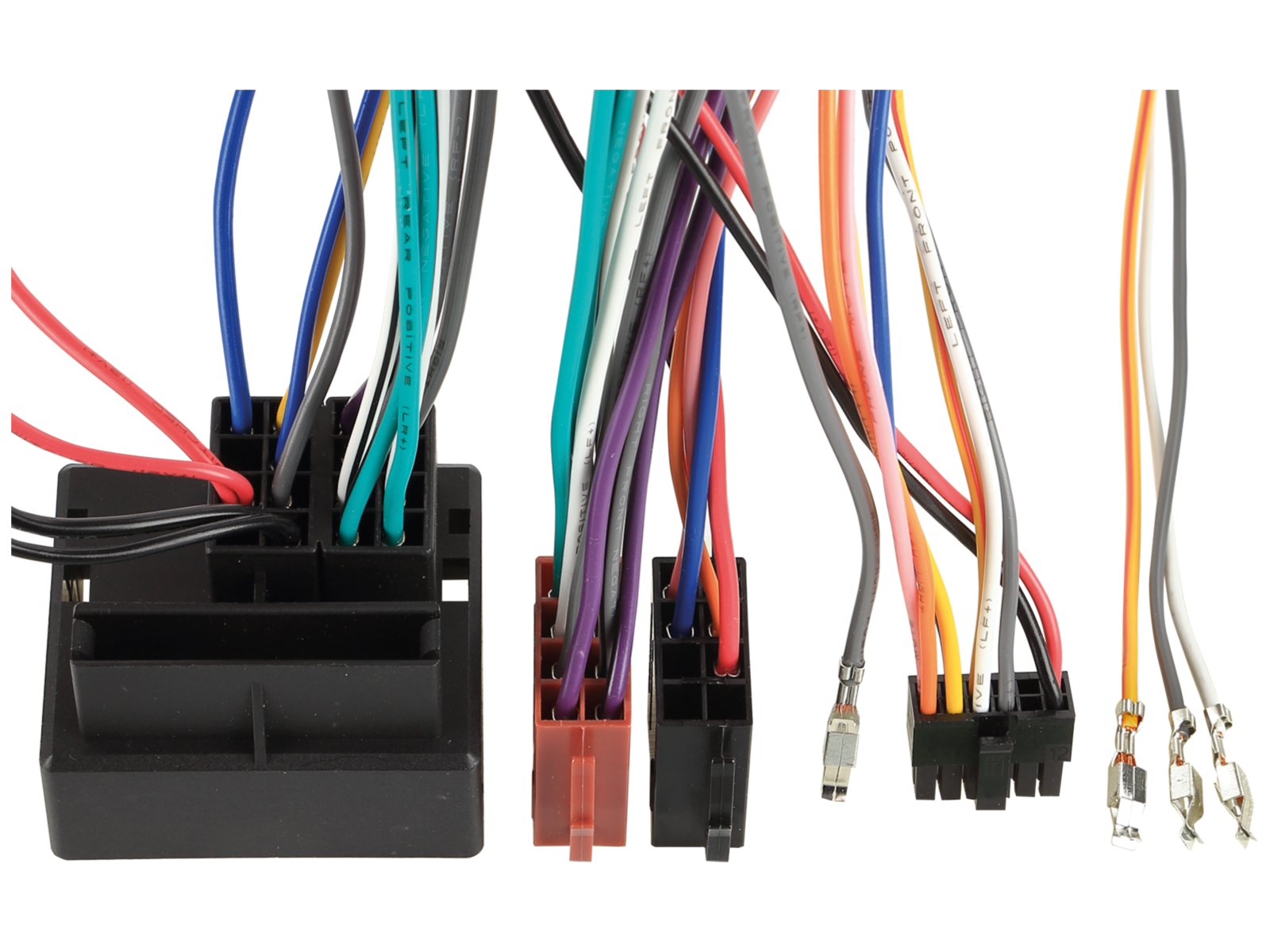

  • Connector: 40 pin VAG Quadlock (item: 42cx25).
  • Wiring for OEM steering wheel control: multilead (item: 42arc100).
  • OEM antenna: Fakra (female) → DIN (male) / ISO (male) adapter.
  • Pioneer AVH/DMH/SPH 2022 and newer: additional LFB cables 42a/42cx401 → jack (item: 42arc1072).
  • VW with Dynaudio: check +12 V Amp Remote on 40 pin Quadlock, pin (Pin 11) grey – measure before connection.

Settings and Limitations:

  • Check DIP switch settings on the aftermarket head unit (HU).
  • CAN Bus activation for OEM audio system is supported where required.

Diagnostic LED indication:

  • Blue flashing: CAN Bus search in progress.
  • Blue solid: CAN Bus active.
  • Red: +12 V ignition active.

Signals provided by the adapter:

  • Pink: +12 V ignition (Klemme 15) max. 1.5 A.
  • Orange: +12 V illumination (Klemme 58) max. 0.1 A.
  • White: +12 V reverse signal max. 1.5 A.
  • Yellow/green, yellow/red: speed signal.
  • Grey (note): in some harnesses no function; for VAG see Dynaudio note above.

Important Additional Information

  • Audi/Seat Exeo vehicles with OEM amplifier: use LFB Quadlock Amp 2/4 channel Cinch (42a-1321-002) or Pro version (42a-1321-006); or active adapter Audi/VW Quadlock MQS (13-1424-25). VW T5/Touareg with OEM amplifier: use active adapter 13-1424-26.
  • Škoda vehicles with Bolero/Stream and Amundsen/Columbus are supported; vehicles without Technisat OEM unit.
  • To fully activate the adapter, a connection cable must be ordered for the specific head unit brand.

General Installation Instructions

Verification Before Installation:

  1. Check all control functions and vehicle settings using the original OEM HU.
  2. Disconnect the original radio (OEM HU) in a voltage-free condition.
  3. Check all interface connections – without power.

Connection and Installation Sequence:

  1. Set and check the HW configuration of the interface – without power.
  2. Check the configuration of the HU connection cable – without power.
  3. Connect the cable to the HU according to the aftermarket device manual.
  4. Connect the remaining wires according to the device manual.
  5. Connect the complete installation to the vehicle – connect the main power supply last.
  6. Perform the software configuration of the interface according to the product description or manual.
  7. Configure the aftermarket HU (steering wheel control, camera, handsfree, antenna power etc.).
  8. Perform a functional test of steering wheel control and vehicle communication.

Configuration Changes:

  • All changes must be carried out without power.
  • After changes repeat steps 5 to 8 above.

In Case of Failure:

  • Reinstall the original OEM HU.
  • Start the original unit.
  • Initiate CAN Bus shutdown.
  • Check the HW configuration of the interface.
  • After CAN Bus shutdown repeat steps 5 and 6.

When Modifying Wiring:

  • Installation and modifications may only be carried out by professionally trained personnel.
  • All changes must be verified before connection regarding manufacturer approval or impact on vehicle warranty.
  • All modifications must be verified by measurement and comparison with the vehicle wiring diagram.
  • Modifications are carried out at your own responsibility without guarantee of functionality.
  • Modifications are performed at your own risk without guarantee against damage to the vehicle, device or interface.
  • Modifications of pre-installed wiring may result in loss of product warranty.
Catalog number42A-1324-001-1
BrandACV
LinksOfficial web presentation
