Steering wheel button control adapter for Fiat / Opel / Suzuki ACV SWC 42A-1292-001-0

steering wheel adapter for Fiat Sedici (FY) (06/06->08/09, 08/09->10/14), Opel Agila B (HB) (04/08->12/14), Suzuki Dzire (08->10), Grand Vitara (JT) (10/05->09/08, 09/08->12/12), Kizashi (FR) (10/10->08/15), Ritz (09->11), Splash (EX) (04/08->05/12), Swift (MZ/EZ) (05/05->08/10, 01/08->09/10) and SX4 (EY/GY) (06/06->01/10, 09/09->12/14)
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

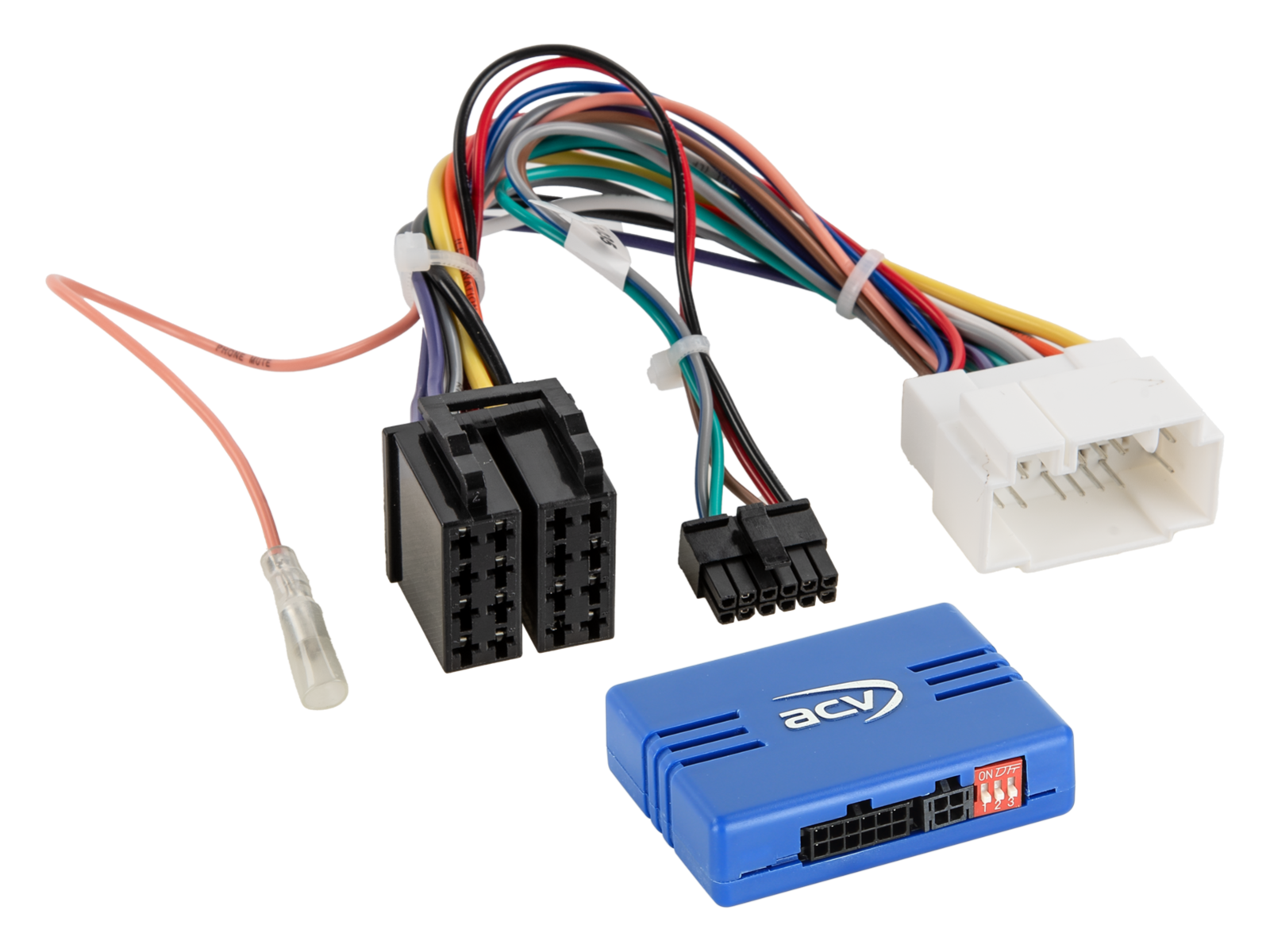

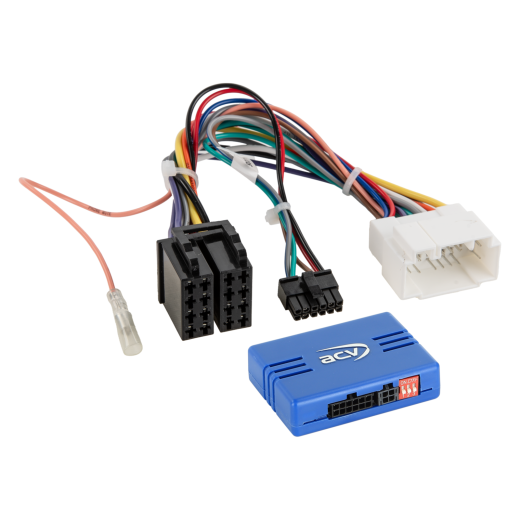

Steering wheel button control adapter for Fiat / Opel / Suzuki ACV SWC 42A-1292-001-0

Description and parameters
Comments0
Evaluation0
Category

Steering Wheel Control Adapter for Fiat / Opel / Suzuki ACV SWC 42A-1292-001-0

Retain the original radio control functions from the steering wheel when replacing the original radio with an aftermarket unit. Depending on the vehicle's equipment, function range, and software of the newly installed radio, some functions may be limited or replaced by others. Compare the displayed wiring connectors with those in your vehicle to ensure they match both technically and visually. Check if any of the listed OEM radios were originally installed. Before final installation, verify the vehicle's functionality, system settings, and proper steering wheel control operation (SWC).

Designed for Vehicles

Fiat Sedici FY 2006 -> 2009 - original radio Siemens/VDO PACR 01, PACR 02, PACR 06, SUKNR301 or Panasonic OEM navigation.
Fiat Sedici FY 2009 -> 2014 - original radio Siemens/VDO PACR 01, PACR 02, PACR 06, SUKNR301 or Panasonic OEM navigation.

Opel Agila B H-B 2008 -> 2014 - original radio Siemens/VDO PACR 01, PACR 02, PACR 06, SUKNR301 or Panasonic OEM navigation.

Suzuki Dzire 2008 -> 2010 - original radio Siemens/VDO PACR 01, PACR 02, PACR 06, SUKNR301 or Panasonic OEM navigation.
Suzuki Grand Vitara JT 2005 -> 2008 - original radio Siemens/VDO PACR 01, PACR 02, PACR 06, SUKNR301 or Panasonic OEM navigation.
Suzuki Grand Vitara JT 2008 -> 2012 - original radio Siemens/VDO PACR 01, PACR 02, PACR 06, SUKNR301 or Panasonic OEM navigation.
Suzuki Kizashi FR 2010 -> 2015 - original radio Siemens/VDO PACR 01, PACR 02, PACR 06, SUKNR301 or Panasonic OEM navigation.
Suzuki Ritz 2009 -> 2011 - original radio Siemens/VDO PACR 01, PACR 02, PACR 06, SUKNR301 or Panasonic OEM navigation.
Suzuki Splash EX 2008 -> 2012 - original radio Siemens/VDO PACR 01, PACR 02, PACR 06, SUKNR301 or Panasonic OEM navigation.
Suzuki Swift MZ/EZ 2005 -> 2010 - original radio Siemens/VDO PACR 01, PACR 02, PACR 06, SUKNR301 or Panasonic OEM navigation.
Suzuki Swift MZ/EZ 2008 -> 2010 - original radio Siemens/VDO PACR 01, PACR 02, PACR 06, SUKNR301 or Panasonic OEM navigation.
Suzuki SX4 EY/GY 2006 -> 2010 - original radio Siemens/VDO PACR 01, PACR 02, PACR 06, SUKNR301 or Panasonic OEM navigation.
Suzuki SX4 EY/GY 2009 -> 2014 - original radio Siemens/VDO PACR 01, PACR 02, PACR 06, SUKNR301 or Panasonic OEM navigation.

CAN Bus Information

Connectors and Power:

Connector: 20pin Suzuki.

Settings:

Check DIP switches according to the manual (BDA).

Diagnostic LED Indication:

Blue light: interface active, +12V ignition current present.
Red light: steering wheel control button press detected.

Important Additional Information

Designed for aftermarket radios by Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, Becker.
A connection cable for the specific radio brand is required for full adapter activation.

General Installation Guidelines

Verification Before Installation:

Check all control functions and vehicle settings with the original OEM head unit.
Disconnect the original radio (OEM HU) without power.
Check all interface connections to ensure they are correctly attached – without power.

Connection and Wiring Sequence:

Check the interface settings and HW configuration – without power.
Verify the connection cable configuration to the HU – without power.
Connect the cable to the HU according to the aftermarket device's manual.
Connect other wires according to the device's manual.
Connect the entire installation to the vehicle – main power connection should be the last.
Perform software configuration of the interface as instructed in the product description or manual.
Configure the aftermarket HU (e.g., steering wheel control, camera, hands-free, antenna power).
Perform a functional test of the steering wheel control and vehicle communication.

Changing Interface and HU Cable Configuration:

All changes should be made without power.
Repeat steps 5 to 8 listed above.

In Case of Interface or Vehicle System Malfunction:

Reinstall the original OEM HU.
Start the original unit.
Trigger the CAN Bus system shutdown.
Check the interface HW configuration.
After CAN Bus shutdown, repeat steps 5 and 6 listed above.

When Modifying Wiring or Cable Routing:

Only professionally trained personnel should perform wiring and modifications.
All changes must be verified for manufacturer approval or impact on vehicle warranty before connection.
All modifications must be verified by measurement and comparison with the vehicle's wiring diagram before connection.
Modifications are at your own risk, without guarantee of functionality.
Modifications are made at your own risk, with no guarantee against vehicle, device, or interface damage.
Pre-installed cable modifications may lead to a loss of product warranty.
