Steering wheel button control adapter for Citroen / Fiat / Peugeot / Toyota ACV SWC 42A-1041-001-0

Be the first to rate the product
steering wheel adapter for Citroen Berlingo (08->18), C2 (04->09), C3 (05->17), C4 (04->10), C5 (04->08), C8 (08->14), DS3 (10->14), Jumpy (07->24), Nemo (08->15), Spacetourer (16->24), Xsara Picasso (04->10) / Fiat Scudo (07->16) / Opel Vivaro C (19->24), Zafira Life V (19->24) / Peugeot 207 (06->15), 208 (12->15), 307 (05->09), 308 (07->15), 407 (04->11), 607 (04->09), 807 (02->14), 3008 (09->13), 5008 (09->13), Bipper (07->15), Expert (07->23), Partner (08->12), RCZ (10->15), Traveler (16->23) / Toyota Proace (13->24), Proace Verso (16->24)
More about the product
95,87 EUR
Catalog number: 42A-1041-001-0
1 to 4 weeksWatchdog
We will help you with your purchase
  • You can return the goods to us within 14 days
Steering wheel button control adapter for Citroen / Fiat / Peugeot / Toyota ACV SWC 42A-1041-001-0
New
  • Steering wheel button control adapter for Citroen / Fiat / Peugeot / Toyota ACV SWC 42A-1041-001-0
  • Steering wheel button control adapter for Citroen / Fiat / Peugeot / Toyota ACV SWC 42A-1041-001-0
  • Steering wheel button control adapter for Citroen / Fiat / Peugeot / Toyota ACV SWC 42A-1041-001-0

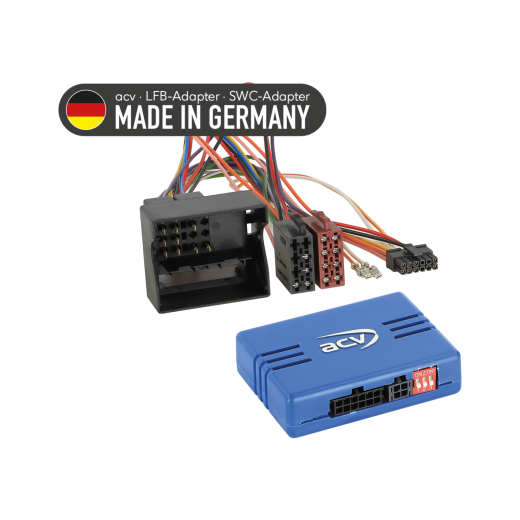

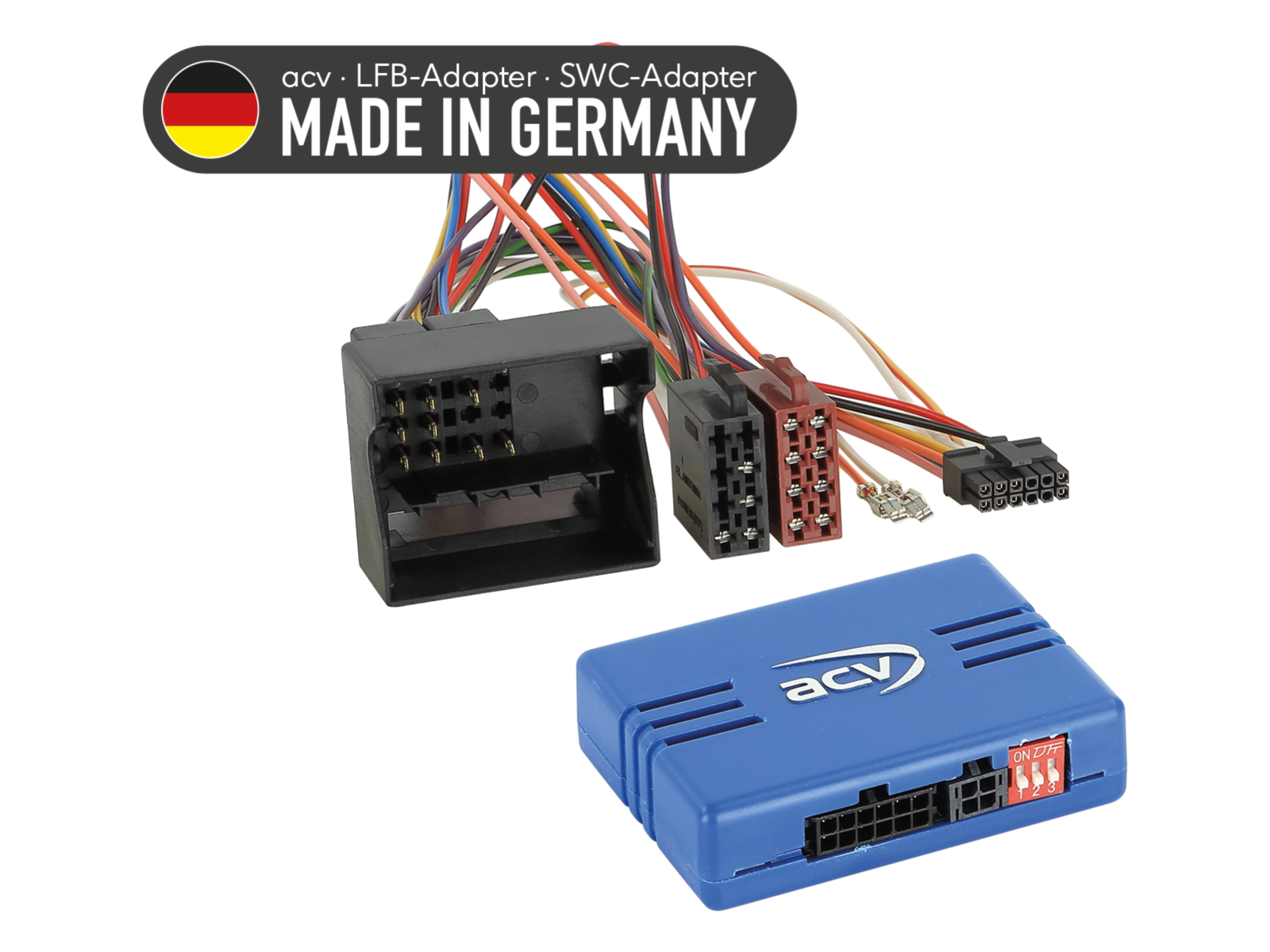

Steering Wheel Control Adapter for Citroën / Fiat / Peugeot / Toyota ACV SWC 42A-1041-001-0

Retain the original radio control functions from the steering wheel when replacing the original radio with an aftermarket unit. Depending on the vehicle's equipment, the range of functions, and the software of the newly installed radio, some functions may be limited or replaced by others. Compare the displayed wiring connectors with the connectors in your vehicle and ensure they match both technically and visually. Check if any of the listed OEM radios were originally installed. Verify the vehicle's functionality, system settings, and correct operation of steering wheel control (SWC) before final installation.

Compatible Vehicles

  • Citroën Berlingo (7) (06/2008 -> 03/2012) - original OEM radio.
  • Citroën Berlingo (7) (04/2012 -> 05/2015) - original OEM radio.
  • Citroën Berlingo (7) (06/2015 -> 06/2018) - original OEM radio.
  • Citroën C2 (J) (12/2004 -> 12/2009) - original OEM radio.
  • Citroën C3 (F) (10/2005 -> 01/2010) - original OEM radio. Vehicles with Clarion MQ-RD6 OEM HU monochrome display and central rotary controller, vehicle settings not supported.
  • Citroën C3 (S) (01/2010 -> 03/2013) - original OEM radio. Vehicles with Clarion MQ-RD6 OEM HU monochrome display and central rotary controller, vehicle settings not supported.
  • Citroën C3 (S) (04/2013 -> 01/2017) - original OEM radio.
  • Citroën C4 (L) (11/2004 -> 08/2010) - original OEM radio.
  • Citroën C5 (D) (10/2004 -> 04/2008) - original OEM radio.
  • Citroën C8 (E) (01/2008 -> 07/2012) - original OEM radio.
  • Citroën C8 (E) (07/2012 -> 06/2014) - original OEM radio.
  • Citroën DS3 (S) (03/2010 -> 07/2014) - original OEM radio. Vehicles with Clarion MQ-RD6 OEM HU monochrome display and central rotary controller, vehicle settings not supported.
  • Citroën Jumpy (V) (02/2007 -> 05/2016) - original OEM radio.
  • Citroën Jumpy (V) (09/2016 -> 01/2024) - original OEM radio.
  • Citroën Nemo (A) (08/2008 -> 12/2015) - original OEM radio.
  • Citroën Spacetourer (V) (03/2016 -> 03/2024) - original OEM radio.
  • Citroën Xsara Picasso (C) (03/2004 -> 02/2010) - original OEM radio.
  • Fiat Scudo (ZAF 270) (02/2007 -> 07/2016) - original OEM radio.
  • Opel Vivaro C (V) (09/2019 -> 01/2024) - original OEM radio.
  • Opel Zafira Life V (V) (02/2019 -> 01/2024) - original OEM radio.
  • Peugeot 207 (WC) (06/2006 -> 06/2009) - original OEM radio. Vehicles with Clarion MQ-RD6 OEM HU monochrome display and central rotary controller, vehicle settings not supported.
  • Peugeot 207 (W) (06/2009 -> 07/2015) - original OEM radio. Vehicles with Clarion MQ-RD6 OEM HU monochrome display and central rotary controller, vehicle settings not supported.
  • Peugeot 208 (C) (04/2012 -> 04/2015) - original OEM radio. Vehicles with Clarion MQ-RD6 OEM HU monochrome display and central rotary controller, vehicle settings not supported.
  • Peugeot 307 (3/3 Break/3 SW/3 CC) (06/2005 -> 03/2009) - original OEM radio.
  • Peugeot 308 (4/4 GTI/4 SW/4 CC) (09/2007 -> 07/2015) - original OEM radio.
  • Peugeot 407 (6/6 SW/6 Coupé) (05/2004 -> 07/2008) - original OEM radio.
  • Peugeot 407 (6/6 SW/6 Coupé) (02/2006 -> 03/2011) - original OEM radio.
  • Peugeot 607 (9) (10/2004 -> 04/2009) - original OEM radio.
  • Peugeot 807 (E) (07/2002 -> 02/2008) - original OEM radio.
  • Peugeot 807 (E) (02/2008 -> 06/2014) - original OEM radio.
  • Peugeot 3008 (OU) (06/2009 -> 10/2013) - original OEM radio.
  • Peugeot 5008 (O) (10/2009 -> 10/2013) - original OEM radio.
  • Peugeot Bipper (A) (12/2007 -> 12/2015) - original OEM radio.
  • Peugeot Expert (X) (02/2007 -> 08/2016) - original OEM radio.
  • Peugeot Expert (X) (03/2016 -> 2023) - original OEM radio.
  • Peugeot Partner (7) (05/2008 -> 03/2012) - original OEM radio.
  • Peugeot RCZ (4J) (04/2010 -> 09/2015) - original OEM radio.
  • Peugeot Traveller (03/2016 -> 2023) - original OEM radio.
  • Toyota Proace (03/2013 -> 08/2016) - original OEM radio.
  • Toyota Proace (V) (03/2016 -> 04/2024) - original OEM radio.
  • Toyota Proace Verso (V) (03/2016 -> 04/2024) - original OEM radio.

CAN Bus Information

Connectors and Power Supply:

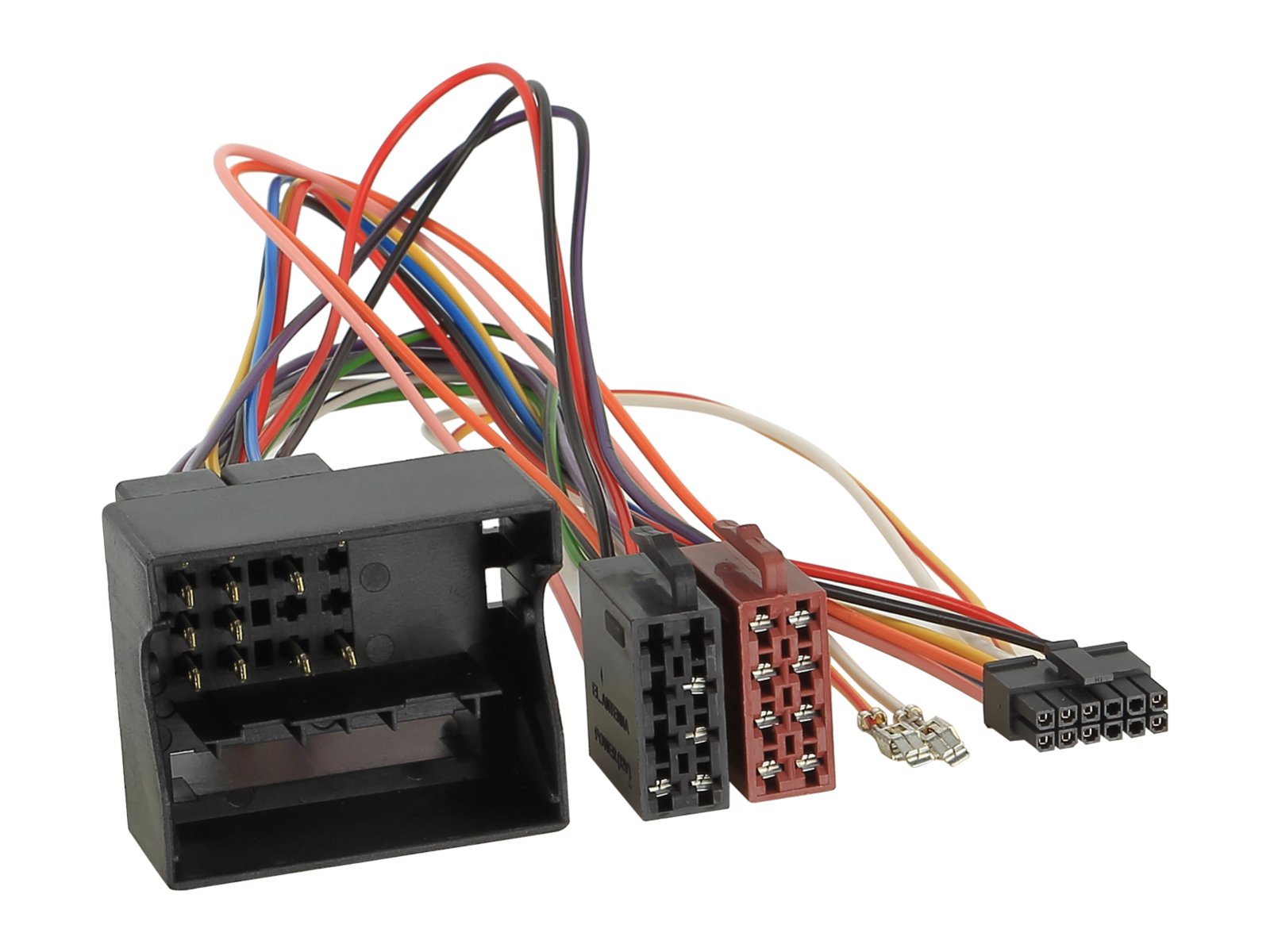

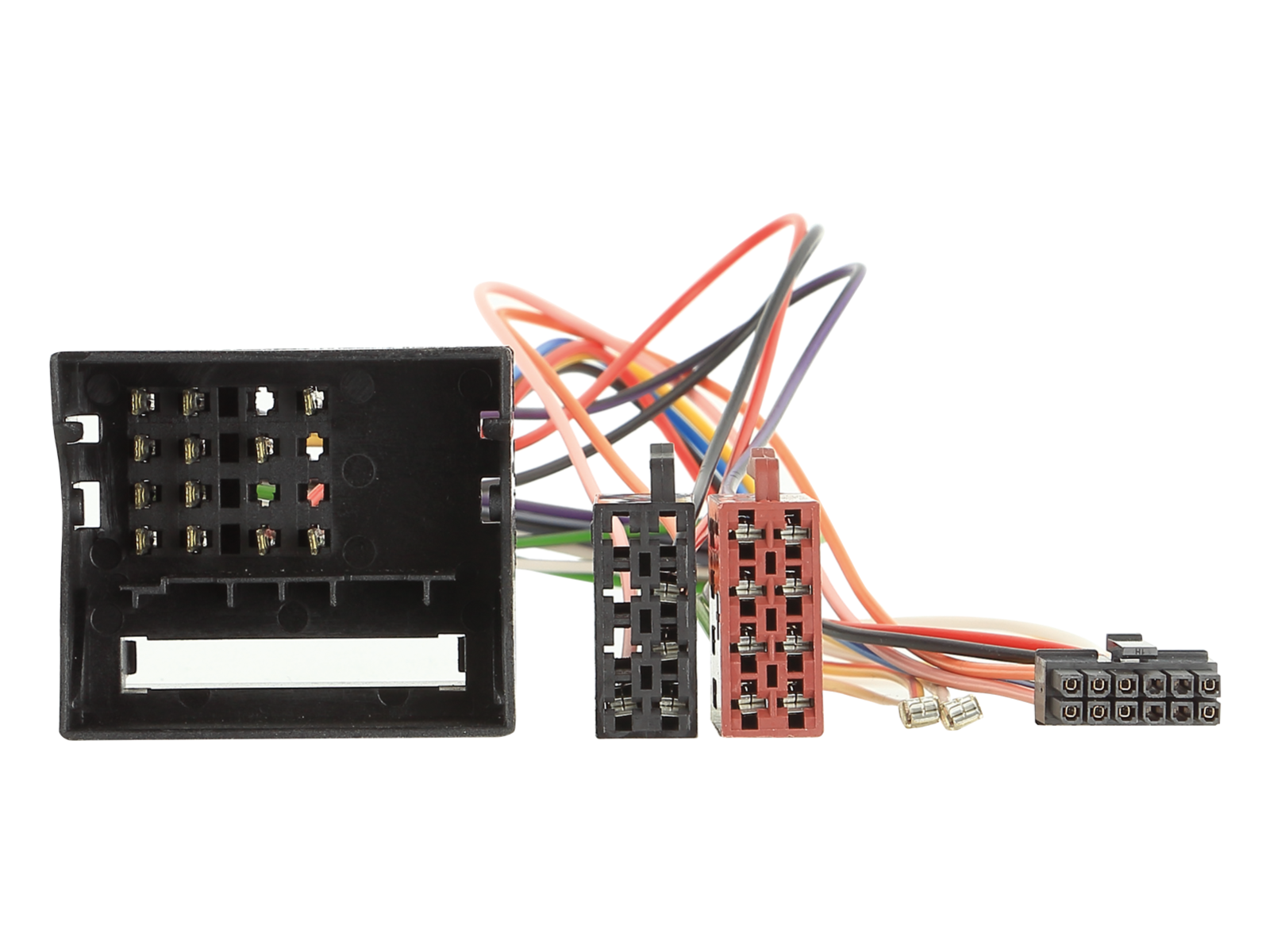

  • Connector: 40 Pin Quadlock PSA (item: 42cx30).

Settings:

  • Check DIP switches on the aftermarket radio (HU).

Vehicle Compatibility:

  • Vehicles with Blaupunkt / Continental / Siemens VDO RD4 / RT4 OEM HU with volume control.
  • Vehicles with Clarion MQ-RD6 OEM HU monochrome display and central rotary controller.
  • Vehicles with Continental RD45 OEM HU with rotary controller.
  • Vehicles without Bosch OEM HU.
  • Vehicles without Magneti Marelli RT3 / RT6 / Harman Becker OEM Sat Nav with volume control.
  • Vehicles without OEM JBL amplifier.
  • Vehicles with PDC.

Additional Notes:

  • Vehicle settings via SWC supported (see manual).
  • Vehicles with ECO-mode: +12V constant power (terminal 30).
  • Vehicles with PDC: SWC CAN Bus speaker adapter 42a/42cx PDC (item: 42cxpdc).
  • Vehicles with PDC button: activation of PDC sound playback required.

Diagnostic LED Indication:

  • Blue flashing: searching for CAN Bus signal.
  • Blue solid: CAN Bus active.
  • Red solid: active +12V ignition power.

Important Additional Information

  • Intended for aftermarket radios Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, Becker.
  • To fully activate the adapter, an additional connecting cable for the specific radio brand must be ordered.

General Installation Guidelines

Verification Before Installation:

  1. Check all control functions and vehicle settings with the original OEM head unit.
  2. Disconnect the original radio (OEM HU) without power.
  3. Check all interface connections to ensure they are properly connected - without power.

Connection and Installation Order:

  1. Check interface settings and hardware configuration - without power.
  2. Check the configuration of the connecting cable to the HU - without power.
  3. Connect the cable to the HU according to the instructions for the aftermarket device.
  4. Connect other wires according to the device instructions.
  5. Connect the entire installation to the vehicle - connect the main power connection last.
  6. Perform software configuration of the interface according to the product description or manual.
  7. Configure the aftermarket HU (e.g., steering wheel control, camera, handsfree, antenna power).
  8. Perform a functional test of steering wheel control and vehicle communication.

Changing Interface and HU Cable Configuration:

  • Make all changes without power.
  • Repeat steps 5 to 8 listed above.

In Case of Interface or Vehicle System Failure:

  • Reinstall the original OEM HU.
  • Start the original unit.
  • Trigger the shutdown of the CAN Bus system.
  • Check the hardware configuration of the interface.
  • After CAN Bus shutdown, repeat steps 5 and 6 listed above.

When Modifying Connections or Wiring:

  • Connections and modifications should only be carried out by professionally trained personnel.
  • All changes must be verified for approval by the manufacturer or impact on the vehicle warranty before connection.
  • All modifications must be verified by measurement and comparison with the vehicle's wiring diagram before connection.
  • Modifications are made at your own responsibility, without warranty for functionality.
  • Modifications are carried out at your own risk, without a guarantee of excluding damage to the vehicle, device, or interface.
  • Modifications to pre-installed wiring may result in the loss of product warranty.
Catalog number42A-1041-001-0
BrandACV
LinksOfficial web presentation
