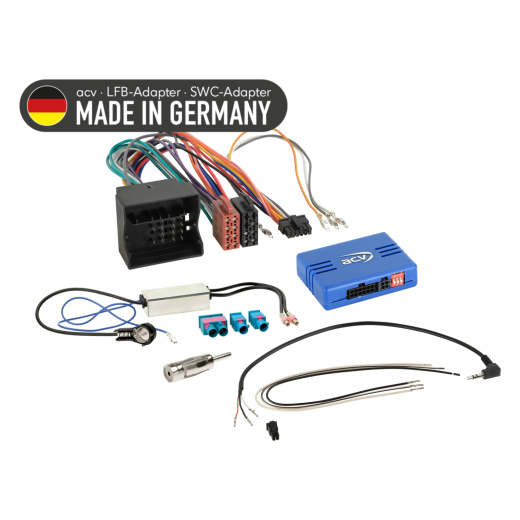

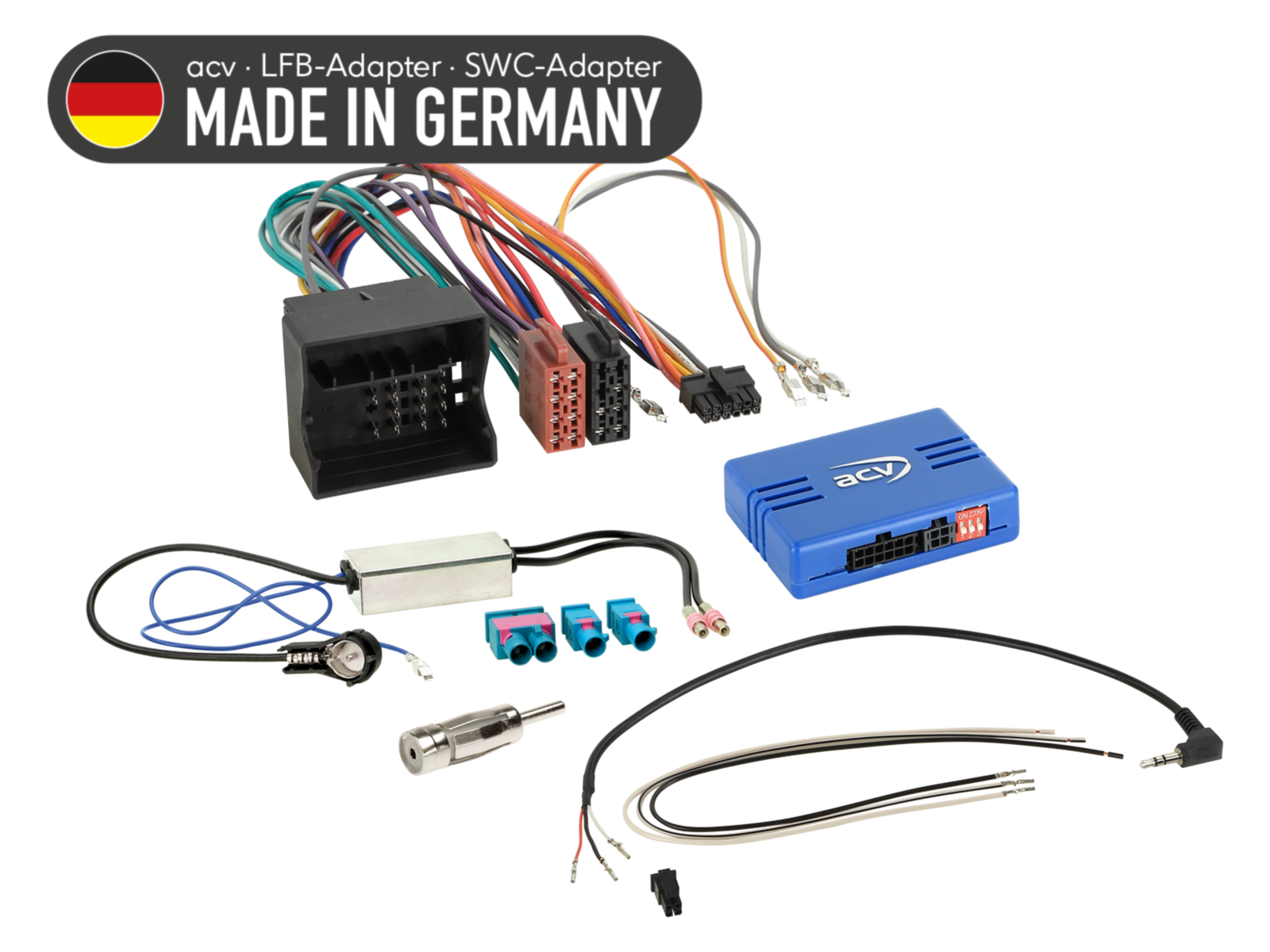

Steering wheel button control adapter for Audi / Seat / Skoda / VW ACV SWC 42A-1324-001-2

Be the first to rate the product
steering wheel adapter for Audi A1 (8X) (07/10->04/18), A3 (8P) (05/03->04/05, 10/04->04/13), A4 B6 (8E) (11/00->10/05), A4 B7 (8E) (11/04->02/09), A5 (8T/8F) (06/07->10/11), A6 (C5/B4) (05/01->03/06), Q3 (8U) (10/11->11/14, 02/15->06/18), Q5 (8R) (09/08->05/12, 09/12->01/17), R8 (42) (04/07->05/15), TT (8J) (04/06->04/10, 08/10->03/14), Seat Alhambra (7N) (10/10->04/15), Altea (5P) (06/04->03/09, 04/09->07/15), Exeo (3R) (03/09->05/13), Ibiza (6J) (06/08->02/12, 03/12->06/15), Leon (1P) (09/05->03/09, 04/09->11/12), Mii (AA) (12/11->06/19), Toledo (5P) (01/05->10/09), Toledo (NH) (03/13->05/15), Skoda Citigo (AA) (06/12->05/17), Fabia (5J) (03/07->04/10, 06/10->06/14), Octavia (1Z) (06/04->05/09, 01/09->03/13), Rapid (NH) (10/12->04/15), Roomster (5J) (09/06->04/10, 06/10->02/15), Superb (3T) (07/08->05/13, 06/13->05/15), Yeti (5L) (08/09->10/13), VW Amarok (2H) (07/10->08/16), Beetle (16) (11/11->06/16), Caddy III (2K) (10/03->08/10, 09/10->04/15), Caddy IV (DU) (06/15->09/20), Caravelle (7H) (10/04->09/09, 09/09->05/15), CC (3C/35) (06/08->11/11, 02/12->08/16), Eos (1F) (05/06->10/10, 10/10->04/15), Fox (5Z) (04/05->06/11), Golf V (1K) (11/03->09/08), Golf V (1KM) (06/07->10/09), Golf V Plus (1KP) (01/05->02/09), Golf VI (1K) (11/08->09/12, 06/11->07/16), Golf VI (1KM) (11/09->04/13), Golf VI Plus (1KP) (03/09->01/14), Jetta III (1K5/1KM) (09/05->10/10), Jetta IV (162) (01/11->08/14), Multivan (7H) (10/04->09/09, 09/09->05/15), Passat B6 (3C2) (11/05->07/10), Passat B6 (3C5) (08/05->07/10), Passat B7 (3C/362) (11/10->10/14), Phaeton (3D) (05/07->05/10), Polo IV (9N) (03/05->03/09), Polo V (6R) (06/09->01/14), Scirocco III (13) (08/08->04/14), Sharan II (7N) (08/10->04/15), T5 Transporter (7H) (08/03->09/09, 09/09->05/15), T6 (7HC) (07/15->08/19), Tiguan I (5N) (10/07->02/11, 06/11->04/16), Touareg I (7L) (06/03->11/06, 11/06->02/10), Touran (1T) (01/03->09/06, 11/06->04/10, 08/10->04/15) and UP! (AA) (12/11->06/16)
More about the product
99,88 EUR
Catalog number: 42A-1324-001-2
1 to 4 weeksWatchdog
We will help you with your purchase
  • You can return the goods to us within 14 days
Steering wheel button control adapter for Audi / Seat / Skoda / VW ACV SWC 42A-1324-001-2
  • Steering wheel button control adapter for Audi / Seat / Skoda / VW ACV SWC 42A-1324-001-2
  • Steering wheel button control adapter for Audi / Seat / Skoda / VW ACV SWC 42A-1324-001-2

Steering wheel button control adapter for Audi / Seat / Škoda / VW

Keep the original radio steering wheel control functions when replacing the factory radio with an aftermarket unit. Depending on vehicle equipment, available functions and the software of the newly installed radio, some functions may be limited or replaced by others. Compare the shown wiring connectors with the connectors in your vehicle and make sure they match both technically and visually. Check whether one of the listed OEM head units was originally installed. Before final installation, verify vehicle functionality, system settings and correct operation of the steering wheel controls (SWC).

Intended for vehicles

  • Audi A1 (8X) 07/2010 -> 04/2018 – vehicles with Chorus OEM unit with monochrome display.
  • Audi A3 (8P) 05/2003 -> 04/2005 – vehicles with 2-DIN OEM head unit; vehicles with OEM sound system require an additional adapter.
  • Audi A3 (8P) 10/2004 -> 04/2013 – vehicles with 2-DIN OEM head unit; vehicles with OEM sound system require an additional adapter.
  • Audi A4 B6 (8E) 11/2000 -> 10/2005 – vehicles with 2-DIN OEM head unit; vehicles with OEM sound system require an additional adapter.
  • Audi A4 B7 (8E) 11/2004 -> 02/2009 – vehicles with 2-DIN OEM head unit; vehicles with OEM sound system require an additional adapter.
  • Audi A5 (8T/8F) 06/2007 -> 10/2011 – vehicles with 2-DIN OEM head unit; vehicles with OEM sound system require an additional adapter.
  • Audi A6 (C5/B4) 05/2001 -> 03/2006 – vehicles with 2-DIN OEM head unit; vehicles with OEM sound system require an additional adapter.
  • Audi Q3 (8U) 10/2011 -> 11/2014 – vehicles with Chorus OEM unit with monochrome display.
  • Audi Q3 (8U) 02/2015 -> 06/2018 – vehicles with 2-DIN OEM head unit; vehicles with OEM sound system require an additional adapter.
  • Audi Q5 (8R) 09/2008 -> 05/2012 – vehicles with 2-DIN OEM head unit; vehicles with OEM sound system require an additional adapter.
  • Audi Q5 (8R) 09/2012 -> 01/2017 – vehicles with 2-DIN OEM head unit; vehicles with OEM sound system require an additional adapter.
  • Audi R8 (42) 04/2007 -> 05/2015 – vehicles with 2-DIN OEM head unit; vehicles with OEM sound system require an additional adapter.
  • Audi TT (8J) 04/2006 -> 04/2010 – vehicles with 2-DIN OEM head unit; systems that activate the OEM sound system via CAN require CAN activation.
  • Audi TT (8J) 08/2010 -> 03/2014 – vehicles with 2-DIN OEM head unit; systems that activate the OEM sound system via CAN require CAN activation.
  • Seat Alhambra (7N) 10/2010 -> 04/2015 – original head unit.
  • Seat Altea (5P) 06/2004 -> 03/2009 – original head unit.
  • Seat Altea (5P) 04/2009 -> 07/2015 – original head unit.
  • Seat Exeo (3R) 03/2009 -> 05/2013 – vehicles with 2-DIN OEM head unit; vehicles with OEM sound system require an additional adapter.
  • Seat Ibiza (6J) 06/2008 -> 02/2012 – vehicles without OEM sound system.
  • Seat Ibiza (6J) 03/2012 -> 06/2015 – vehicles without OEM sound system.
  • Seat Leon (1P) 09/2005 -> 03/2009 – original head unit.
  • Seat Leon (1P) 04/2009 -> 11/2012 – original head unit.
  • Seat Mii (AA) 12/2011 -> 06/2019 – vehicles without OEM sound system.
  • Seat Toledo (5P) 01/2005 -> 10/2009 – original head unit.
  • Seat Toledo (NH) 03/2013 -> 05/2015 – original head unit.
  • Škoda Citigo (AA) 06/2012 -> 05/2017 – vehicles without OEM sound system.
  • Škoda Fabia (5J) 03/2007 -> 04/2010 – original head unit.
  • Škoda Fabia (5J) 06/2010 -> 06/2014 – original head unit.
  • Škoda Octavia (1Z) 06/2004 -> 05/2009 – original head unit.
  • Škoda Octavia (1Z) 01/2009 -> 03/2013 – original head unit.
  • Škoda Rapid (NH) 10/2012 -> 04/2015 – original head unit.
  • Škoda Roomster (5J) 09/2006 -> 04/2010 – original head unit.
  • Škoda Roomster (5J) 06/2010 -> 02/2015 – original head unit.
  • Škoda Superb (3T) 07/2008 -> 05/2013 – original head unit.
  • Škoda Superb (3T) 06/2013 -> 05/2015 – original head unit.
  • Škoda Yeti (5L) 08/2009 -> 10/2013 – original head unit.
  • VW Amarok (2H) 07/2010 -> 08/2016 – original head unit.
  • VW Beetle (16) 11/2011 -> 06/2016 – original head unit.
  • VW Caddy III (2K) 10/2003 -> 08/2010 – original head unit.
  • VW Caddy III (2K) 09/2010 -> 04/2015 – original head unit.
  • VW Caddy IV (DU) 06/2015 -> 09/2020 – vehicles with Composition Audio MIB Entry unit with front AUX/SD/USB.
  • VW Caravelle (7H) 10/2004 -> 09/2009 – vehicles with OEM sound system require a specific adapter.
  • VW Caravelle (7H) 09/2009 -> 05/2015 – vehicles with OEM sound system require a specific adapter.
  • VW CC (3C/35) 06/2008 -> 11/2011 – original head unit.
  • VW CC (3C/35) 02/2012 -> 08/2016 – original head unit.
  • VW Eos (1F) 05/2006 -> 10/2010 – original head unit.
  • VW Eos (1F) 10/2010 -> 04/2015 – original head unit.
  • VW Fox (5Z) 04/2005 -> 06/2011 – original head unit.
  • VW Golf V (1K) 11/2003 -> 09/2008 – original head unit.
  • VW Golf V (1KM) 06/2007 -> 10/2009 – original head unit.
  • VW Golf V Plus (1KP) 01/2005 -> 02/2009 – original head unit.
  • VW Golf VI (1K) 11/2008 -> 09/2012 – original head unit.
  • VW Golf VI (1KM) 11/2009 -> 04/2013 – original head unit.
  • VW Golf VI (1K) 06/2011 -> 07/2016 – original head unit.
  • VW Golf VI Plus (1KP) 03/2009 -> 01/2014 – original head unit.
  • VW Jetta III (1K5/1KM) 09/2005 -> 10/2010 – original head unit.
  • VW Jetta IV (162) 01/2011 -> 08/2014 – original head unit.
  • VW Multivan (7H) 10/2004 -> 09/2009 – vehicles with OEM sound system require a specific adapter.
  • VW Multivan (7H) 09/2009 -> 05/2015 – vehicles with OEM sound system require a specific adapter.
  • VW Passat B6 (3C2) 11/2005 -> 07/2010 – original head unit.
  • VW Passat B6 (3C5) 08/2005 -> 07/2010 – original head unit.
  • VW Passat B7 (3C/362) 11/2010 -> 10/2014 – original head unit.
  • VW Phaeton (3D) 05/2007 -> 05/2010 – original head unit.
  • VW Polo IV (9N) 03/2005 -> 03/2009 – original head unit.
  • VW Polo V (6R) 06/2009 -> 01/2014 – original head unit.
  • VW Scirocco III (13) 08/2008 -> 04/2014 – original head unit.
  • VW Sharan II (7N) 08/2010 -> 04/2015 – original head unit.
  • VW T5 Transporter (7H) 08/2003 -> 09/2009 – vehicles with OEM sound system require a specific adapter.
  • VW T5 Transporter (7H) 09/2009 -> 05/2015 – vehicles with OEM sound system require a specific adapter.
  • VW T6 (7HC) 07/2015 -> 08/2019 – vehicles with Composition Audio MIB Entry unit with front AUX/SD/USB.
  • VW Tiguan I (5N) 10/2007 -> 02/2011 – original head unit.
  • VW Tiguan I (5N) 06/2011 -> 04/2016 – original head unit.
  • VW Touareg I (7L) 06/2003 -> 11/2006 – vehicles with OEM sound system require a specific adapter.
  • VW Touareg I (7L) 11/2006 -> 02/2010 – vehicles with OEM sound system require a specific adapter.
  • VW Touran (1T) 01/2003 -> 09/2006 – original head unit.
  • VW Touran (1T) 11/2006 -> 04/2010 – original head unit.
  • VW Touran (1T) 08/2010 -> 04/2015 – original head unit.
  • VW UP! (AA) 12/2011 -> 06/2016 – vehicles without OEM sound system.

CAN Bus information

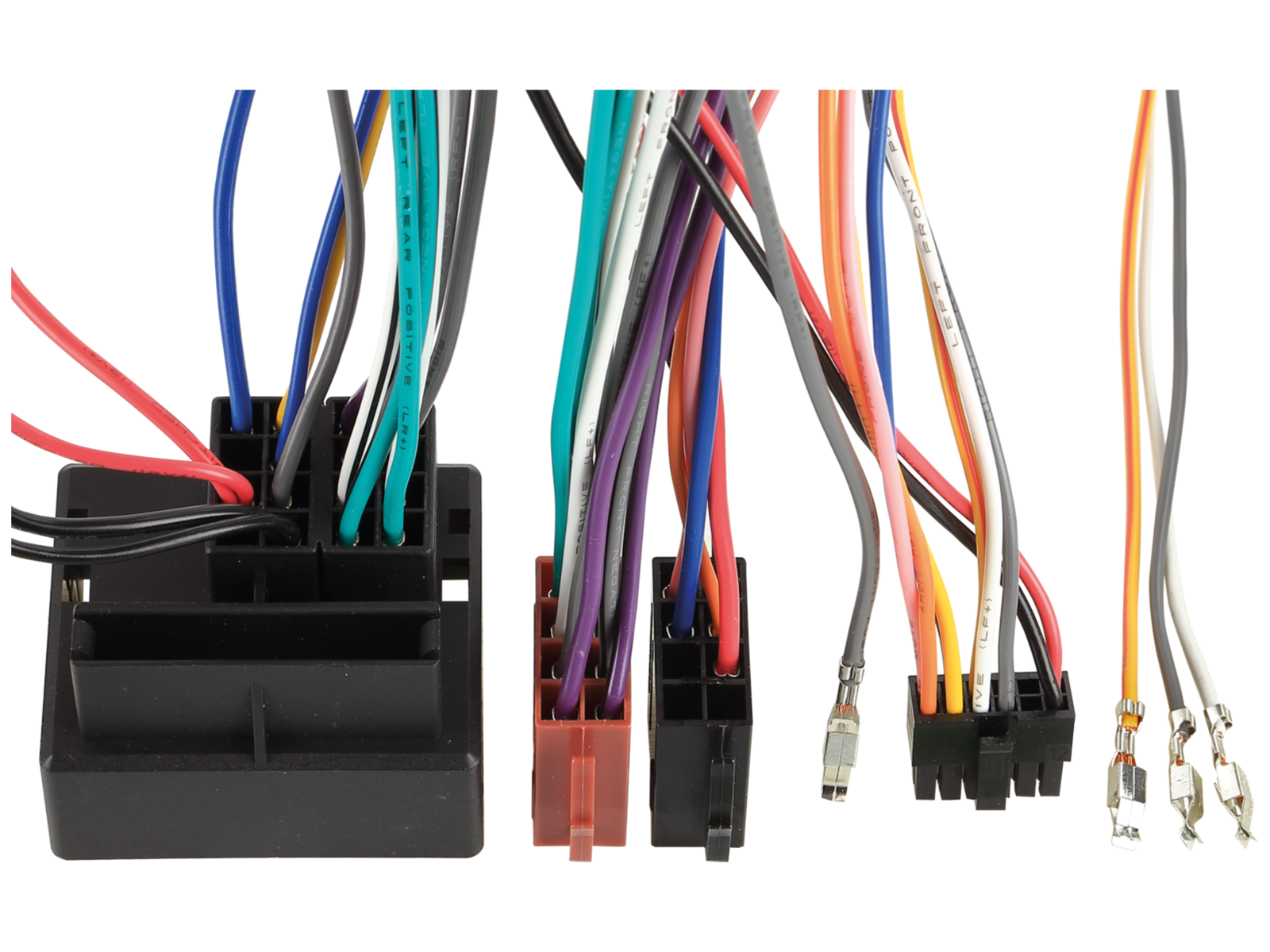

Connectors and power:

  • 40-pin Quadlock VAG connector.
  • Wiring for steering wheel control (SWC) – jumper cable.
  • OEM Fakra antenna (female) to DIN/ISO (male).
  • Some Pioneer models from 2022 onward may require an additional cable to a 3.5 mm jack.
  • VW with Dynaudio: +12V Amp Remote on module pin 11 (grey) – verify by measuring with the OEM unit before connecting.
  • T5 / Touareg with OEM amplifier: use an active adapter designed for vehicles with factory amplifiers.

Settings:

  • Check DIP switch settings according to the type of aftermarket radio.
  • CAN Bus activation of OEM sound systems is supported.

Diagnostic LED indication:

  • Blue flashing: searching for CAN Bus.
  • Blue steady: CAN Bus active.
  • Red: +12V ignition active.

Available signals:

  • Pink: +12V ignition (Terminal 15) max. 1.5A.
  • Orange: +12V illumination (Terminal 58) max. 0.1A.
  • White: +12V reverse gear max. 1.5A.
  • Yellow/green, yellow/red: speed pulse signal.
  • Grey: interface – no function.
  • Grey: 40-pin Quadlock pin 11 – +12V Amp Remote for Dynaudio (verify by measurement).

Important additional information

  • Designed for aftermarket radios from Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, Zenec, XZent and others that support SWC input.
  • To fully activate the adapter, order the brand-specific connection cable for your radio.

General installation instructions

Verification before installation:

  1. Check all steering wheel control functions and vehicle settings with the original OEM head unit installed.
  2. Disconnect the original radio (OEM HU) with the ignition off.
  3. Check all interface connections to ensure they are correctly connected – with power off.

Connection and wiring sequence:

  1. Check the interface settings and hardware configuration – with power off.
  2. Check the wiring configuration of the harness to the head unit – with power off.
  3. Connect the harness to the head unit according to the aftermarket unit manual.
  4. Connect other wires according to the device manual.
  5. Integrate the entire installation with the vehicle – connect the main power last.
  6. Perform software configuration of the interface according to the product description or manual.
  7. Configure the aftermarket head unit (steering wheel control, camera, handsfree, antenna power, etc.).
  8. Perform a functional test of the steering wheel controls and communication with the vehicle.

Changing the interface configuration and head unit harness:

  • Make any changes with power off.
  • Repeat steps 5 to 8 listed above.

If the interface or vehicle system malfunctions:

  • Reinstall the original OEM head unit.
  • Start the original unit.
  • Initiate CAN Bus shutdown.
  • Check the hardware configuration of the interface.
  • After CAN Bus shutdown, repeat steps 5 and 6 listed above.

When modifying wiring or harnesses:

  • Wiring and modifications must be performed only by professionally trained personnel.
  • All changes must be verified for manufacturer approval or effects on vehicle warranty before connection.
  • All modifications must be verified by measurement and compared with the vehicle wiring diagram before connection.
  • Modifications are carried out at your own risk and without warranty for functionality.
  • Modifications are at your own risk, with no guarantee against damage to the vehicle, device or interface.
  • Modifying pre-installed harnesses may void the product warranty.
Catalog number42A-1324-001-2
BrandACV
LinksOfficial web presentation
