Steering wheel button control adapter for Citroen / Fiat / Ford / Opel / Peugeot ACV SWC 42XBM00C-0

Be the first to rate the product
steering wheel adapter for Alfa Romeo Giulietta (940) (05/10->10/13), MiTo (955) (09/08->10/13), Citroen Jumper (250) (11/11->05/14), Nemo (A.) (08/08->12/15), Relay (250) (2011->2014), Fiat 500 (ZAF 312) (10/07->07/15), Doblo (ZAF 263) (02/10->01/15), Ducato (ZAF 250) (06/11->05/14), Fiorino (ZAF 225) (04/08->07/16), Grande Punto (ZAF 199) (10/05->05/10), Idea (ZAF 350) (11/05->01/08), Punto (ZAF 199) (05/10->12/10), Punto (ZAF 199) (01/11->01/12), Punto Evo (ZAF 199) (09/09->01/11), Qubo (ZAF 225) (09/08->07/16), Ford Ka (RU8) (02/09->05/17), Opel Combo D (Combo D) (01/12->08/18), Peugeot Bipper (A) (12/07->12/15) a Boxer (Y) (07/11->05/14)
More about the product
75,60 EUR
Catalog number: 42XFA004-0
1 to 4 weeksWatchdog
We will help you with your purchase
  • You can return the goods to us within 14 days

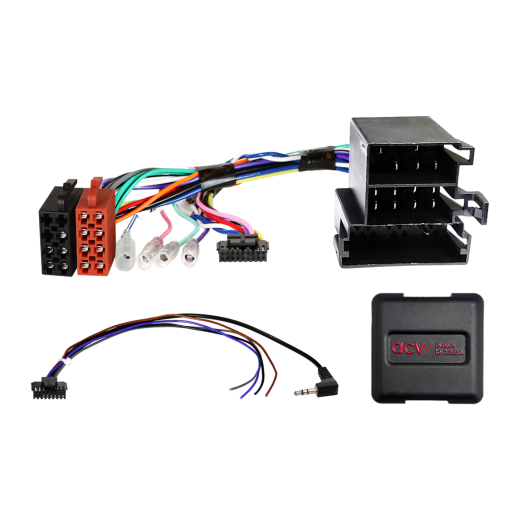

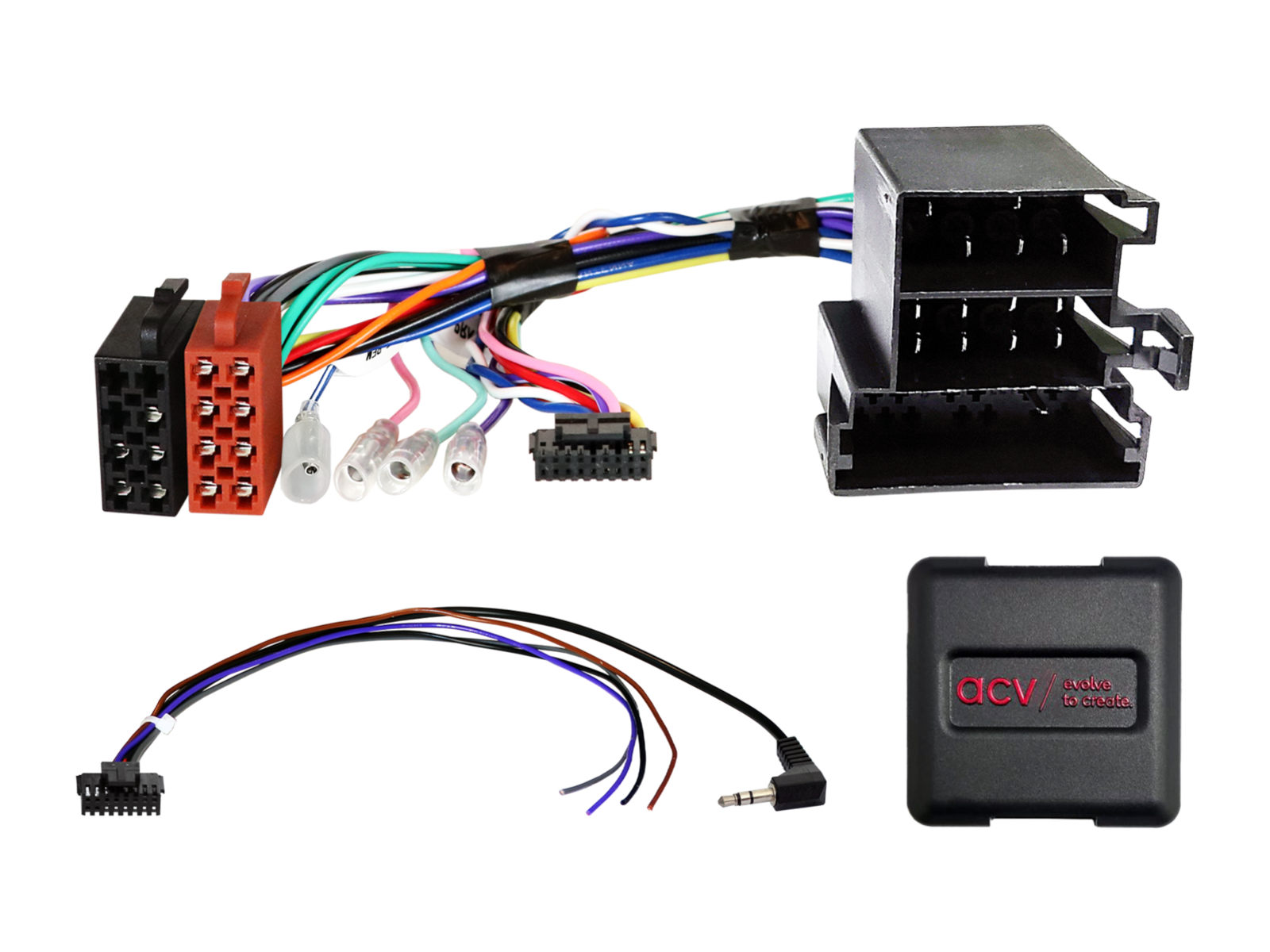

Steering wheel button control adapter for Citroen / Fiat / Ford / Opel / Peugeot ACV SWC 42XBM00C-0

Steering wheel button control adapter for Citroen / Fiat / Ford / Opel / Peugeot ACV SWC 42XBM00C-0

Retain the original steering wheel radio control functions when replacing the factory radio with an aftermarket unit. Depending on the vehicle's equipment, the range of functions and the software of the newly installed head unit, some functions may be limited or replaced by others. Compare the displayed wiring connectors with the connectors in your vehicle and make sure they match both technically and visually. Check whether one of the listed OEM head units was originally installed. Before final installation, verify the vehicle functionality, system settings and proper operation of the steering wheel control (SWC).

Intended for vehicles

          • Alfa Romeo Giulietta [940] (2010 -> 2013) - original Bosch radio.
          • Alfa Romeo MiTo [955] (2008 -> 2013) - original Blaupunkt radio.
          • Citroen Jumper [250] (2011 -> 2014) - vehicles with 8 steering wheel buttons/functions, vehicles with OEM Delphi 2-DIN unit in piano lacquer design with center control knob.
          • Citroen Nemo [A] (2008 -> 2015) - original OEM radio.
          • Citroen Relay [250] (2011 -> 2014) - original OEM radio.
          • Fiat 500 [ZAF 312] (2007 -> 2015) - original OEM radio.
          • Fiat Doblo [ZAF 263] (2010 -> 2015) - original OEM radio.
          • Fiat Ducato [ZAF 250] (2011 -> 2014) - vehicles with 8 steering wheel buttons/functions, vehicles with OEM Delphi 2-DIN unit in piano lacquer design with center control knob.
          • Fiat Fiorino [ZAF 225] (2008 -> 2016) - original OEM radio.
          • Fiat Grande Punto [ZAF 199] (2005 -> 2010) - original OEM radio.
          • Fiat Idea [ZAF 350] (2005 -> 2008) - original OEM radio.
          • Fiat Punto [ZAF 199] (2010 -> 2010) - original OEM radio.
          • Fiat Punto [ZAF 199] (2011 -> 2012) - original OEM radio.
          • Fiat Punto Evo [ZAF 199] (2009 -> 2011) - original OEM radio.
          • Fiat Qubo [ZAF 225] (2008 -> 2016) - original OEM radio.
          • Ford Ka [RU8] (2009 -> 2017) - original OEM radio.
          • Opel Combo D [Combo D] (2012 -> 2018) - original OEM radio.
          • Peugeot Bipper [A] (2007 -> 2015) - original OEM radio.
          • Peugeot Boxer [Y] (2011 -> 2014) - vehicles with 8 steering wheel buttons/functions, vehicles with OEM Delphi 2-DIN unit in piano lacquer design with center control knob.

          CAN Bus Information

          Connectors and Power Supply:

          • Connector: ISO / Mini ISO.
          • OEM steering wheel control output: 3.5 mm jack or loose wire.
          • Power supply: +12 V Amp Remote (blue wire).

          Settings:

          • Set DIP switches according to the aftermarket head unit manufacturer.

          Vehicle compatibility:

          • Vehicles with OEM Blaupunkt, Bosch, Delphi or VDO head units.
          • Vehicles with CAN Bus in ISO power connector.
          • Vehicles without analog steering wheel control in Mini ISO connector C-2.
          • Vehicles without OEM Visteon, Daiichi or UConnect unit.
          • Vehicles without OEM Magneti Marelli navigation.

          Vehicles with Blue&Me:

          • The Blue&Me module must remain installed.

          Vehicles with OEM audio system:

          • Require active adapter Alfa Romeo/Lancia ISO > ISO (item: 13-1001-50) or universal ISO > ISO adapter (item: 13-1190-50).

          Available signals:

          • +12 V ignition (Klemme 15).
          • +12 V illumination (Klemme 58).
          • +12 V reverse.
          • Speed signal.
          • GND parking brake signal.

          Important Additional Information

          • Compatible with aftermarket head units: Sony, Kenwood, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, XZent, Digital Dynamics, ESX, Snooper and universal “China HU” (Key1/Key2/GND or 3.5 mm jack depending on type).
          • To fully activate the adapter, a connection cable must be ordered.

          General Installation Instructions

          Verification Before Installation:

          1. Check all control functions and vehicle settings using the original OEM HU.
          2. Disconnect the original radio (OEM HU) in a voltage-free condition.
          3. Check all interface connections – without power.

          Connection and Installation Sequence:

          1. Set and check the HW configuration of the interface – without power.
          2. Check the configuration of the HU connection cable – without power.
          3. Connect the cable to the HU according to the aftermarket device manual.
          4. Connect the remaining wires according to the device manual.
          5. Connect the complete installation to the vehicle – connect the main power supply last.
          6. Perform the software configuration of the interface according to the product description or manual.
          7. Configure the aftermarket HU (steering wheel control, camera, handsfree, antenna power etc.).
          8. Perform a functional test of steering wheel control and vehicle communication.

          Configuration Changes:

          • All changes must be carried out without power.
          • After changes repeat steps 5 to 8 above.

          In Case of Failure:

          • Reinstall the original OEM HU.
          • Start the original unit.
          • Initiate CAN Bus shutdown.
          • Check the HW configuration of the interface.
          • After CAN Bus shutdown repeat steps 5 and 8.

          When Modifying Wiring:

          • Installation and modifications may only be carried out by professionally trained personnel.
          • All changes must be verified before connection regarding manufacturer approval or impact on vehicle warranty.
          • All modifications must be verified by measurement and comparison with the vehicle wiring diagram.
          • Modifications are carried out at your own responsibility without guarantee of functionality.
          • Modifications are performed at your own risk without guarantee against damage to the vehicle, device or interface.
          • Modifications of pre-installed wiring may result in loss of product warranty.
          Catalog number42XFA004-0
          BrandACV
          LinksOfficial web presentation
