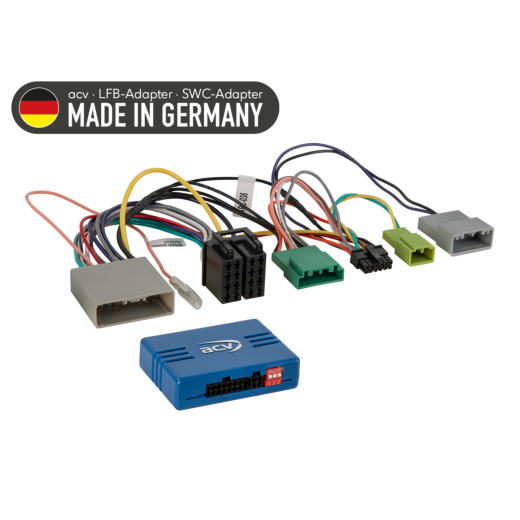

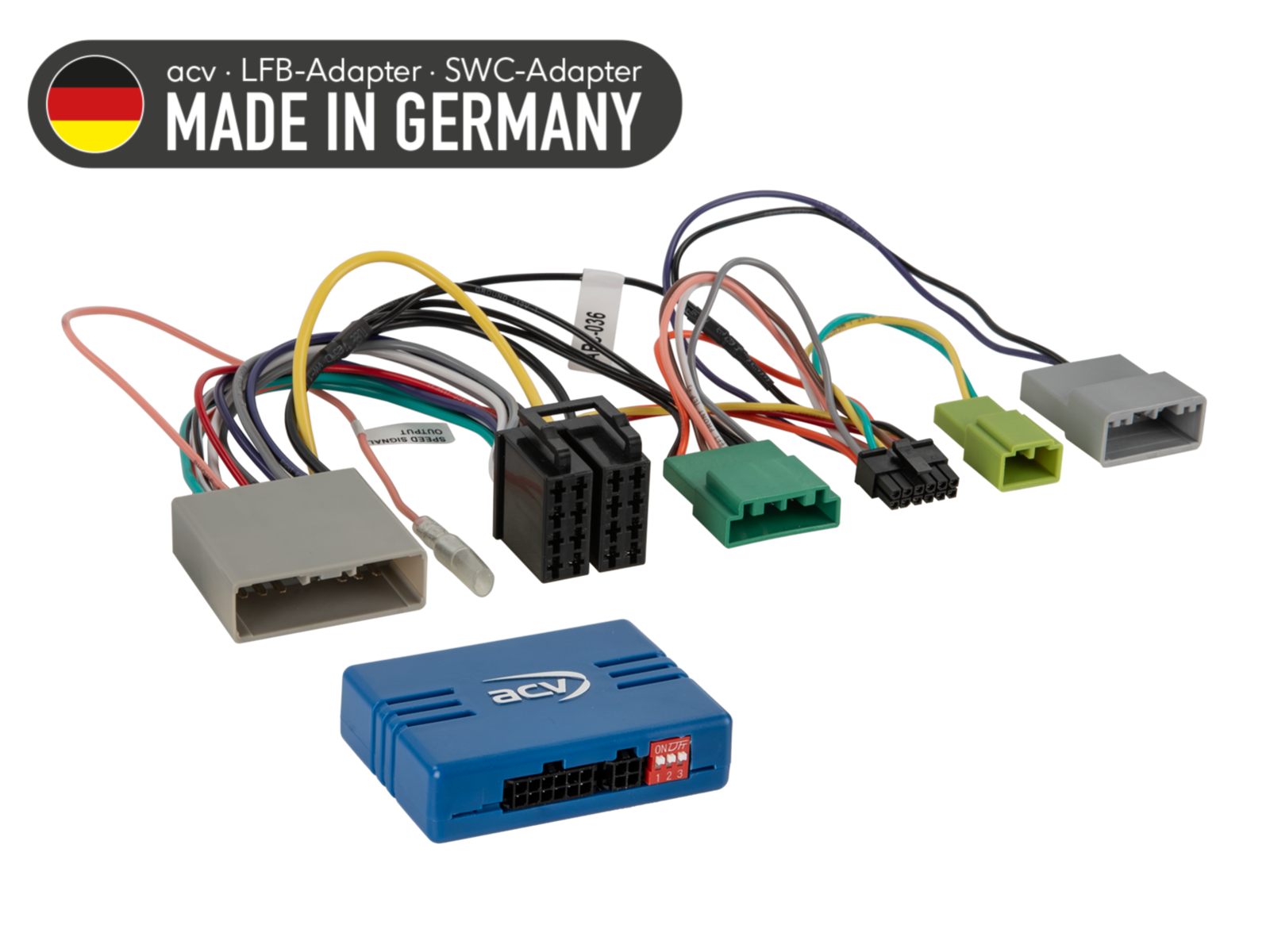

Steering Wheel Control Adapter for Honda ACV SWC 42A-1130-002-0

Maintain the original radio control functions from the steering wheel when replacing the original radio with an aftermarket unit. Depending on the vehicle's equipment, the range of functions, and the software of the newly installed radio, some functions may be limited or replaced by others. Compare the displayed wiring connectors with the connectors in your vehicle to ensure they match both technically and visually. Check if one of the listed OEM radios was originally installed. Verify the functionality of the vehicle, system settings, and proper operation of the steering wheel control (SWC) before final installation.

Designed for Vehicles

Honda Civic (FK1) (09/2005 -> 12/2008) - original OEM radio.
Honda Civic (FK1) (01/2009 -> 12/2010) - original OEM radio.
Honda Civic (FN2) (03/2007 -> 12/2008) - original OEM radio.
Honda Civic (FN2) (01/2009 -> 12/2011) - original OEM radio.

Technical Information

CAN Bus and analog SWC connection.

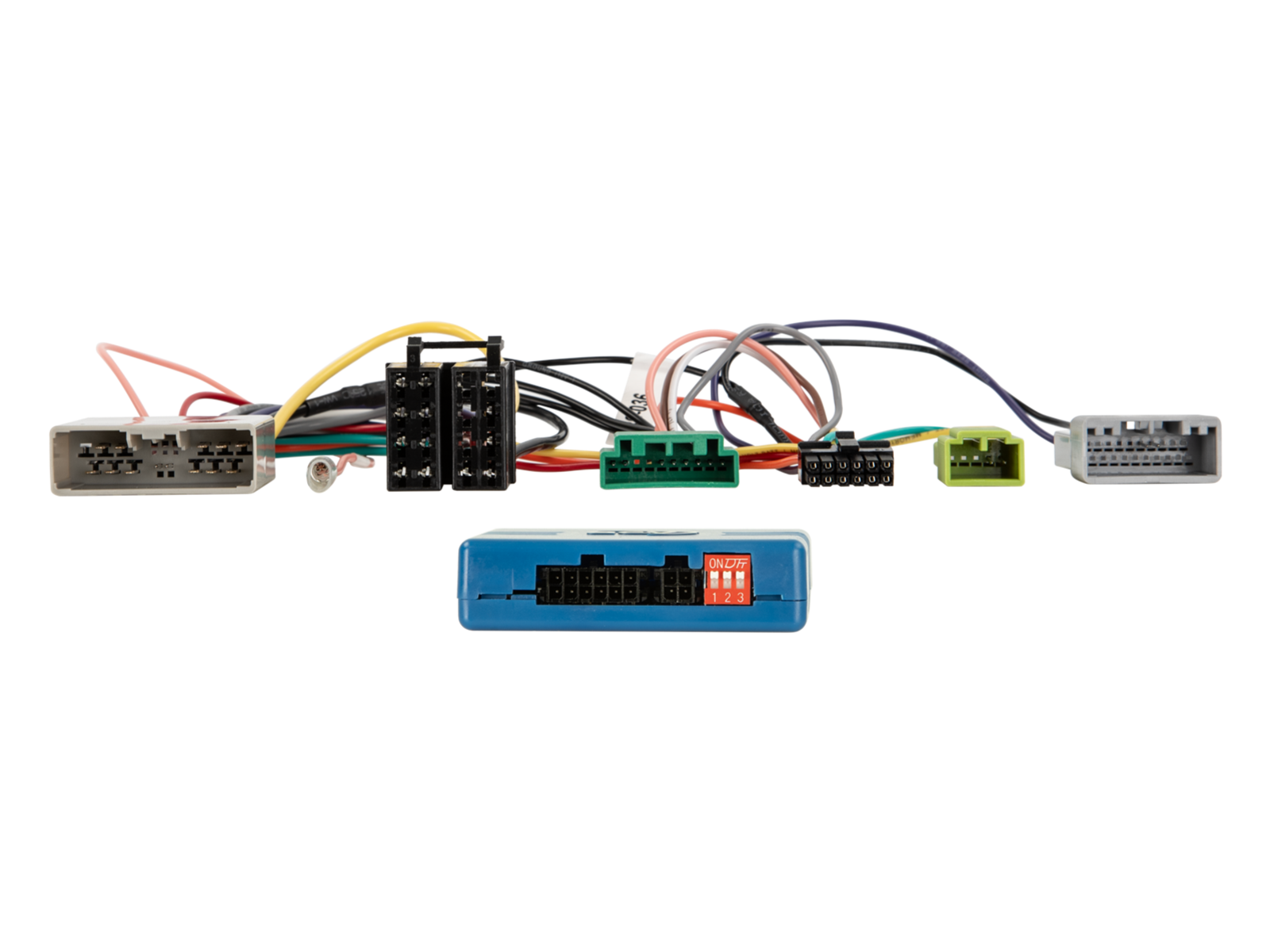

Connector: 17 Pin / 20 Pin Honda.
Connector: 5 Pin / 10 Pin display.
Blue wire: +12V Amp remote.
Support for vehicles with air conditioning on the upper display.
Support for OEM amplifier system.
Time setting supported (see manual).

Signals on Free Wires

Blue: +12V Amp remote.

Diagnostic LED Indication

Blue steady light: interface active, +12V power supply from ignition present.
Red light: steering wheel control button function recognized.

Important Additional Information

Support for OEM amplifier system.
Time setting supported directly from the steering wheel.
Designed for aftermarket radios Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, Becker.
To fully activate the adapter, an interconnecting cable for the specific radio brand must be ordered.

General Installation Guidelines

Verification Before Installation:

Check all control functions and vehicle settings with the original OEM head unit.
Disconnect the original radio (OEM HU) without power.
Check all interface connections to ensure they are correctly connected - without power.

Connection and Installation Order:

Check the interface settings and HW configuration - without power.
Check the connection cable configuration to the HU - without power.
Connect the cable to the HU according to the aftermarket device instructions.
Connect other wires according to the device instructions.
Connect the entire installation to the vehicle - connect the main power connection last.
Perform software configuration of the interface as per product description or manual instructions.
Configure the aftermarket HU (e.g., steering wheel control, camera, hands-free, antenna power).
Perform a functional test of the steering wheel control and vehicle communication.

Changing Interface and HU Cable Configuration:

Make all changes without power.
Repeat steps 5 to 8 listed above.

In Case of Interface or Vehicle System Failure:

Reinstall the original OEM HU.
Start the original unit.
Trigger the CAN Bus system shutdown.
Check the HW configuration of the interface.
After CAN Bus shutdown, repeat steps 5 and 6 listed above.

When Modifying Connections or Wiring:

Connections and modifications should only be performed by professionally trained personnel.
All changes must be verified for approval by the manufacturer or impact on the vehicle warranty before connection.
All modifications must be verified by measurement and comparison with the vehicle's wiring diagram before connection.
Modifications are made at your own risk, with no guarantee of functionality.
Modifications are done at your own risk, with no guarantee against damage to the vehicle, device, or interface.
Modifications to pre-installed wiring may result in the loss of product warranty.
