Steering wheel button control adapter for Alfa Romeo ACV SWC 42XAR006-0

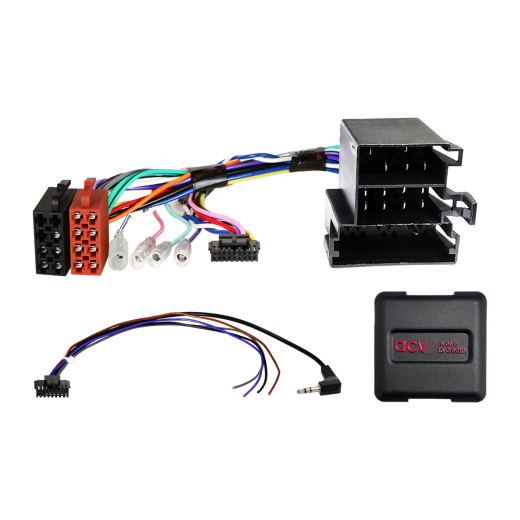

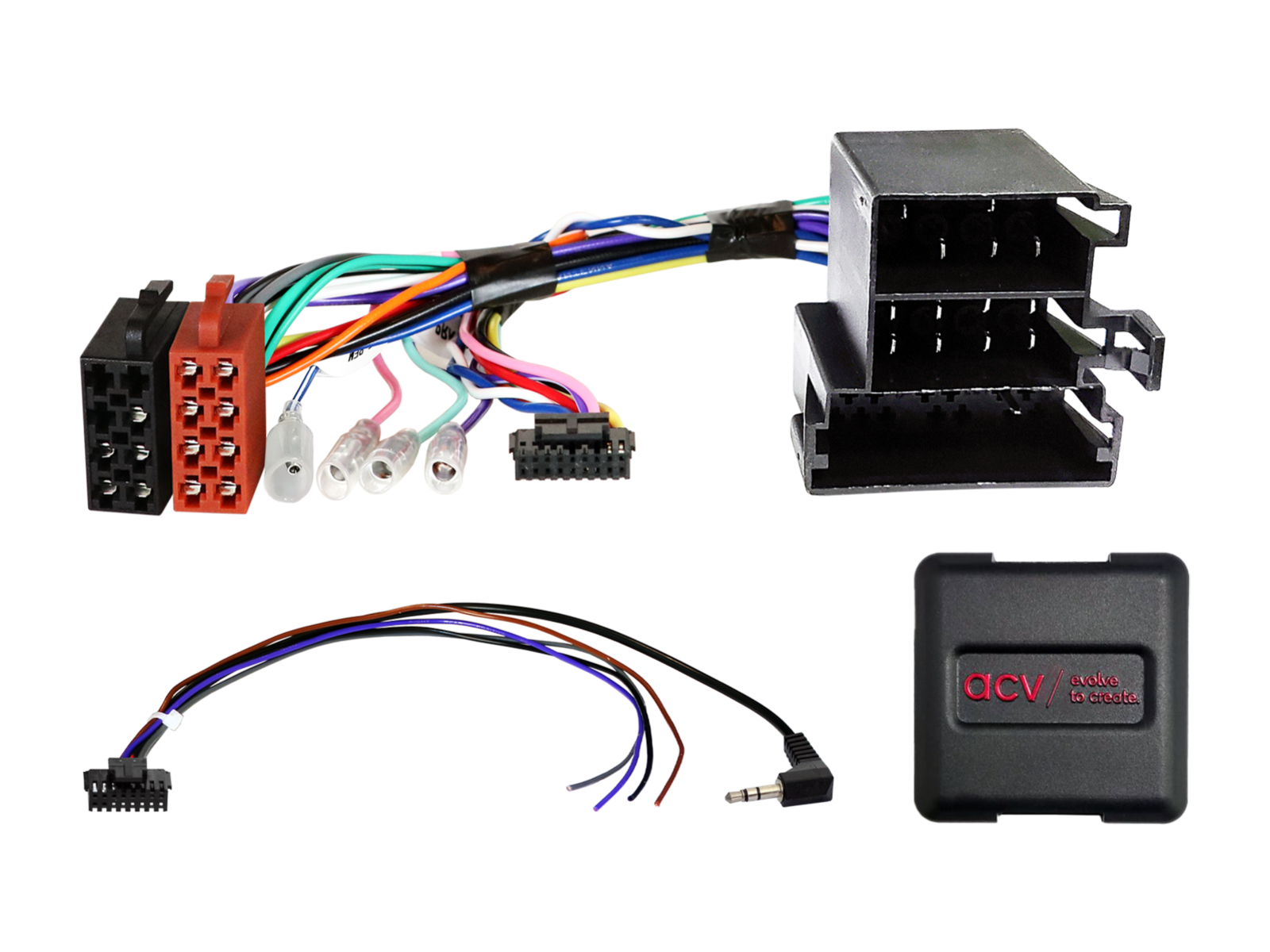

Steering Wheel Control Adapter for Alfa Romeo ACV SWC 42XAR006-0

Maintain the original steering wheel radio control functions when replacing the original radio with a non-original unit. Depending on the vehicle's equipment, the range of functions, and the software of the non-original unit, some functions may be limited or replaced by others. Compare the displayed connectors of the adapter with the connectors in your vehicle and ensure they match visually and technically. Verify if any of the listed original radios have been used in the vehicle. Check the vehicle functions, settings, and steering wheel control before final installation.

Designed for Vehicles

• Alfa Romeo 4C (960) (01/2014->08/2018) with ISO / Mini ISO connection and OEM steering wheel control to 3.5mm jack or free cable.
• Alfa Romeo Giulietta (940) (10/2013->04/2016) with ISO / Mini ISO connection and OEM steering wheel control to 3.5mm jack or free cable.
• Alfa Romeo Giulietta (940) (04/2016->12/2021) with ISO / Mini ISO connection and OEM steering wheel control to 3.5mm jack or free cable.
• Alfa Romeo MiTo (955) (12/2013->08/2016) with ISO / Mini ISO connection and OEM steering wheel control to 3.5mm jack or free cable, with OEM Continental Touchscreen unit.
• Alfa Romeo MiTo (955) (08/2016->08/2018) with ISO / Mini ISO connection and OEM steering wheel control to 3.5mm jack or free cable, with OEM Continental Touchscreen unit.

CAN Bus Information

• Connection: ISO / Mini ISO connector.
• Connection: OEM steering wheel control -> 3.5mm jack or free cable.
• Does not support date and time settings.
• Does not support vehicle setting adjustments.
• DIP switches for setting the aftermarket radio manufacturer.

Important Additional Information

• To fully activate the adapter, an interconnecting cable for the specific radio brand must be ordered.

General Installation Instructions

Verification Before Installation

1. Check all control functions and vehicle settings with the original OEM radio.
2. Remove the OEM unit without power.
3. Check all interface connections without power.

Connection and Setup Sequence

1. Perform all settings and configurations without power.
2. Check the radio connection cable configuration.
3. Connect the cable according to the aftermarket radio instructions.
4. Connect other wires according to the device instructions.
5. Connect the main power supply last.
6. Perform software configuration of the interface according to the description and instructions.
7. Configure the aftermarket radio for SWC functions, camera, hands-free, antenna power, etc.
8. Test the steering wheel control function and vehicle communication.

Interface and HU Cable Configuration Changes

• Make changes without power.
• After changes, follow steps 5–8 above.

In Case of Interface or Vehicle System Failure

• Return the original OEM unit to the vehicle.
• Turn on the OEM unit.
• Wait for the CAN Bus to sleep.
• Check the hardware configuration of the interface.
• After the CAN Bus sleeps, follow steps 5–8 above.

When Modifying Connections or Cable Routing

• Modifications may only be made by professionally trained personnel.
• Before connecting, verify compliance with the manufacturer's requirements and impact on the warranty.
• Before connecting, verify function by measurement and according to the vehicle's diagram.
• Modifications are made at your own risk without functionality warranty.
• Modifications are made without warranty for potential damage to the vehicle, device, or interface.
• Modifications to pre-installed wiring may void the product warranty.
