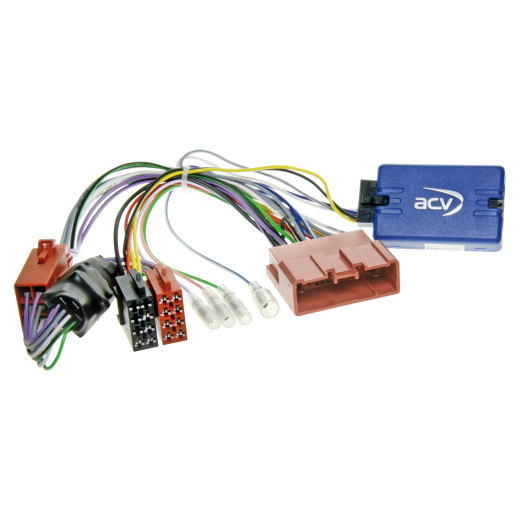

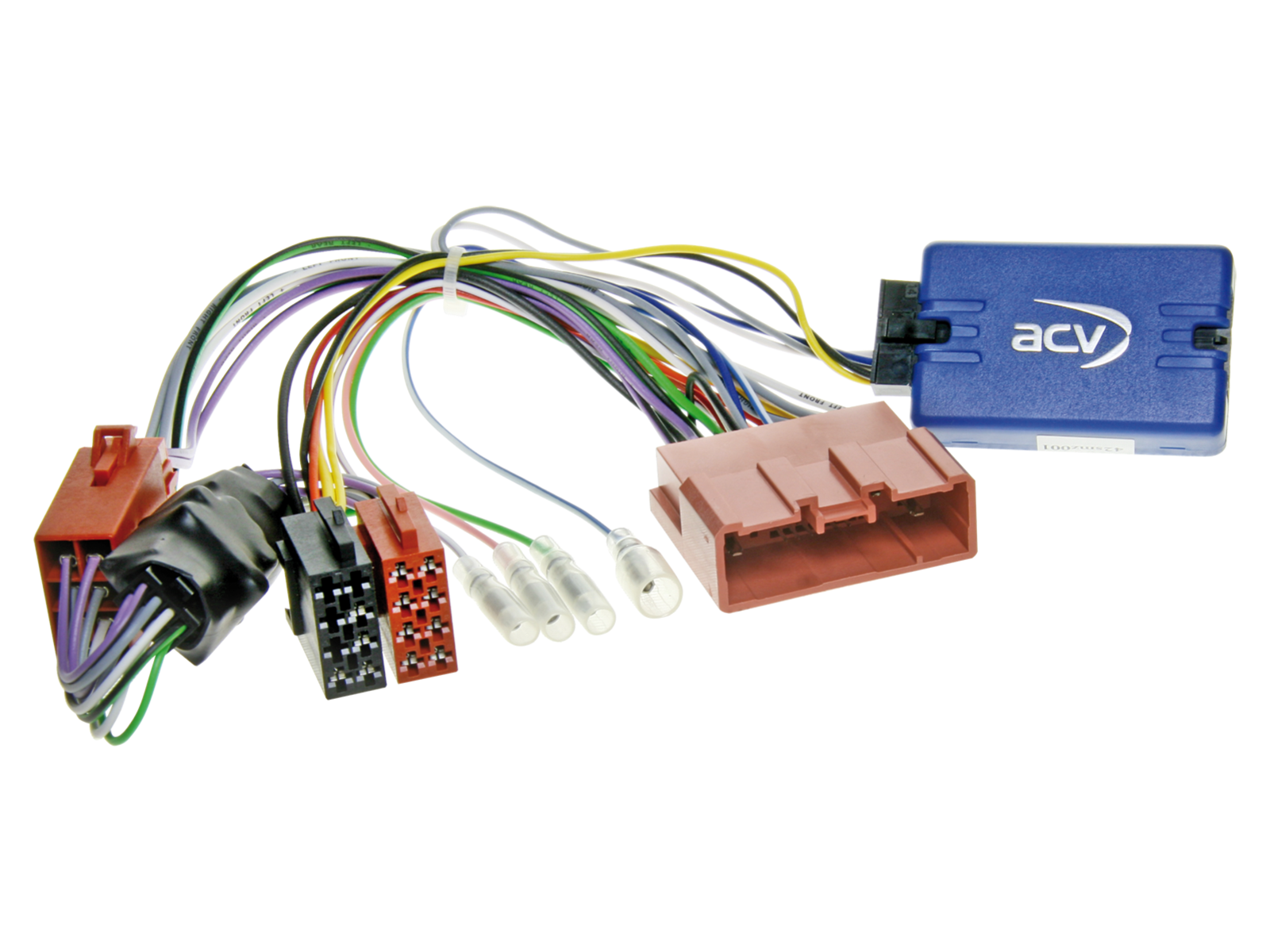

Steering wheel button control adapter for Mazda ACV SWC 42SMZ001-0

steering wheel adapter for Mazda 6 (GH) (02/08->04/10), 6 Stufenheck (GH) (02/08->04/10) and 6 Kombi (GH) (04/08->04/10)
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

Steering wheel button control adapter for Mazda ACV SWC 42SMZ001-0

Description and parameters
Comments0
Evaluation0
Category

Steering Wheel Control Adapter for Mazda ACV SWC 42SMZ001-0

Maintain the original radio control functions from the steering wheel when replacing the original radio with a non-original unit. Compare the displayed adapter connectors with the connectors in your vehicle to ensure they match both visually and technically. Verify if any of the listed original radios were used in the vehicle.

Designed for Vehicles

Mazda 6 (GH) (02/2008->04/2010) with OEM radio Panasonic / Matsuchita CQ-EM4771AT, BOSE OEM audio system, 24 Pin Mazda connector and ISO(m) -> ISO(f), blue-white wire +12V Amp Remote, support for setting date/time and mileage.
Mazda 6 Sedan (GH) (02/2008->04/2010) with OEM radio Panasonic / Matsuchita CQ-EM4771AT, BOSE OEM audio system, 24 Pin Mazda connector and ISO(m) -> ISO(f), blue-white wire +12V Amp Remote, support for setting date/time and mileage.
Mazda 6 Wagon (GH) (04/2008->04/2010) with OEM radio Panasonic / Matsuchita CQ-EM4771AT, BOSE OEM audio system, 24 Pin Mazda connector and ISO(m) -> ISO(f), blue-white wire +12V Amp Remote, support for setting date/time and mileage.

CAN Bus Information

Connection: 24 Pin Mazda connector.
Connection: OEM Sound System ISO(m) -> ISO(f).
Vehicles with OEM radio Panasonic / Matsuchita CQ-EM4771AT.
Vehicles with BOSE OEM audio system.
Support for setting date/time and mileage.
For vehicles without OEM audio system, use adapter 42smz003.

Important Additional Information

To fully activate the adapter, it is necessary to order a connecting cable for the specific brand of radio.

General Installation Guidelines

Pre-Installation Verification

Check all control functions and vehicle settings with the original OEM radio.
Remove the OEM unit without power.
Check all interface connections without power.

Connection and Wiring Order

Perform all settings and configurations without power.
Check the configuration of the radio connection cable.
Connect the cable according to the instructions for the aftermarket radio.
Connect other wires according to the device instructions.
Connect the main power supply last.
Perform software configuration of the interface according to the description and BDA.
Configure the aftermarket radio for SWC functions, camera, handsfree, antenna power, etc.
Perform a test of the steering wheel control function and vehicle communication.

Changing Interface and HU Cable Configuration

Make changes without power.
After changes, follow steps 5–8 above.

In Case of Interface or Vehicle System Malfunction

Return the original OEM unit to the vehicle.
Turn on the OEM unit.
Wait for the CAN Bus to sleep.
Check the hardware configuration of the interface.
After the CAN Bus sleeps, follow steps 5–8 above.

When Modifying Connections or Cable Routing

Modifications should only be performed by professionally trained personnel.
Before connecting, verify compliance with manufacturer's requirements and impact on warranty.
Before connecting, verify function by measurement and according to the vehicle diagram.
Modifications are performed at your own risk without functionality guarantee.
Modifications are performed without warranty for potential damage to vehicle, device, or interface.
Modifications to pre-installed cabling may void the product warranty.
