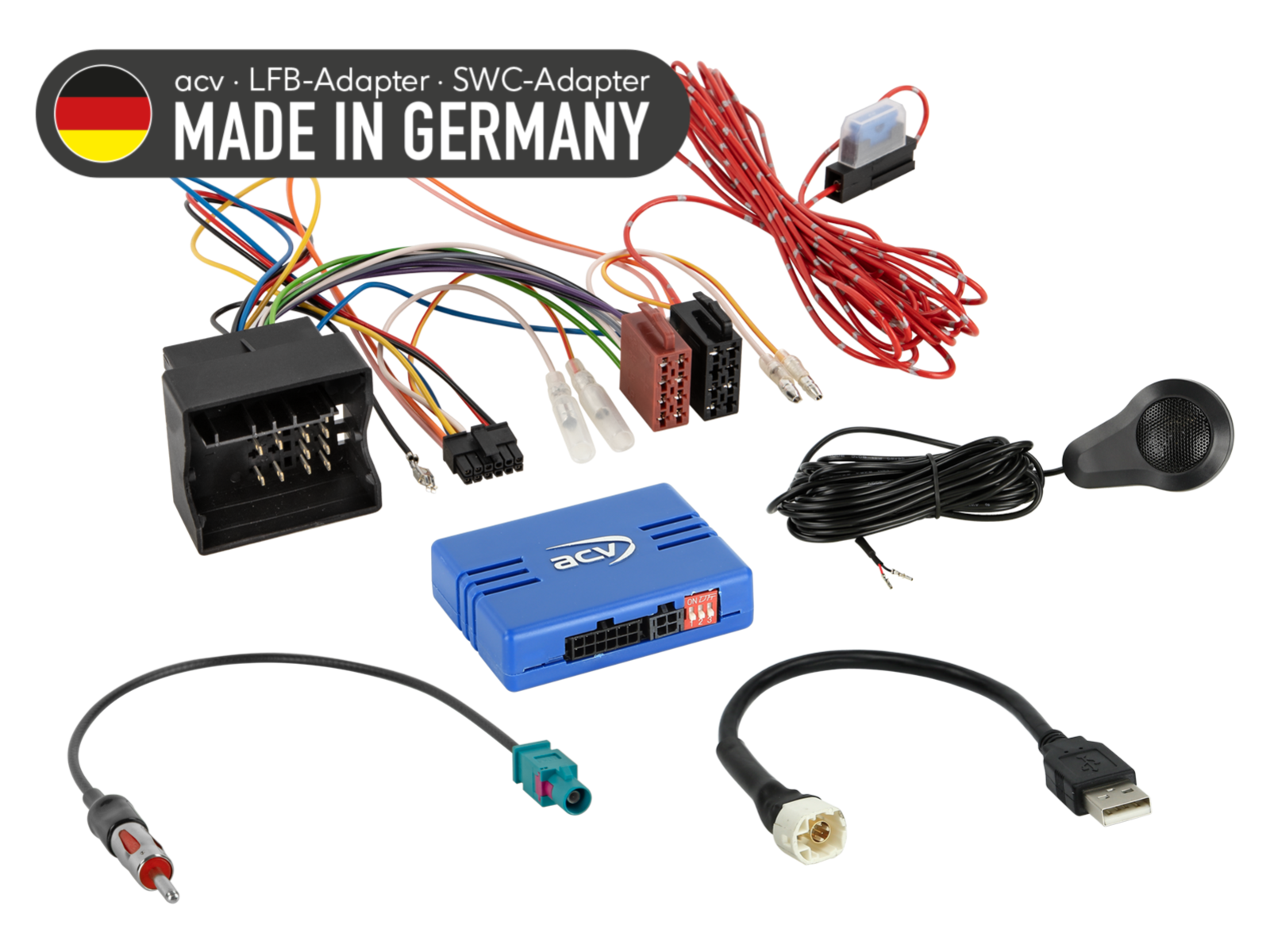

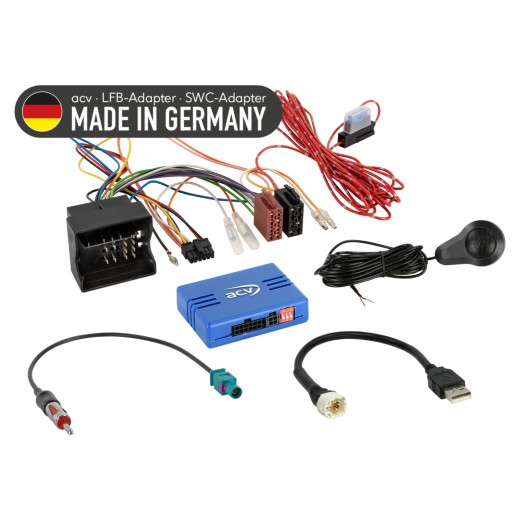

Steering Wheel Control Adapter for BMW / Mini ACV SWC 42A-1024-013-0

Maintain the original radio control functions from the steering wheel when replacing the original radio with an aftermarket unit. Depending on the vehicle's equipment, function range, and the software of the newly installed radio, some functions may be limited or replaced by others. Compare the displayed cable connectors with the connectors in your vehicle and ensure they match both technically and visually. Check if one of the listed OEM radios was originally installed. Verify the functionality of the vehicle, system settings, and correct operation of the steering wheel control (SWC) before final installation.

Designed for Cars

BMW 1 Series [E81, E82, E87, E88] (2004 -> 2013) - original BMW Business, Professional radio. Active system adapter required: BMW MOST to RCA (item: 13-1024-51).
BMW 3 Series [E90, E91, E92, E93] (2005 -> 2013) - original BMW Business, Professional radio. Active system adapter required: BMW MOST to RCA (item: 13-1024-51).
BMW 5 Series [E60, E61] (2003 -> 2010) - original BMW Business, Professional radio. Active system adapter required: BMW MOST to RCA (item: 13-1024-51).
BMW 6 Series [E63, E64] (2004 -> 2010) - original BMW Business, Professional radio.
BMW 7 Series [E65, E66] (2001 -> 2008) - original BMW Business, Professional radio.
BMW Z4 [E89] (2009 -> 2016) - original BMW Business, Professional radio.
BMW X1 [E84] (2009 -> 2015) - original BMW Business, Professional radio.
BMW X5 [E70] (2007 -> 2013) - original BMW Business, Professional radio.
BMW X6 [E71, E72] (2008 -> 2014) - original BMW Business, Professional radio. Active system adapter required: BMW MOST to RCA (item: 13-1024-51).

Mini [R55, R56, R57, R58, R59] (2006 -> 2015) - original BMW Business, Professional radio.

CAN Bus Information

Connectors and Power:

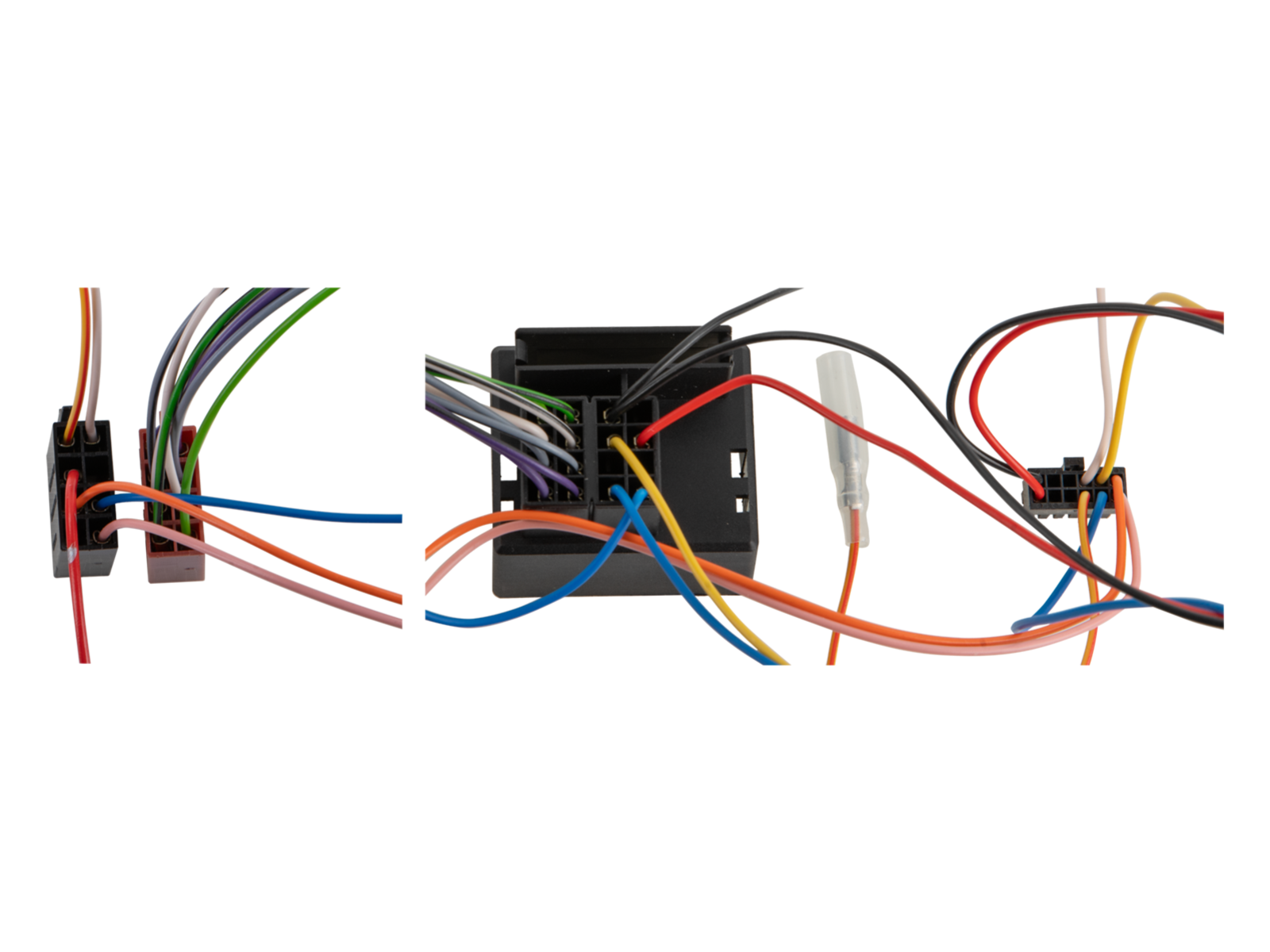

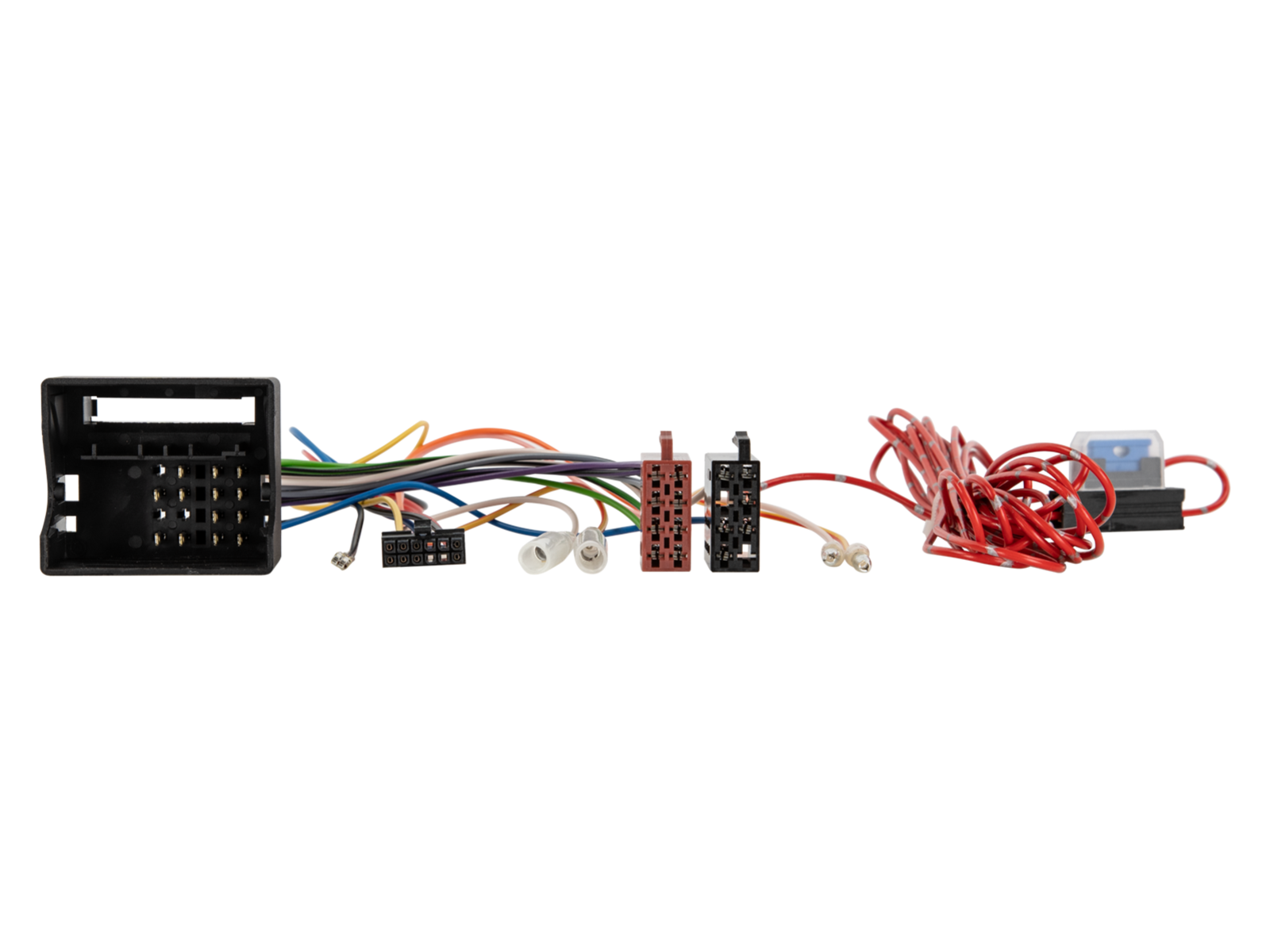

Connector: 40-pin Quadlock BMW (item: 42cx12).
Power: +12 V constant power (terminal 30, fuse) - free red wire.
Connector: OEM antenna Fakra(m) → DIN(m).
Connector: OEM USB HSD LVDS B(m) → USB-A.

Settings:

Check DIP switches on the aftermarket radio (HU).

Vehicle Compatibility:

Vehicles with original Business/Professional radio.
Vehicles without iDrive.
Vehicles without OEM MOST amplifier.

Vehicles with OEM MOST Amplifier:

Active system adapter required: BMW MOST to RCA (item: 13-1024-51).

Vehicles with Parking Sensors (PDC):

SWC CAN Bus adapter with parking sensors (PDC) (item: 42cxpdc).
SWC PDC speaker connection (item 42cxpdc, diagram 2):
- Pin 5: red wire.
- Pin 11: black wire.

Warning:

Warning chimes are currently not supported.
Additional chimes support: Chimes Interface BMW/Citroen/Peugeot/Fiat/Ford/Volvo (item: can-pdc).

Diagnostic LED Indication:

Blue flashing: CAN Bus signal search in progress.
Blue light: CAN Bus active.
Red light: active +12 V ignition power.

Important Additional Information

Designed for aftermarket radios Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, Becker.
To fully activate the adapter, an interconnecting cable for the specific radio brand must be ordered.

General Installation Guidelines

Pre-Installation Verification:

Check all control functions and vehicle settings with the original OEM head unit.
Disconnect the original radio (OEM HU) without power.
Check all interface connections to ensure they are correctly connected - without power.

Connection and Wiring Order:

Check the interface settings and hardware configuration - without power.
Check the HU connection cable configuration - without power.
Connect the cable to the HU as per the aftermarket device instructions.
Connect other wires as per the device instructions.
Connect the entire installation to the vehicle - connect the main power connection last.
Perform software configuration of the interface according to the product description or manual instructions.
Configure aftermarket HU (e.g., steering control, camera, handsfree, antenna power).
Perform a functional test of the steering control and vehicle communication.

Changing Interface and HU Cable Configuration:

Make all changes without power.
Repeat steps 5 to 8 outlined above.

In Case of Interface or Vehicle System Malfunction:

Reinstall the original OEM HU.
Start the original unit.
Trigger the CAN Bus system shutdown.
Check the interface hardware configuration.
After CAN Bus shutdown, repeat steps 5 and 6 outlined above.

When Modifying Wiring or Cable Routing:

Wiring and modifications should only be performed by professionally trained personnel.
All changes must be verified for manufacturer approval or impact on vehicle warranty before connection.
All modifications must be verified by measurement and comparison with the vehicle wiring diagram before connection.
Modifications are performed at your own risk, without a guarantee of functionality.
Modifications are made at your own risk, without guaranteeing the exclusion of damage to the vehicle, device, or interface.
Modifications of pre-installed wiring may lead to the loss of product warranty.

Catalog number	42A-1024-013-0
Brand	ACV
Links	Official web presentation
