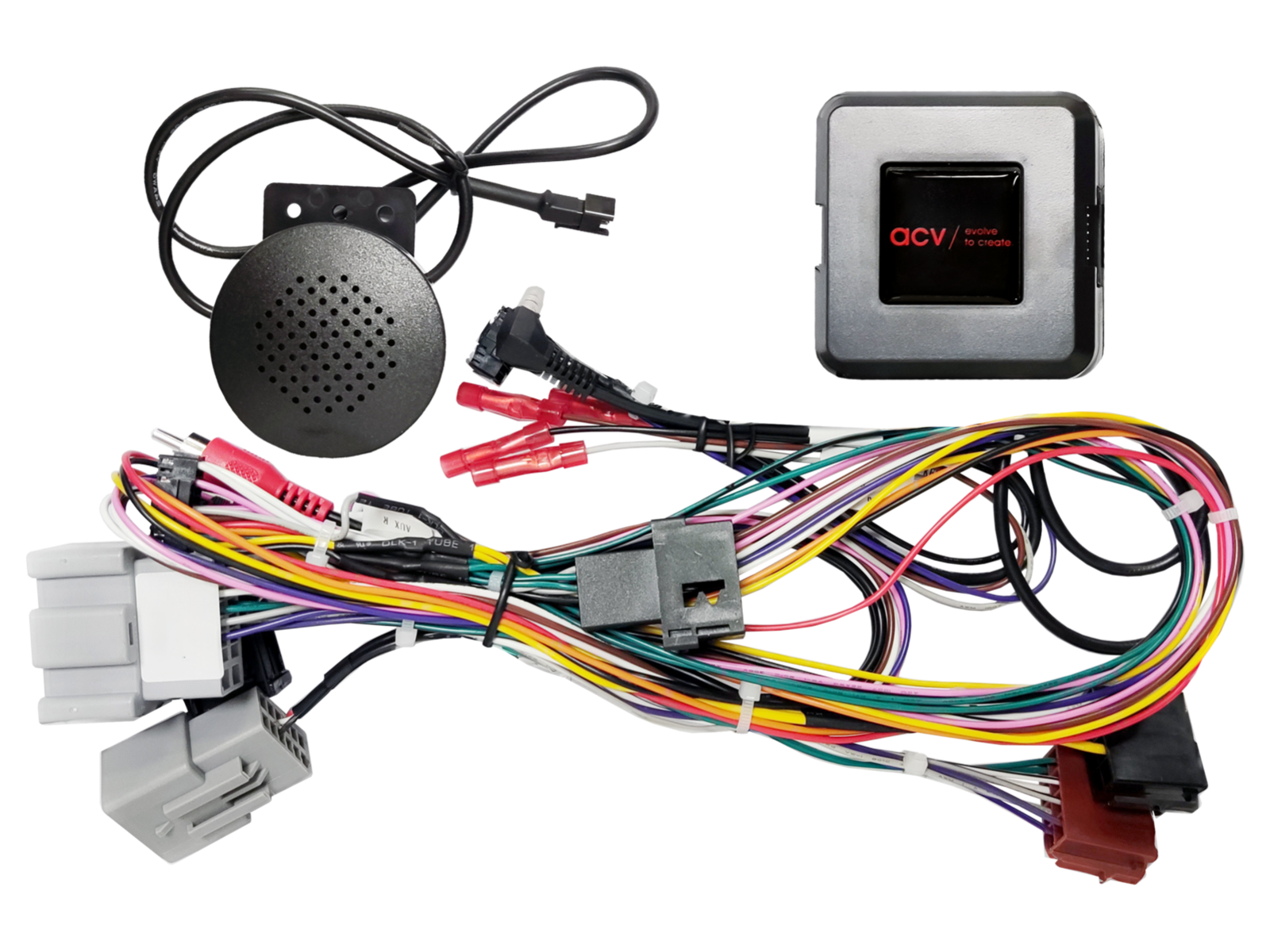

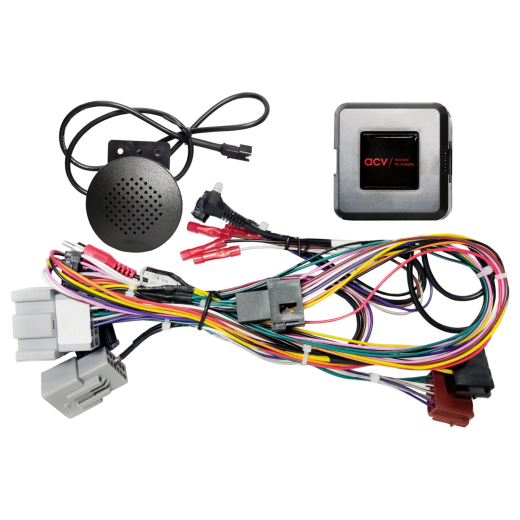

Steering Wheel Button Control Adapter for Ford ACV SWC 42XFO004-0

Retain the original steering wheel radio control functions when replacing the factory radio with an aftermarket unit. Depending on the vehicle equipment, range of functions and the software of the newly installed radio, some functions may be limited or replaced by others. Compare the displayed wiring harness connectors with the connectors in your vehicle and make sure they match both technically and visually. Check whether one of the listed OEM head units was originally installed. Verify vehicle functionality, system settings and correct steering wheel control operation before final installation.

Intended for vehicles

• Ford Fiesta [JA8] (10/2008 -> 06/2010) - vehicles with an OK button on the steering wheel and a red OEM display. Vehicles with only the M button and no OK button are not compatible. Vehicles with a small display and two adjustment buttons on the right do not support date setting.

CAN Bus information

• Connector: 14-pin Ford.
• Output for OEM steering wheel controls: 3.5 mm jack or loose wire.
• AMP monitor connector > connection to OEM monitor.
• OEM monitor connector > connection to the interface.
• Vehicle settings supported.

Important additional information

• Intended for vehicles with the Visteon OEM head unit, with an OK button on the steering wheel and a red OEM display.
• Vehicles with only the M button and no OK button are not compatible.
• A brand-specific radio connection cable must be ordered to fully activate the adapter.

Provided signals

• Red: +12 V ignition, terminal 15.
• Orange: +12 V illumination, terminal 58.
• Purple/white: +12 V reverse signal.
• Pink: speed pulse.
• Green: GND signal for the parking brake.
• Maximum output load: 250 mA. For currents greater than 250 mA use a relay with a coil resistance of at least 75 Ohm (1 relay) or 150 Ohm (2 relays).

General installation instructions

Verification before installation:

1. Check all steering wheel control functions and vehicle settings with the original OEM head unit.
2. Remove the original radio with the power off.
3. Check all interface connections to ensure they are correctly connected – with the power off.

Connection and wiring sequence:

1. Perform interface settings and hardware configuration with the power off.
2. Check the configuration of the connection cable to the HU (head unit).
3. Connect the cable to the HU according to the aftermarket device instructions.
4. Connect the other wires according to the device instructions.
5. Connect the entire installation to the vehicle – connect the main power connection last.
6. Perform the software configuration of the interface according to the instructions in the product description or manual.
7. Configure the aftermarket HU (steering wheel control, camera, handsfree, antenna power, etc.).
8. Perform a functional test of the steering wheel controls and communication with the vehicle.

Changing interface configuration and HU cable:

• Make all changes with the power off.
• After any change, repeat steps 5 to 8 listed above.

In case of interface or vehicle system failure:

• Reinstall the original OEM head unit.
• Start the original unit.
• Wait for the CAN Bus system to go to sleep.
• Check the hardware configuration of the interface.
• After the CAN Bus has gone to sleep, repeat steps 5 to 8 listed above.

When modifying wiring or cable routing:

• Wiring and modifications may only be performed by properly trained personnel.
• All changes must be verified for manufacturer approval or for impact on the vehicle warranty before connection.
• All modifications must be verified by measurement and comparison with the vehicle wiring diagram before connection.
• Modifications are made at your own risk, without guarantee of functionality.
• Modifications are performed at your own risk, without guarantee against damage to the vehicle, device or interface.
• Changes to pre-fitted wiring may result in loss of product warranty.
