Steering wheel button control adapter for Mazda ACV SWC 42XMZ002-0

Be the first to rate the product
steering wheel adapter for Mazda 2 (DY) (04/03->10/07), 2 (DE) (10/07->05/15), 3 (BK) (01/04->03/09), 3 (BL) (05/09->09/13), 5 (CR) (06/05->10/10), 5 (CW) (10/10->08/15), 6 (GG/GY) (06/02->02/08), 6 (GJ) (02/13->02/15), 626 (GF/GW) (06/97->07/02), B-Serie II Pickup (07/99->11/06), BT-50 (01/07->07/12), CX-5 (GH) (04/12->02/15), CX7 (ER) (10/07->09/09, 10/09->09/13), Demio (DW) (08/98->08/03), MPV (LW) (12/00->11/05), MX-5 (NB) (04/98->08/05), MX-5 (NC) (10/05->02/09, 02/09->07/15), Premacy (CP) (06/99->05/05), RX-8 (SE) (04/03->10/10) and Tribute (EP) (09/00->11/05)
More about the product
51,74 EUR
Catalog number: 42XMZ002-0
1 to 4 weeksWatchdog
We will help you with your purchase
  • You can return the goods to us within 14 days

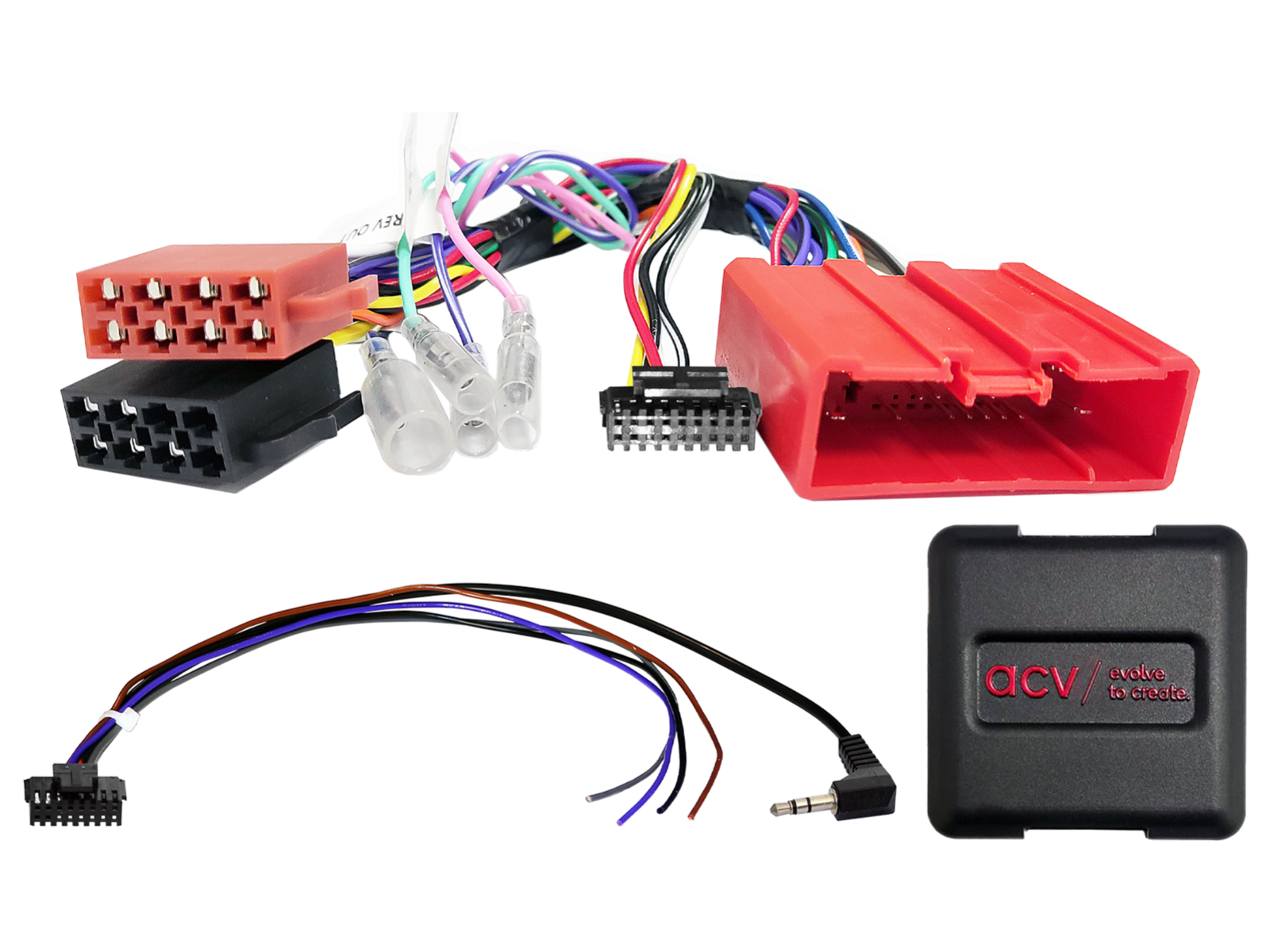

Steering wheel button control adapter for Mazda ACV SWC 42XMZ002-0
New

Steering wheel button control adapter for Mazda ACV SWC 42XMZ002-0

Preserve the original steering wheel radio control functions when replacing the factory radio with an aftermarket unit. Depending on the vehicle equipment, the range of functions and the software of the newly installed radio, some functions may be limited or replaced by others. Compare the displayed wiring connectors with the connectors in your vehicle and make sure they match both technically and visually. Check whether one of the listed OEM head units was originally installed. Before final installation, verify vehicle functionality, system settings and correct operation of the steering wheel control (SWC).

Intended for vehicles

  • Mazda 2 (DY) (04/2003 -> 10/2007)
  • Mazda 2 (DE) (10/2007 -> 05/2015) vehicles with Panasonic OEM HU
  • Mazda 3 (BK) (01/2004 -> 03/2009)
  • Mazda 3 (BL) (05/2009 -> 09/2013)
  • Mazda 5 (CR) (06/2005 -> 10/2010) vehicles with Panasonic OEM HU
  • Mazda 5 (CW) (10/2010 -> 08/2015) vehicles with Panasonic OEM HU
  • Mazda 6 (GG/GY) (06/2002 -> 02/2008)
  • Mazda 6 (GJ) (02/2013 -> 02/2015)
  • Mazda 626 (GF/GW) (06/1997 -> 07/2002)
  • Mazda B-Serie II Pickup (07/1999 -> 11/2006)
  • Mazda BT-50 (01/2007 -> 07/2012)
  • Mazda CX-5 (GH) (04/2012 -> 02/2015)
  • Mazda CX-7 (ER) (10/2007 -> 09/2009)
  • Mazda CX-7 (ER) (10/2009 -> 09/2013)
  • Mazda Demio (DW) (08/1998 -> 08/2003)
  • Mazda MPV (LW) (12/2000 -> 11/2005)
  • Mazda MX-5 (NB) (04/1998 -> 08/2005) vehicles with Panasonic OEM HU
  • Mazda MX-5 (NC) (10/2005 -> 02/2009) vehicles with Panasonic OEM HU
  • Mazda MX-5 (NC) (02/2009 -> 07/2015) vehicles with Panasonic OEM HU
  • Mazda Premacy (CP) (06/1999 -> 05/2005)
  • Mazda RX-8 (SE) (04/2003 -> 10/2010)
  • Mazda Tribute (EP) (09/2000 -> 11/2005)

CAN Bus information

Connectors and power:

  • Connector: 24-pin Mazda
  • Connector: OEM SWC > 3.5 mm jack / loose wire
  • Blue/white wire: +12V amplifier remote (amp remote)

Compatibility:

  • Vehicles with/without BOSE OEM amplifier system – for vehicles with BOSE OEM amplifier use adapter item: 13-1190-50
  • Fader adjustment is not supported on vehicles with CAN Bus
  • Temperature display is not supported
  • Date/time setting is not supported

Important additional information

  • To fully activate the adapter, it is necessary to order a connection cable for the specific brand of head unit.

General installation guidelines

Pre-installation checks:

  1. Check all control functions and vehicle settings with the original OEM head unit installed.
  2. Disconnect the original radio (OEM HU) with power off.
  3. Check all interface connections to ensure they are correctly connected – with power off.

Connections and wiring order:

  1. Check the interface settings and hardware configuration – with power off.
  2. Check the configuration of the radio connection cable – with power off.
  3. Connect the cable to the radio according to the aftermarket device manual.
  4. Connect the remaining wires according to the device manual.
  5. Connect the entire installation to the vehicle – connect the main power last.
  6. Perform the software configuration of the interface according to the product description or manual.
  7. Configure the aftermarket HU (steering wheel control, camera, handsfree, antenna power and others).
  8. Perform a functional test of the steering wheel control and communication with the vehicle.

Changing the interface configuration and HU cable:

  • Make all changes with power off.
  • After changes, repeat steps 5 to 8 listed above.

If the interface or vehicle system malfunctions:

  • Reinstall the original OEM head unit.
  • Start the original unit.
  • Initiate CAN Bus system shutdown.
  • Check the hardware configuration of the interface.
  • After CAN Bus shutdown, repeat steps 5 and 6 listed above.

When modifying wiring or cable runs:

  • Wiring and modifications may only be performed by professionally trained personnel.
  • All changes must be verified regarding manufacturer approval or the vehicle warranty impact before connection.
  • All modifications must be verified by measurement and comparison with the vehicle wiring diagram before connection.
  • Modifications are carried out at your own risk, without guarantee of functionality.
  • Modifications are at your own risk, with no guarantee against damage to the vehicle, device, or interface.
  • Pre-modified harnesses may result in loss of product warranty.
Catalog number42XMZ002-0
BrandACV
LinksOfficial web presentation
