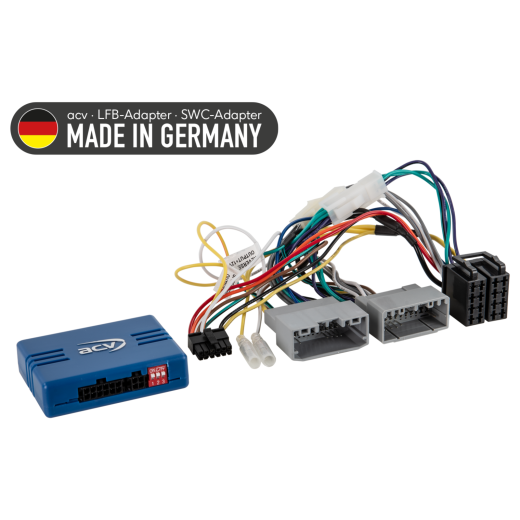

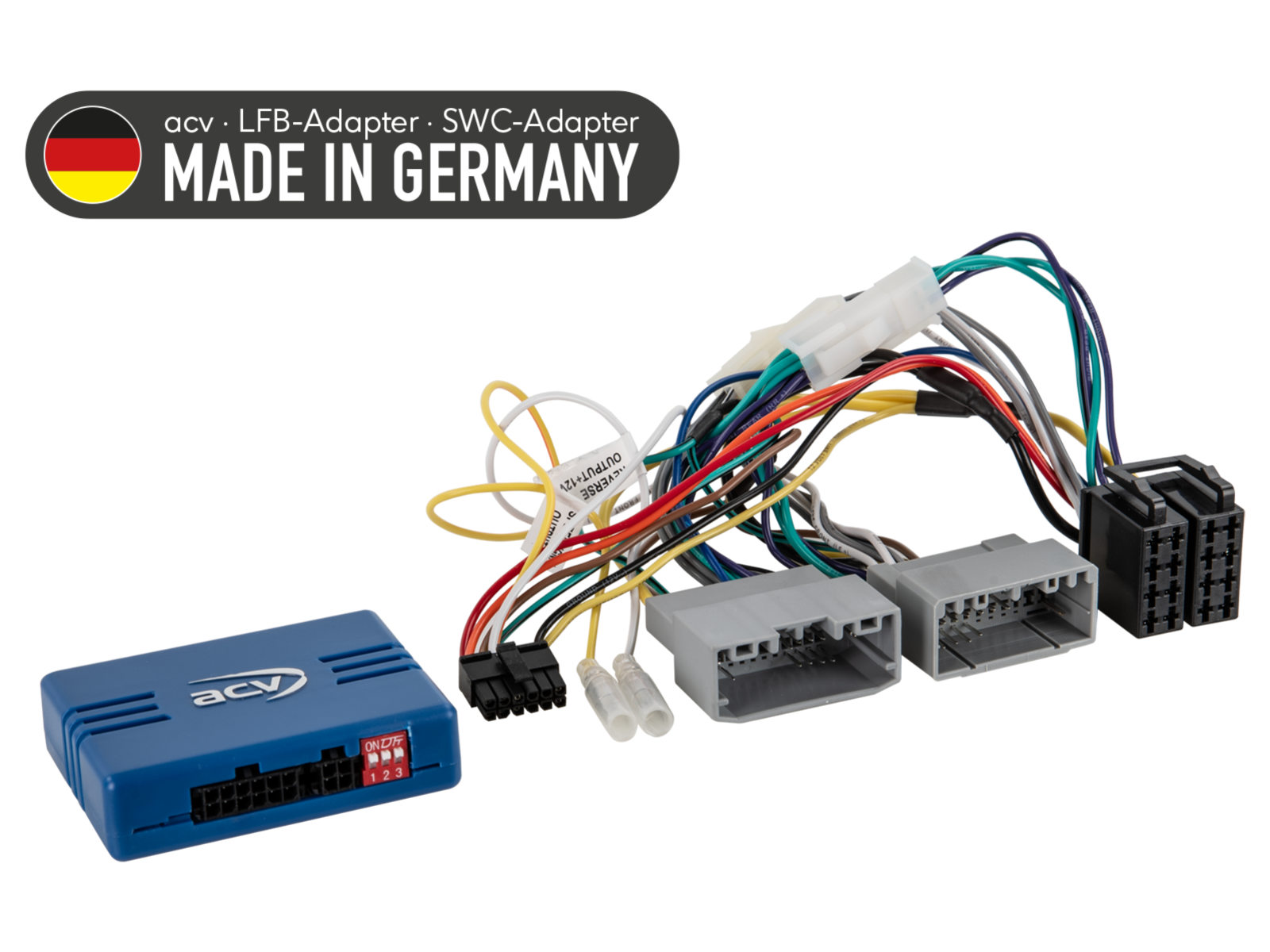

Steering Wheel Control Adapter for Chrysler / Dodge / Jeep / Lancia / Mitsubishi / VW ACV SWC 42A-1032-00C-0

Maintain the original radio control functions from the steering wheel when replacing the original radio with an aftermarket unit. Depending on the vehicle's features, functionality, and the software of the newly installed radio, some functions may be limited or replaced with others. Compare the displayed wiring connectors with those in your vehicle to ensure they match both technically and visually. Check if any of the listed OEM radios were originally installed. Verify the vehicle's functionality, system settings, and proper steering wheel control (SWC) operation before final installation.

Intended for vehicles

Chrysler 200 (2011 -> 2014) - original OEM radio.
Chrysler 300 (06/2004 -> 12/2010) - original OEM radio.
Chrysler 300C [LX] (06/2004 -> 11/2007) - original OEM radio.
Chrysler 300C [LX] (11/2007 -> 12/2010) - original OEM radio.
Chrysler 300M (2002 -> 06/2004) - original OEM radio. Vehicles 2002–2009 analog with Infinity OEM amplifier system not supported. Infinity OEM amplifier bypass > direct speaker connection.
Chrysler Aspen (2007 -> 2009) - original OEM radio. Vehicles 2002–2009 analog with Infinity OEM amplifier system not supported. Infinity OEM amplifier bypass > direct speaker connection.
Chrysler Concorde (2002 -> 2004) - original OEM radio. Vehicles 2002–2009 analog with Infinity OEM amplifier system not supported. Infinity OEM amplifier bypass > direct speaker connection.
Chrysler Pacifica (2004 -> 2008) - original OEM radio. Vehicles 2002–2009 analog with Infinity OEM amplifier system not supported. Infinity OEM amplifier bypass > direct speaker connection.
Chrysler PT Cruiser [PT] (10/2001 -> 04/2006) - original OEM radio. Vehicles 2002–2009 analog with Infinity OEM amplifier system not supported. Infinity OEM amplifier bypass > direct speaker connection.
Chrysler PT Cruiser [PT] (01/2006 -> 06/2009) - original OEM radio. Vehicles 2002–2009 analog with Infinity OEM amplifier system not supported. Infinity OEM amplifier bypass > direct speaker connection.
Chrysler Sebring [RJ] (03/2001 -> 04/2003) - original OEM radio. Vehicles up to 2009 analog with Infinity OEM amplifier system not supported. Infinity OEM amplifier bypass > direct speaker connection.
Chrysler Sebring [RJ] (04/2003 -> 07/2007) - original OEM radio. Vehicles up to 2009 analog with Infinity OEM amplifier system not supported. Infinity OEM amplifier bypass > direct speaker connection.
Chrysler Sebring [RJ] (05/2007 -> 08/2010) - original OEM radio. Vehicles up to 2009 analog with Infinity OEM amplifier system not supported. Infinity OEM amplifier bypass > direct speaker connection.
Chrysler Town&Country (2008 -> 2016) - original OEM radio.
Chrysler Voyager [GK/GY/RG] (03/2001 -> 05/2004) - original OEM radio. Vehicles up to 2009 analog with Infinity OEM amplifier system not supported. SWC different for US vehicles/Opel GT analog/CAN Bus.
Chrysler Voyager [GK/GY/RG] (05/2004 -> 03/2008) - original OEM radio. Vehicles up to 2009 analog with Infinity OEM amplifier system not supported. SWC different for US vehicles/Opel GT analog/CAN Bus.
Chrysler Voyager [RT] (03/2008 -> 12/2010) - original OEM radio.

Dodge Avenger [JS] (06/2007 -> 06/2009) - original OEM radio. Vehicles up to 2009 analog with Infinity OEM amplifier system not supported. Infinity OEM amplifier bypass > direct speaker connection.
Dodge Caliber [PK] (06/2006 -> 12/2010) - original OEM radio. Vehicles up to 2009 analog with Infinity OEM amplifier system not supported. Infinity OEM amplifier bypass > direct speaker connection.
Dodge Caravan (2002 -> 2015) - original OEM radio. Vehicles up to 2009 analog with Infinity OEM amplifier system not supported. SWC different for US vehicles/Opel GT analog/CAN Bus.
Dodge Charger (2009 -> 2012) - original OEM radio.
Dodge Challenger (2008 -> 2014) - original OEM radio.
Dodge Dakota (2002 -> 2011) - original OEM radio. Vehicles up to 2009 analog with Infinity OEM amplifier system not supported. Infinity OEM amplifier bypass > direct speaker connection.
Dodge Durango (2003 -> 2009) - original OEM radio. Vehicles up to 2009 analog with Infinity OEM amplifier system not supported. Infinity OEM amplifier bypass > direct speaker connection.
Dodge Journey [JC] (06/2008 -> 12/2010) - original OEM radio. Vehicles up to 2009 analog with Infinity OEM amplifier system not supported. Infinity OEM amplifier bypass > direct speaker connection.
Dodge Magnum (2008 -> 2009) - original OEM radio.
Dodge Nitro (2007 -> 2011) - original OEM radio.
Dodge RAM (2002 -> 2008) - original OEM radio. Vehicles up to 2009 analog with Infinity OEM amplifier system not supported. Infinity OEM amplifier bypass > direct speaker connection.
Dodge RAM 1500 (2009 -> 2011) - original OEM radio.
Dodge RAM 2500 (2010 -> 2012) - original OEM radio.
Dodge RAM 3500 (2010 -> 2012) - original OEM radio.
Dodge RAM chassis cab (2011) - original OEM radio.
Dodge RAM C/V Tradesman (2012 -> 2015) - original OEM radio.
Dodge Stratus (2002 -> 2006) - original OEM radio.
Dodge Viper [SR] (11/2003 -> 04/2010) - original OEM radio.

Jeep Commander [WH] (05/2008 -> 11/2010) - original OEM radio. Vehicles up to 2009 analog with Infinity OEM amplifier system not supported. Infinity OEM amplifier bypass > direct speaker connection.
Jeep Compass [PK] (11/2006 -> 06/2010) - original OEM radio. Vehicles up to 2009 analog with Infinity OEM amplifier system not supported. Infinity OEM amplifier bypass > direct speaker connection.
Jeep Compass [PK] (05/2011 -> 12/2016) - original OEM radio.
Jeep Grand Cherokee [WJ] (10/2001 -> 06/2005) - original OEM radio. Vehicles up to 2009 analog with Infinity OEM amplifier system not supported. Infinity OEM amplifier bypass > direct speaker connection.
Jeep Grand Cherokee [WH] (06/2005 -> 10/2007) - original OEM radio. Vehicles up to 2009 analog with Infinity OEM amplifier system not supported. Infinity OEM amplifier bypass > direct speaker connection.
Jeep Grand Cherokee [WH] (10/2007 -> 12/2010) - original OEM radio. Vehicles up to 2009 analog with Infinity OEM amplifier system not supported. Infinity OEM amplifier bypass > direct speaker connection.
Jeep Grand Cherokee [WK] (12/2010 -> 06/2013) - original OEM radio.
Jeep Liberty (2002 -> 2012) - original OEM radio. Vehicles up to 2009 analog with Infinity OEM amplifier system not supported. Infinity OEM amplifier bypass > direct speaker connection.
Jeep Patriot [PK] (2007 -> 2017) - original OEM radio. Vehicles up to 2009 analog with Infinity OEM amplifier system not supported. Infinity OEM amplifier bypass > direct speaker connection.
Jeep Wrangler [TJ] (01/2003 -> 03/2007) - original OEM radio. Vehicles up to 2009 analog with Infinity OEM amplifier system not supported. Infinity OEM amplifier bypass > direct speaker connection.
Jeep Wrangler [JK] (04/2007 -> 02/2011) - original OEM radio. Vehicles up to 2009 analog with Infinity OEM amplifier system not supported. Infinity OEM amplifier bypass > direct speaker connection.
Jeep Wrangler [JK] (02/2011 -> 07/2018) - original OEM radio.

Lancia Voyager [RT] (11/2011 -> 08/2015) - original OEM radio.

Mitsubishi Raider (2008 -> 2009) - original OEM radio. Vehicles up to 2009 analog with Infinity OEM amplifier system not supported. Infinity OEM amplifier bypass > direct speaker connection.

VW Routan (2009 -> 2015) - original OEM radio. Vehicles up to 2009 analog with Infinity OEM amplifier system not supported. Infinity OEM amplifier bypass > direct speaker connection.

CAN Bus Information

Connectors and Power:

Connector: 22-pin Chrysler / 24-pin Chrysler.

Settings:

Check DIP switches on the aftermarket radio (HU).

Vehicle Compatibility:

CAN Bus activation of OEM amplifier system.
Support for speed signal.
Vehicles with CAN Bus without +12V switched ignition (terminal 15).
Vehicles with/without OEM amplifier system.
Vehicles without Infinity OEM amplifier system*/**.
Vehicles without CAN Bus with +12V ignition**.
Vehicles without Blind Spot Monitoring system.

Note:

Blind Spot Monitoring system not supported.
PDC not supported.
Speed signal not supported.
OEM amplifier system fader not supported.

Diagnostic LED Indication:

Blue flashing: searching for CAN Bus signal.
Blue on: CAN Bus active.
Red on: active +12V ignition current.

Important Additional Information

Intended for aftermarket radios from Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, Becker.
To fully activate the adapter, a connecting cable for the specific radio brand must be ordered.

General Installation Guidelines

Verification Before Installation:

Check all control functions and vehicle settings with the original OEM main unit.
Disconnect the original radio (OEM HU) without power.
Check all interface connections to ensure they are properly connected - without power.

Connection and Installation Order:

Check the interface settings and HW configuration - without power.
Check the connection cable configuration to the HU - without power.
Connect the cable to the HU according to the aftermarket device manual.
Connect other wires according to the device manual.
Integrate the entire installation with the vehicle - connect the main power connection last.
Perform software configuration of the interface as instructed in the product description or manual.
Configure the aftermarket HU (e.g., steering wheel control, camera, handsfree, antenna power).
Conduct a functional test of the steering wheel control and vehicle communication.

Changing Interface and HU Cable Configuration:

Make all changes without power.
Repeat steps 5 to 8 listed above.

In Case of Interface or Vehicle System Malfunction:

Reinstall the original OEM HU.
Start the original unit.
Initiate CAN Bus system shutdown.
Check the HW configuration of the interface.
After CAN Bus shutdown, repeat steps 5 and 6 listed above.

When Modifying Connections or Wiring:

Only professionally trained personnel may perform connections and modifications.
All changes must be verified for manufacturer approval or impact on vehicle warranty before connection.
All modifications must be verified by measurement and comparison with the vehicle's wiring diagram before connection.
Modifications are made at your own risk, without a guarantee of functionality.
Modifications are made at your own risk, with no guarantee of avoiding damage to the vehicle, device, or interface.
Modifying pre-installed wiring may lead to loss of product warranty.
