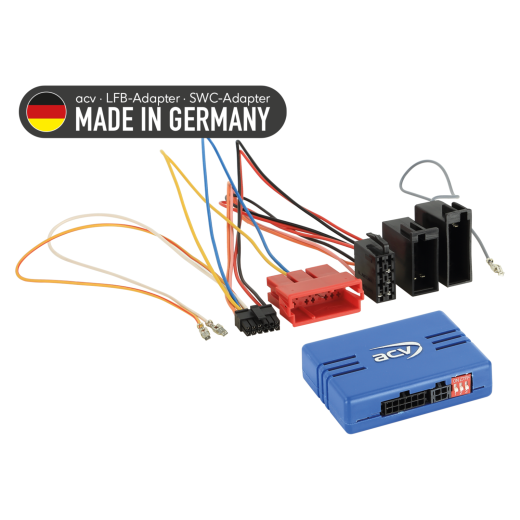

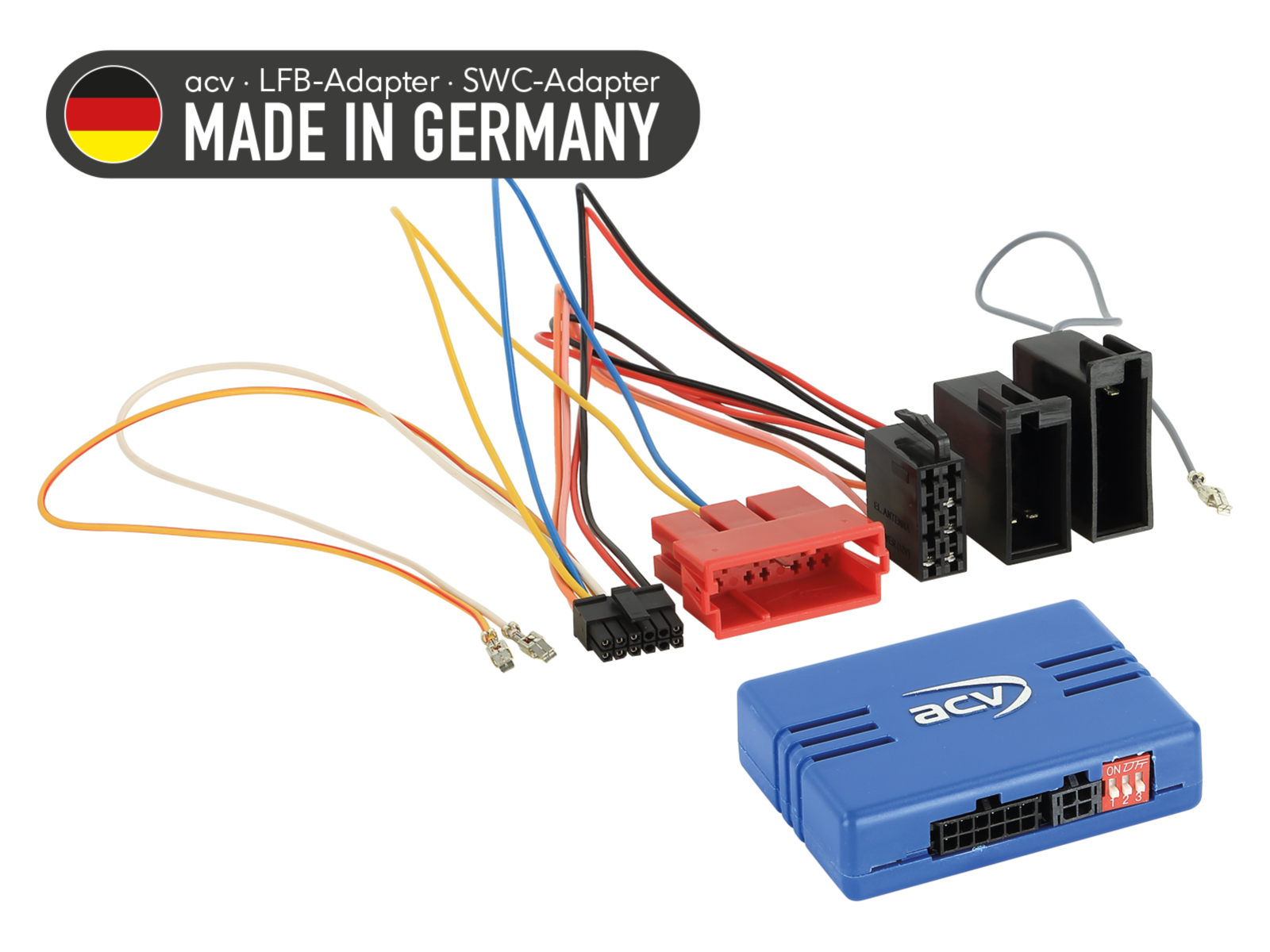

Steering wheel button control adapter for Audi ACV SWC 42A-1324-003-0

steering wheel adapter for Audi A2 (8Z) (11/99->07/05), A3 (8L) (08/00->06/03), A3 (8P) (07/03->05/05), A4 (B6/B7) (11/00->02/09), A6 (4B/C5) (05/01->03/06) and TT (8N) (09/98->07/06)
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

Steering wheel button control adapter for Audi ACV SWC 42A-1324-003-0

Description and parameters
Comments0
Evaluation0
Category

Steering Wheel Control Adapter for Audi ACV SWC 42A-1324-003-0

Maintain the original radio control functions from the steering wheel when replacing the original radio with an aftermarket unit. Depending on the vehicle's equipment, function range, and software of the newly installed radio, some functions may be limited or replaced by others. Compare the displayed connectors of the wiring with the connectors in your vehicle to ensure they match both technically and visually. Check if any of the listed OEM radios were originally installed. Before final installation, verify the vehicle's functionality, system settings, and correct operation of the steering wheel control (SWC).

Suitable for Cars

Audi A2 [8Z] (11/1999 -> 07/2005) - vehicles without OEM audio system, if OEM audio system is present, an active adapter is required: 4-channel Mini ISO->ISO item: 13-1335-02 or 13-1335-04, or 2/4-channel Mini ISO->ISO item: 13-1338-02 or Mini ISO->Cinch item: 13-1445-01.
Audi A3 [8L] (08/2000 -> 06/2003) - vehicles without OEM audio system, if OEM audio system is present, an active adapter is required: 4-channel Mini ISO->ISO item: 13-1335-02 or 13-1335-04, or 2/4-channel Mini ISO->ISO item: 13-1338-02 or Mini ISO->Cinch item: 13-1445-01.
Audi A3 [8P] (07/2003 -> 05/2005) - vehicles without OEM audio system, if OEM audio system is present, an active adapter is required: 4-channel Mini ISO->ISO item: 13-1335-02 or 13-1335-04, or 2/4-channel Mini ISO->ISO item: 13-1338-02 or Mini ISO->Cinch item: 13-1445-01.
Audi A4 [B6/B7] (11/2000 -> 02/2009) - vehicles without OEM audio system, if OEM audio system is present, an active adapter is required: 4-channel Mini ISO->ISO item: 13-1335-02 or 13-1335-04, or 2/4-channel Mini ISO->ISO item: 13-1338-02 or Mini ISO->Cinch item: 13-1445-01.
Audi A6 [4B/C5] (05/2001 -> 03/2006) - vehicles without OEM audio system, if OEM audio system is present, an active adapter is required: 4-channel Mini ISO->ISO item: 13-1335-02 or 13-1335-04, or 2/4-channel Mini ISO->ISO item: 13-1338-02 or Mini ISO->Cinch item: 13-1445-01.
Audi TT [8N] (09/1998 -> 07/2006) - vehicles without OEM audio system, if OEM audio system is present, an active adapter is required: 4-channel Mini ISO->ISO item: 13-1335-02 or 13-1335-04, or 2/4-channel Mini ISO->ISO item: 13-1338-02 or Mini ISO->Cinch item: 13-1445-01.

CAN Bus Information

Connectors and Power Supply:

Connector: ISO / Mini ISO Audi (item: 42cx23).

Settings:

Check DIP switches on the aftermarket head unit (HU).
Vehicles with 1-DIN OEM head unit.
Vehicles without OEM audio system.

Vehicles with OEM Audio System – Recommended Adapters:

Active adapter Audi 4-channel Mini ISO->ISO item: 13-1335-02 or 13-1335-04.
Active adapter Audi 2/4-channel Mini ISO->ISO item: 13-1338-02.
Active adapter Audi 2/4-channel Mini ISO->Cinch item: 13-1445-01.

Available Signals from the Interface:

Pink: +12 V ignition terminal 15 (max. 1.5 A).
Orange: +12 V illumination terminal 58 (max. 0.1 A).
White: +12 V reverse signal (max. 1.5 A).
Yellow/green, yellow/red: speed pulse.

Important Additional Information

Designed for aftermarket radios from Alpine, Blaupunkt, Clarion, Digital Dynamics, ESX, JVC, Kenwood, Pioneer, Snooper, Sony, XZent, Zenec, and others (multilead solution).
To fully activate the adapter, an interconnecting cable for the specific radio brand must be ordered.

General Installation Guidelines

Pre-Installation Verification:

Check all control functions and vehicle settings with the original OEM head unit.
Remove the original radio (OEM HU) without power.
Check all interface connections for correct wiring – without power.

Connection and Installation Order:

Perform interface settings and hardware configuration without power.
Check the connection cable configuration to the HU.
Connect the cable to the HU according to the aftermarket device instructions.
Connect other wires according to the device instructions.
Connect the entire installation to the vehicle – connect the main power connection last.
Perform software configuration of the interface according to the product description and BDA.
Configure the aftermarket HU (steering wheel control, camera, handsfree, antenna power, etc.).
Conduct a functional test of the steering wheel control and vehicle communication.

Change of Interface Configuration and HU Cable:

Make all changes without power.
Repeat steps 5 to 8 above after making changes.

In Case of Interface or Vehicle System Failure:

Return the original OEM HU to the vehicle.
Start the original unit.
Induce the CAN Bus system to sleep.
Check the HW configuration of the interface.
After the CAN Bus has calmed, repeat steps 5 to 8 above.

When Modifying Connections or Wiring:

Only professionally trained personnel should perform connections and modifications.
All changes must be verified for manufacturer approval or impact on vehicle warranty before connection.
All modifications must be verified by measurement and comparison with the vehicle wiring diagram before connection.
Modifications are made at your own risk, without warranty on functionality.
Modifications are carried out at your own risk, without guarantee of excluding damage to the vehicle, device, or interface.
Modifications of pre-installed wiring may lead to product warranty loss.
